Commercial
Insulated
Pin Terminals

Filter

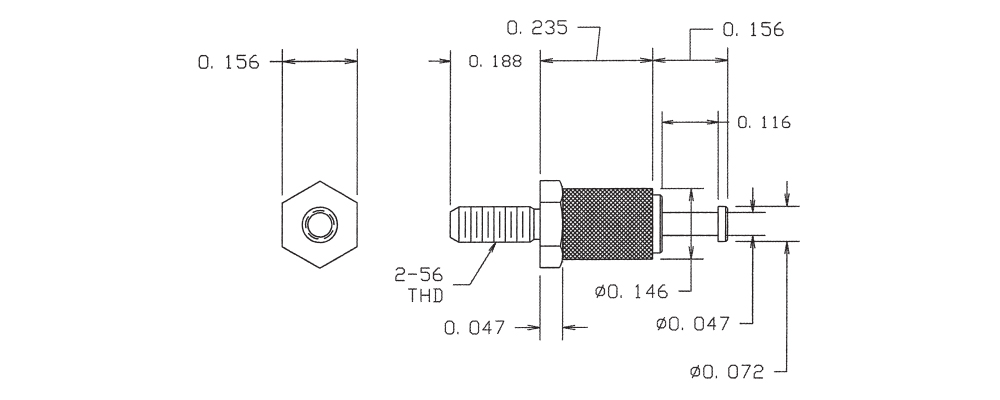

1127-57-0114
1127-57-0114
1127-57-0114
0.579" - - 2-56 Nut 1/16 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES

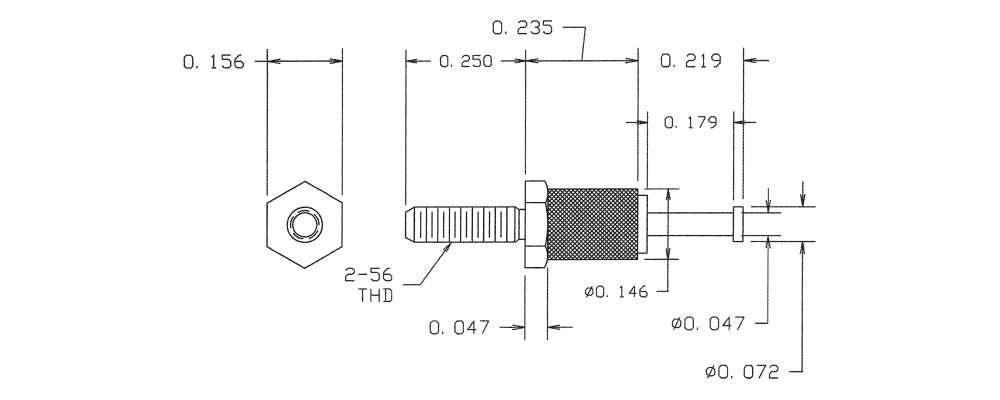

1127-61-0410
1127-61-0410
1127-61-0410
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES

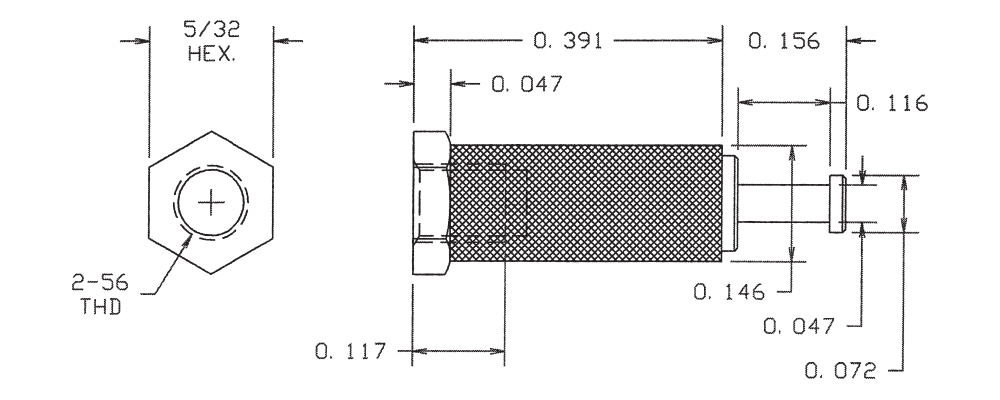

1127-65-04416
1127-65-04416
1127-65-04416
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES

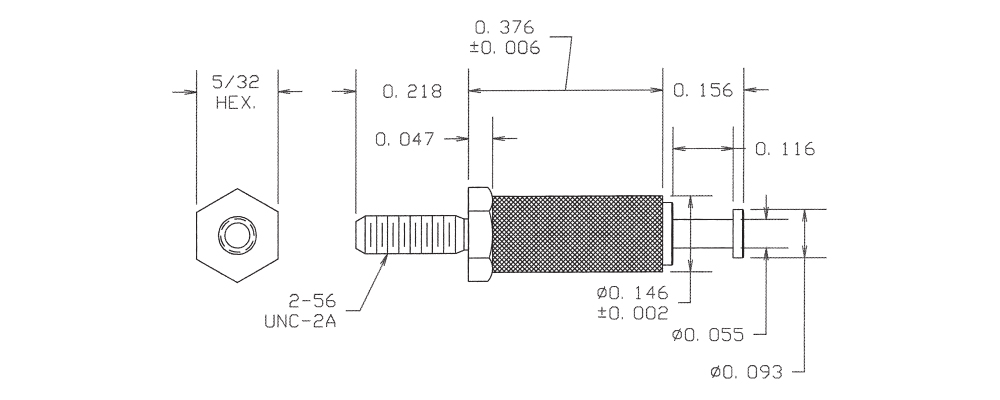

1127-69-08812
1127-69-08812
1127-69-08812
0.750" - - 2-56 Nut 3/32 0.094 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Red NO
1127-74-0118
1127-74-0118
1127-74-0118
1.000" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES

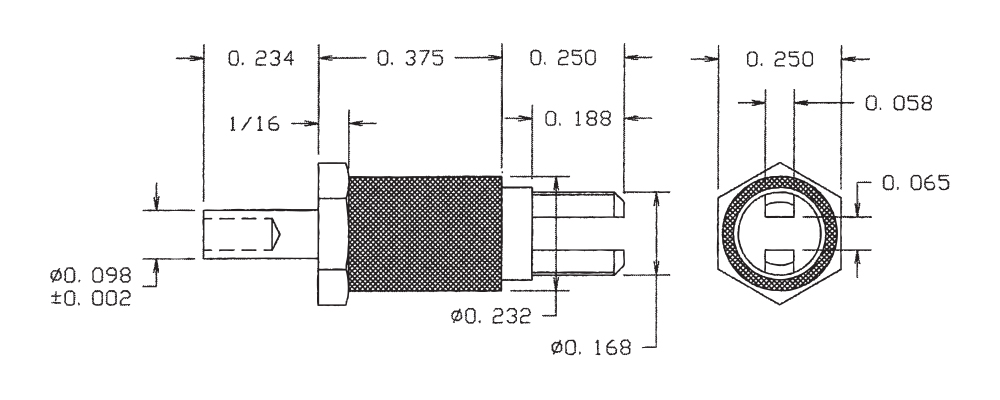

1127-78-0414
1127-78-0414
1127-78-0414
0.859" - - Swage Mount 3/16 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES

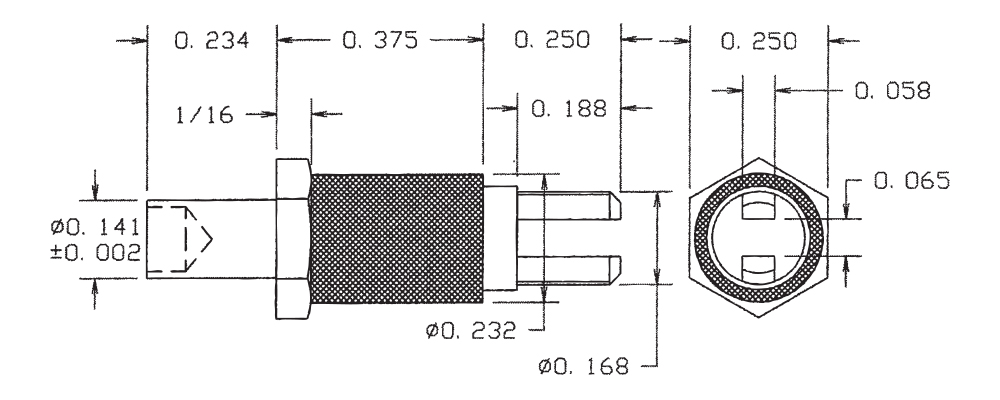

1127-82-0510
1127-82-0510
1127-82-0510
0.859" - - Swage Mount 3/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO

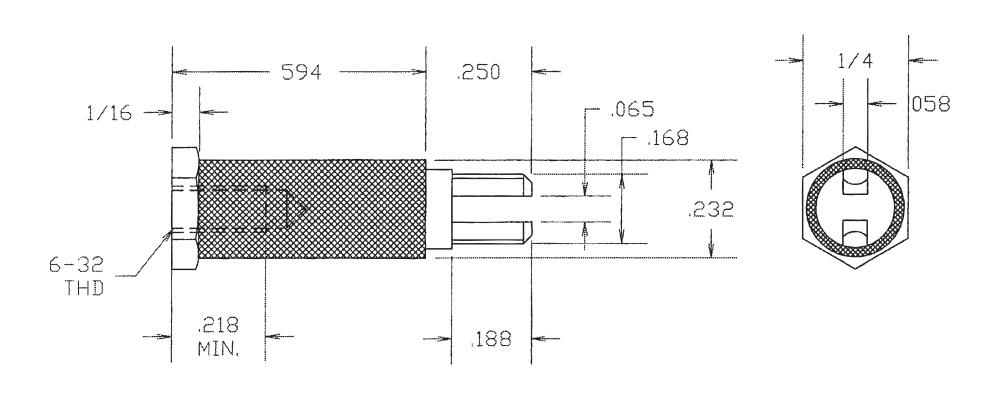

1127-86-08816
1127-86-08816
1127-86-08816
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO
1127-91-0312
1127-91-0312
1127-91-0312
0.674" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1127-95-0418
1127-95-0418
1127-95-0418
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1130-01-0514
1130-01-0514
1130-01-0514
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Yellow NO
1130-07-0110
1130-07-0110
1130-07-0110
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Black YES
1130R-05-0316
1130R-05-0316
1130R-05-0316
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Blue YES
1131-02-04412
1131-02-04412
1131-02-04412
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Red NO
1131-06-0518
1131-06-0518
1131-06-0518
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Gray NO
1132-01-0114
1132-01-0114
1132-01-0114
0.645" 0.090 - Solder 7/32 0.0935 Brass Silver - - PTFE Yellow NO
1133-02-0410
1133-02-0410
1133-02-0410
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Black YES
1133R-05-04416
1133R-05-04416
1133R-05-04416
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Blue YES
1135-04-08812
1135-04-08812
1135-04-08812
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin-Lead - - PTFE Red NO
1135-09-0118
1135-09-0118
1135-09-0118
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO
