Commercial
Insulated
Pin Terminals

Filter
1111-10-0514
1111-10-0514
1111-10-0514
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Yellow NO
1111-15-0110
1111-15-0110
1111-15-0110
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES
1111-20-0316
1111-20-0316
1111-20-0316
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Blue YES
1111-24-04412
1111-24-04412
1111-24-04412
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Red NO

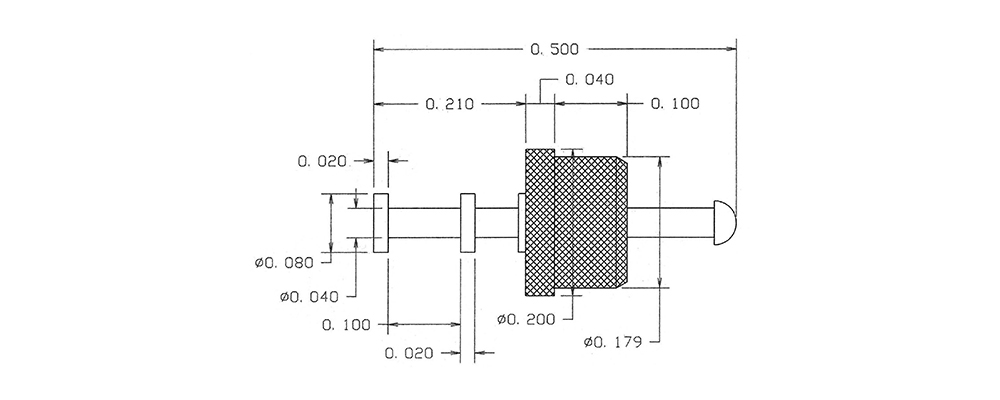

1111-33-0518
1111-33-0518
1111-33-0518
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Gray NO
1111-38-0114
1111-38-0114
1111-38-0114
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO
1111-44-0410
1111-44-0410
1111-44-0410
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Electro-Tin - - PTFE Black YES
1111-50-04416
1111-50-04416
1111-50-04416
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Blue YES

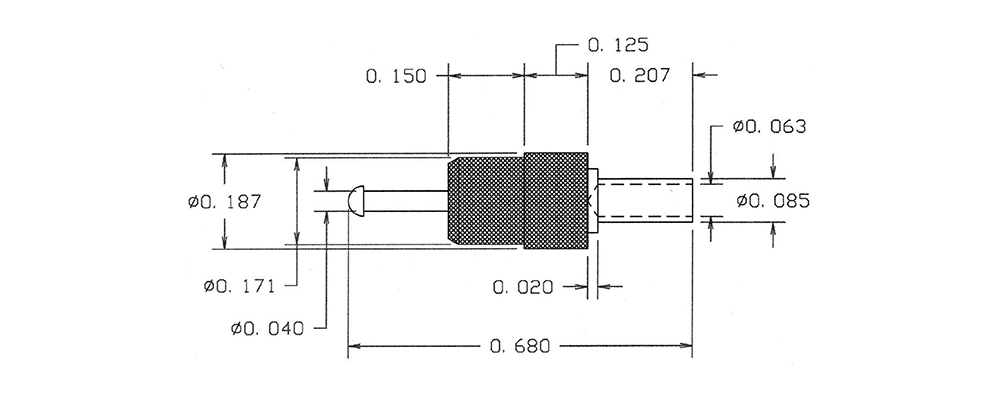

1111-57-08812
1111-57-08812
1111-57-08812
0.680" 0.040 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Red NO
1111R-09-0118
1111R-09-0118
1111R-09-0118
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
1111R-14-0414
1111R-14-0414
1111R-14-0414
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Yellow NO
1112-06-0510
1112-06-0510
1112-06-0510
0.233" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Black NO

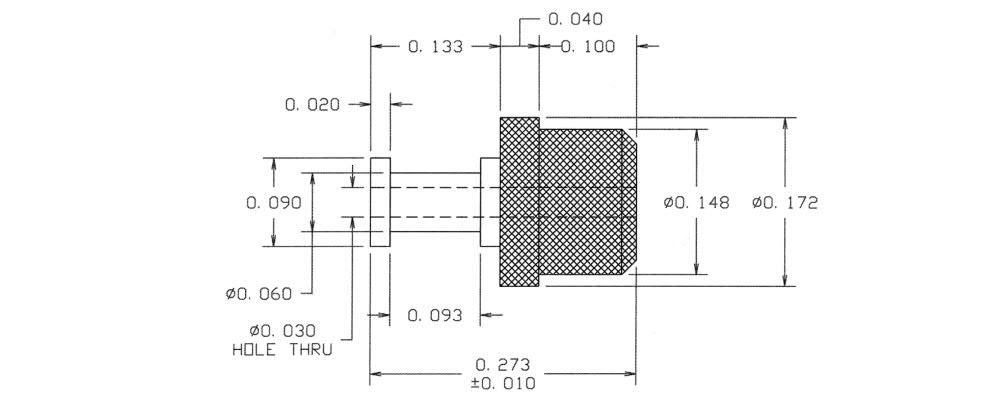

1112-13-08816
1112-13-08816
1112-13-08816
0.273" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1112-65-0312
1112-65-0312
1112-65-0312
0.155" - - Press Fit 1/32 0.058 Brass Gold - - PTFE Red NO

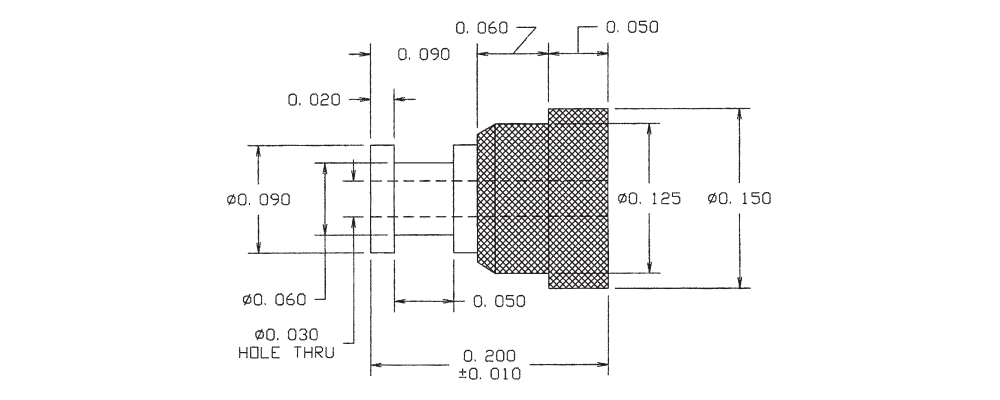

1112R-05-0418
1112R-05-0418
1112R-05-0418
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Gray NO
1112R-61-0514
1112R-61-0514
1112R-61-0514
0.200" - - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Yellow NO
1113-03-0110
1113-03-0110
1113-03-0110
0.333" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1113-57-0316
1113-57-0316
1113-57-0316
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Gold - - PTFE Blue YES
1114-03-04412
1114-03-04412
1114-03-04412
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin - - PTFE Red NO

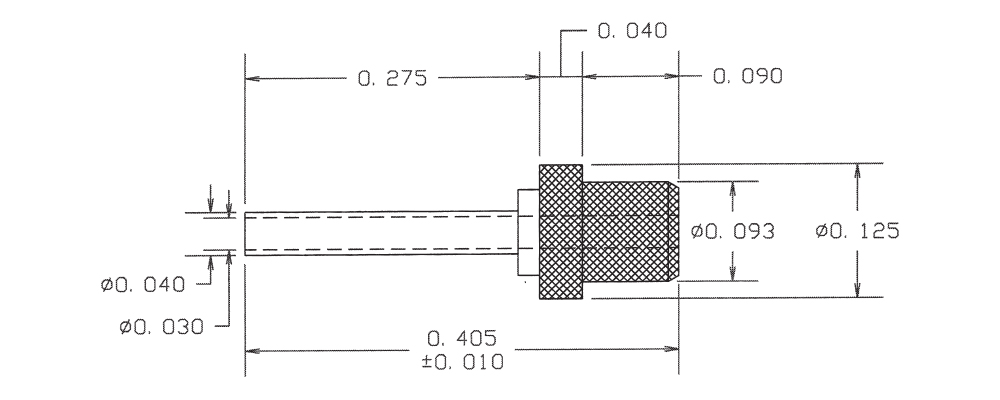

1114-07-0518
1114-07-0518
1114-07-0518
0.405" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Gray NO
