Commercial
Insulated
Pin Terminals

Filter

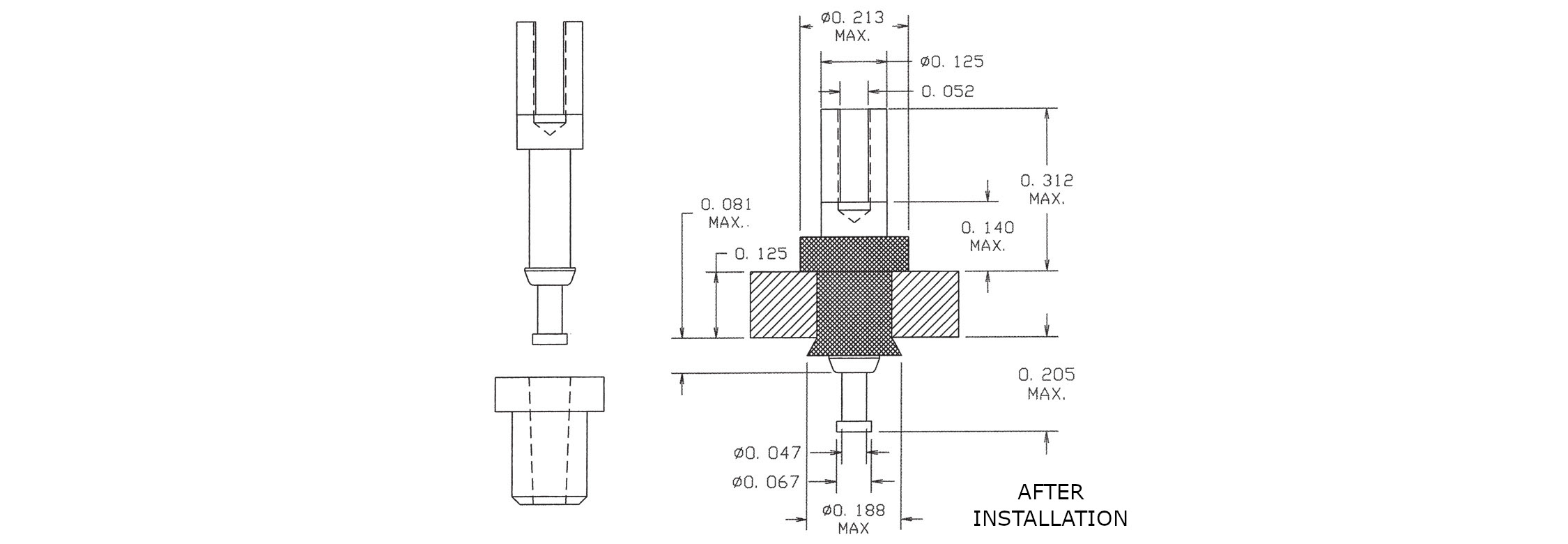

1175-444-0514
1175-444-0514
1175-444-0514
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO

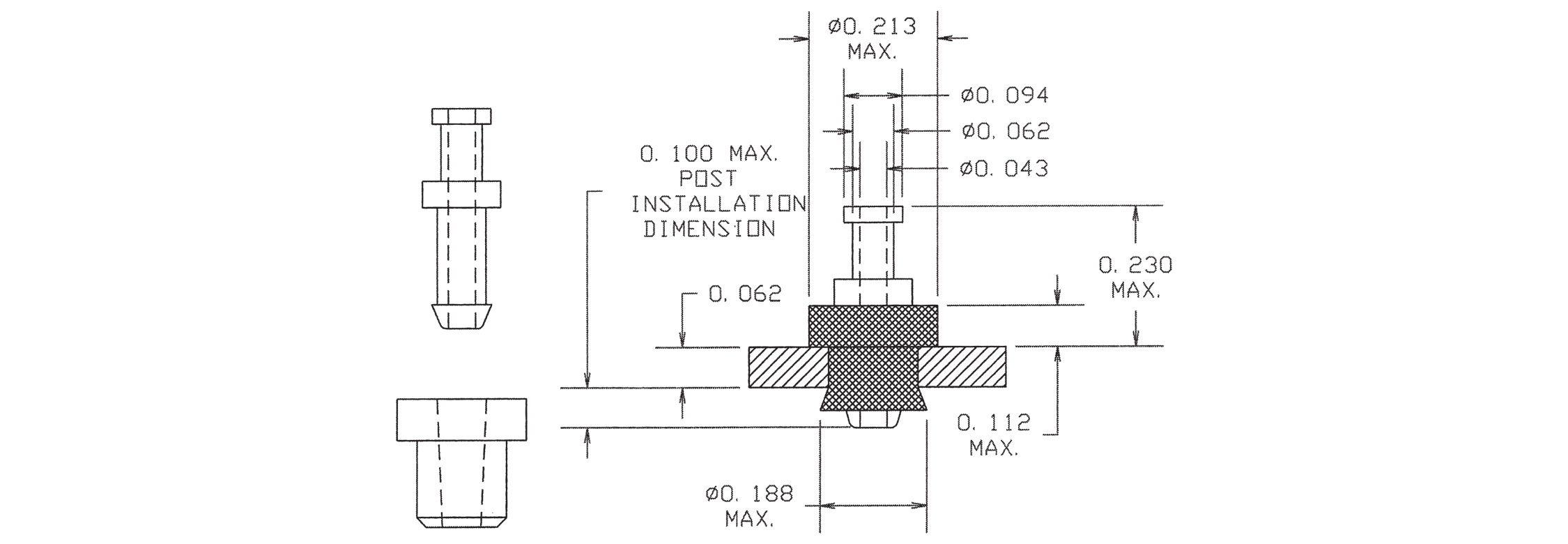

1175-462-0110
1175-462-0110
1175-462-0110
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Black YES
1175-473-0316
1175-473-0316
1175-473-0316
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
1175-491-04412
1175-491-04412
1175-491-04412
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO

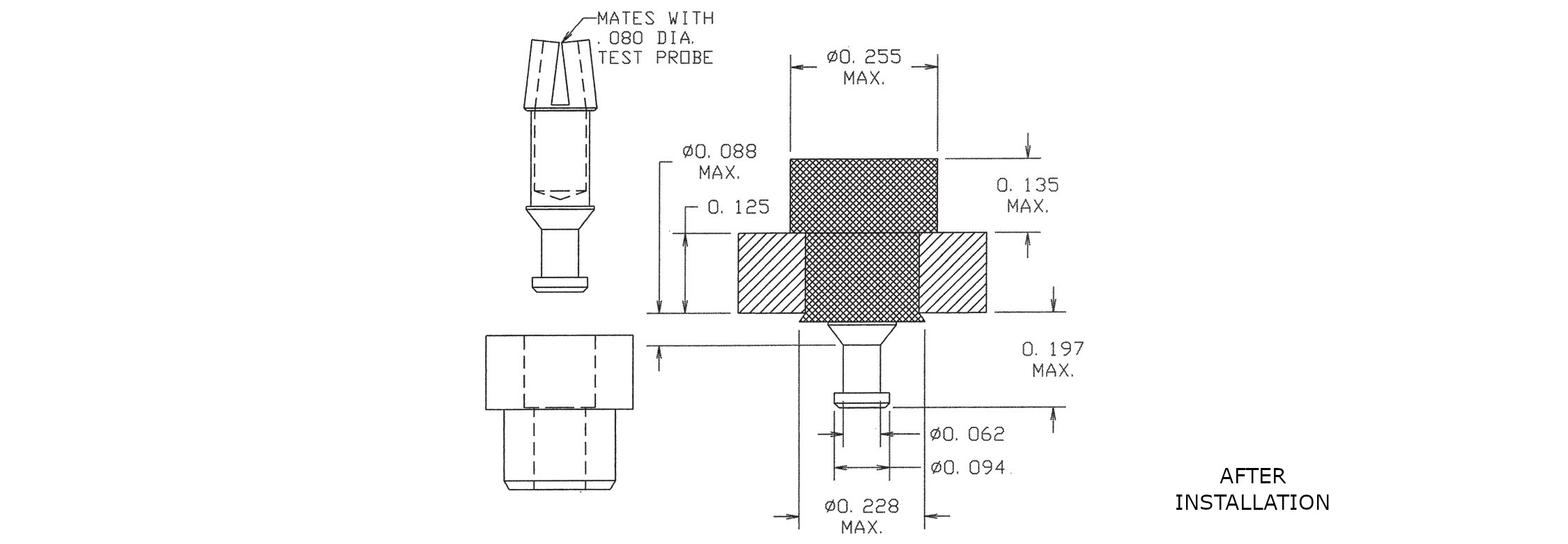

1175-514-0518
1175-514-0518
1175-514-0518
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO
1175-702-0114
1175-702-0114
1175-702-0114
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO
1175-712-0410
1175-712-0410
1175-712-0410
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES
1175-722-04416
1175-722-04416
1175-722-04416
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES

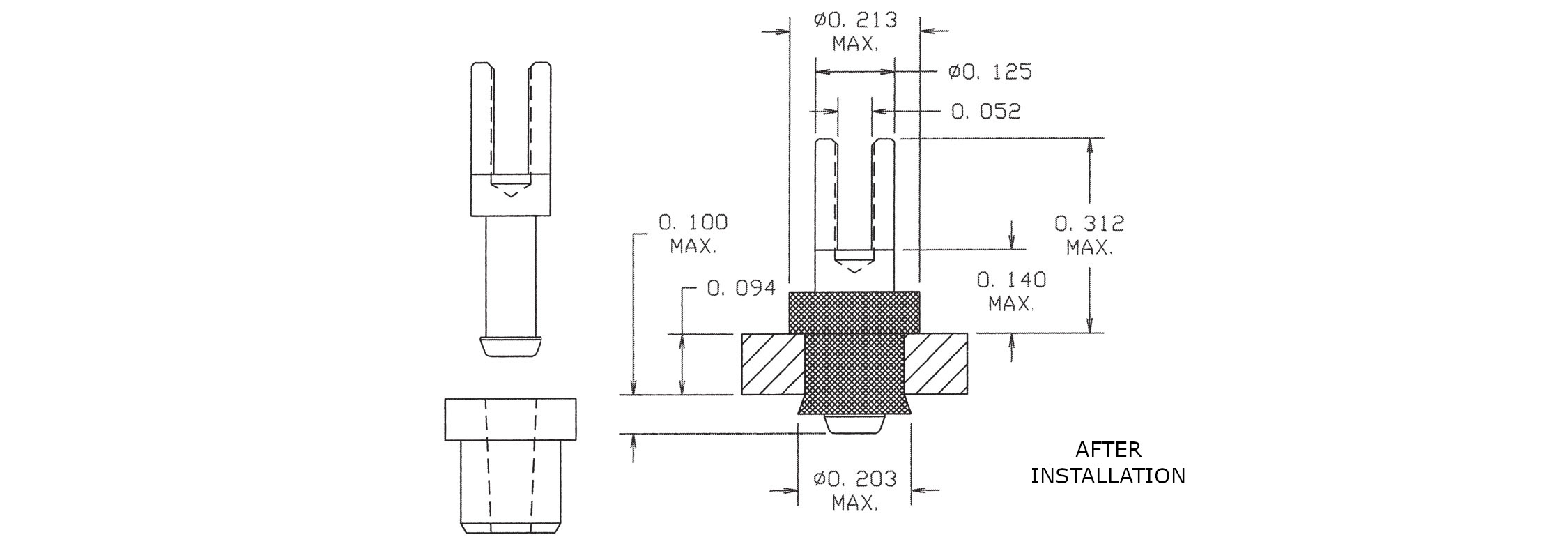

1175-733-08812
1175-733-08812
1175-733-08812
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-751-0118
1175-751-0118
1175-751-0118
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-762-0414
1175-762-0414
1175-762-0414
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-821-0510
1175-821-0510
1175-821-0510
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO

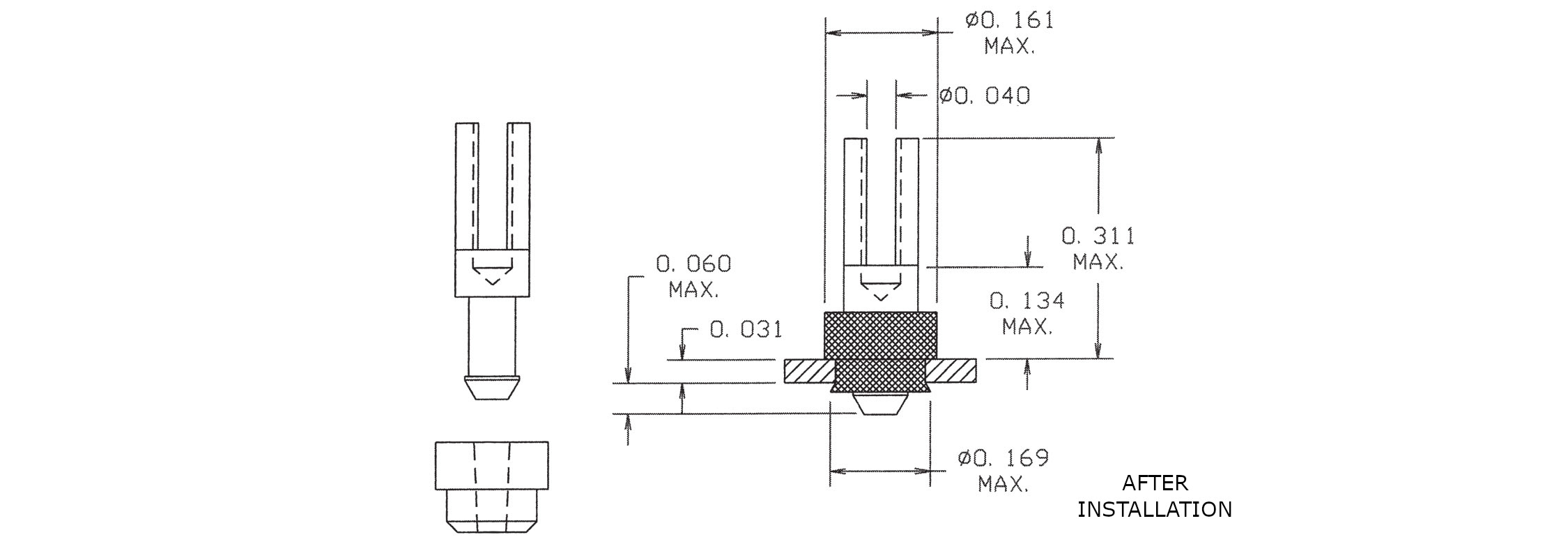

1175-841-08816
1175-841-08816
1175-841-08816
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1175-872-0312
1175-872-0312
1175-872-0312
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1177-02-0418
1177-02-0418
1177-02-0418
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro-Tin - - PTFE Gray NO

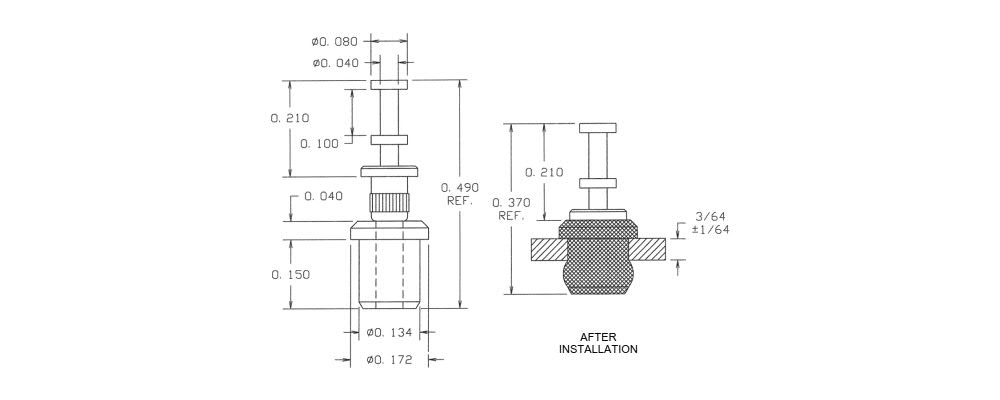

1177-11-0514
1177-11-0514
1177-11-0514
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

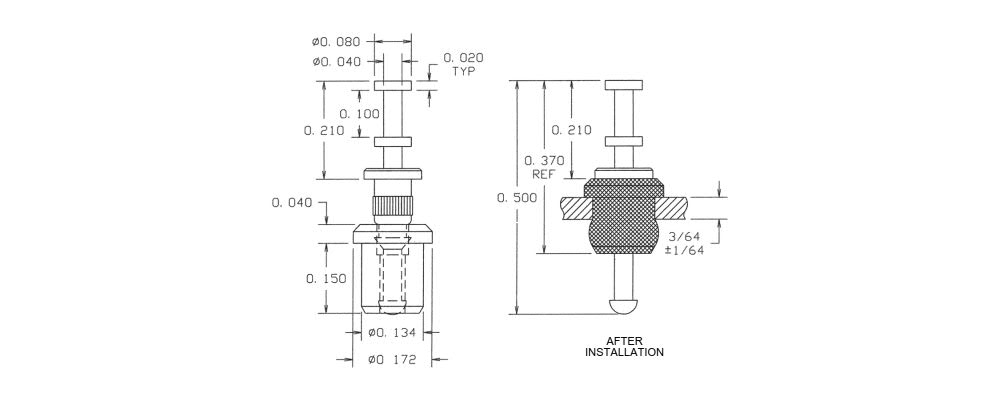

1177-32-0110
1177-32-0110
1177-32-0110
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Black YES

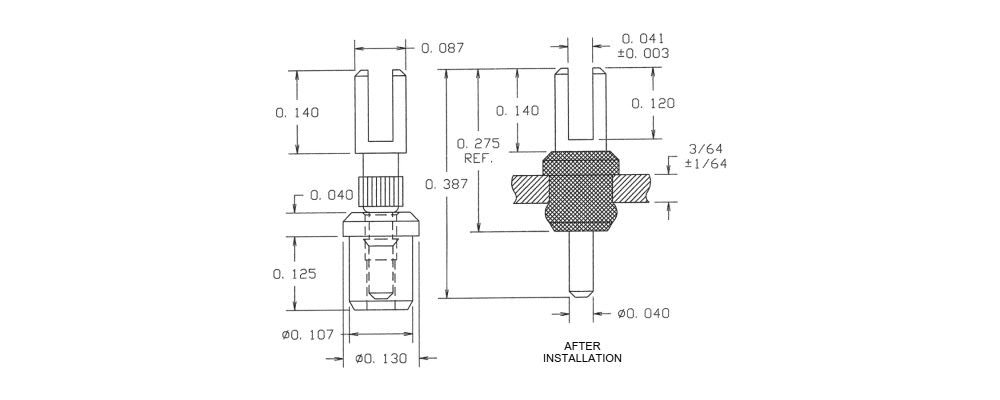

1177-41-0316
1177-41-0316
1177-41-0316
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE Blue YES
1177-52-04412
1177-52-04412
1177-52-04412
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Red NO

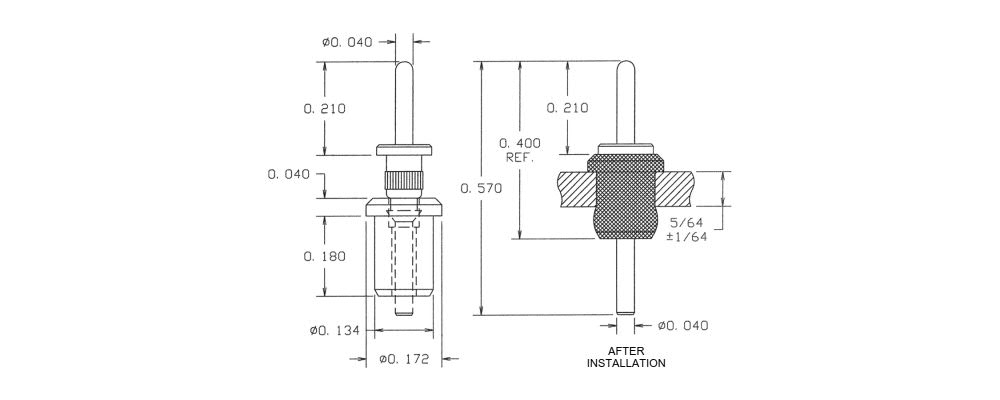

1177-56-0518
1177-56-0518
1177-56-0518
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro Solder - - PTFE Gray NO
