Commercial
Insulated
Pin Terminals

Filter

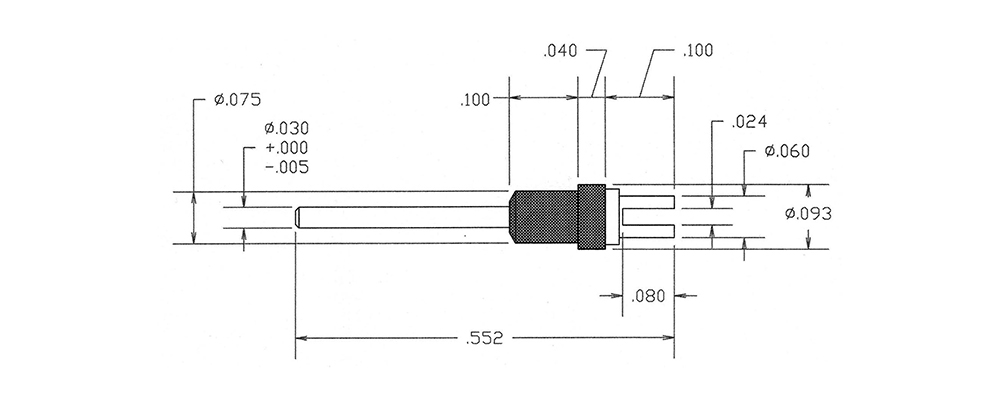

1137-02-0414
1137-02-0414
1137-02-0414
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Yellow NO

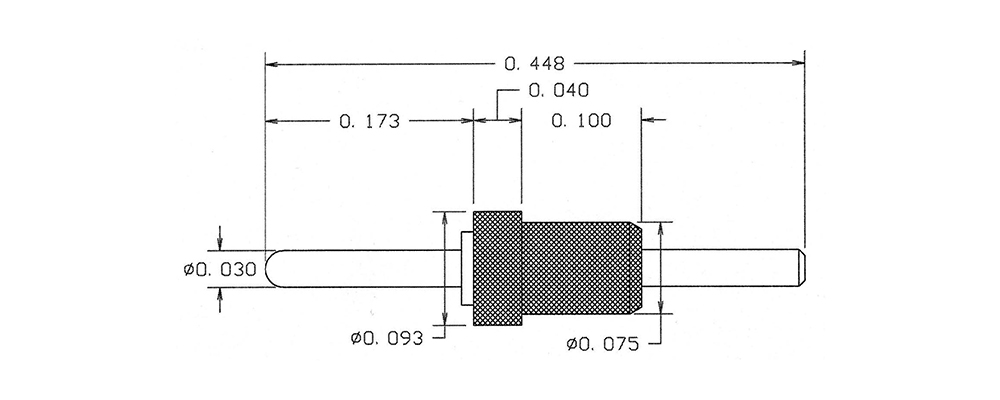

1139-03-0510
1139-03-0510
1139-03-0510
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Black NO

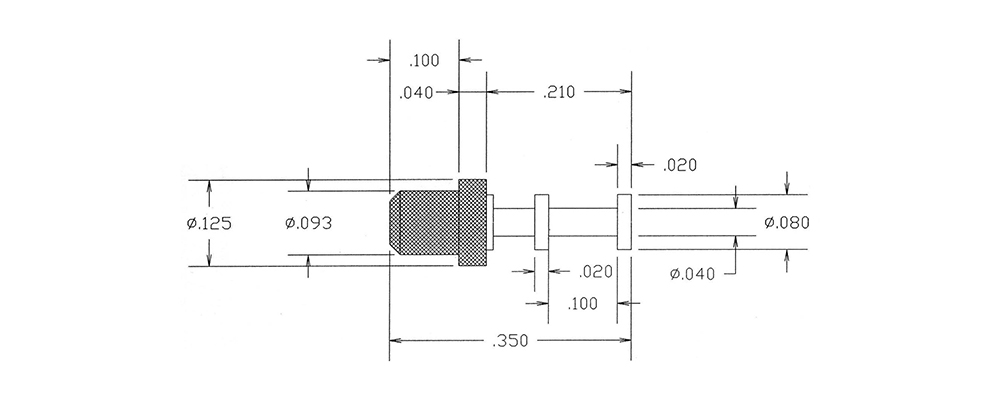

1151-02-08816
1151-02-08816
1151-02-08816
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1151-11-0312
1151-11-0312
1151-11-0312
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO
1151-19-0418
1151-19-0418
1151-19-0418
0.444" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO

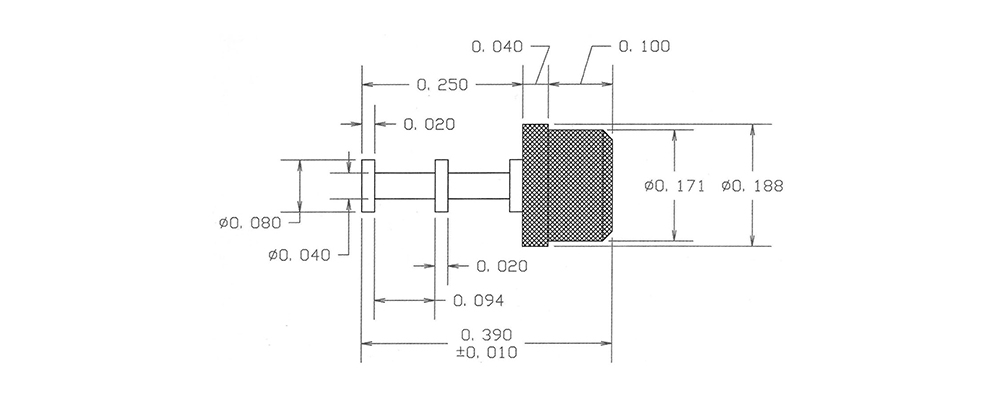

1151-38-0514
1151-38-0514
1151-38-0514
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1151-51-0110
1151-51-0110
1151-51-0110
1.234" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Black YES

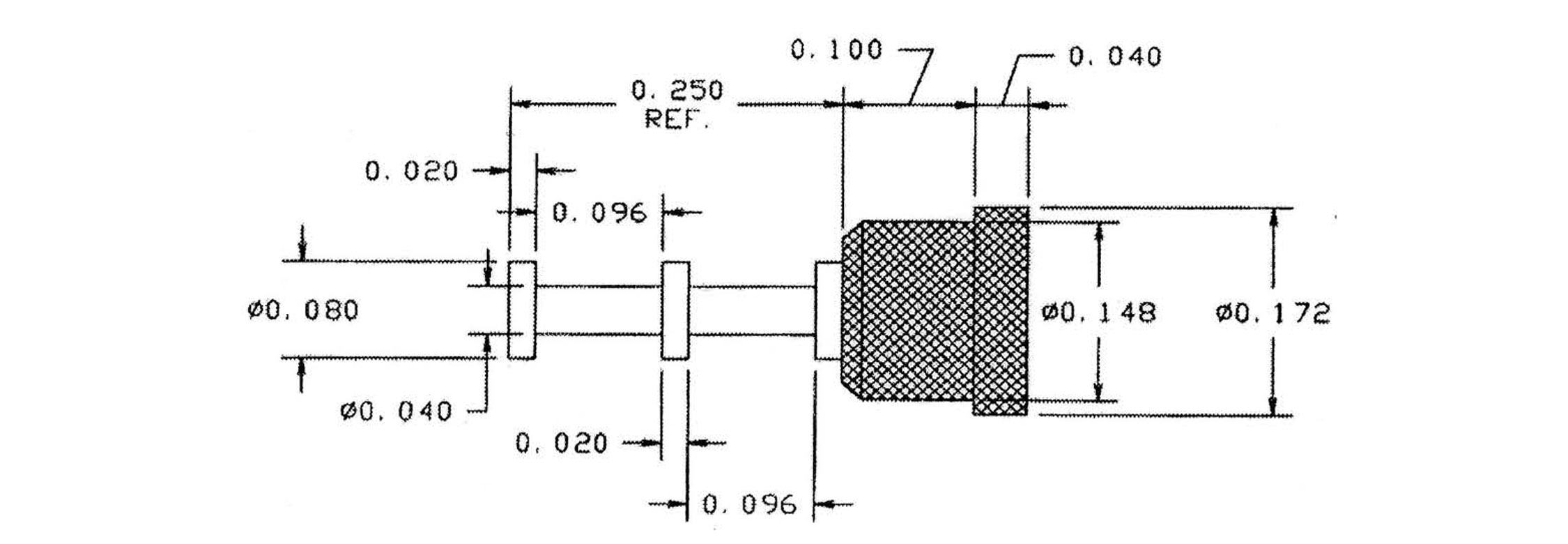

1151R-09-0316
1151R-09-0316
1151R-09-0316
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES
1151R-38-04412
1151R-38-04412
1151R-38-04412
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Red NO

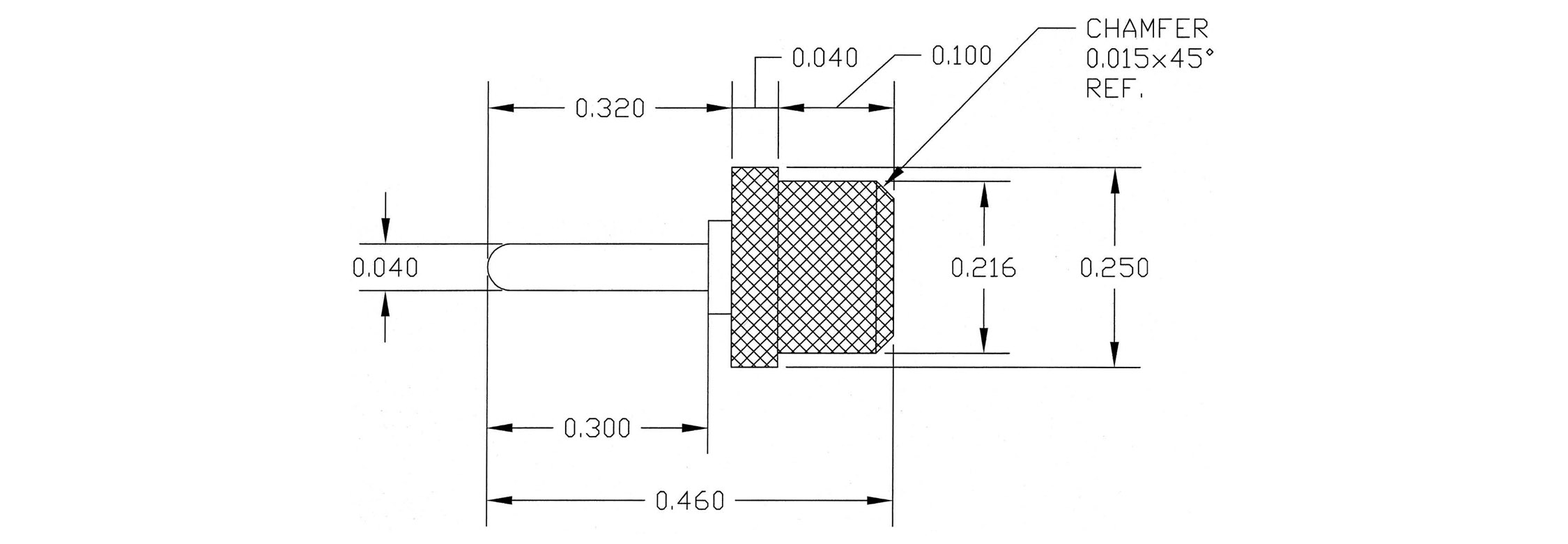

1152-29-0518
1152-29-0518
1152-29-0518
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE Gray NO
1152R-17-0114
1152R-17-0114
1152R-17-0114
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Yellow NO

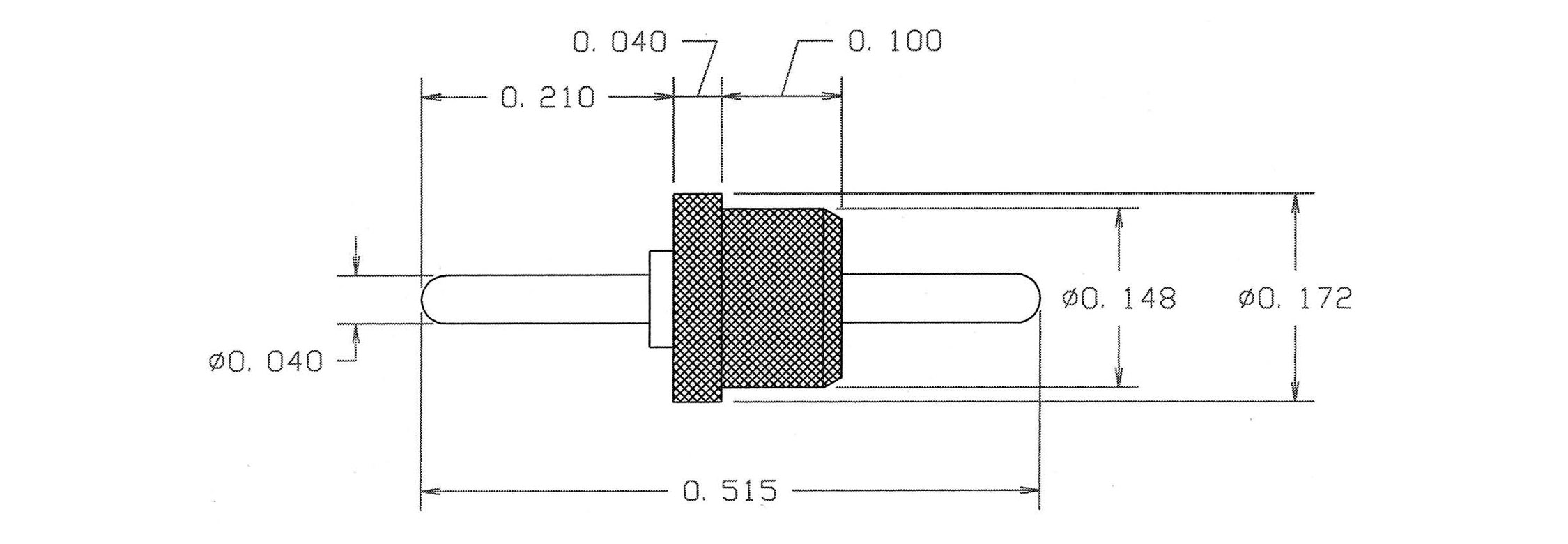

1153-06-0410
1153-06-0410
1153-06-0410
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1153-31-04416
1153-31-04416
1153-31-04416
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Blue YES

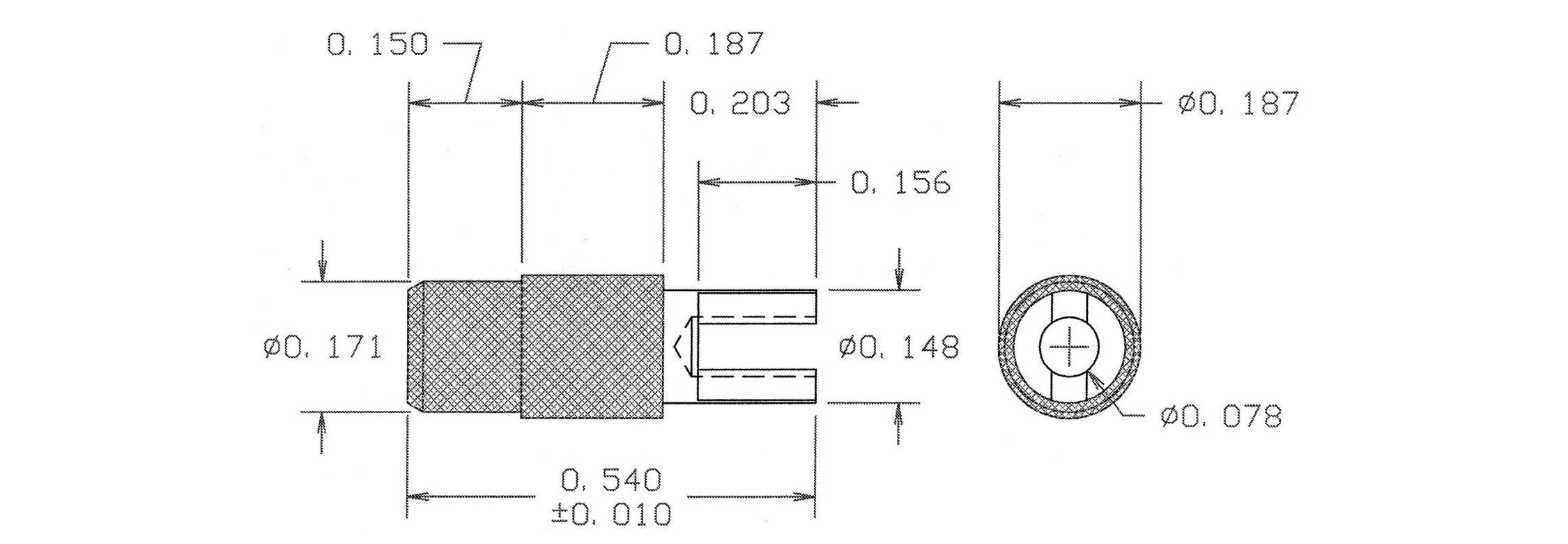

1154-08-08812
1154-08-08812
1154-08-08812
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Red NO
1154-44-0118
1154-44-0118
1154-44-0118
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Gray NO

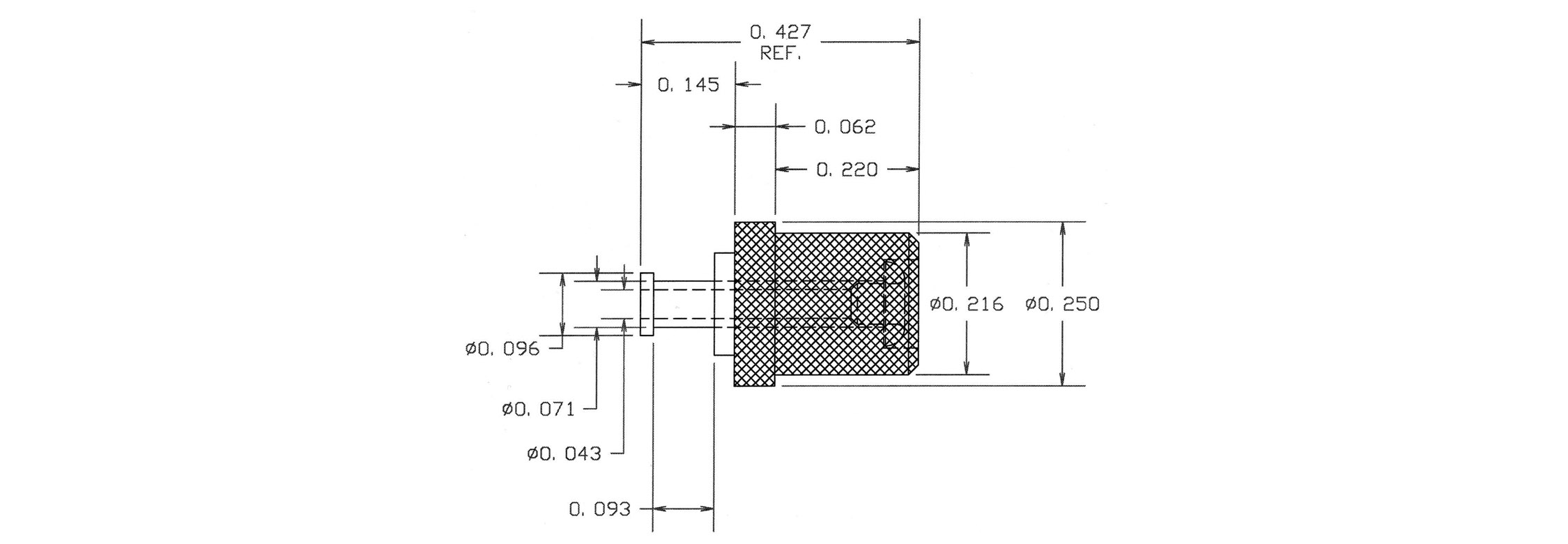

1155-01-0414
1155-01-0414
1155-01-0414
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Yellow NO

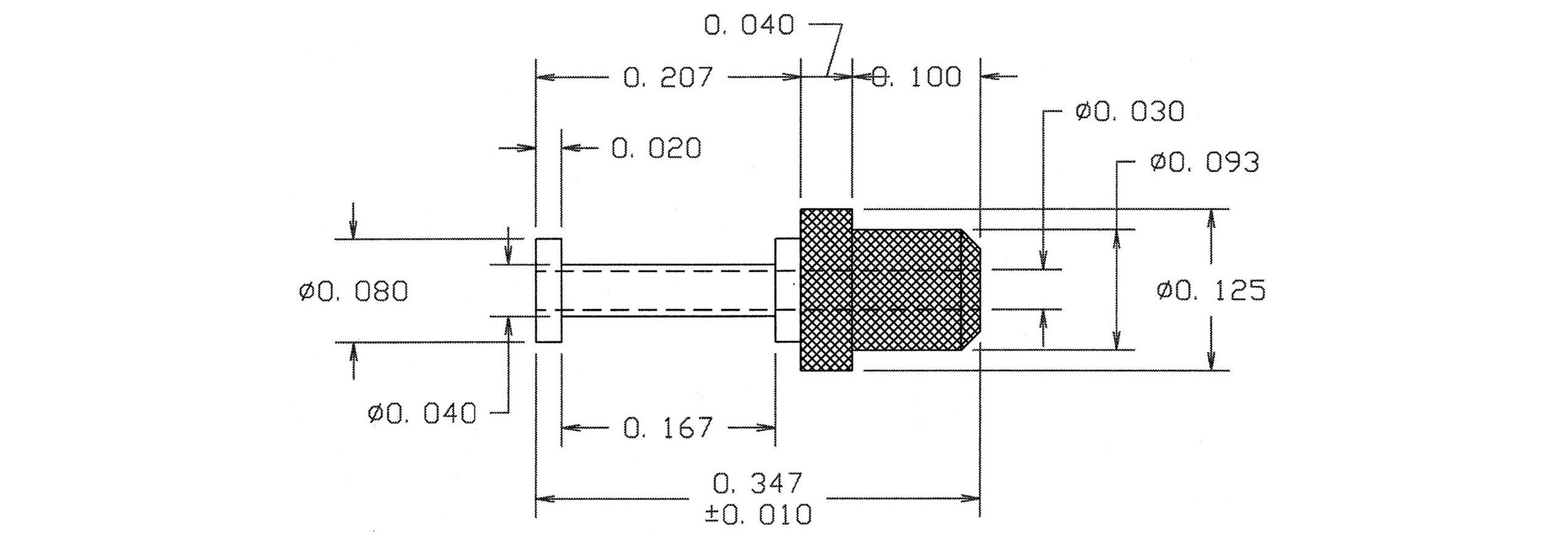

1155-07-0510
1155-07-0510
1155-07-0510
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Black NO

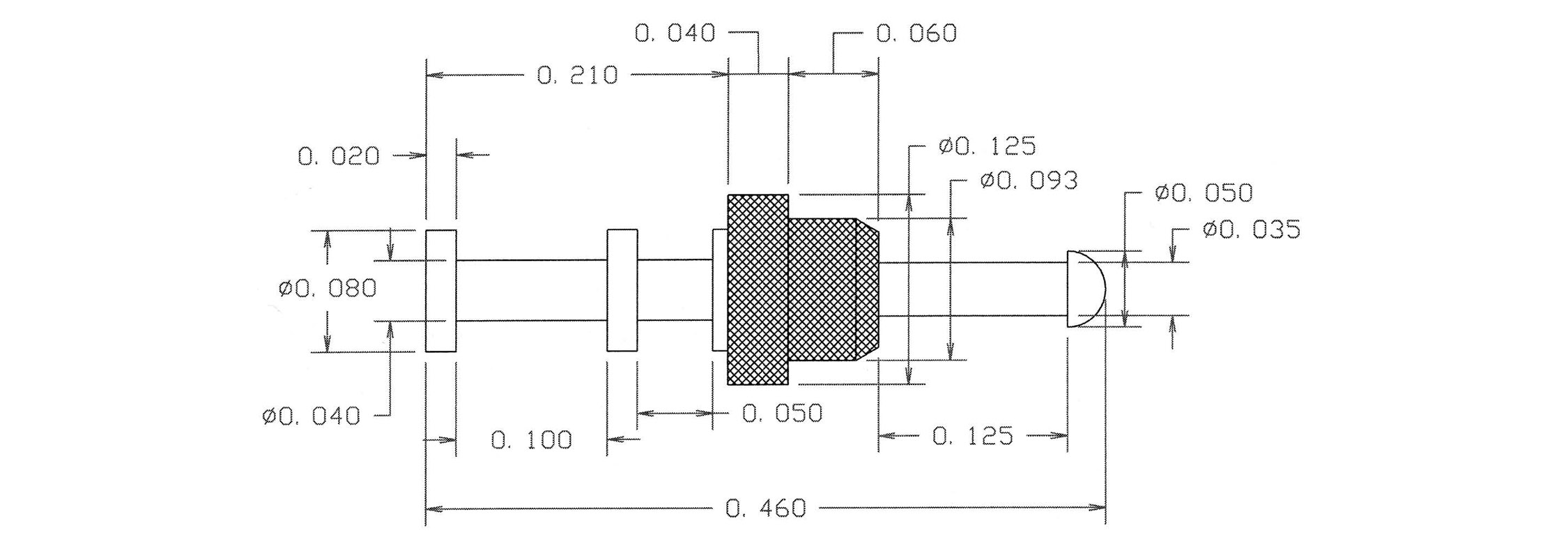

1156-01-08816
1156-01-08816
1156-01-08816
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Blue NO

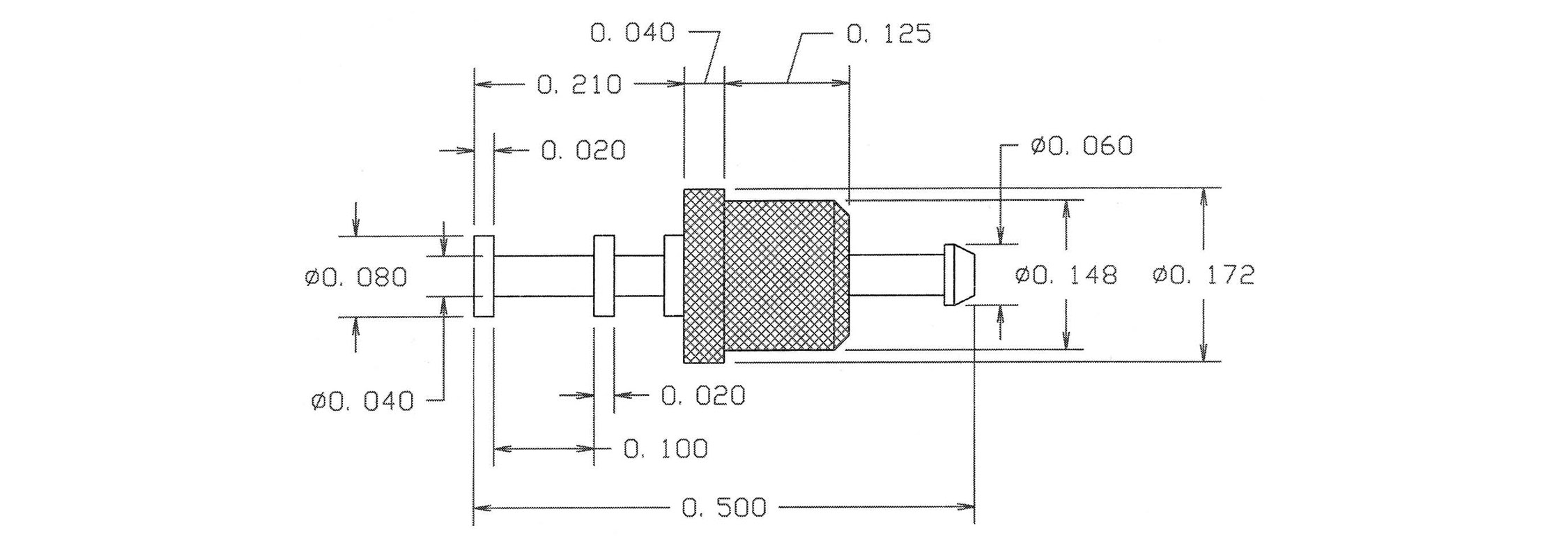

1156-07-0312
1156-07-0312
1156-07-0312
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO

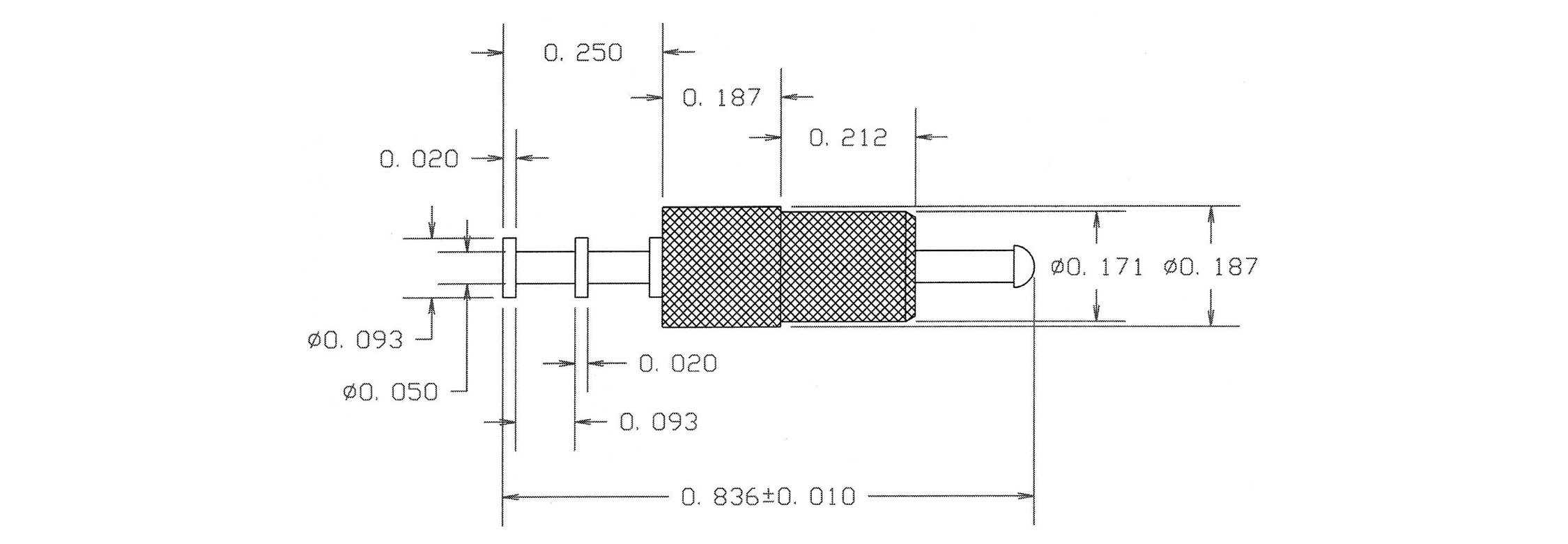

1156-14-0418
1156-14-0418
1156-14-0418
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Gray NO
