Commercial
Insulated
Pin Terminals

Filter

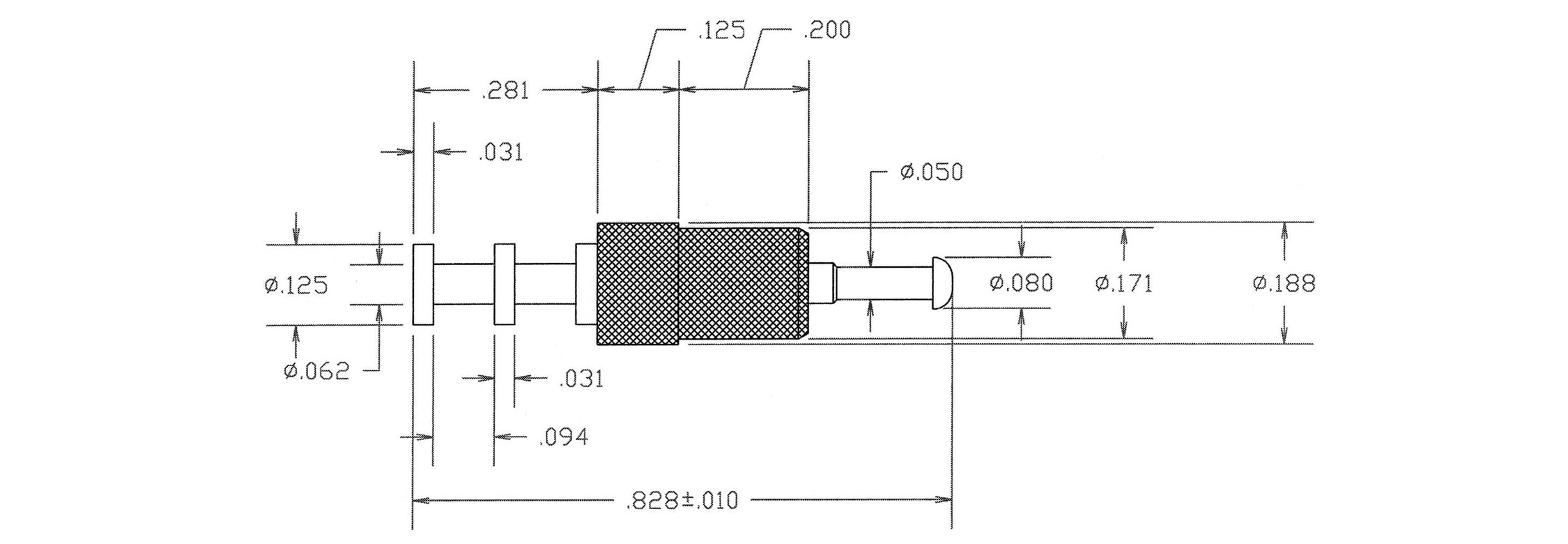

1156-18-0514
1156-18-0514
1156-18-0514
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Yellow NO

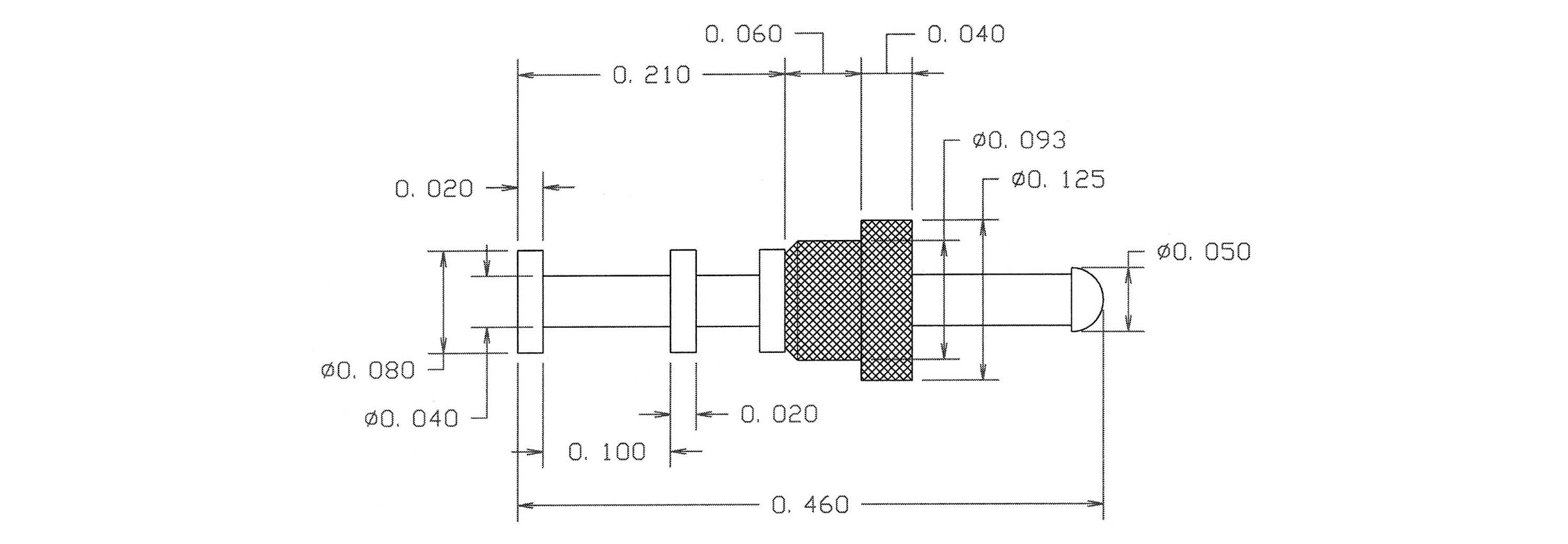

1156R-01-0110
1156R-01-0110
1156R-01-0110
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Black YES
1157-01-0316
1157-01-0316
1157-01-0316
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES
1157-06-04412
1157-06-04412
1157-06-04412
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Red NO

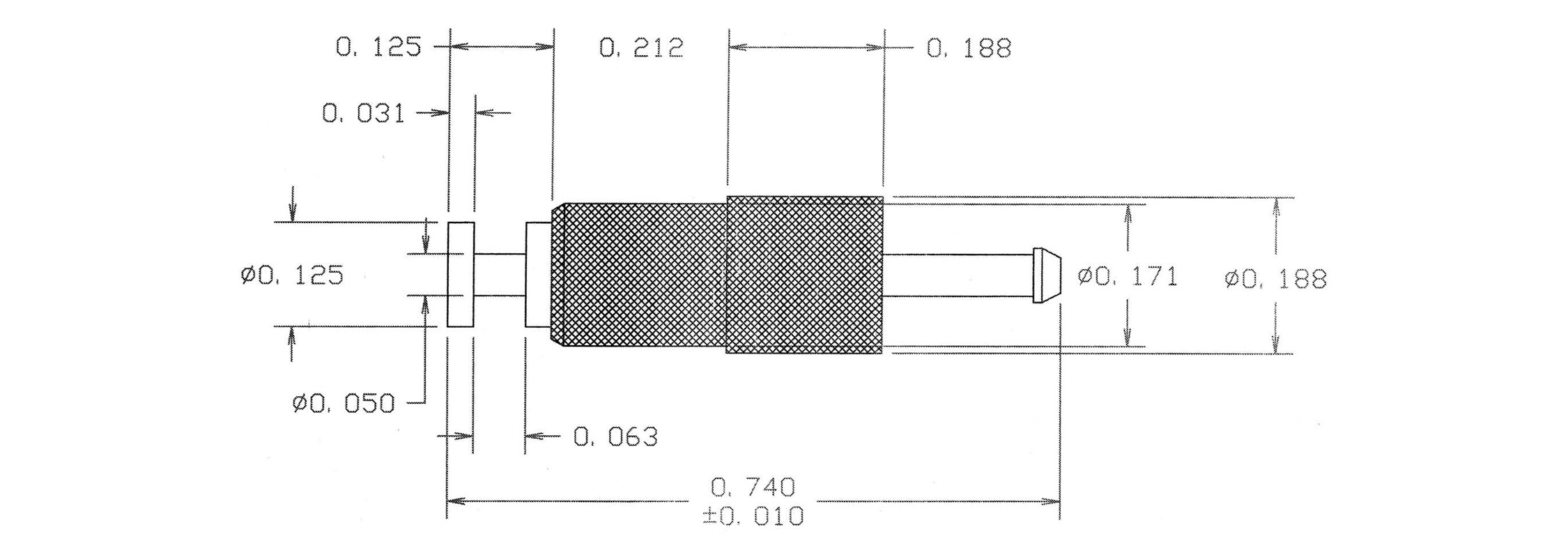

1157R-04-0518
1157R-04-0518
1157R-04-0518
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Gray NO
1160-13-0114
1160-13-0114
1160-13-0114
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Yellow NO
1167-20-0410
1167-20-0410
1167-20-0410
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES
1167-67-04416
1167-67-04416
1167-67-04416
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1169-08-08812
1169-08-08812
1169-08-08812
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1169-37-0118
1169-37-0118
1169-37-0118
0.750" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES

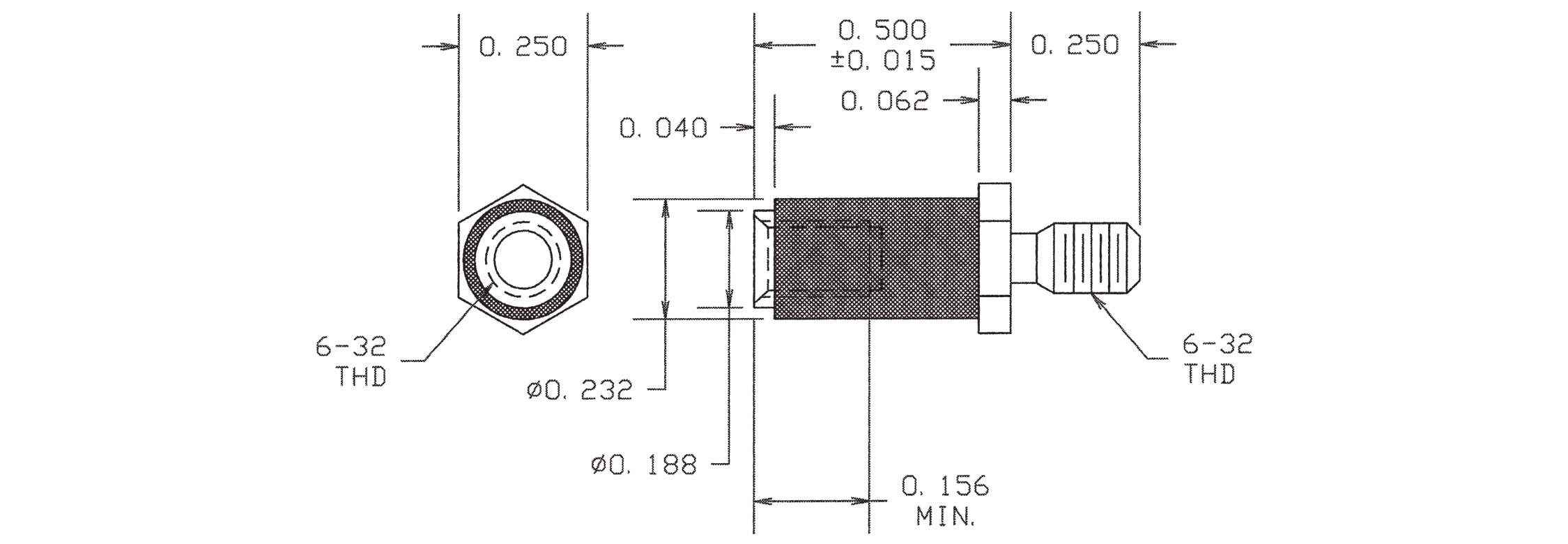

1170-03-07514
1170-03-07514
1170-03-07514
0.750" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Yellow YES
1170-22-0410
1170-22-0410
1170-22-0410
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES
1175-012-04416
1175-012-04416
1175-012-04416
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES

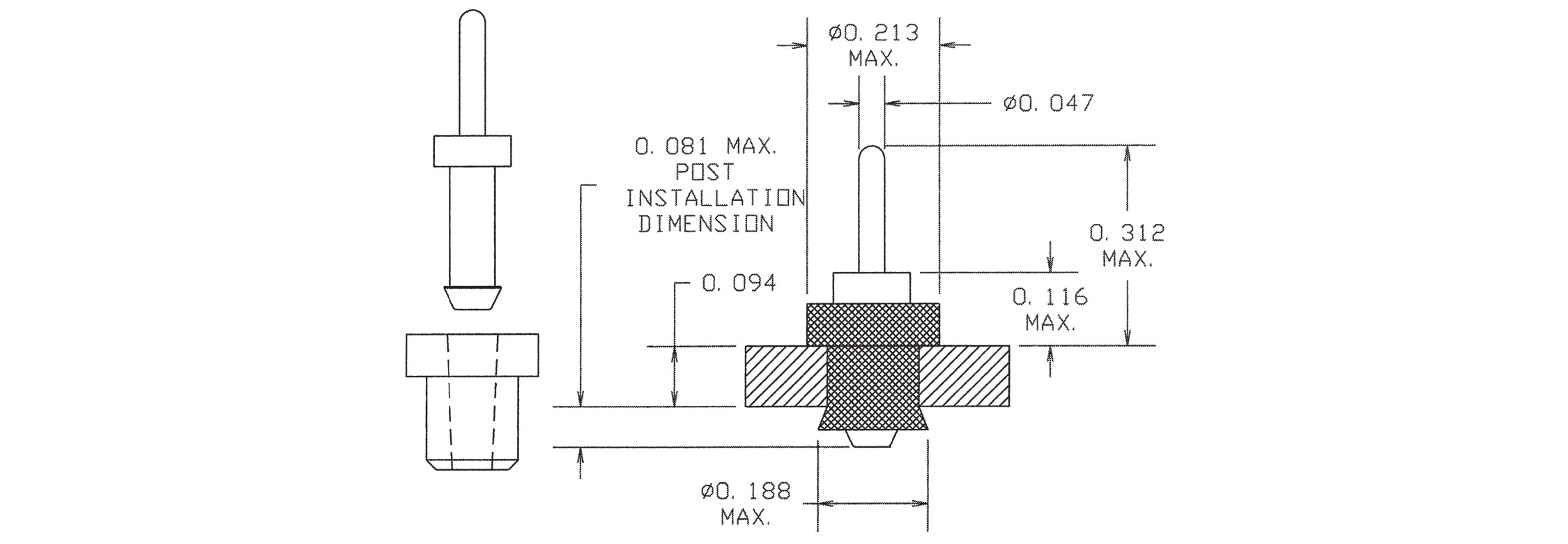

1175-023-08812
1175-023-08812
1175-023-08812
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-351-0118
1175-351-0118
1175-351-0118
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-372-0414
1175-372-0414
1175-372-0414
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO

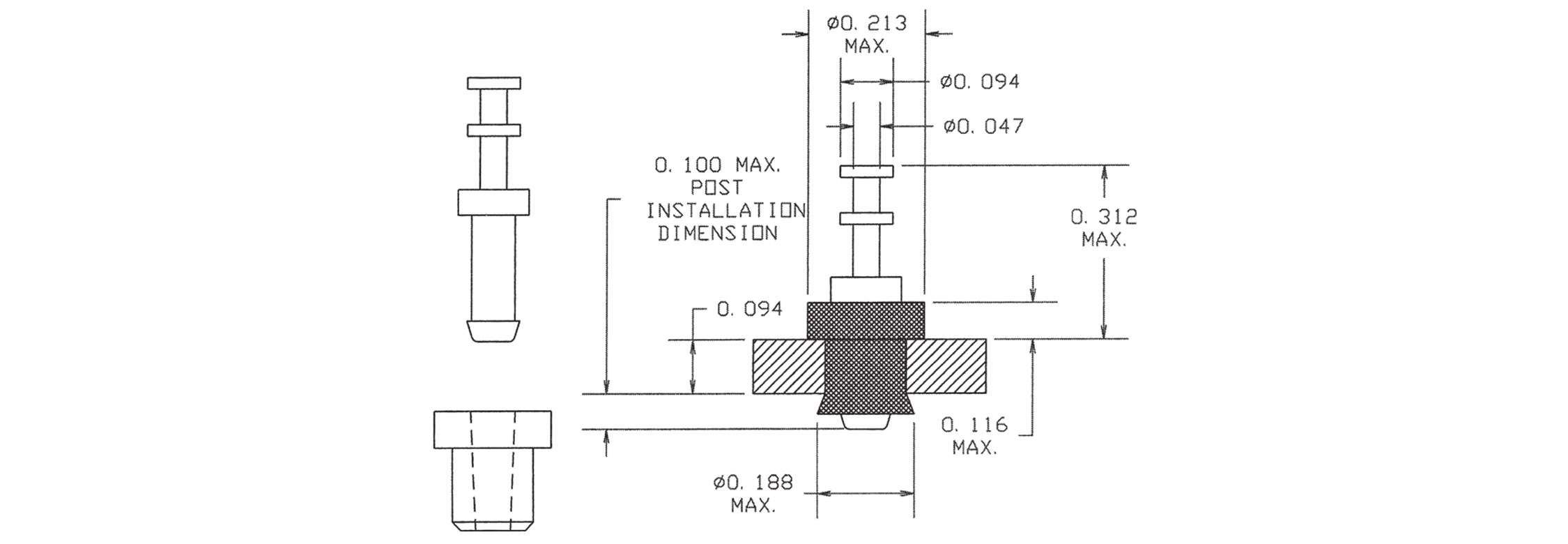

1175-403-0510
1175-403-0510
1175-403-0510
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-413-08816
1175-413-08816
1175-413-08816
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1175-424-0312
1175-424-0312
1175-424-0312
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-434-0418
1175-434-0418
1175-434-0418
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
