Commercial
Insulated
Pin Terminals

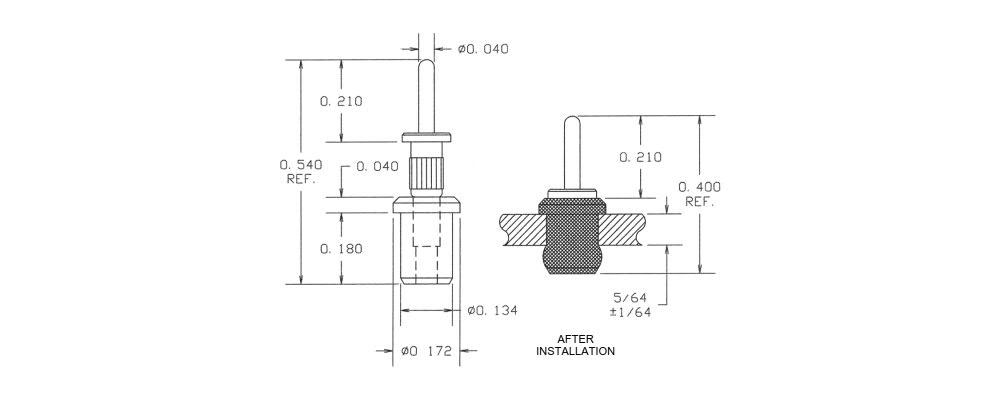

1177-61-08817
1177-61-08817
1177-61-08817
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin-Lead - - PTFE Violet NO
1177-61-08810
1177-61-08810
1177-61-08810
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin-Lead - - PTFE Black NO
1177-61-08819
1177-61-08819
1177-61-08819
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin-Lead - - PTFE White NO

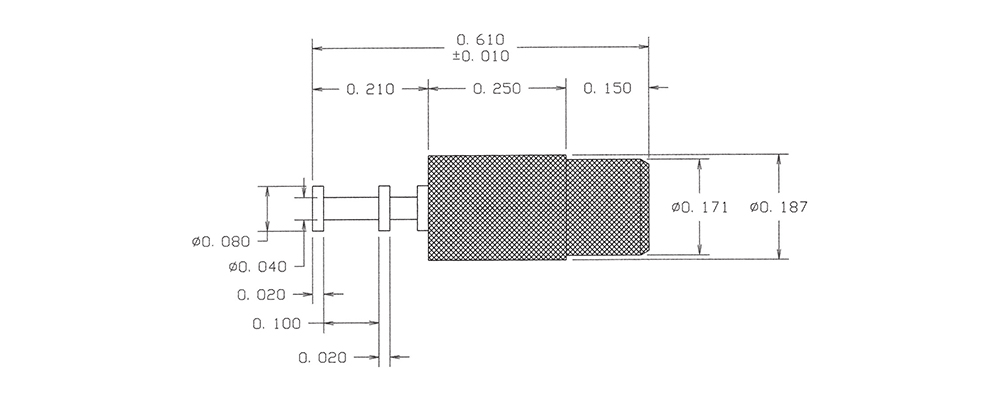

1102-61-08813
1102-61-08813
1102-61-08813
0.610" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

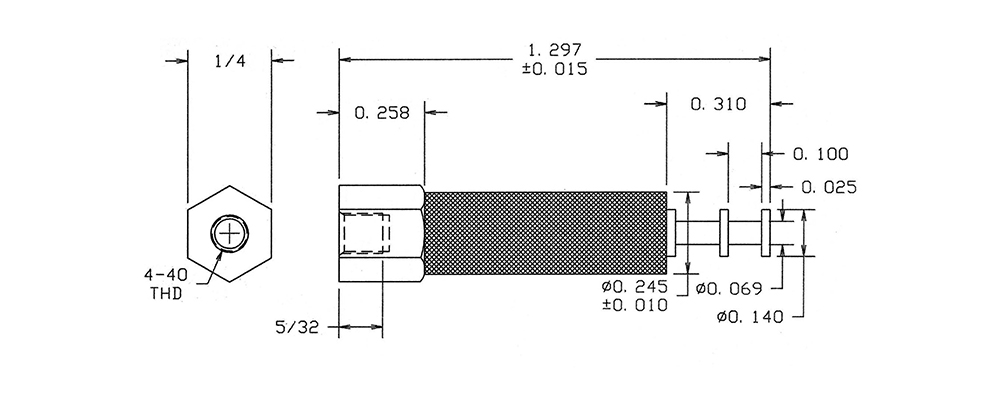

1125-61-0114
1125-61-0114
1125-61-0114
1.297" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Yellow NO

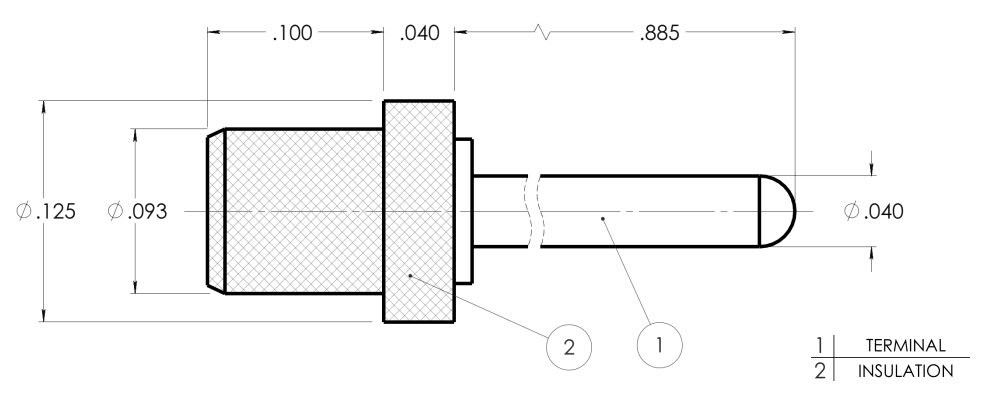

1100-61-08810
1100-61-08810
1100-61-08810
1.025" 0.040 - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Black NO
1110-61-0115
1110-61-0115
1110-61-0115
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Green YES
1100-61-0118
1100-61-0118
1100-61-0118
1.025" 0.040 - Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO

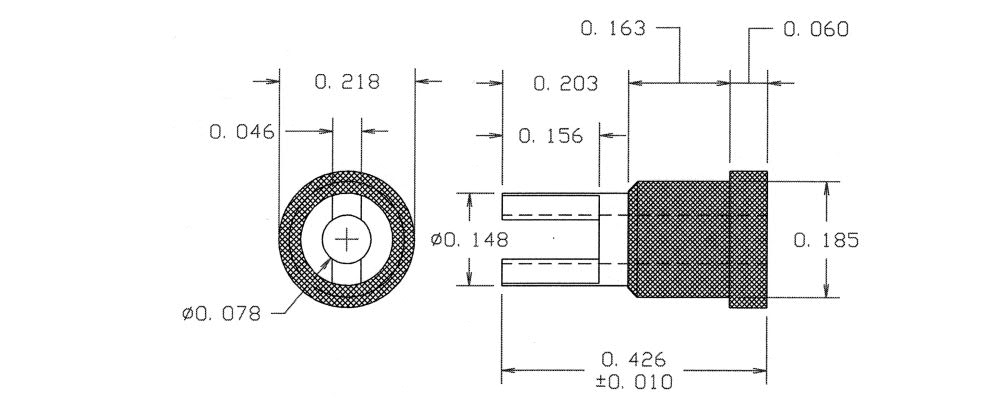

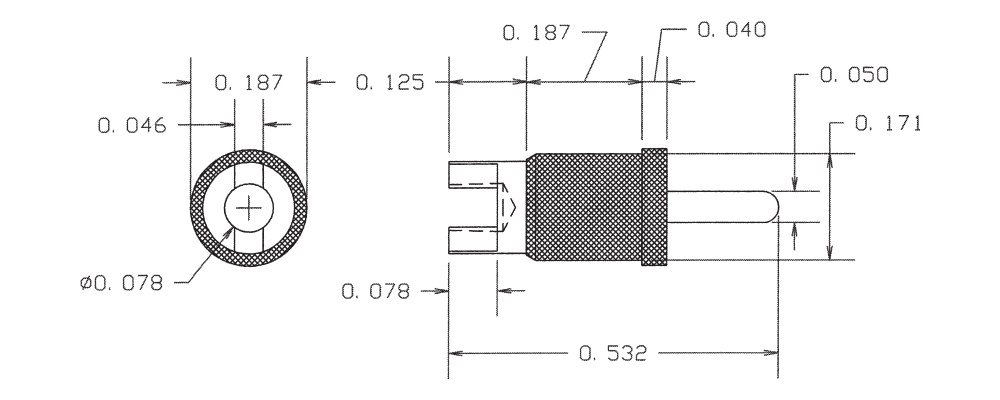

1123R-61-0112
1123R-61-0112
1123R-61-0112
0.477" 0.050 Pin/Slotted Press Fit 5/32 0.136 Brass Silver - - PTFE Red NO
1123R-61-0113
1123R-61-0113
1123R-61-0113
0.477" 0.050 Pin/Slotted Press Fit 5/32 0.136 Brass Silver - - PTFE Orange NO

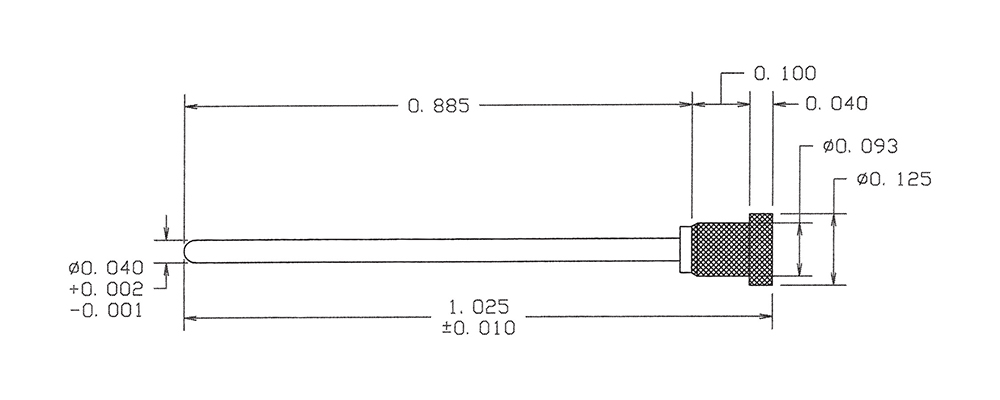

1100R-61-0415
1100R-61-0415
1100R-61-0415
1.025" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Green YES
1100-61-0119
1100-61-0119
1100-61-0119
1.025" 0.040 - Press Fit 1/16 0.086 Brass Silver - - PTFE White YES

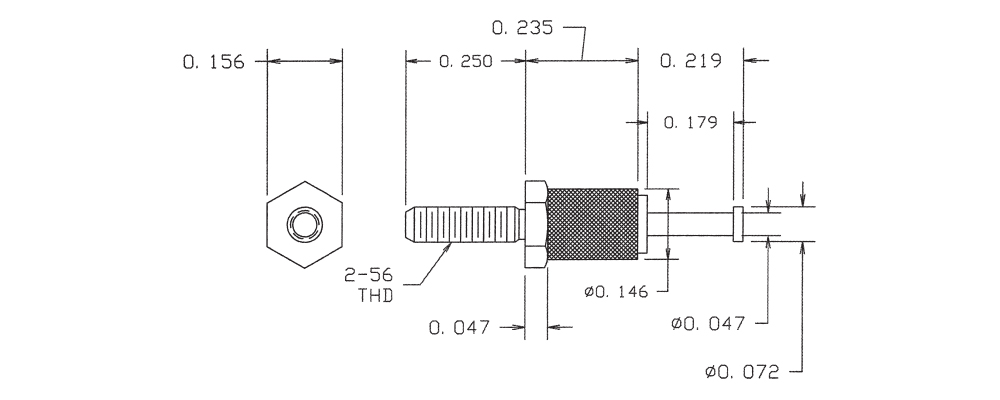

1127-61-0116
1127-61-0116
1127-61-0116
0.704" - - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1127-61-0117
1127-61-0117
1127-61-0117
0.704" - - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-61-0115
1127-61-0115
1127-61-0115
0.704" - - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1123R-61-0117
1123R-61-0117
1123R-61-0117
0.477" 0.050 Pin/Slotted Press Fit 5/32 0.136 Brass Silver - - PTFE Violet YES
1177-61-0110
1177-61-0110
1177-61-0110
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Black YES
1100-61-0115
1100-61-0115
1100-61-0115
1.025" 0.040 - Press Fit 1/16 0.086 Brass Silver - - PTFE Green YES

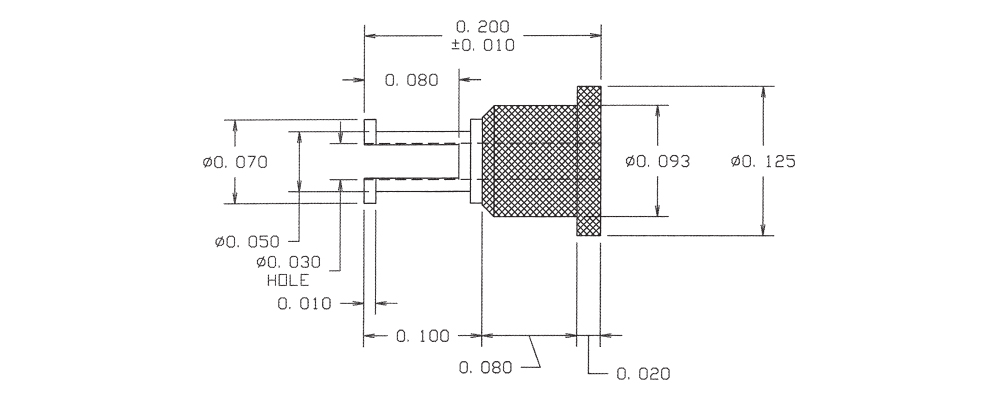

1112R-61-0115
1112R-61-0115
1112R-61-0115
0.200" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Green YES
1110-61-08818
1110-61-08818
1110-61-08818
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
