Commercial
Insulated
Pin Terminals

Filter
1108-01-0414
1108-01-0414
1108-01-0414
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Electro-Tin - - PTFE Yellow NO
1108-05-0510
1108-05-0510
1108-05-0510
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Black NO

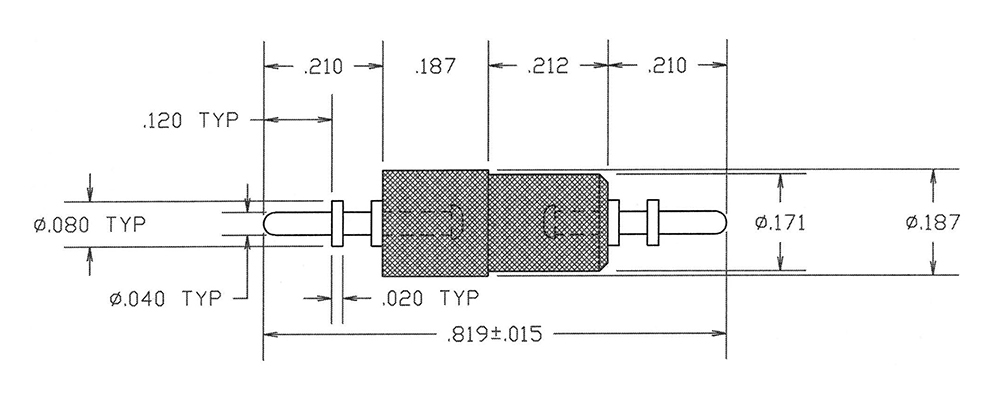

1108-30-08816
1108-30-08816
1108-30-08816
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1110-06-0312
1110-06-0312
1110-06-0312
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Red NO
1110-10-0418
1110-10-0418
1110-10-0418
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Gray NO
1110-15-0514
1110-15-0514
1110-15-0514
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1110-20-0110
1110-20-0110
1110-20-0110
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1110-24-0316
1110-24-0316
1110-24-0316
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1110-28-04412
1110-28-04412
1110-28-04412
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1110-32-0518
1110-32-0518
1110-32-0518
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Gray NO
1110-40-0114
1110-40-0114
1110-40-0114
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Silver - - PTFE Yellow NO
1110-44-0410
1110-44-0410
1110-44-0410
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Electro-Tin - - PTFE Black YES
1110-48-04416
1110-48-04416
1110-48-04416
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Blue YES
1110-53-08812
1110-53-08812
1110-53-08812
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Red NO
1110-61-0118
1110-61-0118
1110-61-0118
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO
1110-66-0414
1110-66-0414
1110-66-0414
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1110-70-0510
1110-70-0510
1110-70-0510
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Electro Solder - - PTFE Black NO
1110-75-08816
1110-75-08816
1110-75-08816
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1110-93-0312
1110-93-0312
1110-93-0312
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Red NO
1111-02-0418
1111-02-0418
1111-02-0418
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro-Tin - - PTFE Gray NO
