Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS

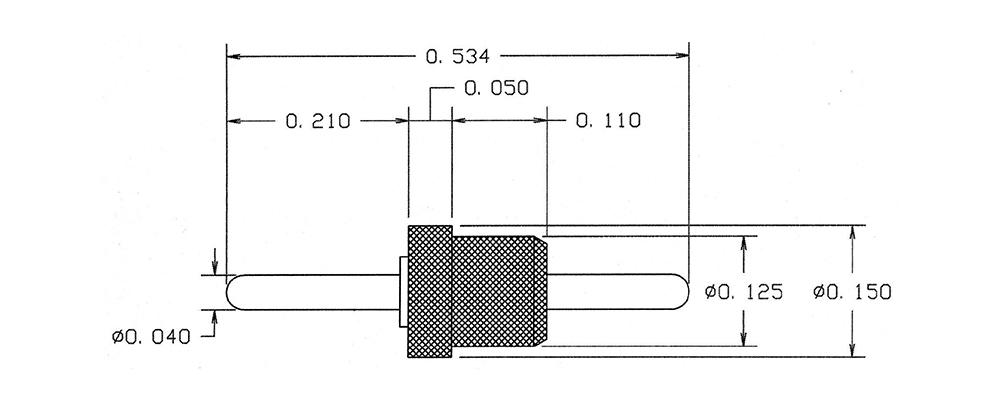

	1110-63-0312			0.534"	0.040	Pin/Pin	Press Fit	1/16	0.113	Brass	Gold	-	-	PTFE	Red	NO

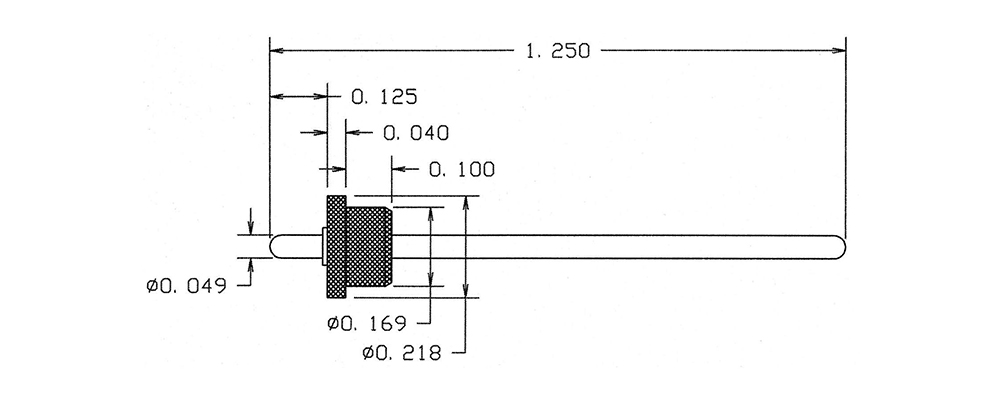

	1110-42-0413			1.250"	0.049	Pin/Pin	Press Fit	1/16	0.156	Brass	Electro-Tin	-	-	PTFE	Orange	NO

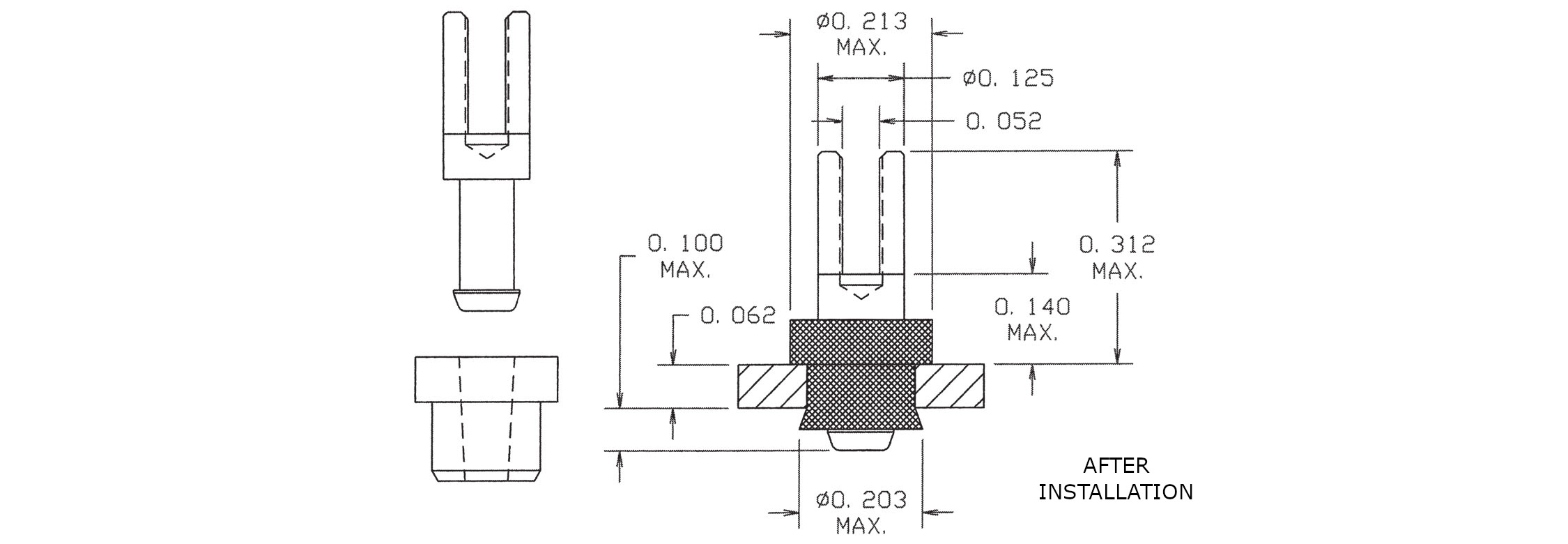

	1175-732-0417			0.474"	-	-	PRESS LOCK	1/16	0.154 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Violet	YES

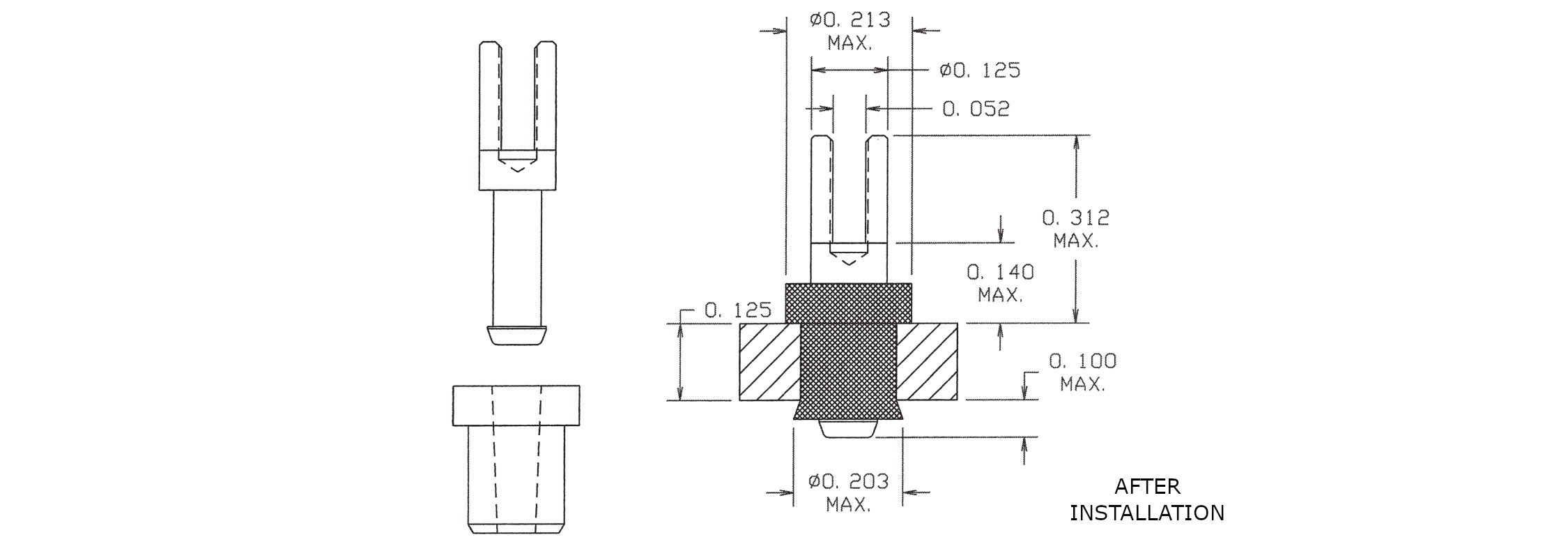

	1175-734-0412			0.537"	-	-	PRESS LOCK	1/8	0.154 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Red	NO

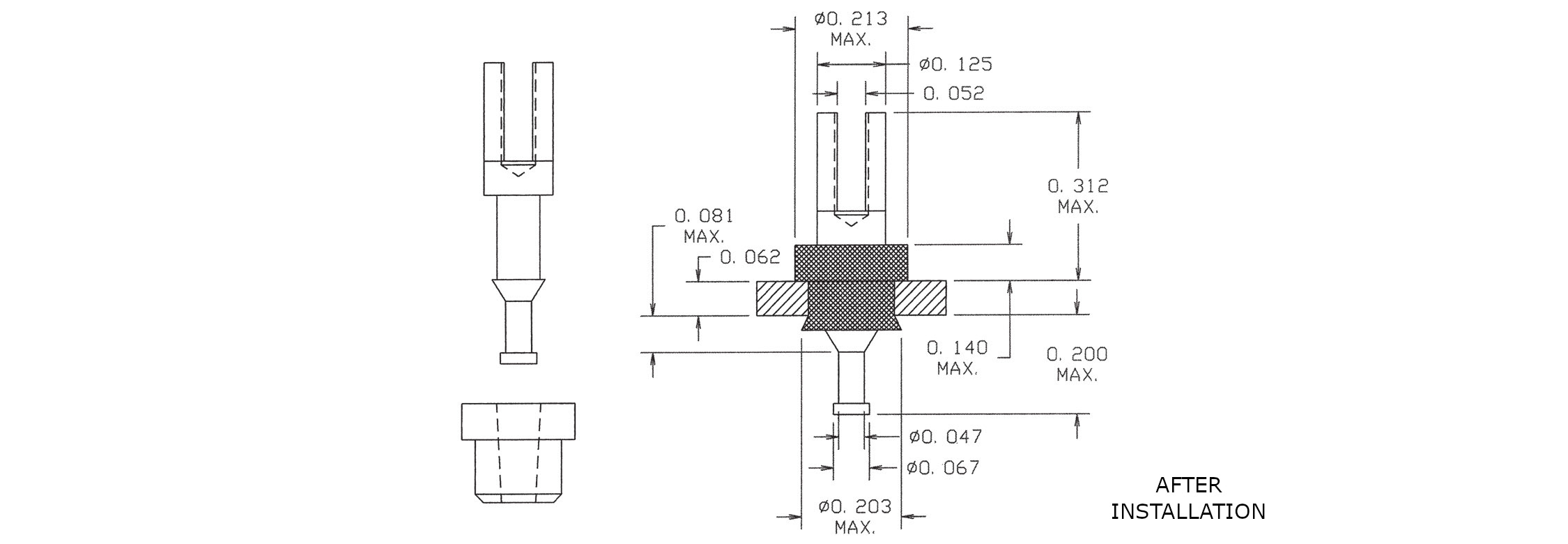

	1175-742-0312			0.574"	-	TURRET/SLOTTED	PRESS LOCK	1/16	0.154 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Red	NO

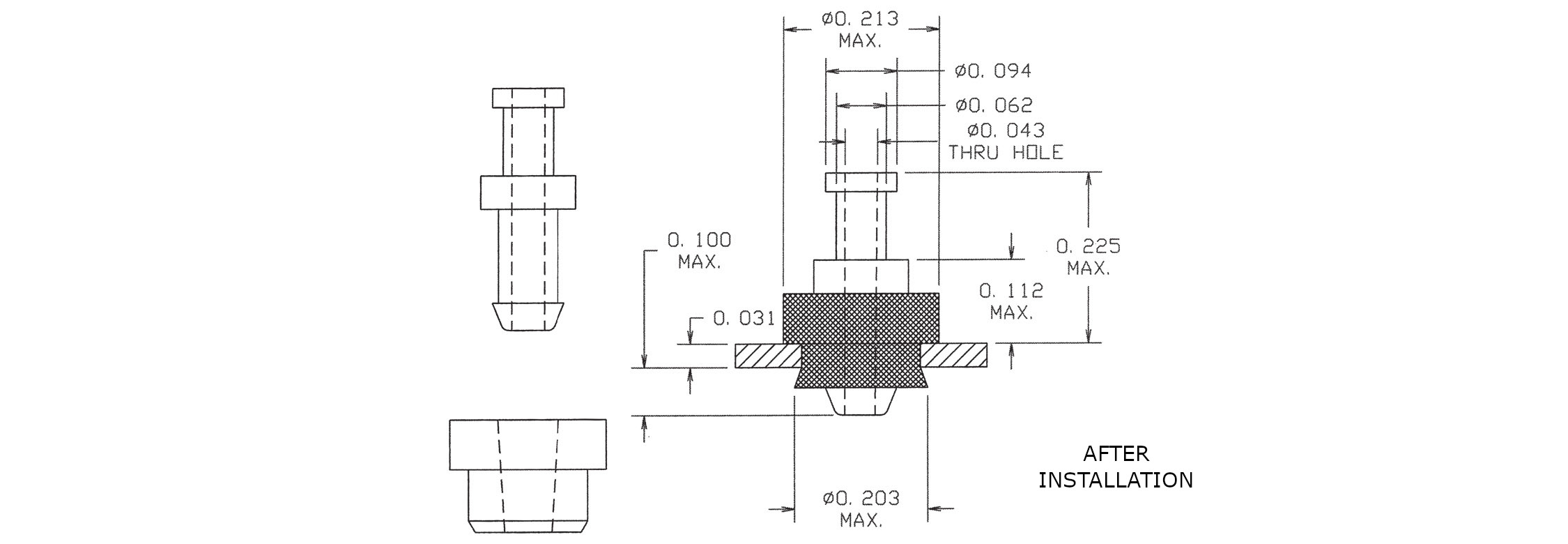

	1175-761-0310			0.356"	-	-	PRESS LOCK	1/32	0.154 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Black	YES
	1175-733-0319			0.506"	-	-	PRESS LOCK	3/32	0.154 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	White	YES

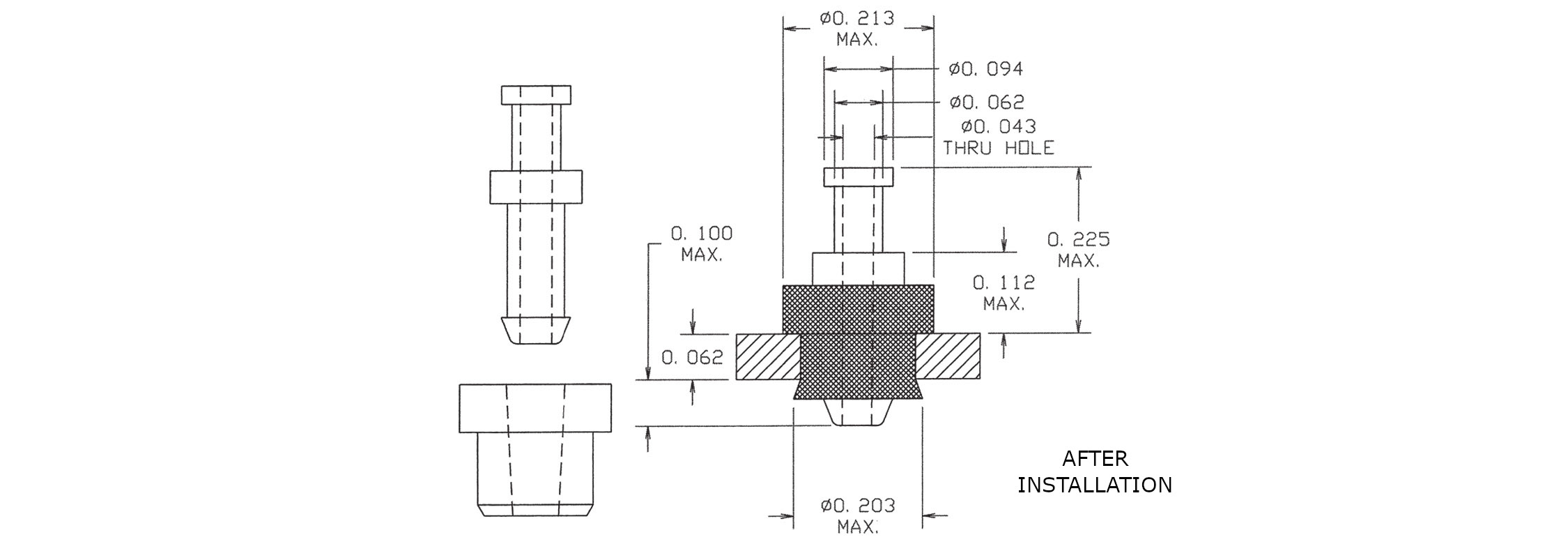

	1175-762-04413			0.387"	-	-	PRESS LOCK	1/16	0.154 (+0.003/-0.001)	Brass	Bright Tin	-	-	PTFE	Orange	NO
	1175-734-0418			0.537"	-	-	PRESS LOCK	1/8	0.154 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Gray	NO

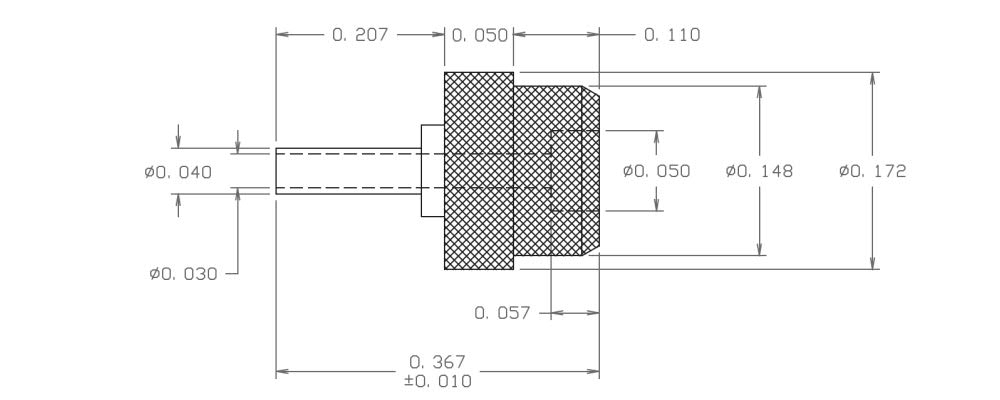

	1115-03-08812			0.367"	0.040	-	Press Fit	1/16	0.136	Brass	Bright Tin-Lead	-	-	PTFE	Red	NO

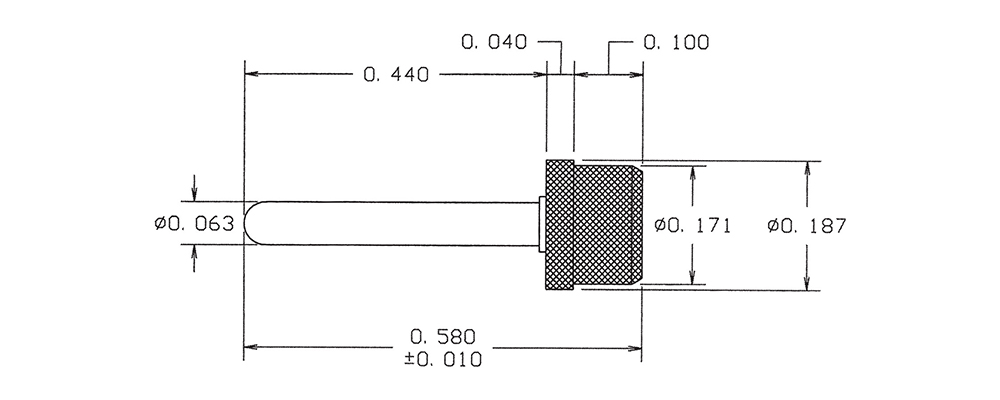

	1100-73-08812			0.580"	0.063	-	Press Fit	1/16	0.158	Brass	Bright Tin-Lead	-	-	PTFE	Red	NO

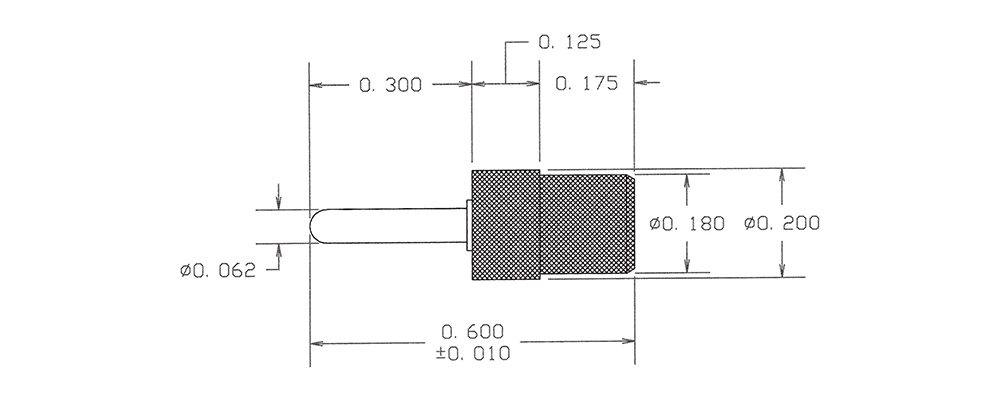

	1100-48-08818			0.600"	0.062	-	Press Fit	1/8	0.167	Brass	Bright Tin-Lead	-	-	PTFE	Gray	NO
	1115-03-08813			0.367"	0.040	-	Press Fit	1/16	0.136	Brass	Bright Tin-Lead	-	-	PTFE	Orange	NO
	1126-43-08817			0.766"	-	-	4-40 Nut	1/8	0.120	Brass	Bright Tin-Lead	ZINC	Brass	PTFE	Violet	NO

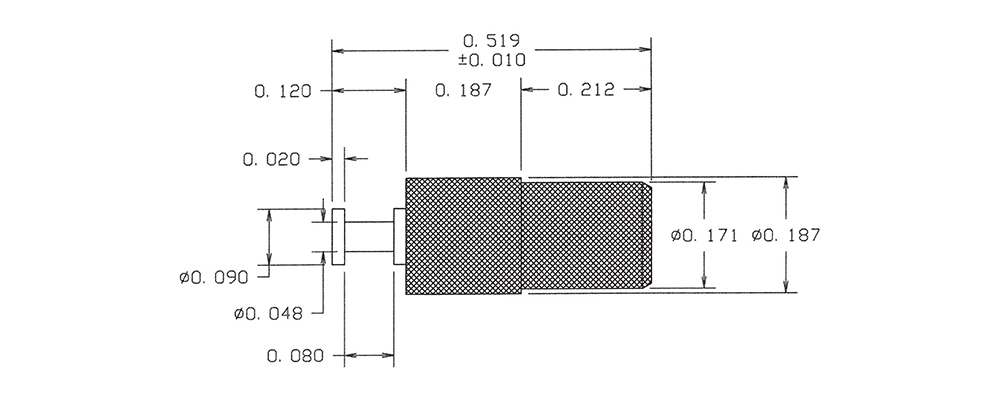

	1103-07-08812			0.519"	-	-	Press Fit	Up to 3/16	0.158	Brass	Bright Tin-Lead	-	-	PTFE	Red	NO

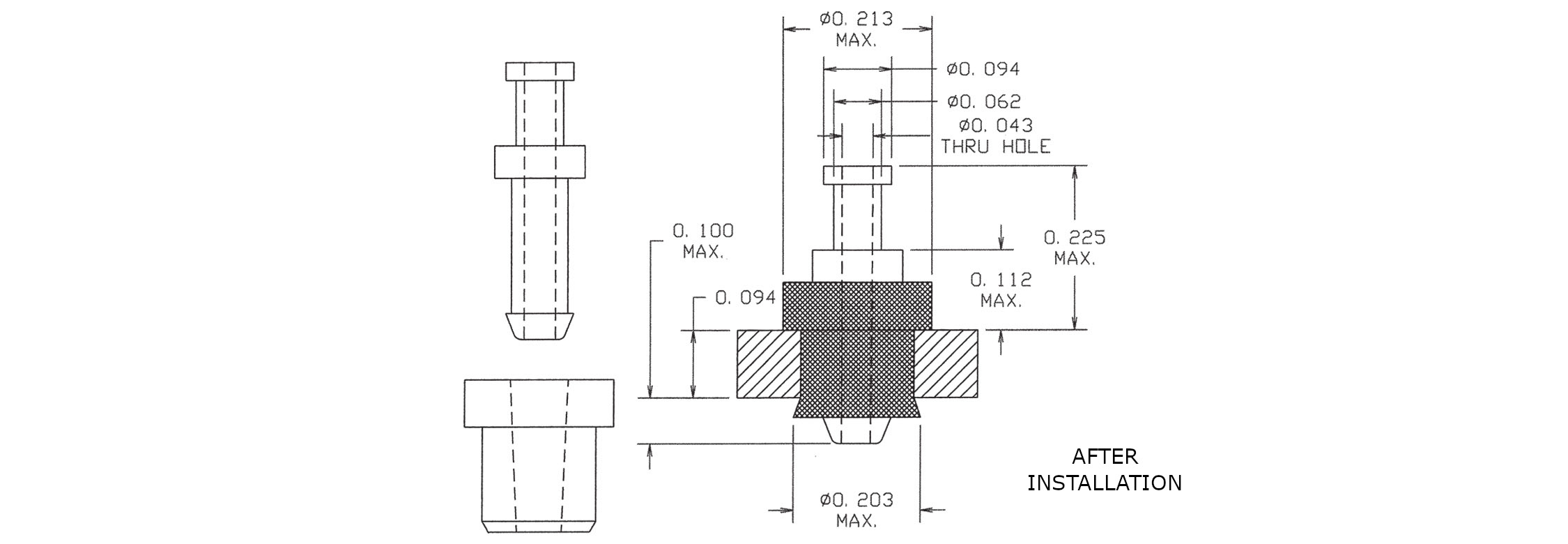

	1175-763-0410			0.419"	-	-	PRESS LOCK	3/32	0.154 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Black	YES
	1118-40-0115			0.346"	-	TURRET/SLOTTED	Press Fit	3/32	0.093	Brass	Silver	-	-	PTFE	Green	YES

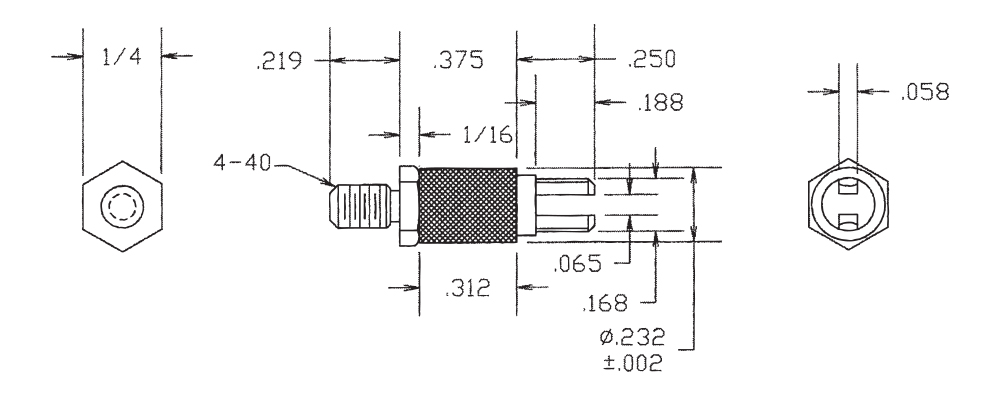

	1127-70-0116			0.844"	-	-	4-40 Nut	3/32	0.120	Brass	Silver	ZINC	Brass	DIALLYL PHTHALATE	Blue	YES
	1118-32-0316			0.346"	-	TURRET/SLOTTED	Press Fit	3/32	0.093	Brass	Gold	-	-	PTFE	Blue	YES

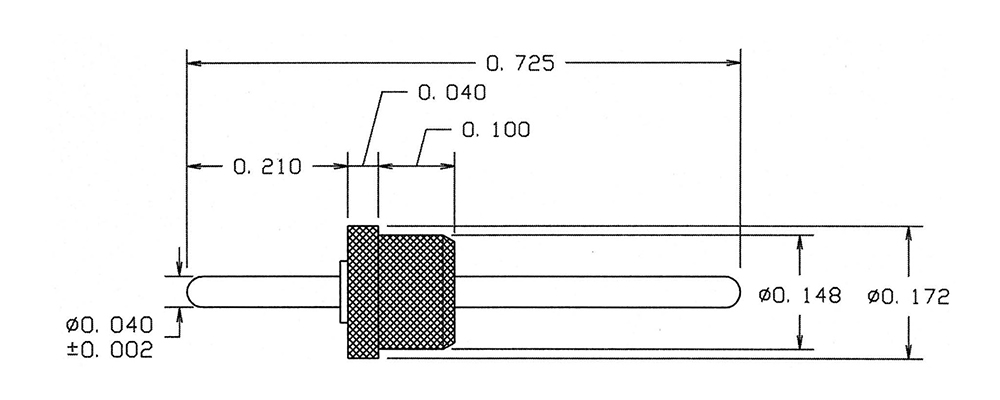

	1110-33-0512			0.725"	0.040	Pin/Pin	Press Fit	1/16	0.136	Brass	Electro Solder	-	-	PTFE	Red	NO
