Commercial
Insulated
Pin Terminals

Filter
1121-24-0414
1121-24-0414
1121-24-0414
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro-Tin - - PTFE Yellow NO
1121-30-0510
1121-30-0510
1121-30-0510
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Black NO

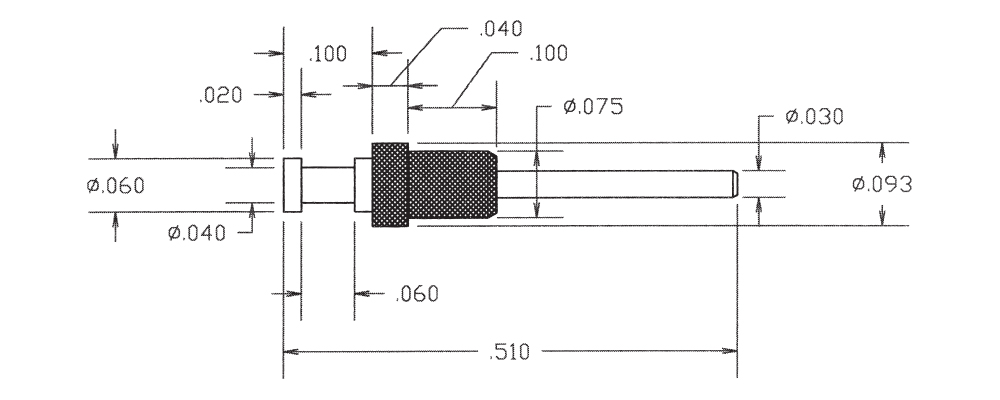

1121-51-08816
1121-51-08816
1121-51-08816
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Blue NO
1121R-06-0312
1121R-06-0312
1121R-06-0312
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO
1121R-50-0418
1121R-50-0418
1121R-50-0418
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1123-03-0514
1123-03-0514
1123-03-0514
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1123-08-0110
1123-08-0110
1123-08-0110
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Silver - - PTFE Black YES
1123-72-0316
1123-72-0316
1123-72-0316
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1123R-05-04412
1123R-05-04412
1123R-05-04412
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Red NO
1123R-62-0518
1123R-62-0518
1123R-62-0518
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Gray NO
1125-35-0114
1125-35-0114
1125-35-0114
0.850" - - 6-32 Nut 1/8 0.144 Brass Silver Electro-Tin Brass PTFE Yellow NO
1125-40-0410
1125-40-0410
1125-40-0410
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Black YES
1125-44-04416
1125-44-04416
1125-44-04416
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Blue YES

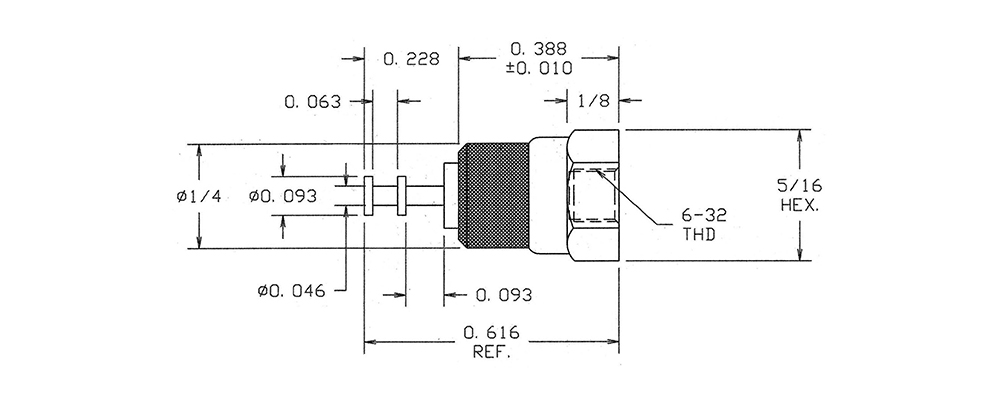

1125-48-08812
1125-48-08812
1125-48-08812
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Red NO
1125-53-0118
1125-53-0118
1125-53-0118
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Silver Electro-Tin Brass PTFE Gray NO
1125-57-0414
1125-57-0414
1125-57-0414
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO
1125-62-0510
1125-62-0510
1125-62-0510
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Black NO

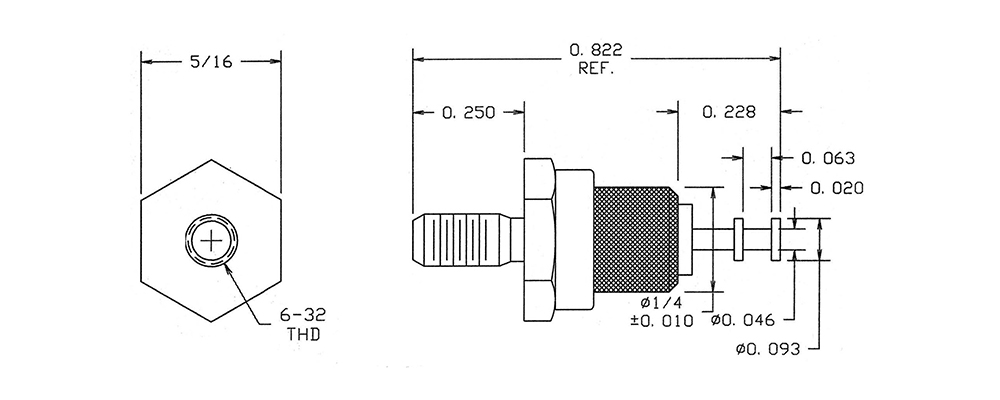

1125-73-08816
1125-73-08816
1125-73-08816
0.822" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Blue NO
1125-78-0312
1125-78-0312
1125-78-0312
0.697" - - Swage Mount 3/32 0.194 Brass Gold ZINC Brass PTFE Red NO
1125-83-0418
1125-83-0418
1125-83-0418
0.725" - - Swage Mount 3/32 0.191 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
