Military
Non-Insulated
Terminals

Filter
15-266-3-095
15-266-3-095
15-266-3-095
0.271" - Swage Mount 0.115" 3/32 0.0635 Brass Hot Solder Dip M55155/12XI12 AA59126/12XI12
15R-211-4-05
15R-211-4-05
15R-211-4-05
0.671" - Swage Mount 0.171" 1/8 0.266 Phosphor Bronze Electro Solder M55155/30XB16 AA59166/30XB16

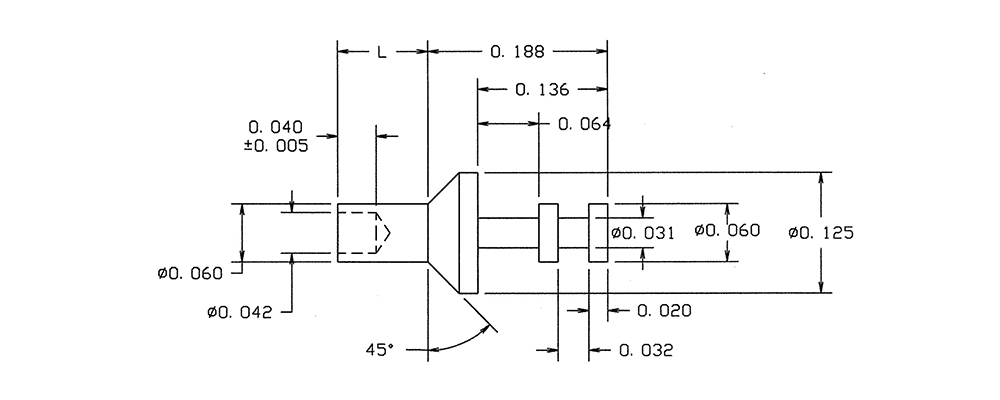

15R-905-2-095
15R-905-2-095
15R-905-2-095
0.282" - Swage Mount 0.094" 1/16 0.0635 Phosphor Bronze Hot Solder Dip M55155/23XC02 AA59126/23XC02
15R-433-5-095
15R-433-5-095
15R-433-5-095
0.882" - Swage Mount 0.195" 1/8 0.189 Phosphor Bronze Hot Solder Dip M55155/32XC09 AA59126/32XC09
15-602-5-095
15-602-5-095
15-602-5-095
0.679" - Swage Mount 0.195" 5/32 0.116 Brass Hot Solder Dip M55155/31XI09 AA59126/31XI09
15R-102-1-095
15R-102-1-095
15R-102-1-095
0.265" - Swage Mount 0.078" 1/32 0.082 Phosphor Bronze Hot Solder Dip M55155/29XC03 AA59126/29XC03
15-407-2-095
15-407-2-095
15-407-2-095
0.609" - Swage Mount 0.109" 1/16 0.140 Brass Hot Solder Dip M55155/32XI02 AA59126/32XI02
15R-104-2-05
15R-104-2-05
15R-104-2-05
0.175" - Swage Mount 0.082" 1/16 0.052 Phosphor Bronze Electro Solder M55155/29XB05 AA59126/29XB05
15R-102-4-095
15R-102-4-095
15R-102-4-095
0.357" - Swage Mount 0.170" 1/8 0.082 Phosphor Bronze Hot Solder Dip M55155/29XC12 AA59126/29XC12
09-0018-1M-095
09-0018-1M-095
09-0018-1M-095
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Hot Solder Dip M55155/26XI01 AA59126/26XI01
15-904-2-095
15-904-2-095
15-904-2-095
0.230" - Swage Mount 0.094" 1/16 0.0635 Brass Hot Solder Dip M55155/25XI02 AA59126/25XI02
15R-502-2-095
15R-502-2-095
15R-502-2-095
0.350" TURRET/DOUBLE TURRET Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Hot Solder Dip M55155/14XC01 AA59126/14XC01
15R-576-4-088
15R-576-4-088
15R-576-4-088
0.446" Turret/Turret Swage Mount 0.165" 1/8 0.120 Phosphor Bronze Bright Tin-Lead M55155/13XD06 AA59126/13XD06
15R-501-2-088
15R-501-2-088
15R-501-2-088
0.268" Turret/Turret Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Bright Tin-Lead M55155/13XD01 AA59126/13XD01
15-602-1-088
15-602-1-088
15-602-1-088
0.562" - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead M55155/31XJ02 AA59126/31XJ02
15R-905-4-088
15R-905-4-088
15R-905-4-088
0.344" - Swage Mount 0.156" 1/8 0.0635 Phosphor Bronze Bright Tin-Lead M55155/23XD04 AA59126/23XD04
15-402-4-088
15-402-4-088
15-402-4-088
0.514" - Swage Mount 0.171" 1/8 0.116 Brass Bright Tin-Lead M55155/32XJ06 AA59126/32XJ06
15-501-2-088
15-501-2-088
15-501-2-088
0.268" Turret/Turret Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead M55155/13XJ01 AA59126/13XJ01
15-509-4-088
15-509-4-088
15-509-4-088
0.814" Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Bright Tin-Lead M55155/15XJ09 AA59126/15XJ09
15-433-5-05
15-433-5-05
15-433-5-05
0.882" - Swage Mount 0.195" 1/8 0.189 Brass Electro Solder M55155/32XH09 AA59126/32XH09

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
