Commercial
Insulated
Pin Terminals

Filter

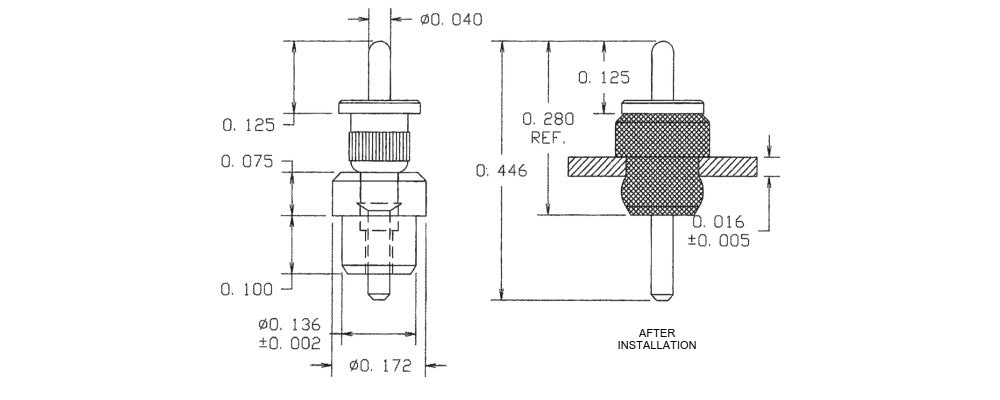

1177-61-0114
1177-61-0114
1177-61-0114
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Yellow NO

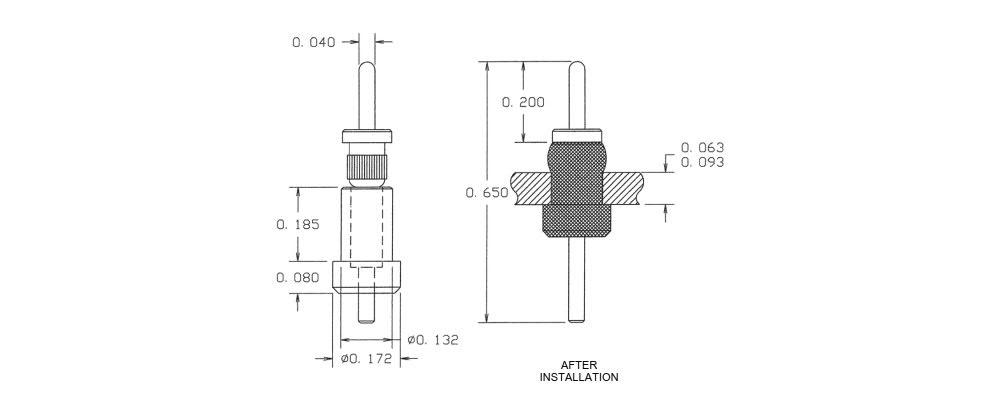

1178R-03-0410
1178R-03-0410
1178R-03-0410
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Black YES

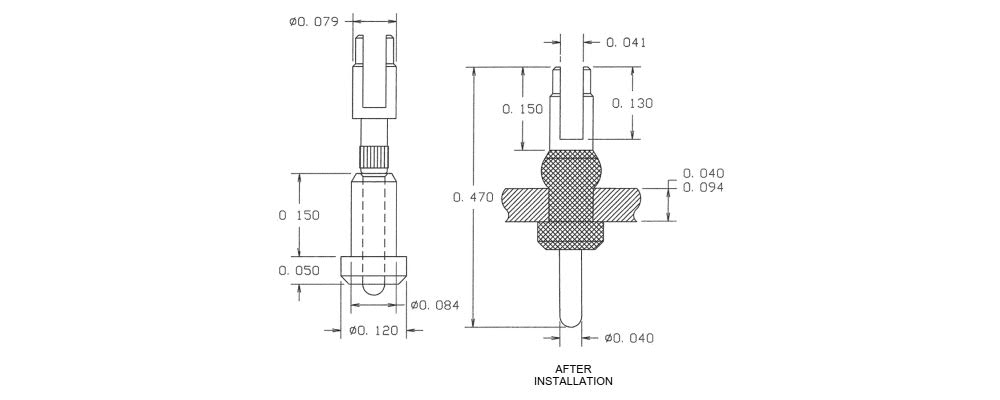

1178R-10-04416
1178R-10-04416
1178R-10-04416
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin - - PTFE Blue YES

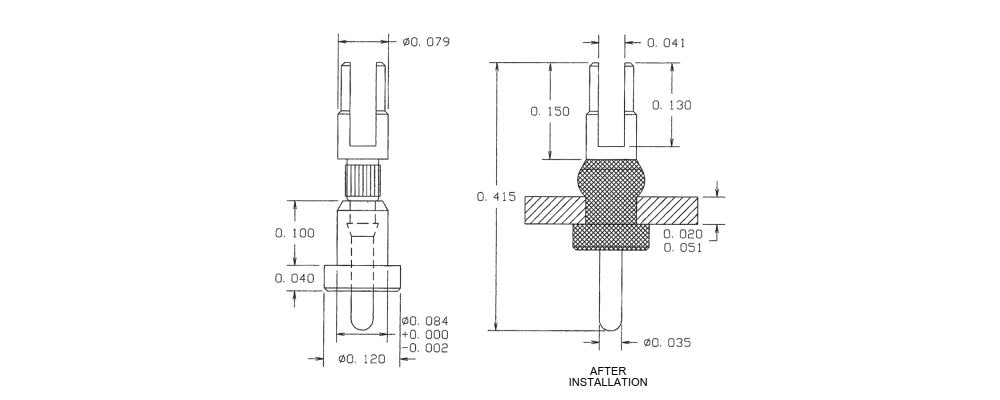

1178R-14-08812
1178R-14-08812
1178R-14-08812
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Red NO

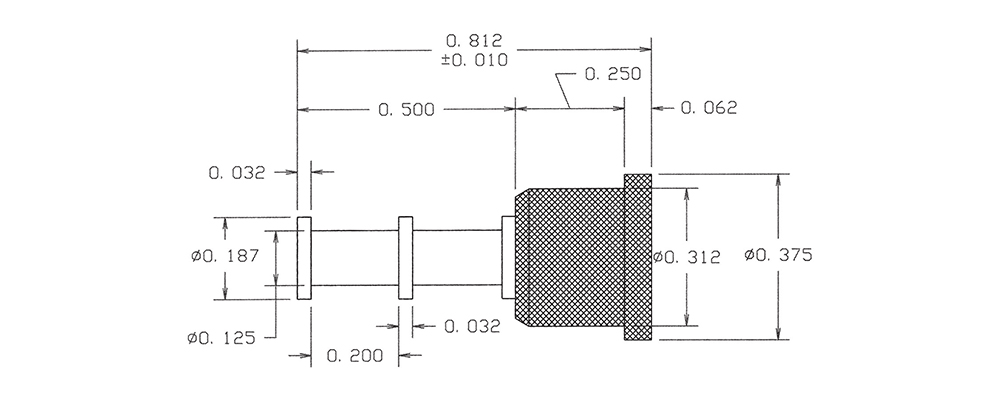

1102R-95-0118
1102R-95-0118
1102R-95-0118
0.812" - - Press Fit 13/64 0.297 Brass Silver - - PTFE Gray NO
1125-02-0414
1125-02-0414
1125-02-0414
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO

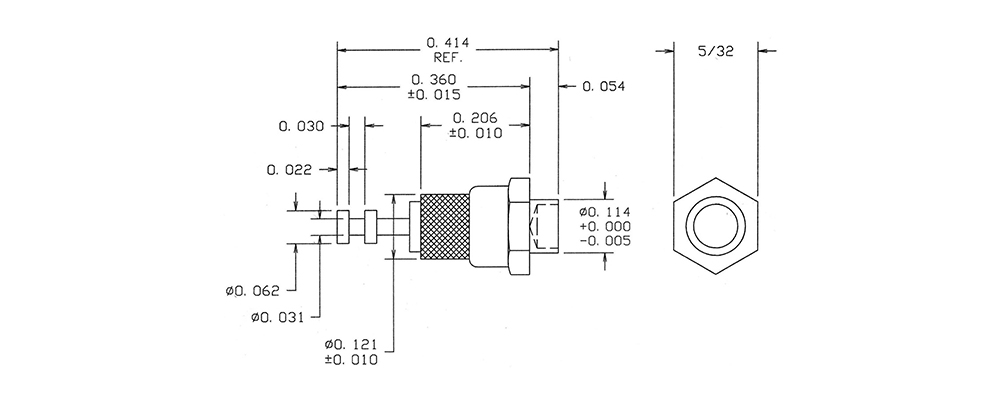

1125-06-0510
1125-06-0510
1125-06-0510
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Black NO

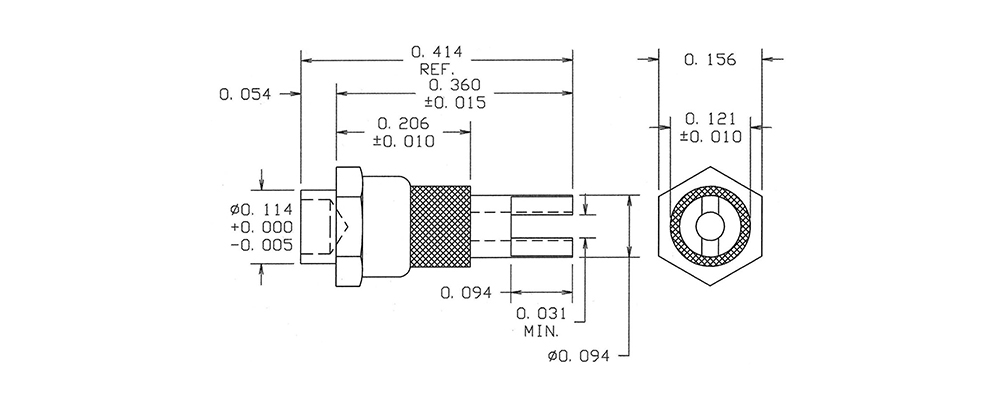

1125-10-08816
1125-10-08816
1125-10-08816
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Blue NO

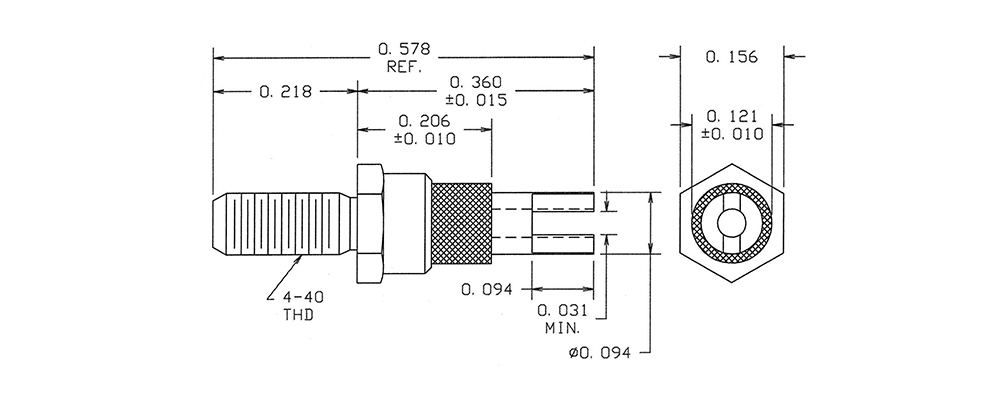

1125-15-0312
1125-15-0312
1125-15-0312
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Red NO

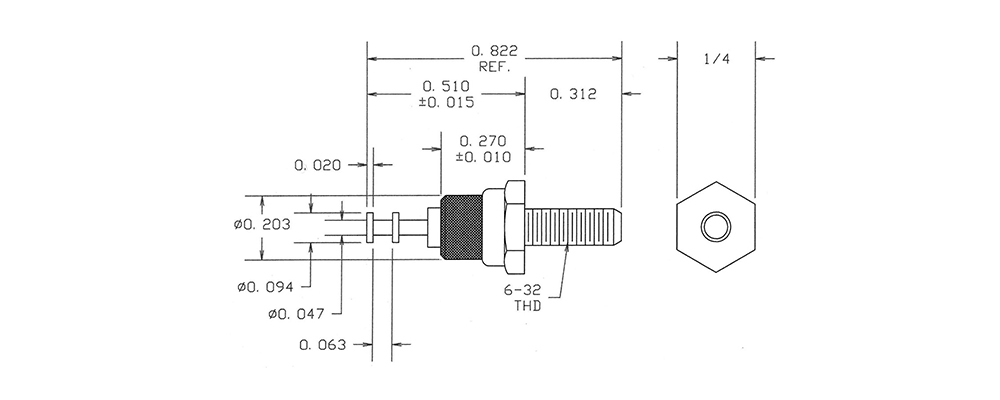

1125-19-0418
1125-19-0418
1125-19-0418
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO

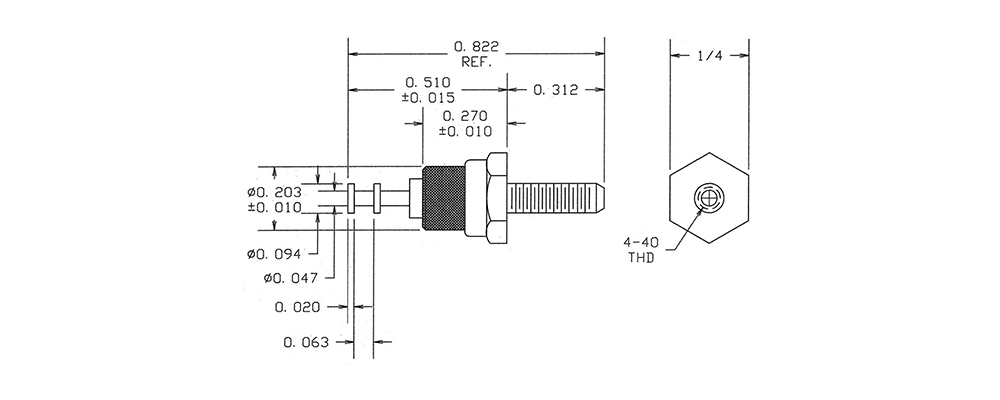

1125-23-0514
1125-23-0514
1125-23-0514
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO

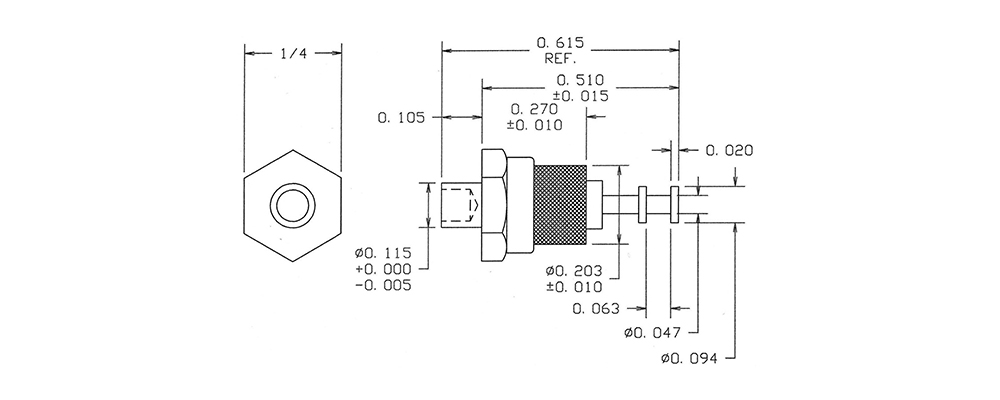

1125-28-0110
1125-28-0110
1125-28-0110
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Black YES
09-2128-1-0316
09-2128-1-0316
09-2128-1-0316
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES
1100-47-04412
1100-47-04412
1100-47-04412
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Red NO

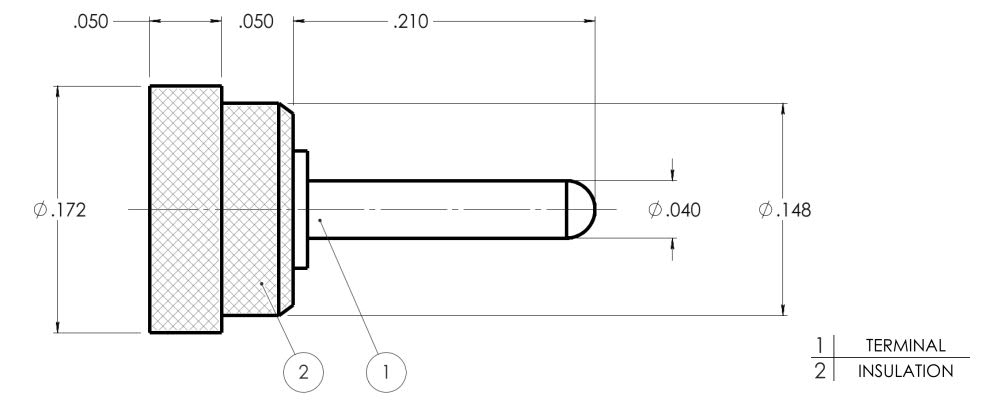

1100R-22-0518
1100R-22-0518
1100R-22-0518
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Gray NO
1100R-36-0114
1100R-36-0114
1100R-36-0114
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO
1100R-53-0410
1100R-53-0410
1100R-53-0410
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Black YES
1100R-70-04416
1100R-70-04416
1100R-70-04416
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Blue YES
1102-43-08812
1102-43-08812
1102-43-08812
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Red NO
09-2078-1-0313
09-2078-1-0313
09-2078-1-0313
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Orange NO
