Commercial
Insulated
Pin Terminals

Filter
1102-94-0114
1102-94-0114
1102-94-0114
0.649" - - Press Fit Up to 3/16 0.191 Brass Silver - - PTFE Yellow NO
1102R-01-0410
1102R-01-0410
1102R-01-0410
0.310" - - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Black YES
1102R-18-04416
1102R-18-04416
1102R-18-04416
0.500" - - Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Blue YES

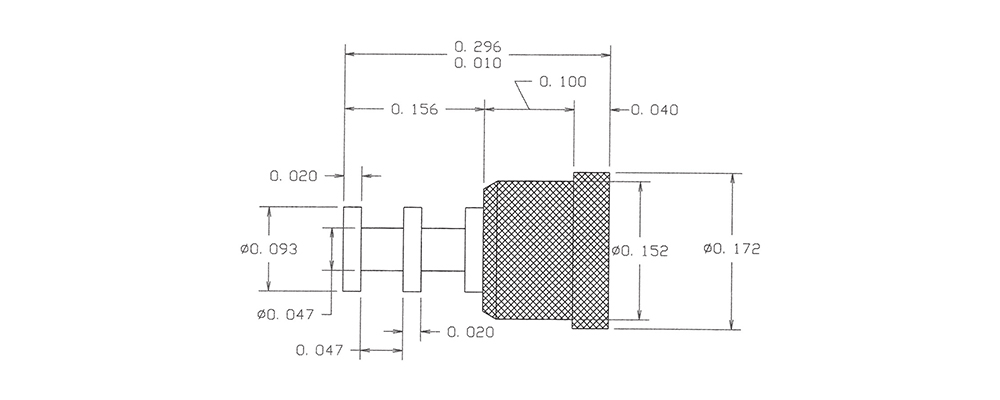

1102R-26-08812
1102R-26-08812
1102R-26-08812
0.296" - - Press Fit 1/16 0.140 Brass Bright Tin-Lead - - PTFE Red NO
1102R-74-0118
1102R-74-0118
1102R-74-0118
0.375" - - Press Fit 3/32 0.172 Brass Silver - - PTFE Gray NO
1102R-92-0414
1102R-92-0414
1102R-92-0414
0.460" - - Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Yellow NO

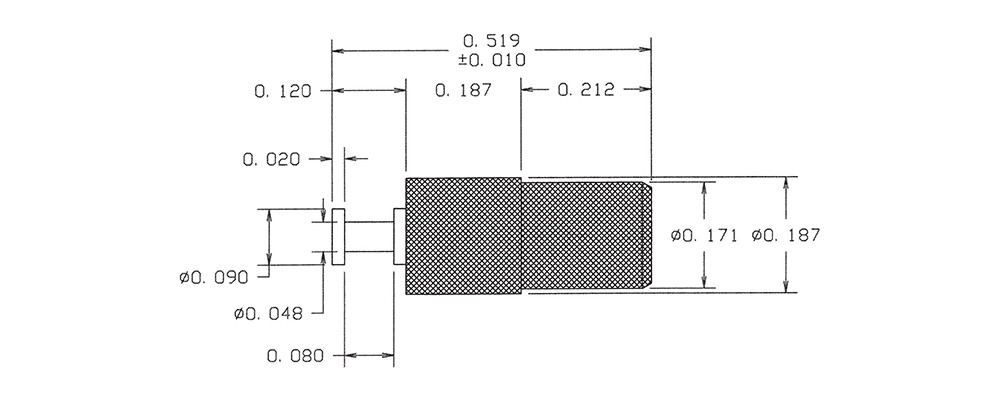

1103-07-0510
1103-07-0510
1103-07-0510
0.519" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO

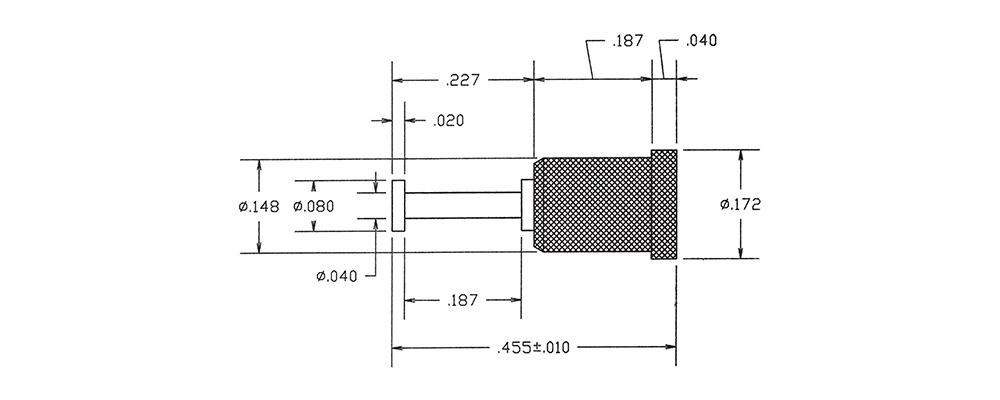

1103R-05-08816
1103R-05-08816
1103R-05-08816
0.455" - - Press Fit 5/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1104-04-0312
1104-04-0312
1104-04-0312
0.392" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1105-01-0418
1105-01-0418
1105-01-0418
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Electro-Tin - - PTFE Gray NO
1106-02-0514
1106-02-0514
1106-02-0514
0.478" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Yellow NO
1106-07-0110
1106-07-0110
1106-07-0110
0.602" - - Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Black YES
1106-11-0316
1106-11-0316
1106-11-0316
0.703" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Blue YES
1106-15-04412
1106-15-04412
1106-15-04412
1.190" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Red NO
1106-19-0518
1106-19-0518
1106-19-0518
1.190" - - Press Fit 5/32 0.205 Brass Electro Solder - - PTFE Gray NO
1106-52-0114
1106-52-0114
1106-52-0114
0.276" - - Press Fit 3/32 0.086 Brass Silver - - PTFE Yellow NO
1106R-23-0410
1106R-23-0410
1106R-23-0410
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Black YES
1106R-50-04416
1106R-50-04416
1106R-50-04416
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Blue YES

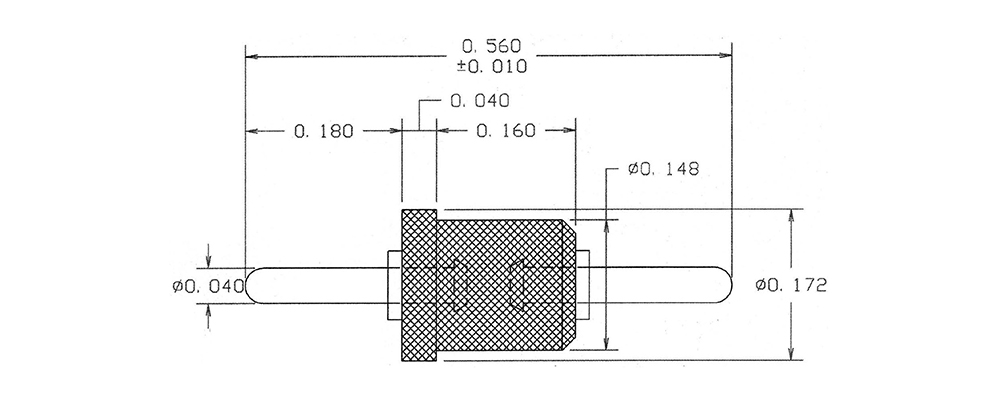

1107-02-08812
1107-02-08812
1107-02-08812
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1107-08-0118
1107-08-0118
1107-08-0118
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Gray NO
