Commercial
Insulated
Pin Terminals

Filter
1100R-63-0514
1100R-63-0514
1100R-63-0514
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
1101-05-0110
1101-05-0110
1101-05-0110
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES
1102-02-0316
1102-02-0316
1102-02-0316
0.330" - - Press Fit 1/32 0.086 Brass Gold - - PTFE Blue YES
1102-06-04412
1102-06-04412
1102-06-04412
0.531" - - Press Fit 1/16 0.114 Brass Bright Tin - - PTFE Red NO
1102-11-0518
1102-11-0518
1102-11-0518
0.296" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1102-16-0114
1102-16-0114
1102-16-0114
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO
1102-22-0410
1102-22-0410
1102-22-0410
0.470" - - Press Fit 5/32 0.136 Brass Electro-Tin - - PTFE Black YES
1102-26-04416
1102-26-04416
1102-26-04416
0.296" - - Press Fit 1/16 0.140 Brass Bright Tin - - PTFE Blue YES

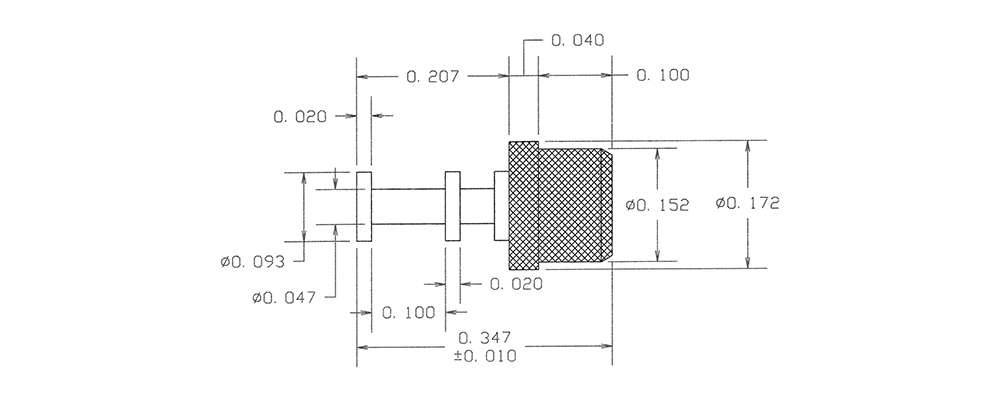

1102-30-08812
1102-30-08812
1102-30-08812
0.347" - - Press Fit 1/16 0.140 Brass Bright Tin-Lead - - PTFE Red NO
1102-35-0118
1102-35-0118
1102-35-0118
0.656" - - Press Fit 1/16 0.152 Brass Silver - - PTFE Gray NO
1102-40-0414
1102-40-0414
1102-40-0414
0.522" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Yellow NO
1102-48-0510
1102-48-0510
1102-48-0510
0.681" - - Press Fit 5/32 0.152 Brass Electro Solder - - PTFE Black NO
1102-52-08816
1102-52-08816
1102-52-08816
0.893" - - Press Fit 5/32 0.152 Brass Bright Tin-Lead - - PTFE Blue NO
1102-57-0312
1102-57-0312
1102-57-0312
0.706" - - Press Fit Up to 1/4 0.158 Brass Gold - - PTFE Red NO
1102-61-0418
1102-61-0418
1102-61-0418
0.610" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Gray NO

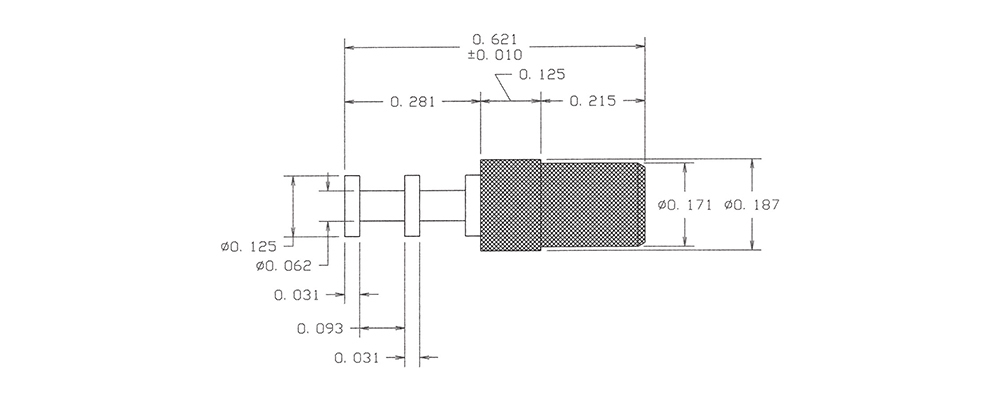

1102-66-0514
1102-66-0514
1102-66-0514
0.621" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1102-71-0110
1102-71-0110
1102-71-0110
1.268" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Black YES
1102-76-0316
1102-76-0316
1102-76-0316
0.655" - - Press Fit Up to 3/16 0.236 Brass Gold - - PTFE Blue YES
1102-80-04412
1102-80-04412
1102-80-04412
0.843" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE Red NO

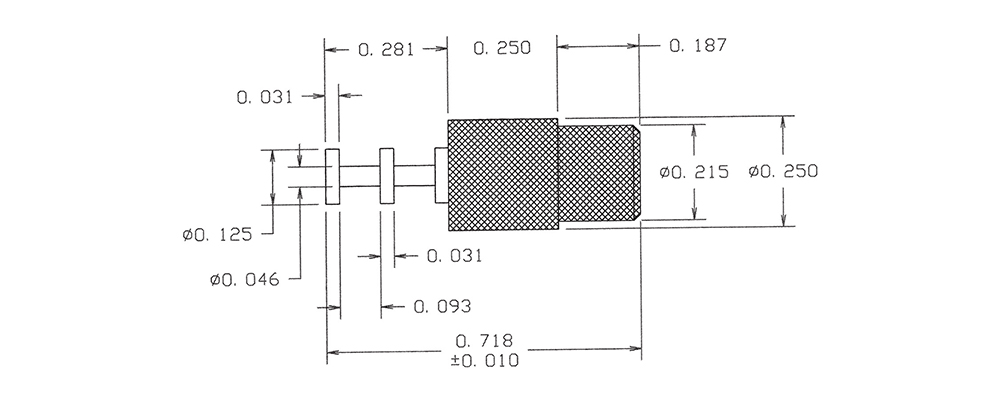

1102-84-0518
1102-84-0518
1102-84-0518
0.718" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Gray NO
