Non-Insulated
PC Jacks

Filter
09-9651-1-063
09-9651-1-063
09-9651-1-063
0.015 - 0.021 0.093 " 0.156" Jack/Pin Press Fit/Solder - 1/32 - 1/16 0.043 Phosphor Bronze Bright Tin-Lead Vertical
09-9649-1-063
09-9649-1-063
09-9649-1-063
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Bright Tin-Lead Vertical
09-9741-1-035
09-9741-1-035
09-9741-1-035
0.032 - 0.046 0.495 " 0.655" Jack/Pin Press Fit/Solder - 1/16 - 3/8 0.090 Brass Gold Vertical
09-9741-1-03
09-9741-1-03
09-9741-1-03
0.032 - 0.046 0.495 " 0.655" Jack/Pin Press Fit/Solder - 1/16 - 3/8 0.090 Brass Gold Vertical

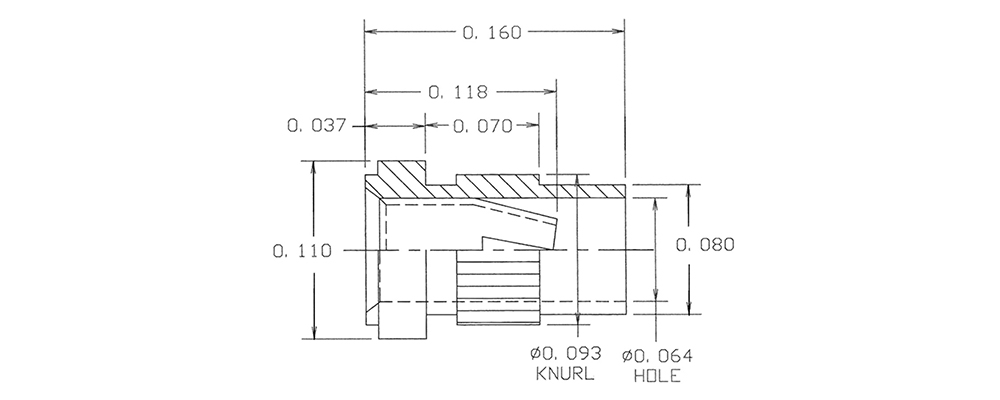

09-9735-1-03
09-9735-1-03
09-9735-1-03
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Gold Vertical
09-9282-1-035
09-9282-1-035
09-9282-1-035
0.040 0.210 " 0.740" Jack/Threaded 4-40 Nut 0.450" 13/64 - 1/4 0.120 Brass Gold Vertical
09-9282-1-04
09-9282-1-04
09-9282-1-04
0.040 0.210 " 0.740" Jack/Threaded 4-40 Nut 0.450" 13/64 - 1/4 0.120 Brass Electro-Tin Vertical
09-9739-1-03
09-9739-1-03
09-9739-1-03
0.032 - 0.046 0.205 " 0.385" Jack/Pin Press Fit/Solder - 3/32 - 3/16 0.090 Brass Gold Vertical
09-9739-1-035
09-9739-1-035
09-9739-1-035
0.032 - 0.046 0.205 " 0.385" Jack/Pin Press Fit/Solder - 3/32 - 3/16 0.090 Brass Gold Vertical
09-9739-1-06
09-9739-1-06
09-9739-1-06
0.032 - 0.046 0.205 " 0.385" Jack/Pin Press Fit/Solder - 3/32 - 3/16 0.090 Brass Electro-Tin Vertical
09-9741-1-088
09-9741-1-088
09-9741-1-088
0.032 - 0.046 0.495 " 0.655" Jack/Pin Press Fit/Solder - 1/16 - 3/8 0.090 Brass Bright Tin-Lead Vertical
09-9078-1-063
09-9078-1-063
09-9078-1-063
0.040 0.185 " 0.230" - Press Fit/Solder - 1/32 - 1/16 0.0995 (+0.001/-0.003) Brass Bright Tin-Lead Vertical
09-9070-1-04
09-9070-1-04
09-9070-1-04
0.060 - 0.062 0.190 " 0.530" - - - - - Brass Electro-Tin -
09-9034-1-04
09-9034-1-04
09-9034-1-04
0.030 - 0.032 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9249-1-06
09-9249-1-06
09-9249-1-06
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Electro-Tin Vertical
09-9642-4-06
09-9642-4-06
09-9642-4-06
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Electro-Tin Vertical
09-9642-1-03
09-9642-1-03
09-9642-1-03
0.065 - 0.082 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.096 Brass Gold Vertical
09-9642-2-063
09-9642-2-063
09-9642-2-063
0.065 - 0.082 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.096 Brass Bright Tin-Lead Vertical
09-9642-2-035
09-9642-2-035
09-9642-2-035
0.065 - 0.082 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.096 Brass Gold Vertical
09-9642-6-03
09-9642-6-03
09-9642-6-03
0.065 - 0.082 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.096 Brass Gold Vertical
