Non-Insulated
PC Jacks

Filter

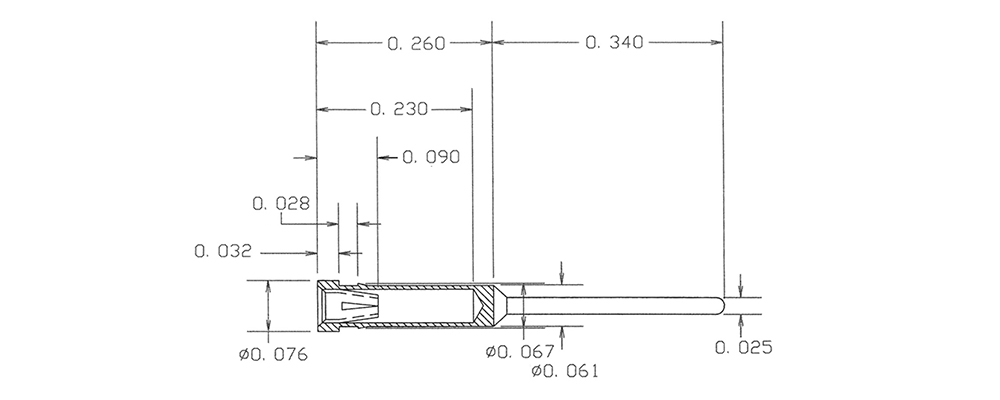

09-9640-1-088
09-9640-1-088
09-9640-1-088
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Bright Tin-Lead Vertical

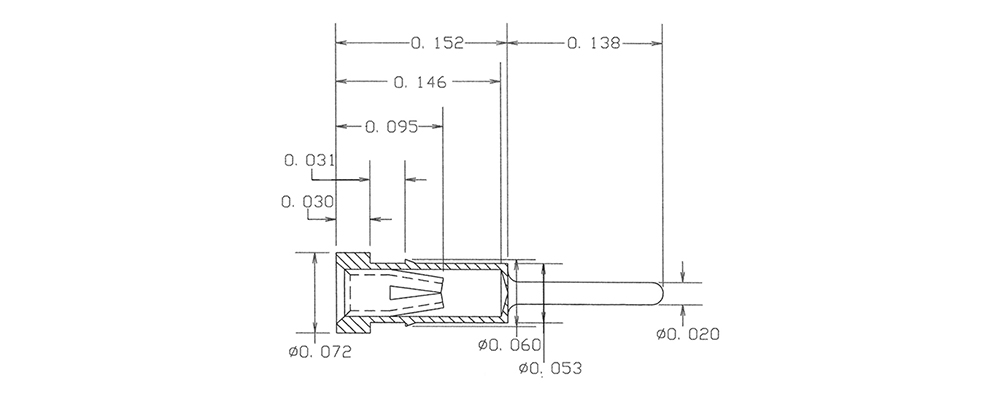

09-9678-1-06
09-9678-1-06
09-9678-1-06
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Electro-Tin Vertical

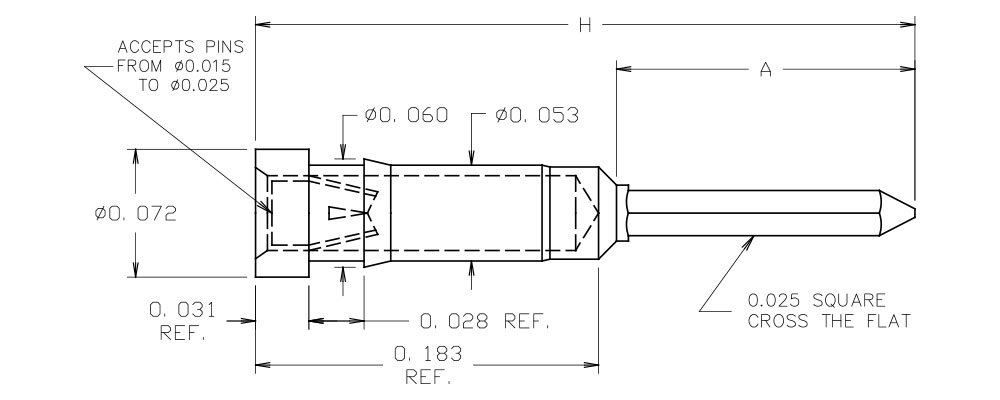

09-6010-1-035
09-6010-1-035
09-6010-1-035
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical

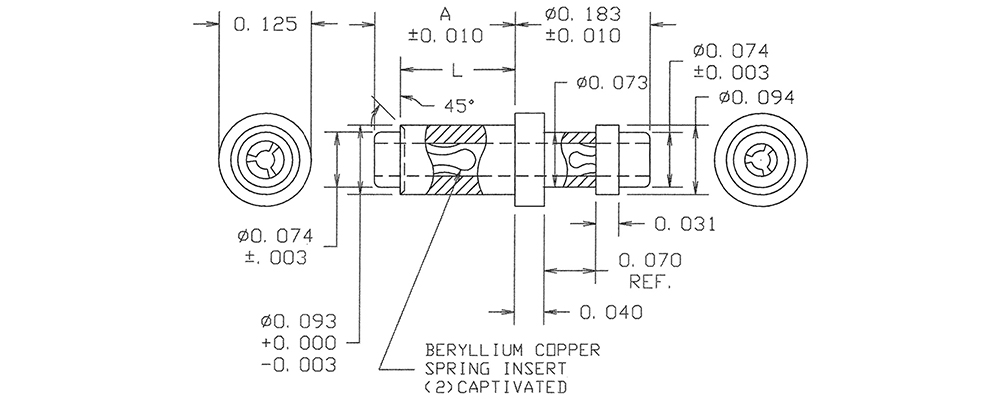

09-9022-3-03
09-9022-3-03
09-9022-3-03
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical

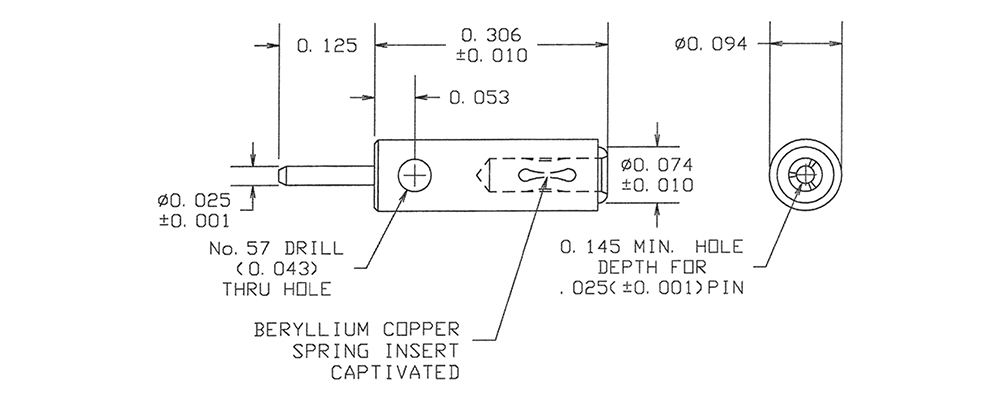

09-9054-1-063
09-9054-1-063
09-9054-1-063
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Bright Tin-Lead Vertical

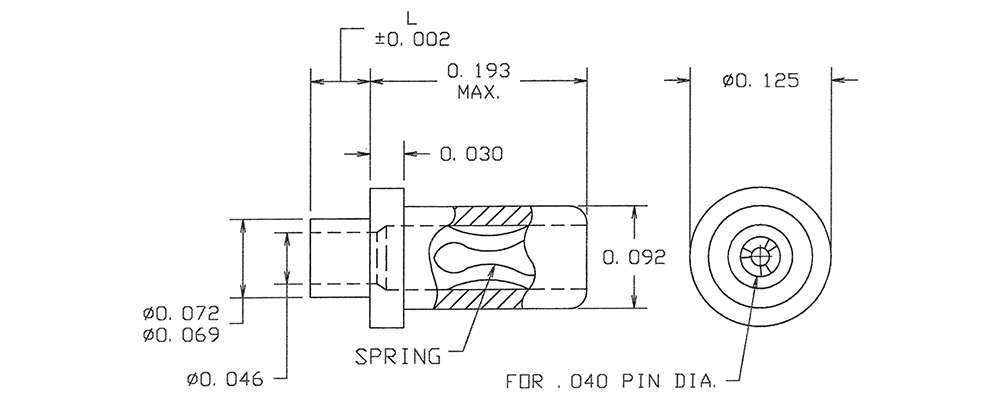

09-9230-4-035
09-9230-4-035
09-9230-4-035
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Gold Vertical

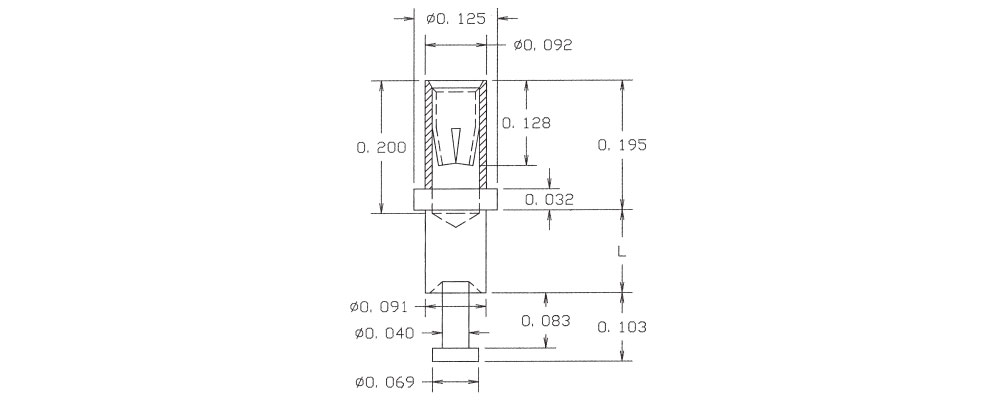

09-9604-6-04
09-9604-6-04
09-9604-6-04
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin Vertical

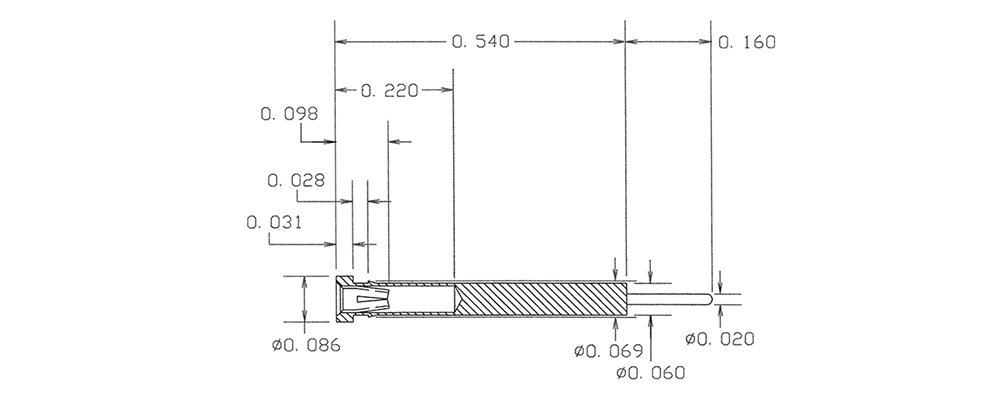

09-9641-1-03
09-9641-1-03
09-9641-1-03
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Gold Vertical
09-9678-1-063
09-9678-1-063
09-9678-1-063
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-6010-1-04
09-6010-1-04
09-6010-1-04
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9022-3-035
09-9022-3-035
09-9022-3-035
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9054-1-088
09-9054-1-088
09-9054-1-088
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Bright Tin-Lead Vertical
09-9230-4-04
09-9230-4-04
09-9230-4-04
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Electro-Tin Vertical
09-9604-6-06
09-9604-6-06
09-9604-6-06
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin Vertical
09-9641-1-035
09-9641-1-035
09-9641-1-035
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Gold Vertical
09-9678-1-088
09-9678-1-088
09-9678-1-088
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-6010-1-06
09-6010-1-06
09-6010-1-06
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
