Non-Insulated
PC Jacks

Filter
09-9067-4-03
09-9067-4-03
09-9067-4-03
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-3-06
09-9067-3-06
09-9067-3-06
0.060 - 0.062 0.204 " 0.475" Jack/Turret Swage Mount 0.120" 3/32 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-3-04
09-9067-3-04
09-9067-3-04
0.060 - 0.062 0.204 " 0.475" Jack/Turret Swage Mount 0.120" 3/32 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-3-03
09-9067-3-03
09-9067-3-03
0.060 - 0.062 0.204 " 0.475" Jack/Turret Swage Mount 0.120" 3/32 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-2-088
09-9067-2-088
09-9067-2-088
0.060 - 0.062 0.204 " 0.444" Jack/Turret Swage Mount 0.089" 1/16 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-2-04
09-9067-2-04
09-9067-2-04
0.060 - 0.062 0.204 " 0.444" Jack/Turret Swage Mount 0.089" 1/16 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-2-03
09-9067-2-03
09-9067-2-03
0.060 - 0.062 0.204 " 0.444" Jack/Turret Swage Mount 0.089" 1/16 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-1-088
09-9067-1-088
09-9067-1-088
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-1-063
09-9067-1-063
09-9067-1-063
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-1-035
09-9067-1-035
09-9067-1-035
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-1-03
09-9067-1-03
09-9067-1-03
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9044-1-088
09-9044-1-088
09-9044-1-088
0.080 0.329 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Bright Tin-Lead Vertical
09-9039-1-063
09-9039-1-063
09-9039-1-063
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Bright Tin-Lead Vertical
09-9736-1-063
09-9736-1-063
09-9736-1-063
0.032 - 0.046 0.250 " 0.296" - Solder - 1/32 - 5/32 0.089 Brass Bright Tin-Lead Vertical
09-9264-1-03
09-9264-1-03
09-9264-1-03
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Gold Vertical
09-9662-1-03
09-9662-1-03
09-9662-1-03
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Gold Vertical
09-9040-1-06
09-9040-1-06
09-9040-1-06
0.080 0.325 " 0.613" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Electro-Tin Vertical
09-9082-1-06
09-9082-1-06
09-9082-1-06
0.040 0.190 " 0.511" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Electro-Tin Vertical
09-9249-1-06
09-9249-1-06
09-9249-1-06
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Electro-Tin Vertical

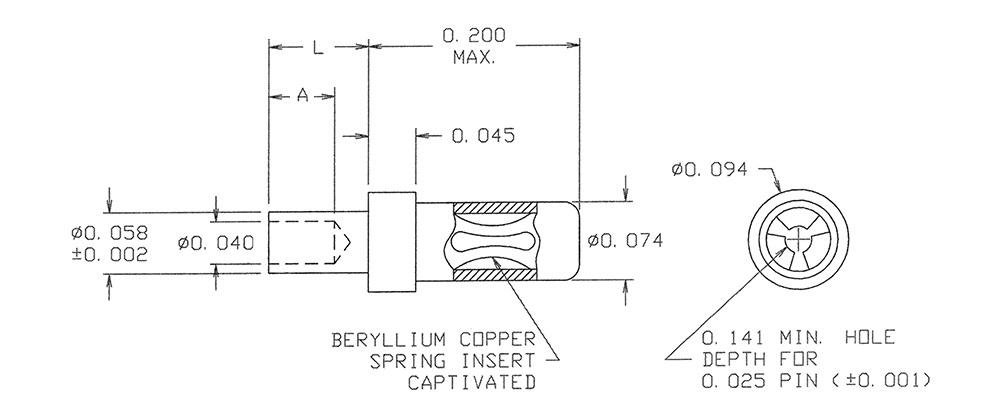

09-9020-4-063
09-9020-4-063
09-9020-4-063
0.025 0.141 " 0.356" - Swage Mount 0.156" 1/8 0.062 Brass Bright Tin-Lead Vertical
