Non-Insulated
PC Jacks

Filter
09-9699-1-088
09-9699-1-088
09-9699-1-088
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Bright Tin-Lead Vertical

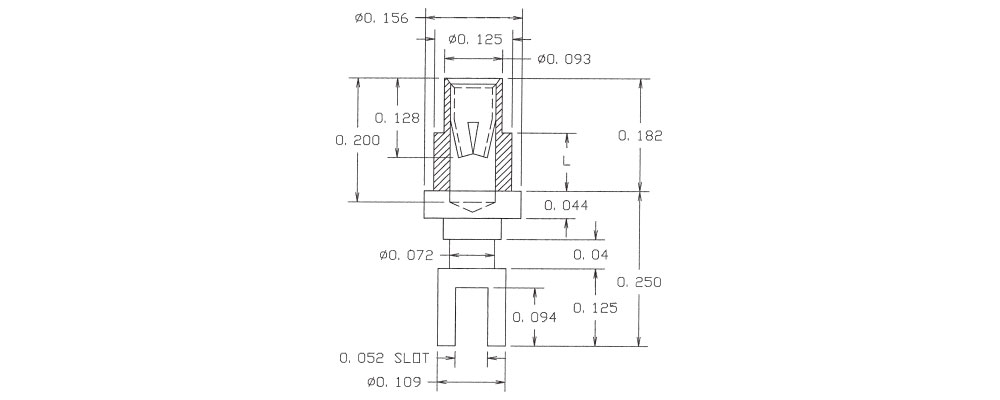

09-9603-3-035
09-9603-3-035
09-9603-3-035
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Gold Vertical
09-9603-3-03
09-9603-3-03
09-9603-3-03
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Gold Vertical
09-9603-2-088
09-9603-2-088
09-9603-2-088
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Bright Tin-Lead Vertical
09-9641-1-063
09-9641-1-063
09-9641-1-063
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Bright Tin-Lead Vertical
09-9603-2-063
09-9603-2-063
09-9603-2-063
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Bright Tin-Lead Vertical
09-9641-1-06
09-9641-1-06
09-9641-1-06
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Electro-Tin Vertical
09-9641-1-035
09-9641-1-035
09-9641-1-035
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Gold Vertical
09-9726-1-06
09-9726-1-06
09-9726-1-06
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Electro-Tin Vertical
09-9603-2-06
09-9603-2-06
09-9603-2-06
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Electro-Tin Vertical
09-9699-1-06
09-9699-1-06
09-9699-1-06
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Electro-Tin Vertical
09-9726-1-063
09-9726-1-063
09-9726-1-063
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Bright Tin-Lead Vertical
09-9727-1-035
09-9727-1-035
09-9727-1-035
0.032 - 0.046 0.241 " 0.270" - Solder - 1/32 - 3/16 0.075 Brass Gold Vertical
09-9666-1-06
09-9666-1-06
09-9666-1-06
0.015 - 0.025 0.126 " 0.146" - Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical

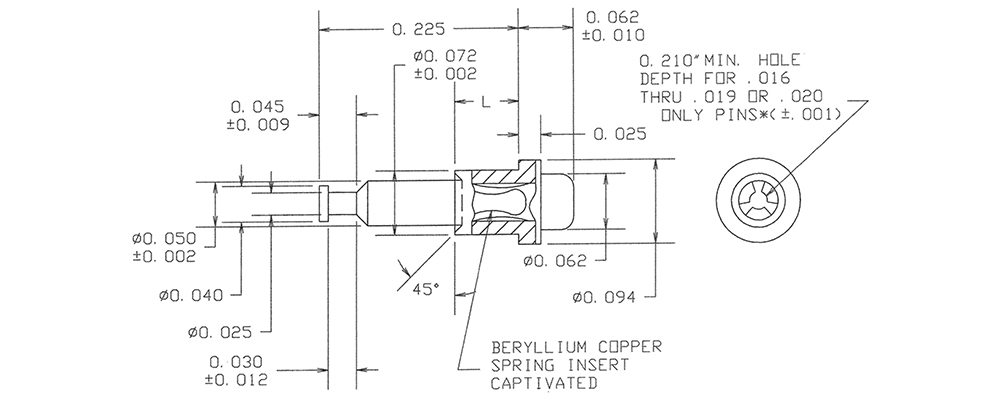

09-9051-2-06
09-9051-2-06
09-9051-2-06
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.072" 1/16 0.076 Brass Electro-Tin Vertical
09-9699-1-04
09-9699-1-04
09-9699-1-04
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Electro-Tin Vertical
09-9289-1-088
09-9289-1-088
09-9289-1-088
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.046 Brass Bright Tin-Lead Horizontal
09-9230-4-03
09-9230-4-03
09-9230-4-03
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Gold Vertical
09-9699-1-03
09-9699-1-03
09-9699-1-03
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Gold Vertical
09-9293-1-088
09-9293-1-088
09-9293-1-088
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Bright Tin-Lead Vertical
