Non-Insulated
PC Jacks

09-9067-4-088
09-9067-4-088
09-9067-4-088
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9667-1-063
09-9667-1-063
09-9667-1-063
0.015 - 0.025 0.100 " 0.125" - Solder - 1/32 - 1/16 0.0635 Brass Bright Tin-Lead Vertical
09-9197-1-06
09-9197-1-06
09-9197-1-06
0.080 0.325 " 0.797" Jack/Pin Solder - 1/32 - 3/32 0.083 Brass Electro-Tin Vertical
09-9264-1-035
09-9264-1-035
09-9264-1-035
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Gold Vertical
09-9622-1-063
09-9622-1-063
09-9622-1-063
0.022 - 0.034 0.120 " 0.180" - Solder - 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9725-2-088
09-9725-2-088
09-9725-2-088
0.025 0.141 " 0.294" - Swage Mount 0.094" 1/16 0.058 Brass Bright Tin-Lead Vertical
09-9689-1-06
09-9689-1-06
09-9689-1-06
0.015 - 0.025 0.145 " 0.165" - Solder - 1/32 - 3/32 0.056 Brass Electro-Tin Vertical
09-9689-1-088
09-9689-1-088
09-9689-1-088
0.015 - 0.025 0.145 " 0.165" - Solder - 1/32 - 3/32 0.056 Brass Bright Tin-Lead Vertical
09-9050-1-06
09-9050-1-06
09-9050-1-06
0.016 - 0.020 0.197 " 0.240" - Solder - 1/32 - 5/32 0.052 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9050-1-035
09-9050-1-035
09-9050-1-035
0.016 - 0.020 0.197 " 0.240" - Solder - 1/32 - 5/32 0.052 (+0.002/-0.001) Brass Gold Vertical
09-9650-1-035
09-9650-1-035
09-9650-1-035
0.015 - 0.025 0.205 " 0.248" Jack/Pin Solder - 1/32 - 5/32 0.052 Brass Gold Vertical
09-9093-1-063
09-9093-1-063
09-9093-1-063
0.022 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9026-2-035
09-9026-2-035
09-9026-2-035
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Gold Vertical
09-9270-1-04
09-9270-1-04
09-9270-1-04
0.040 0.350 " 0.374" - Solder - 1/32 - 5/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9056-1-035
09-9056-1-035
09-9056-1-035
0.040 0.185 " 0.530" - - - - - Brass Gold -
09-9035-4-04
09-9035-4-04
09-9035-4-04
0.040 0.175 " 0.386" - Swage Mount 0.156" 1/8 0.067 Brass Electro-Tin Vertical
09-9605-3-03
09-9605-3-03
09-9605-3-03
0.032 - 0.046 0.195 " 0.508" Jack/Pin Swage Mount 0.125" 3/32 0.094 Brass Gold Vertical
09-9044-1-04
09-9044-1-04
09-9044-1-04
0.080 0.329 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
09-9014-1-035
09-9014-1-035
09-9014-1-035
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Gold Vertical

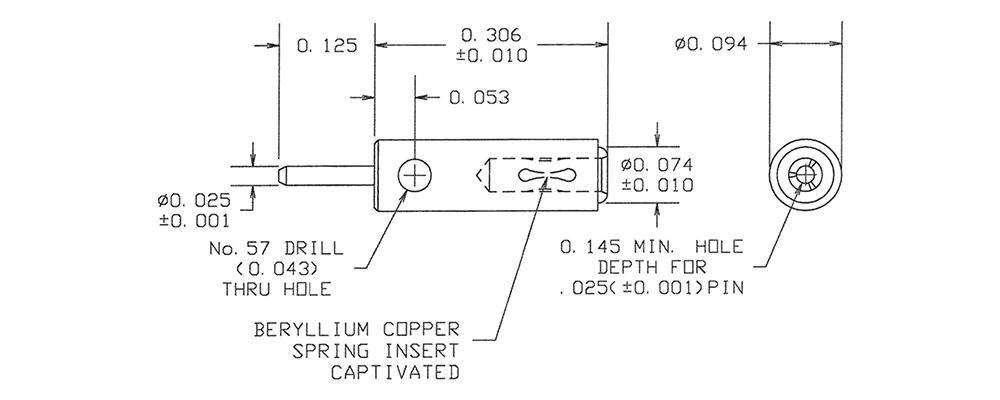

09-9054-1-063
09-9054-1-063
09-9054-1-063
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Bright Tin-Lead Vertical
