Non-Insulated
PC Jacks

09-9166-1-035
09-9166-1-035
09-9166-1-035
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Gold Horizontal
09-9272-1-063
09-9272-1-063
09-9272-1-063
0.080 0.350 " 1.015" Jack/Threaded 4-40 0.375" 3/8 4-40 THREAD Brass Bright Tin-Lead Vertical
09-9275-1-063
09-9275-1-063
09-9275-1-063
0.080 0.350 " 0.466" - - - - - Brass Bright Tin-Lead -
09-9269-1-063
09-9269-1-063
09-9269-1-063
0.080 0.350 " 1.170" Jack/Pin - - - - Brass Bright Tin-Lead -
09-9288-1-06
09-9288-1-06
09-9288-1-06
0.030 0.175 " 0.385" - - - - - Brass Electro-Tin -
09-9272-1-06
09-9272-1-06
09-9272-1-06
0.080 0.350 " 1.015" Jack/Threaded 4-40 0.375" 3/8 4-40 THREAD Brass Electro-Tin Vertical
09-9286-1-06
09-9286-1-06
09-9286-1-06
0.080 0.350 " 1.295" Jack/Pin - - - - Brass Electro-Tin -
09-9288-1-03
09-9288-1-03
09-9288-1-03
0.030 0.175 " 0.385" - - - - - Brass Gold -
09-9662-1-03
09-9662-1-03
09-9662-1-03
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Gold Vertical
09-9237-1-063
09-9237-1-063
09-9237-1-063
0.030 0.110 " 0.424" Jack/Pin Solder - 1/32 - 3/32 0.072 Brass Bright Tin-Lead Vertical
09-9006-1-063
09-9006-1-063
09-9006-1-063
0.040 0.185 " 0.220" - Solder - 1/32 - 1/8 0.076 Brass Bright Tin-Lead Vertical
09-9040-1-04
09-9040-1-04
09-9040-1-04
0.080 0.325 " 0.613" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Electro-Tin Vertical
09-9698-1-035
09-9698-1-035
09-9698-1-035
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-9605-4-063
09-9605-4-063
09-9605-4-063
0.032 - 0.046 0.195 " 0.539" Jack/Pin Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead Vertical

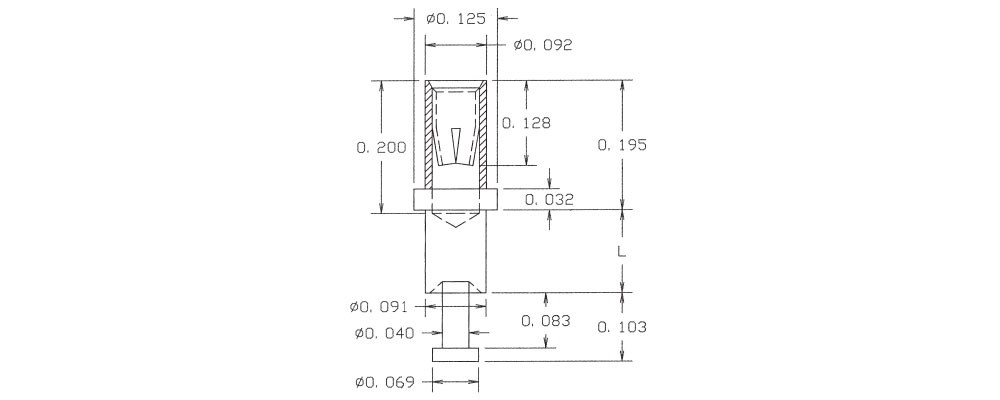

09-9604-1-03
09-9604-1-03
09-9604-1-03
0.032 - 0.046 0.200 " 0.360" Jack/Turret Swage Mount 0.062" 1/32 0.094 Brass Gold Vertical
09-9698-1-06
09-9698-1-06
09-9698-1-06
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9698-1-088
09-9698-1-088
09-9698-1-088
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9077-1-04
09-9077-1-04
09-9077-1-04
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Electro-Tin Vertical
09-9638-2-03
09-9638-2-03
09-9638-2-03
0.025 - 0.037 0.230 " 0.440" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.062 Brass Gold Vertical
09-9003-4-063
09-9003-4-063
09-9003-4-063
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Bright Tin-Lead Vertical
