Commercial
Insulated
Pin Terminals

Filter
1125-10-08815
1125-10-08815
1125-10-08815
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO
1125-15-0311
1125-15-0311
1125-15-0311
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-19-0417
1125-19-0417
1125-19-0417
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin Electro-Tin Brass PTFE Violet YES
1125-23-0513
1125-23-0513
1125-23-0513
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE Orange NO
1125-27-08819
1125-27-08819
1125-27-08819
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
09-2128-1-0315
09-2128-1-0315
09-2128-1-0315
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1100-47-04411
1100-47-04411
1100-47-04411
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Brown NO
1100R-22-0517
1100R-22-0517
1100R-22-0517
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Violet NO

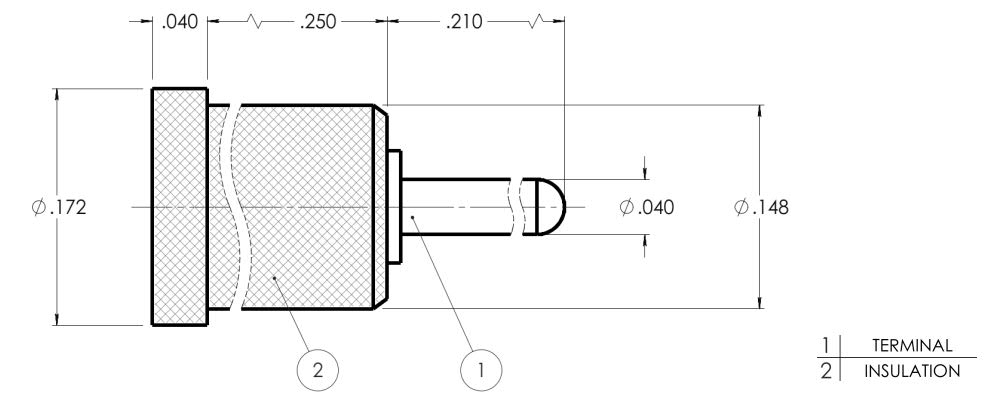

1100R-36-0113
1100R-36-0113
1100R-36-0113
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO

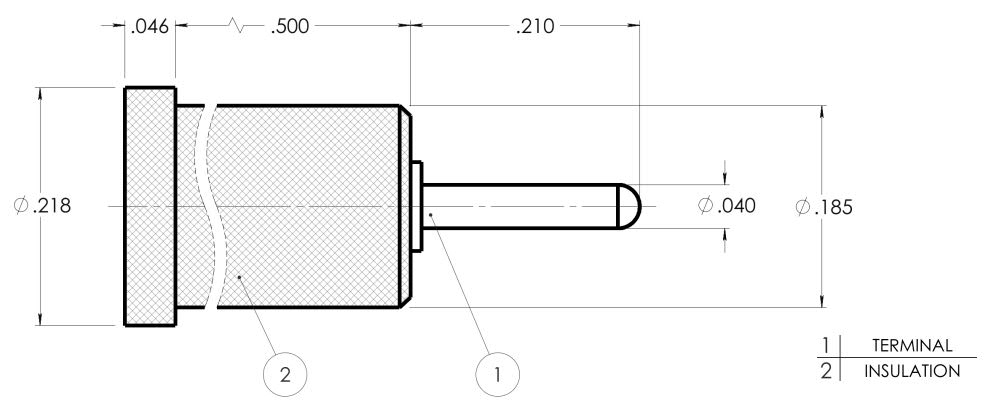

1100R-53-0319
1100R-53-0319
1100R-53-0319
0.756" 0.040 - Press Fit 15/32 0.172 Brass Gold - - PTFE White YES
1100R-70-04415
1100R-70-04415
1100R-70-04415
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES
1102-43-08811
1102-43-08811
1102-43-08811
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Brown NO

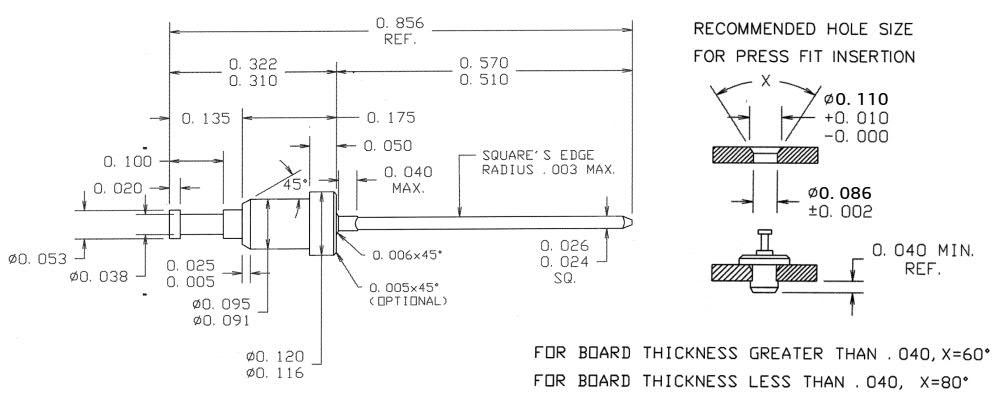

09-2078-1-0312
09-2078-1-0312
09-2078-1-0312
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Red NO

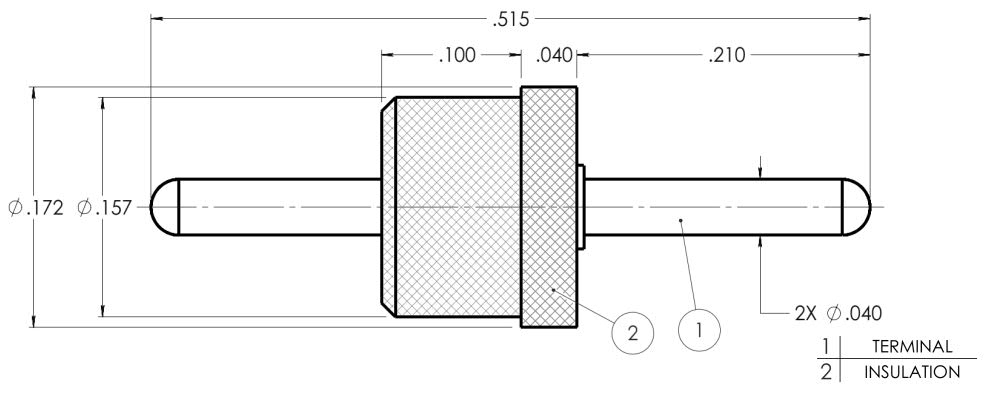

1110-39-0118
1110-39-0118
1110-39-0118
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Silver - - PTFE Gray NO

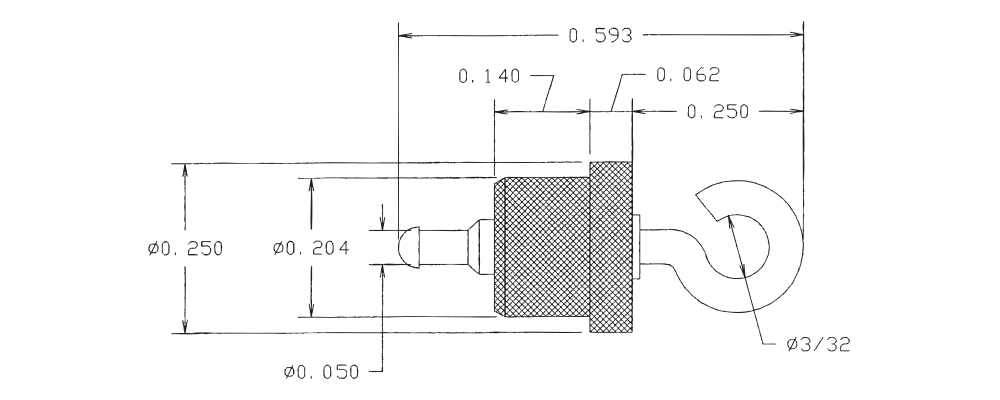

09-2094-1-0418
09-2094-1-0418
09-2094-1-0418
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Electro-Tin - - PTFE Gray NO
1111-19-0414
1111-19-0414
1111-19-0414
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Yellow NO

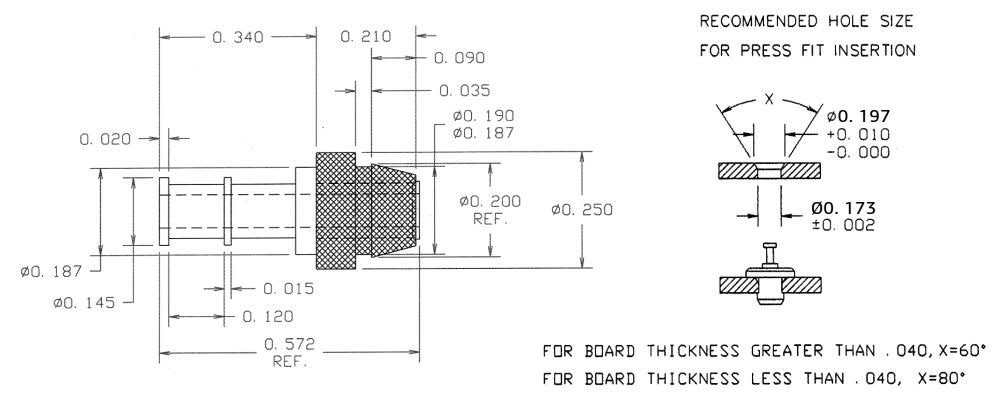

09-2101-1-0514
09-2101-1-0514
09-2101-1-0514
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro Solder - - PTFE Yellow NO

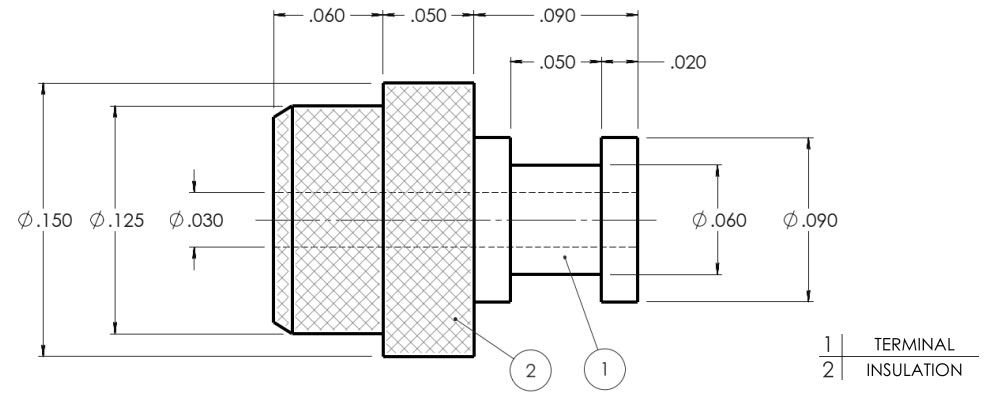

1112-05-0510
1112-05-0510
1112-05-0510
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Black NO

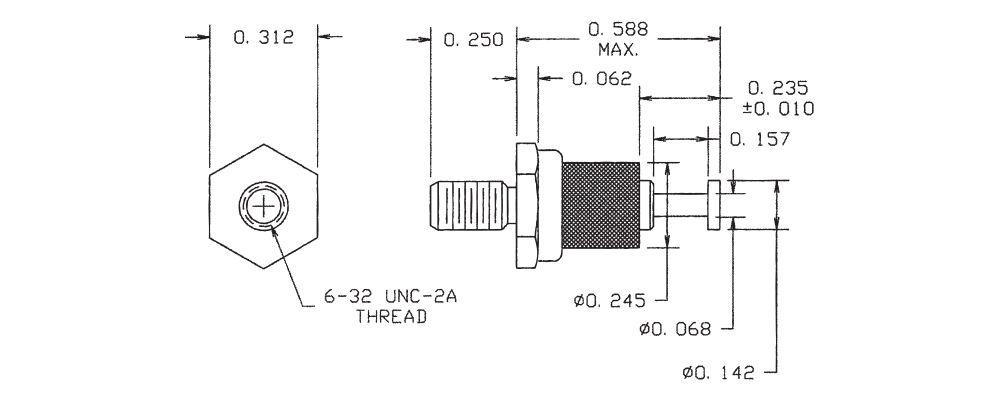

09-2112-1-0110
09-2112-1-0110
09-2112-1-0110
0.838" - - 6-32 Nut 1/8 0.144 Brass Silver Nickel Brass PTFE Black YES

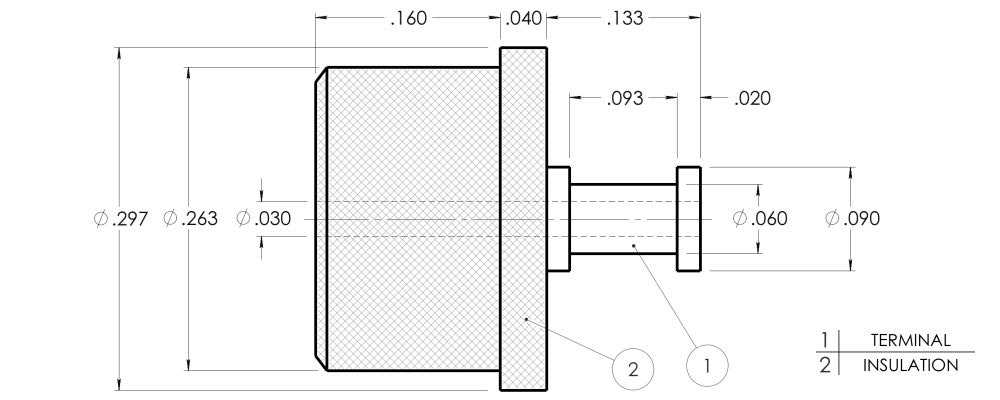

1112-20-08816
1112-20-08816
1112-20-08816
0.333" - - Press Fit 1/8 0.250 Brass Bright Tin-Lead - - PTFE Blue NO
