Commercial
Insulated
Pin Terminals

Filter

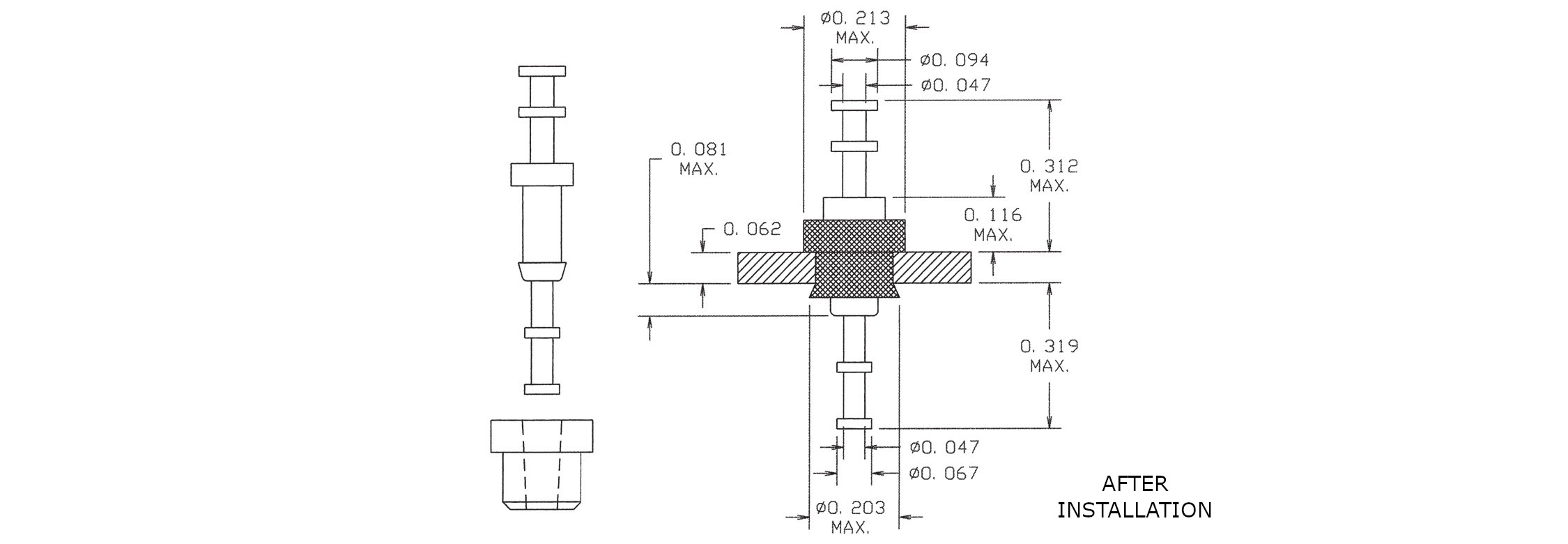

1175-722-04415
1175-722-04415
1175-722-04415
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES

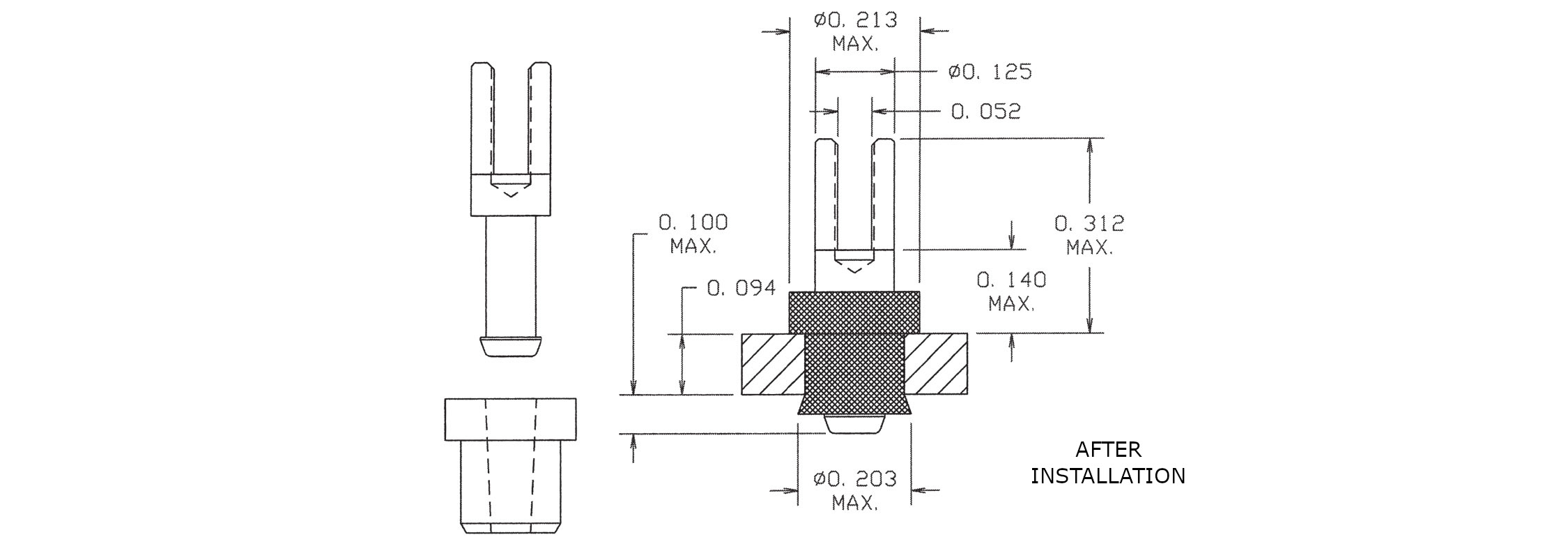

1175-733-08811
1175-733-08811
1175-733-08811
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO

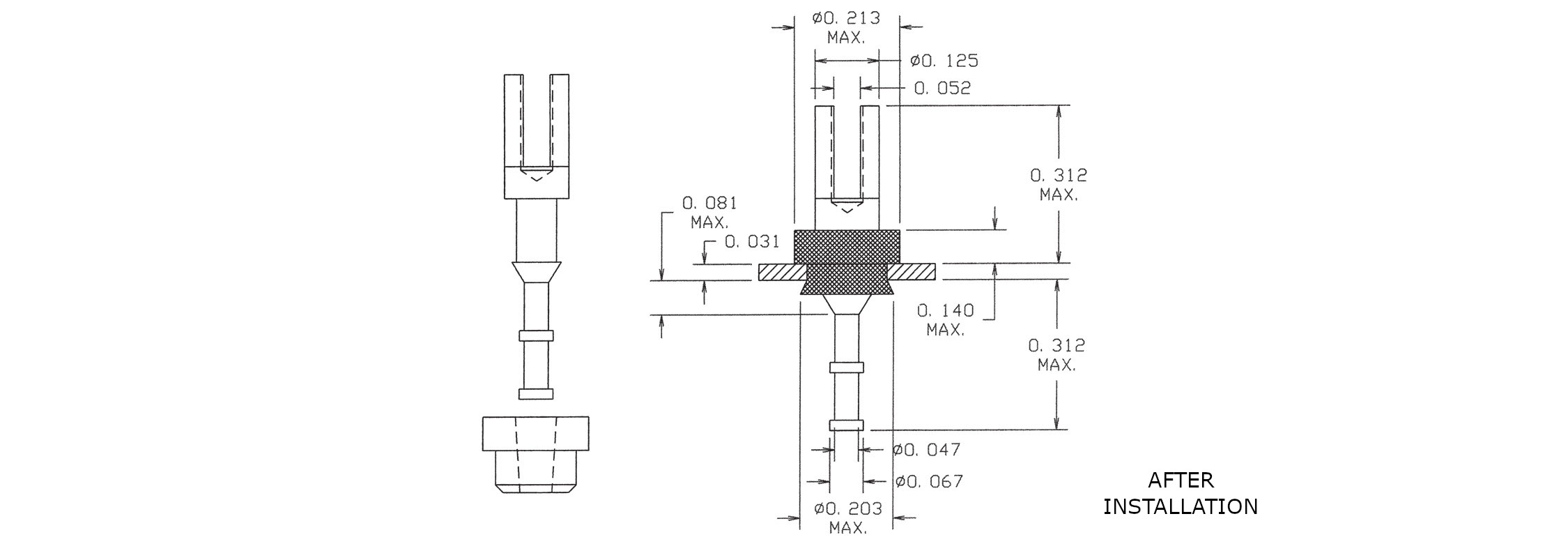

1175-751-0117
1175-751-0117
1175-751-0117
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Violet YES

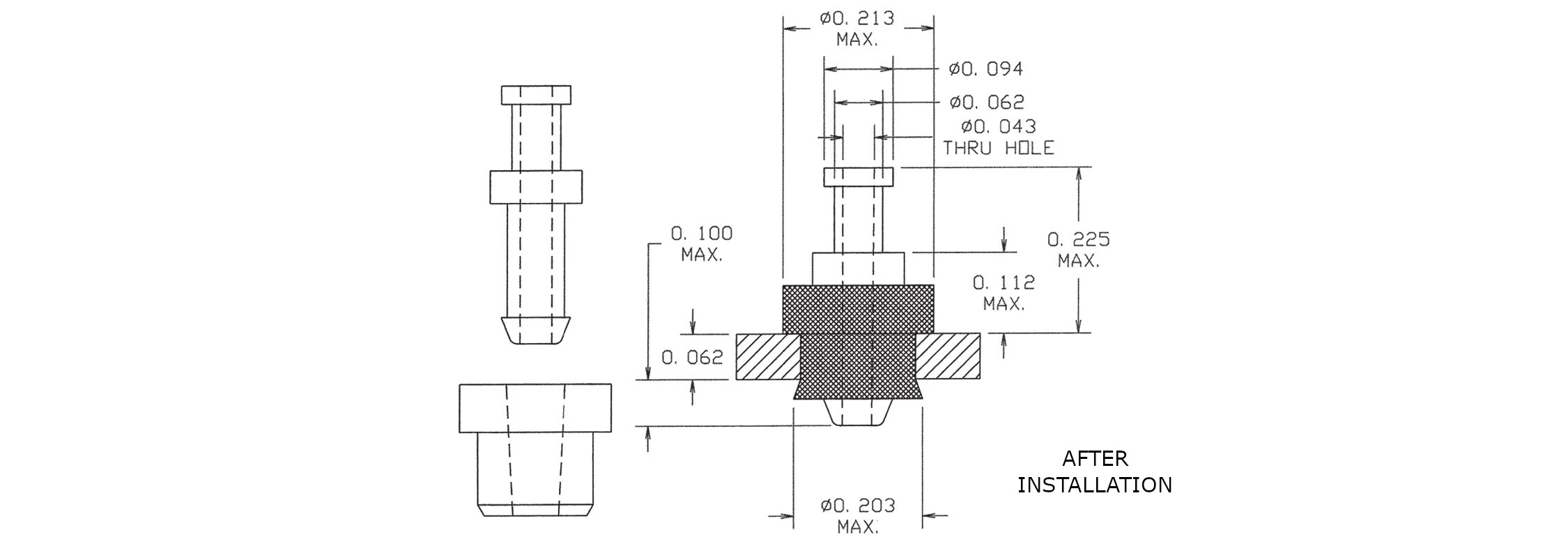

1175-762-0413
1175-762-0413
1175-762-0413
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO

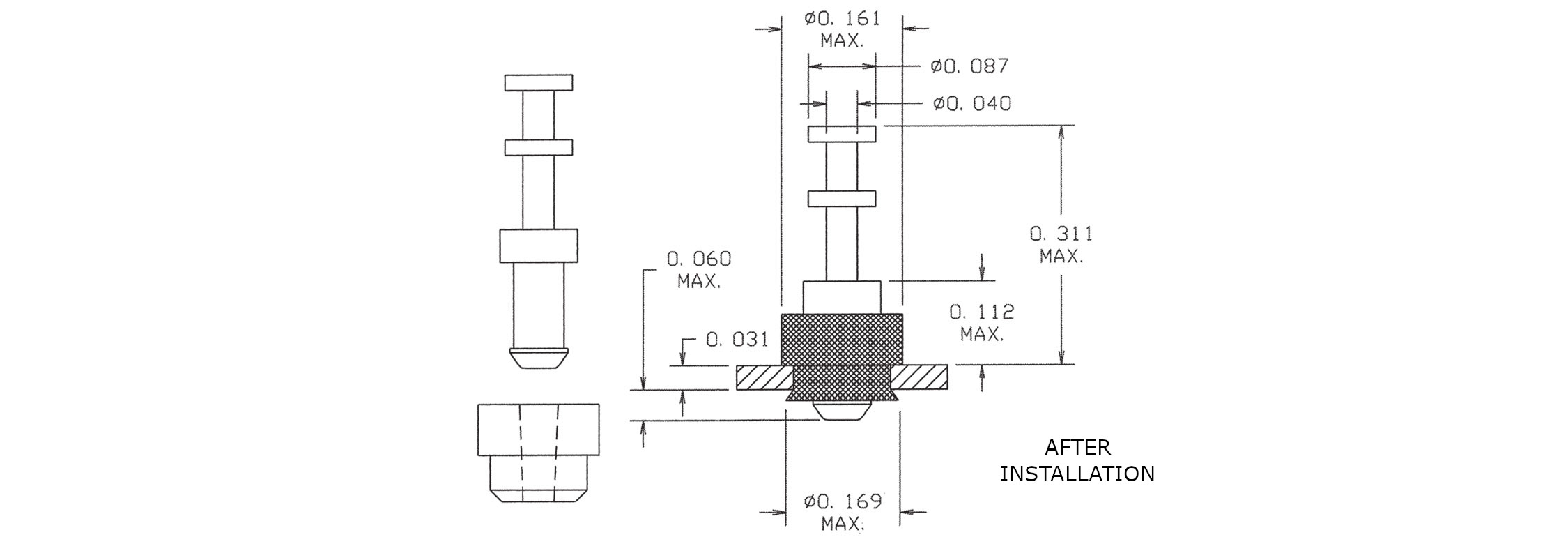

1175-821-04419
1175-821-04419
1175-821-04419
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES

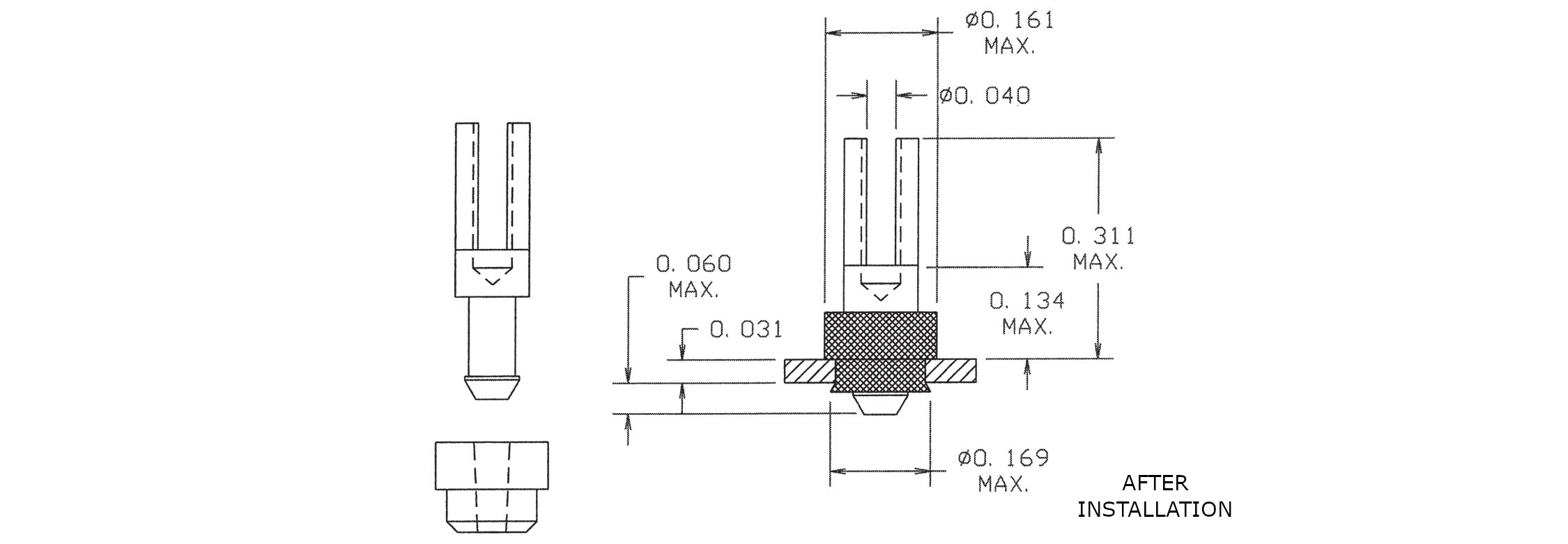

1175-841-08815
1175-841-08815
1175-841-08815
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO
1175-872-0311
1175-872-0311
1175-872-0311
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Brown NO

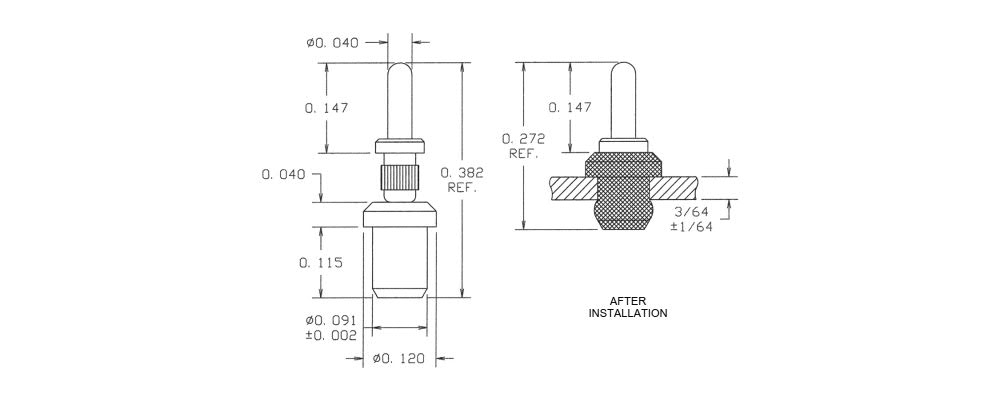

1177-02-0417
1177-02-0417
1177-02-0417
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro-Tin - - PTFE Violet YES

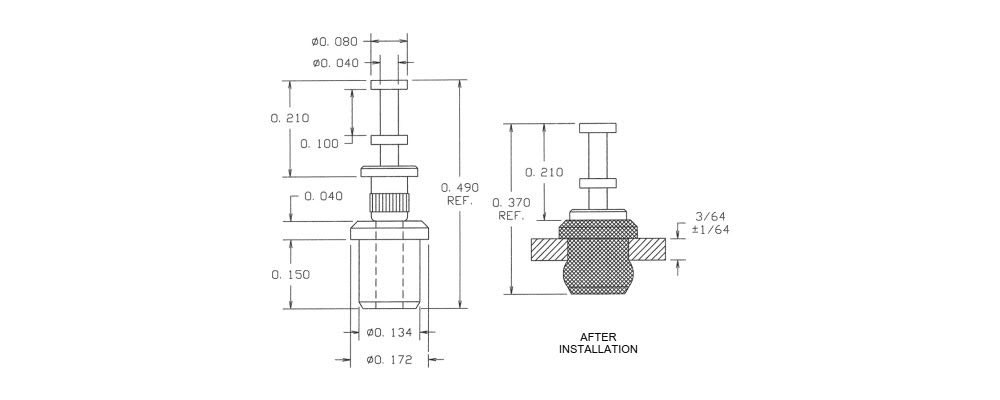

1177-11-0513
1177-11-0513
1177-11-0513
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Orange NO

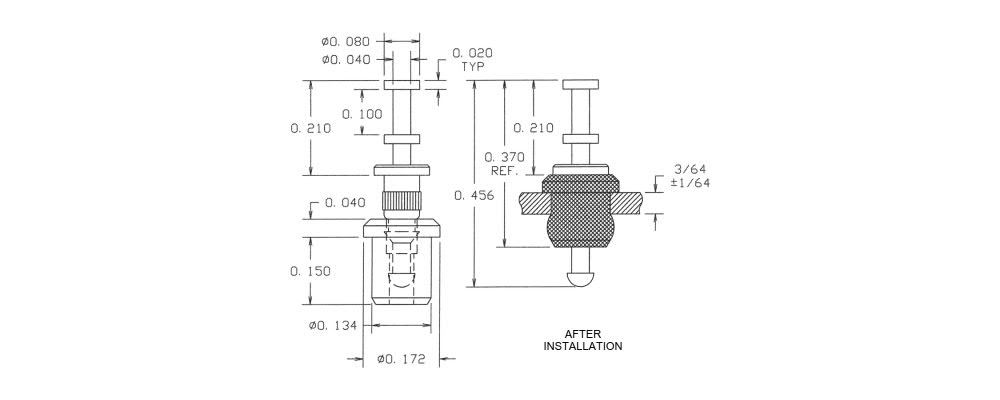

1177-31-08819
1177-31-08819
1177-31-08819
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1177-41-0315
1177-41-0315
1177-41-0315
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE Green YES
1177-52-04411
1177-52-04411
1177-52-04411
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Brown NO

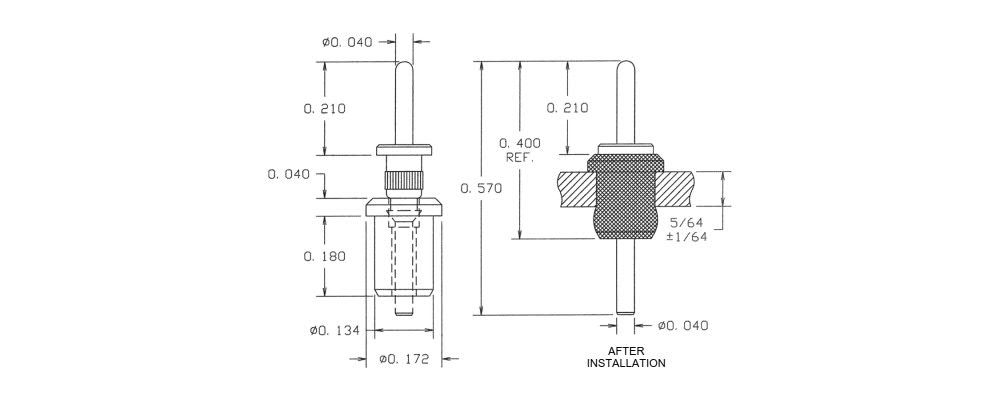

1177-56-0517
1177-56-0517
1177-56-0517
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro Solder - - PTFE Violet NO
1177-61-0113
1177-61-0113
1177-61-0113
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Orange NO
1178R-03-0319
1178R-03-0319
1178R-03-0319
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Gold - - PTFE White YES
1178R-10-04415
1178R-10-04415
1178R-10-04415
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin - - PTFE Green YES

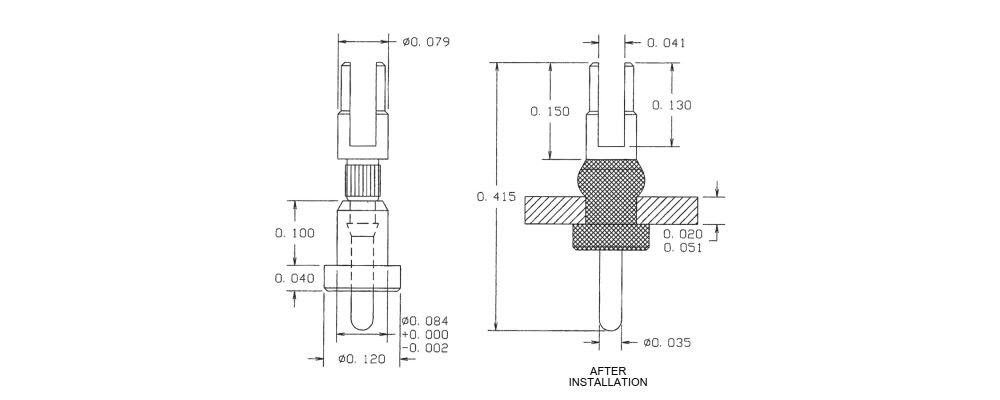

1178R-14-08811
1178R-14-08811
1178R-14-08811
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1102R-95-0117
1102R-95-0117
1102R-95-0117
0.812" - - Press Fit 13/64 0.297 Brass Silver - - PTFE Violet YES
1125-02-0413
1125-02-0413
1125-02-0413
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE Orange NO
1125-06-04419
1125-06-04419
1125-06-04419
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE White YES
