Commercial
Insulated
Pin Terminals

Filter
1151R-09-0315
1151R-09-0315
1151R-09-0315
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES

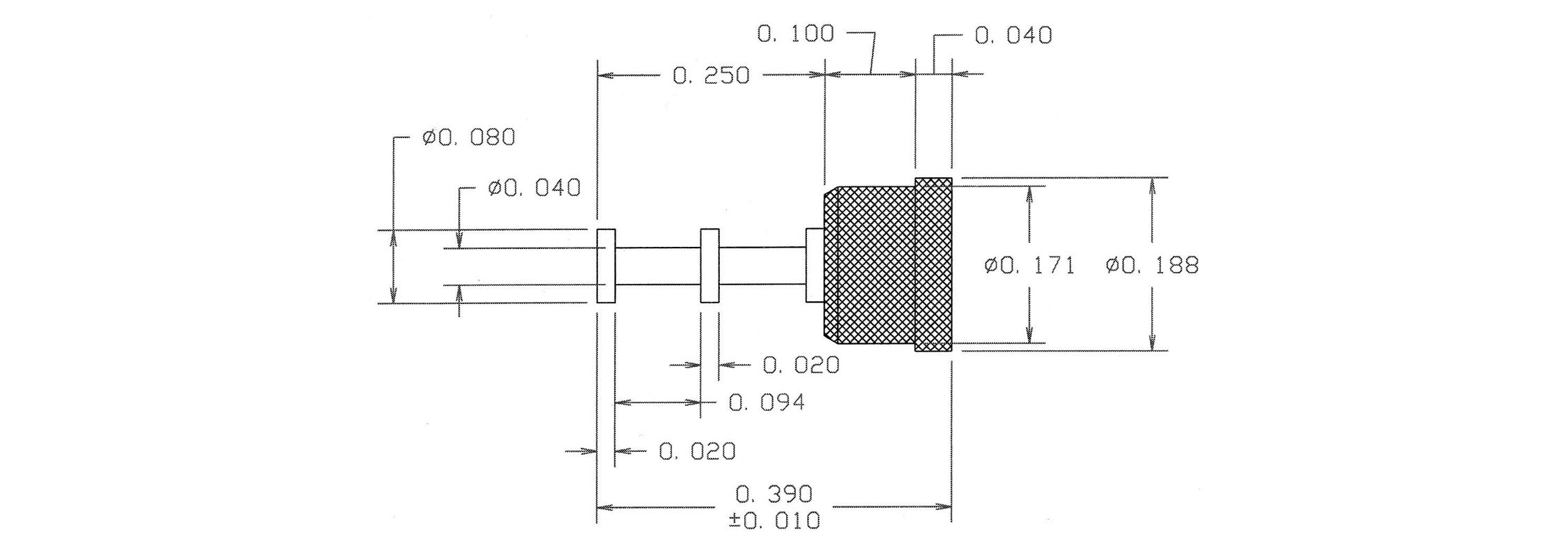

1151R-38-04411
1151R-38-04411
1151R-38-04411
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Brown NO

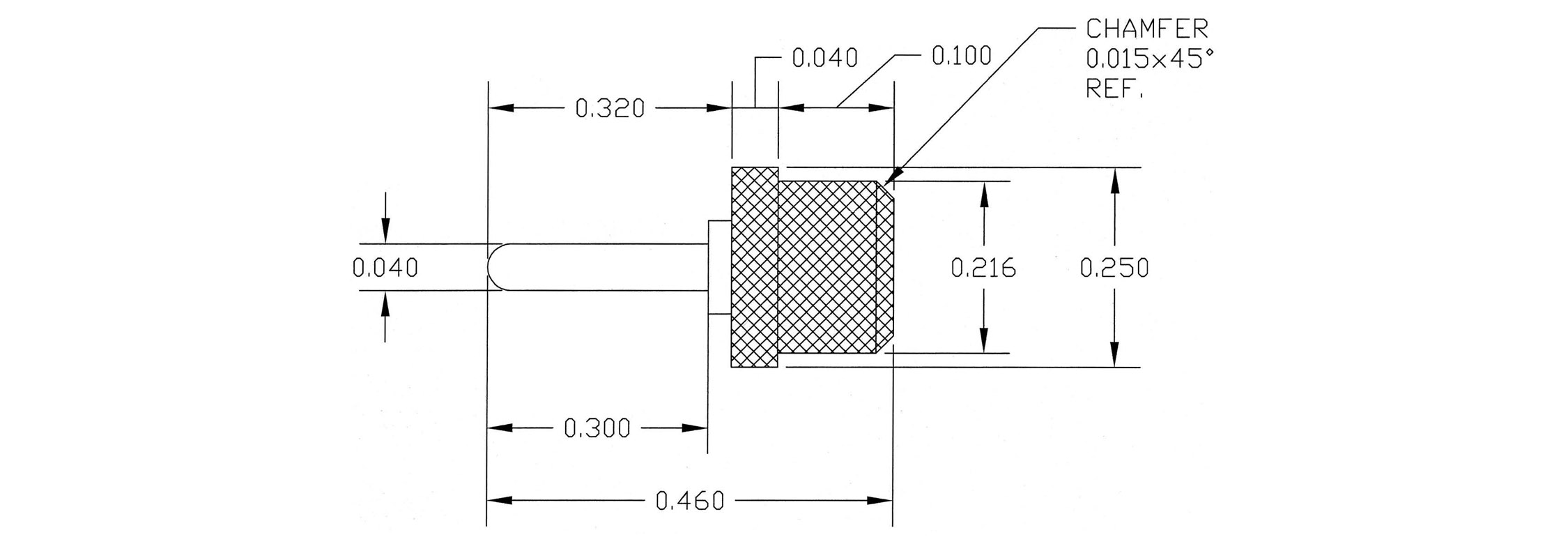

1152-29-0517
1152-29-0517
1152-29-0517
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE Violet NO
1152R-17-0113
1152R-17-0113
1152R-17-0113
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Orange NO
1153-06-0319
1153-06-0319
1153-06-0319
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1153-31-04415
1153-31-04415
1153-31-04415
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Green YES

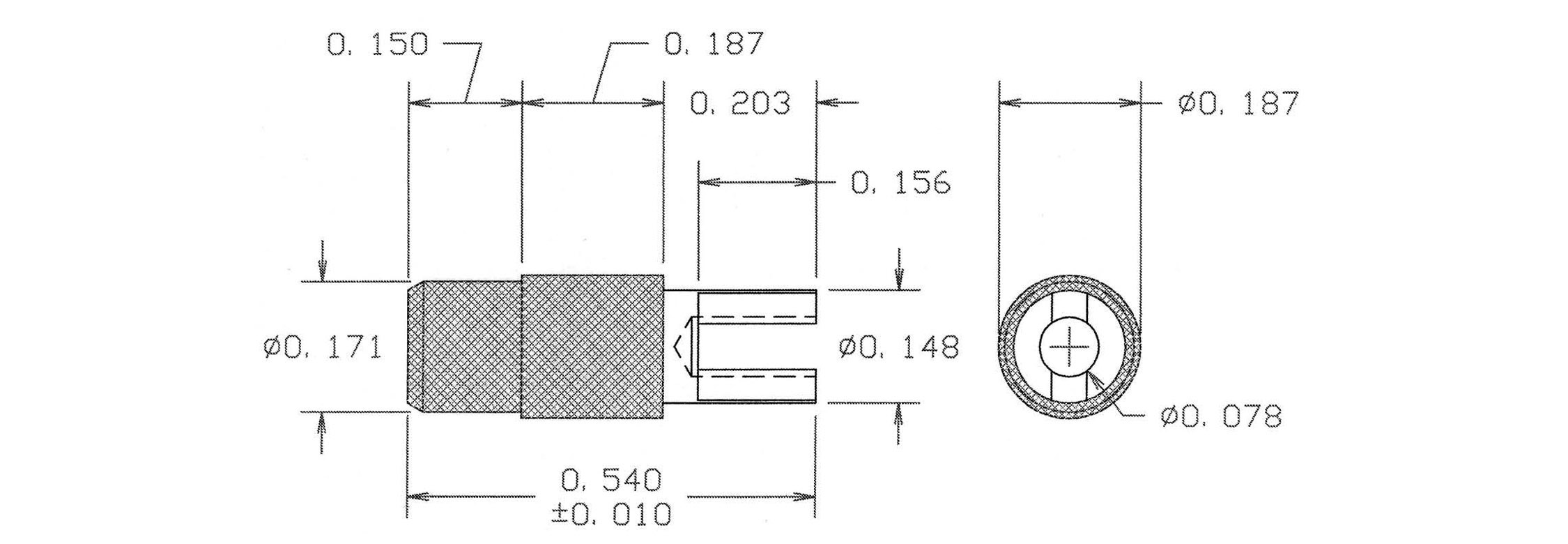

1154-08-08811
1154-08-08811
1154-08-08811
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1154-44-0117
1154-44-0117
1154-44-0117
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Violet YES
1155-01-0413
1155-01-0413
1155-01-0413
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Orange NO
1155-07-04419
1155-07-04419
1155-07-04419
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE White YES

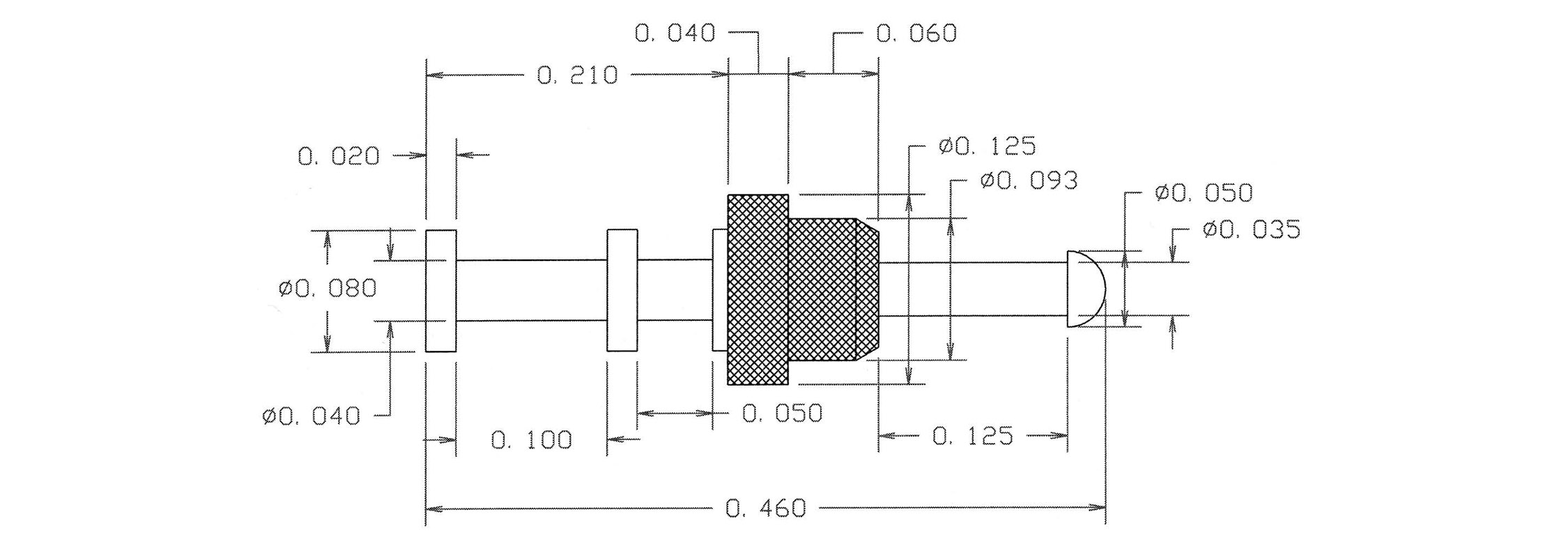

1156-01-08815
1156-01-08815
1156-01-08815
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1156-07-0311
1156-07-0311
1156-07-0311
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO
1156-14-0417
1156-14-0417
1156-14-0417
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Violet YES

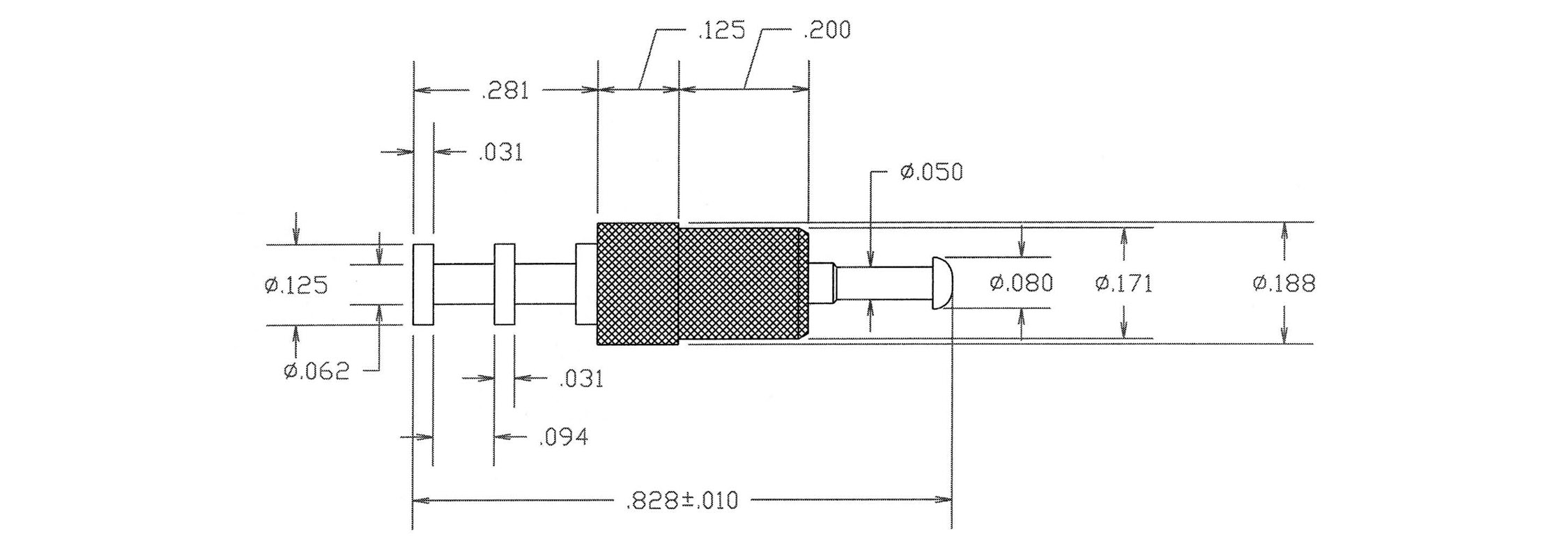

1156-18-0513
1156-18-0513
1156-18-0513
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Orange NO
1156-26-08819
1156-26-08819
1156-26-08819
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1157-01-0315
1157-01-0315
1157-01-0315
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1157-06-04411
1157-06-04411
1157-06-04411
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Brown NO

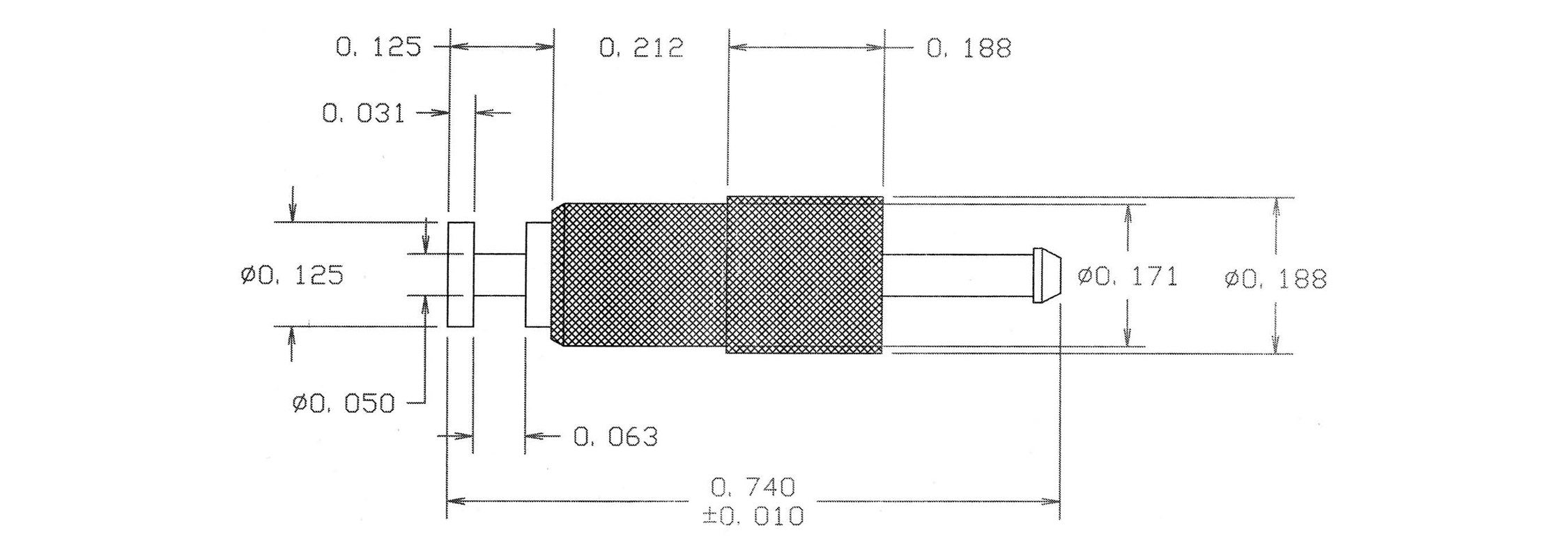

1157R-04-0517
1157R-04-0517
1157R-04-0517
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Violet NO
1160-13-0113
1160-13-0113
1160-13-0113
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1167-20-0319
1167-20-0319
1167-20-0319
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
