Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS

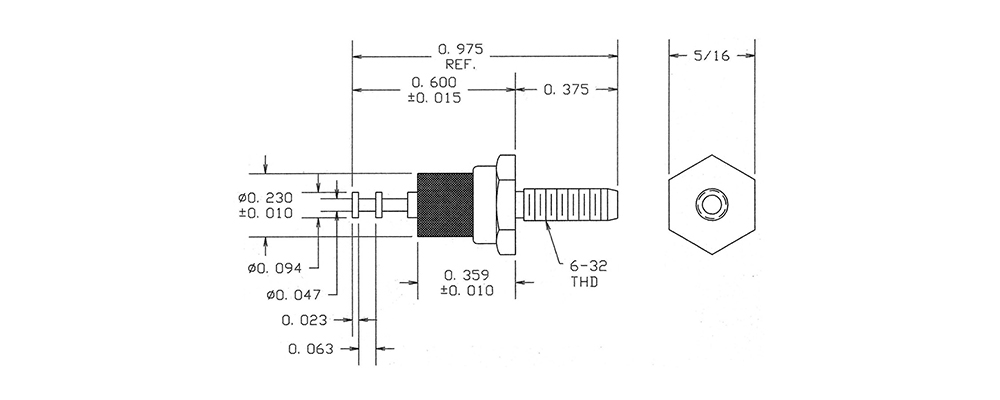

	1125-53-0518			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Electro Solder	Electro-Tin	Brass	PTFE	Gray	NO

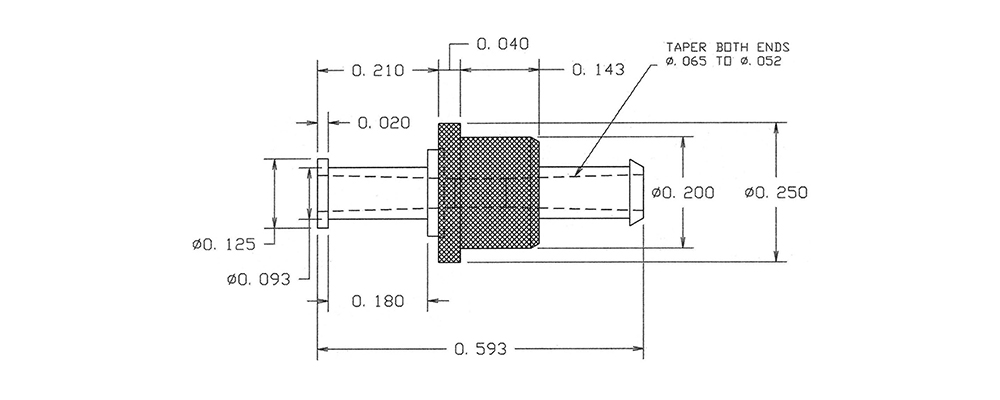

	1115-53-0512			0.593"	-	Turret/Turret	Press Fit	3/32	0.187	Brass	Electro Solder	-	-	PTFE	Red	NO
	1102-15-04414			0.375"	-	-	Press Fit	3/32	0.136	Brass	Bright Tin	-	-	PTFE	Yellow	NO

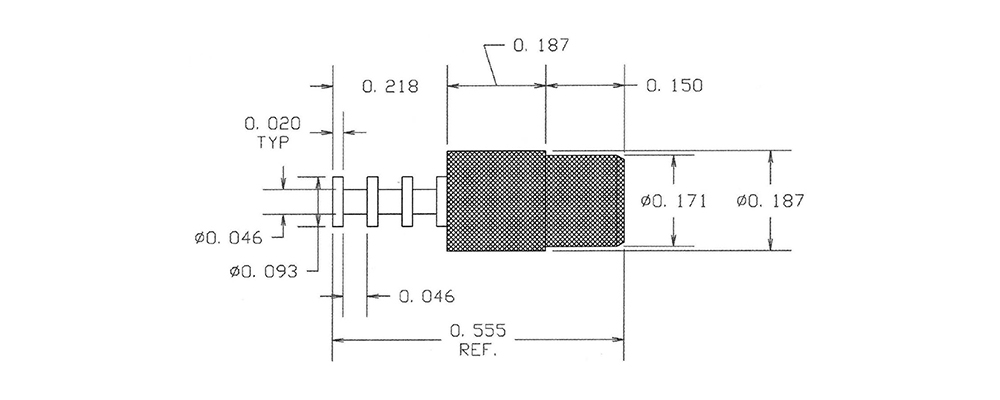

	1104-53-0111			0.555"	-	-	Press Fit	1/8	0.158	Brass	Silver	-	-	PTFE	Brown	NO
	1104-53-0510			0.555"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Black	NO

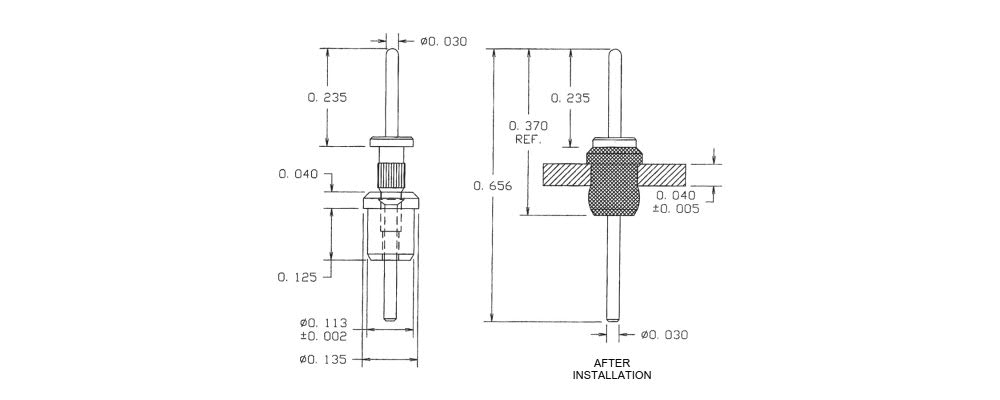

	1177-53-0514			0.656"	0.030	Pin/Pin	PRESS LOCK	1/32 - 1/16	0.115	Brass	Electro Solder	-	-	PTFE	Yellow	NO
	1125-53-0512			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Electro Solder	Electro-Tin	Brass	PTFE	Red	NO

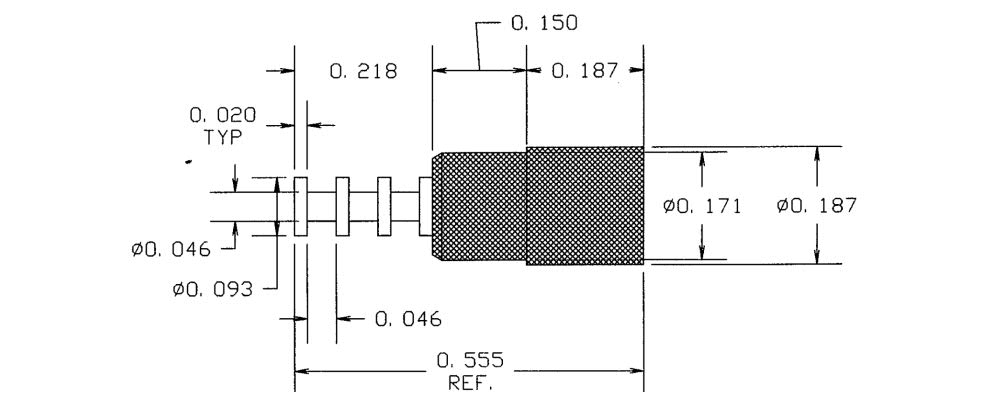

	1104R-53-0516			0.555"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Blue	NO
	1125-53-0515			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Electro Solder	Electro-Tin	Brass	PTFE	Green	NO

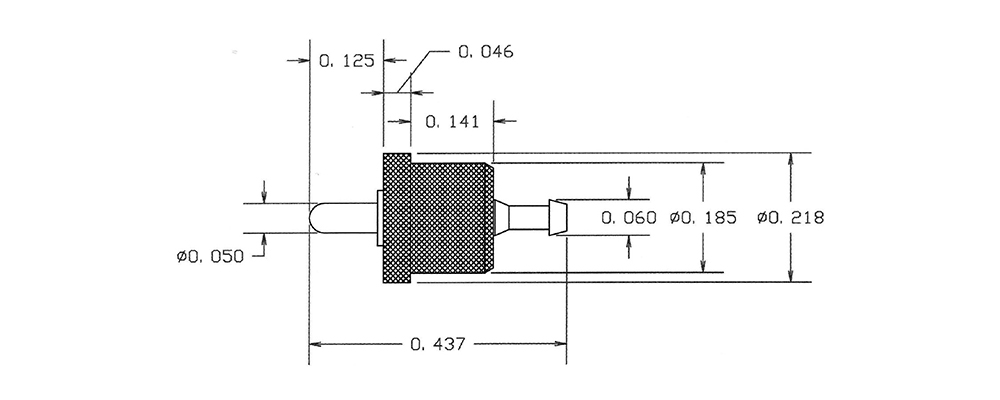

	1110-53-0516			0.437"	0.050	TURRET/PIN	Press Fit	3/32	0.172	Brass	Electro Solder	-	-	PTFE	Blue	NO
	1110-53-0518			0.437"	0.050	TURRET/PIN	Press Fit	3/32	0.172	Brass	Electro Solder	-	-	PTFE	Gray	NO
	1100R-53-0514			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Electro Solder	-	-	PTFE	Yellow	NO
	1104R-53-0519			0.555"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	White	NO

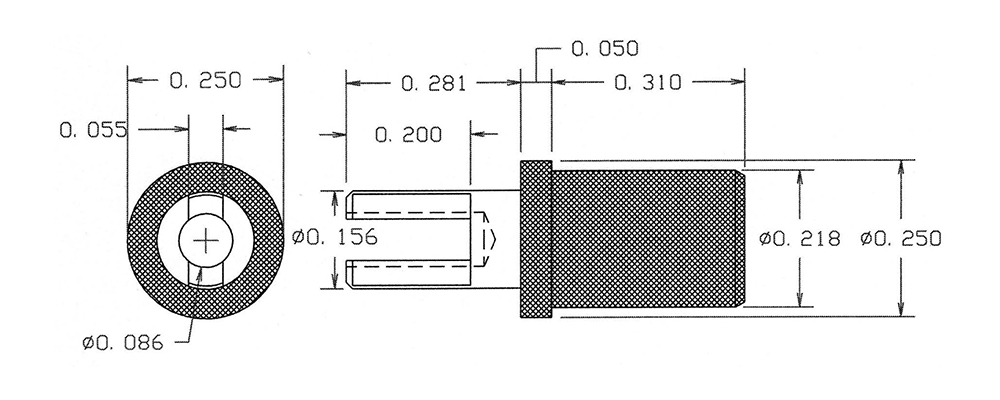

	1106-53-0517			0.641"	-	-	Press Fit	Up to 1/4	0.205	Brass	Electro Solder	-	-	PTFE	Violet	NO

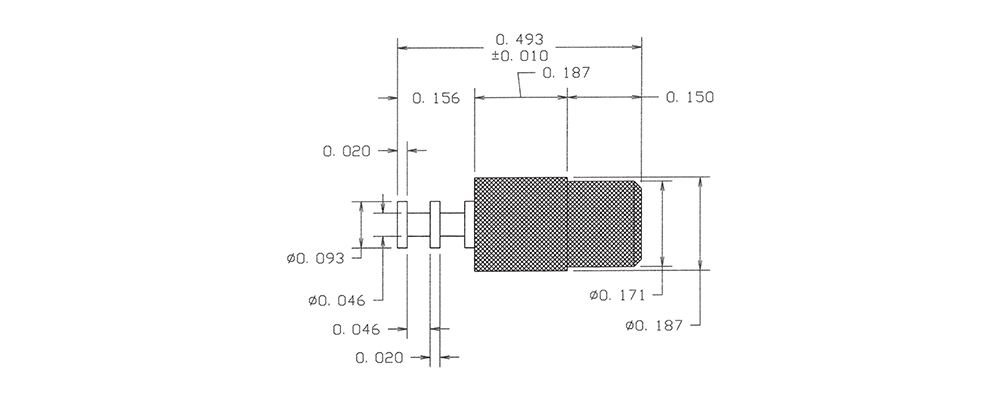

	1102-54-04412			0.493"	-	-	Press Fit	1/8	0.158	Brass	Bright Tin	-	-	PTFE	Red	NO

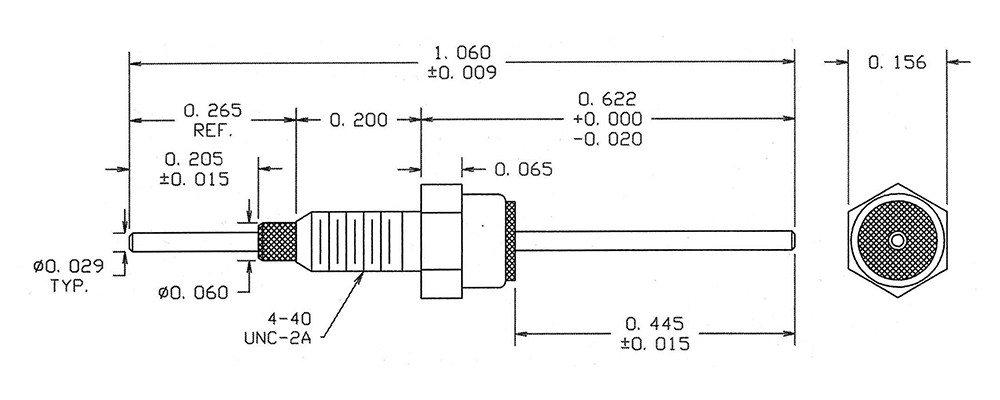

	1117-53-0115			1.060"	0.029	Pin/Pin	4-40 Nut	1/16	0.120	Brass	Silver	Nickel	Brass	PTFE	Green	YES
	1104R-53-0511			0.555"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Brown	NO
	1100R-53-0113			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Silver	-	-	PTFE	Orange	NO
	1100R-53-0110			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Silver	-	-	PTFE	Black	YES

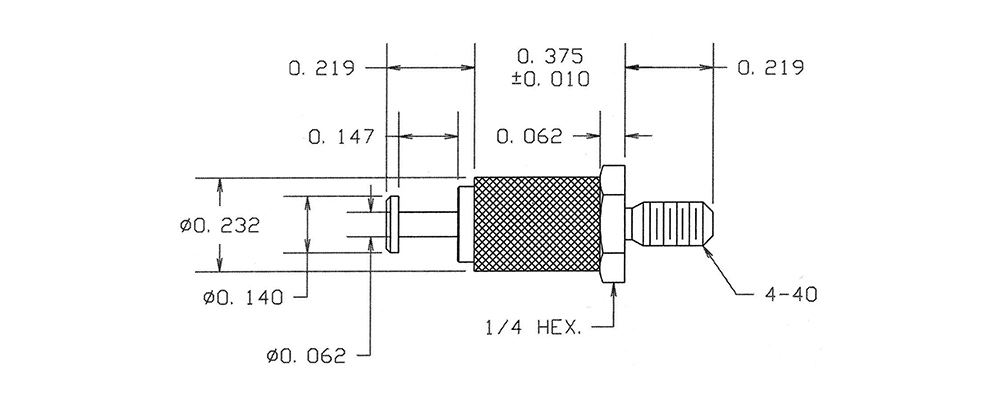

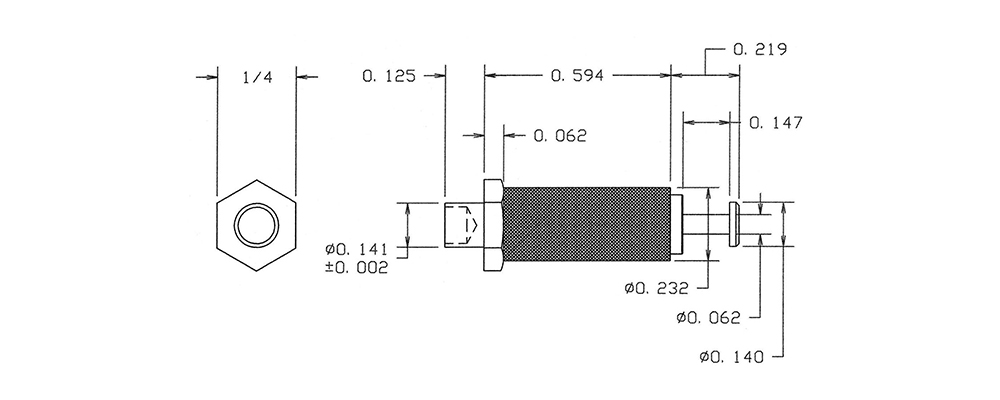

	1127-53-04415			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Bright Tin	ZINC	Brass	DIALLYL PHTHALATE	Green	YES
