Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS

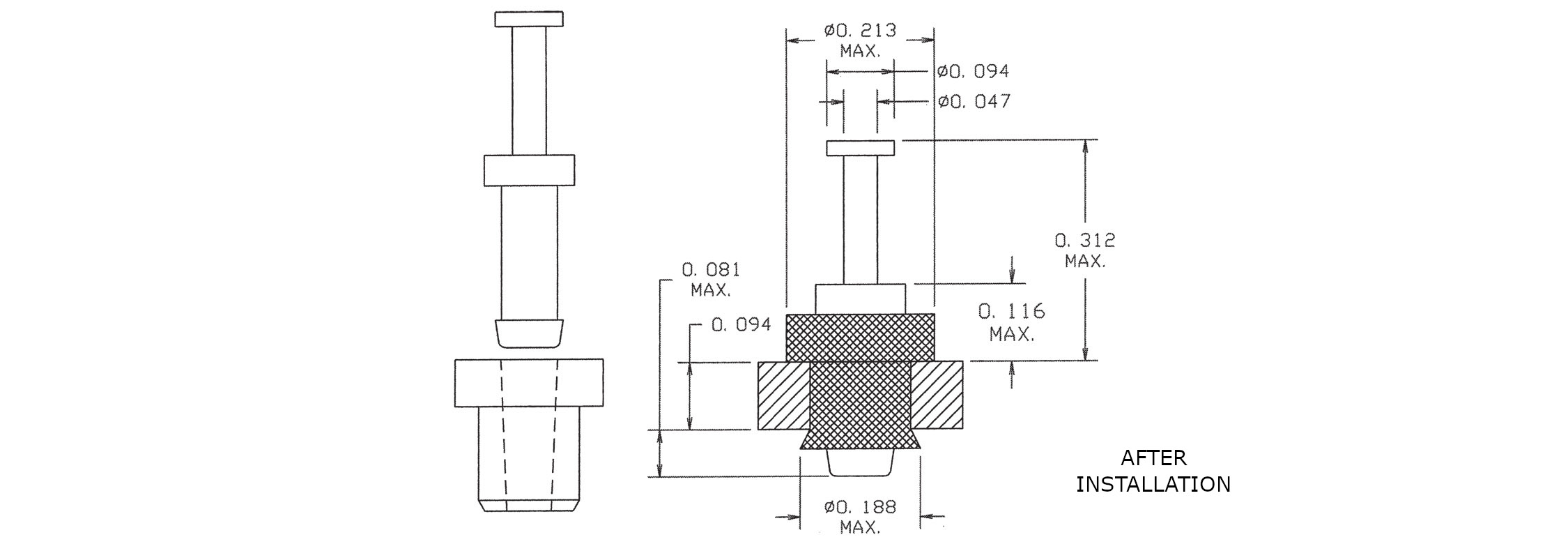

	1175-603-0316			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Blue	YES
	1175-603-08817			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Bright Tin-Lead	-	-	PTFE	Violet	NO
	1175-603-0413			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Orange	NO
	1175-603-04411			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Bright Tin	-	-	PTFE	Brown	NO
	1175-603-0117			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Silver	-	-	PTFE	Violet	YES
	1175-603-0518			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro Solder	-	-	PTFE	Gray	NO
	1175-603-04417			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Bright Tin	-	-	PTFE	Violet	YES
	1175-603-0418			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Gray	NO
	1175-603-0414			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Yellow	NO
	1175-603-0417			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro-Tin	-	-	PTFE	Violet	YES
	1175-603-0317			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Violet	YES
	1175-603-0519			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro Solder	-	-	PTFE	White	NO
	1175-603-0511			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Electro Solder	-	-	PTFE	Brown	NO
	1175-603-08819			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Bright Tin-Lead	-	-	PTFE	White	NO
	1175-603-0314			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Yellow	NO
	1175-603-0319			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	White	YES
	1175-603-0119			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Silver	-	-	PTFE	White	YES
	1175-603-04413			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Bright Tin	-	-	PTFE	Orange	NO
	1175-603-0318			0.487"	-	-	PRESS LOCK	3/32	0.142 (+0.003/-0.001)	Brass	Gold	-	-	PTFE	Gray	NO
	1110-61-08818			0.410"	0.040	Pin/Pin	Press Fit	1/16	0.086	Brass	Bright Tin-Lead	-	-	PTFE	Gray	NO
