Commercial
Insulated
Pin Terminals

Filter
1125-40-0414
1125-40-0414
1125-40-0414
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO
1125-44-0510
1125-44-0510
1125-44-0510
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE Black NO

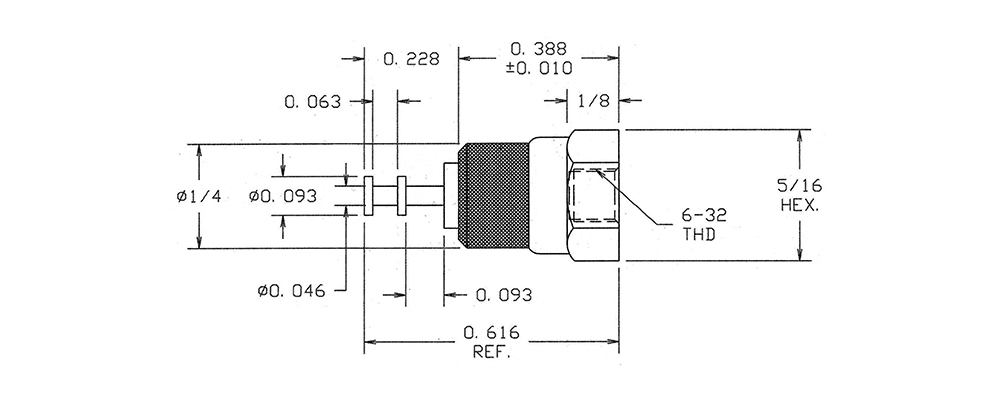

1125-48-08816
1125-48-08816
1125-48-08816
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Blue NO
1125-53-0312
1125-53-0312
1125-53-0312
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Gold Electro-Tin Brass PTFE Red NO
1125-57-0418
1125-57-0418
1125-57-0418
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-62-0514
1125-62-0514
1125-62-0514
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Yellow NO
1125-74-0110
1125-74-0110
1125-74-0110
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass PTFE Black YES
1125-78-0316
1125-78-0316
1125-78-0316
0.697" - - Swage Mount 3/32 0.194 Brass Gold ZINC Brass PTFE Blue YES
1125-83-04412
1125-83-04412
1125-83-04412
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin Electro-Tin Brass PTFE Red NO
1125-87-0518
1125-87-0518
1125-87-0518
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Electro Solder ZINC Brass PTFE Gray NO
1125-93-0114
1125-93-0114
1125-93-0114
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Yellow NO
1125-97-0410
1125-97-0410
1125-97-0410
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Black YES
1126-27-04416
1126-27-04416
1126-27-04416
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Blue YES
1126-33-08812
1126-33-08812
1126-33-08812
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Red NO
1126-38-0118
1126-38-0118
1126-38-0118
1.469" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass PTFE Gray NO
1126-42-0414
1126-42-0414
1126-42-0414
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Yellow NO
1126-46-0510
1126-46-0510
1126-46-0510
1.343" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Black NO
1127-03-08816
1127-03-08816
1127-03-08816
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Blue NO
1127-08-0312
1127-08-0312
1127-08-0312
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1127-12-0418
1127-12-0418
1127-12-0418
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
