Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS
	1115-53-08817			0.593"	-	Turret/Turret	Press Fit	3/32	0.187	Brass	Bright Tin-Lead	-	-	PTFE	Violet	NO

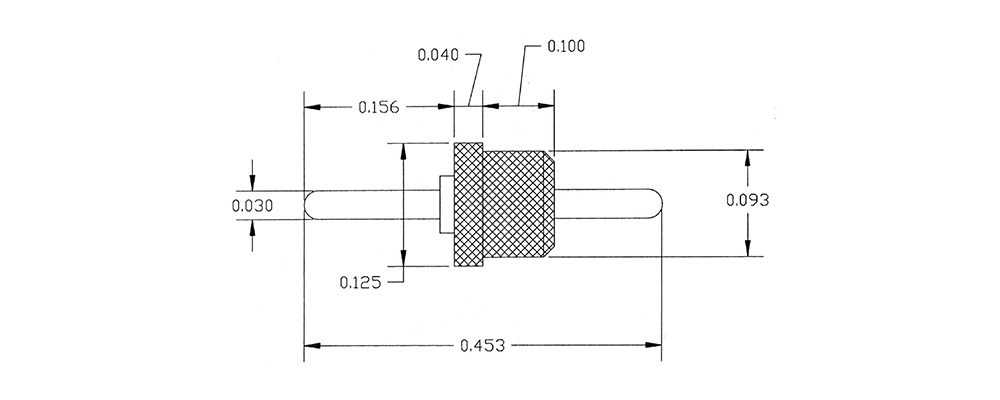

	1110-10-08811			0.453"	0.030	Pin/Pin	Press Fit	1/16	0.086	Brass	Bright Tin-Lead	-	-	PTFE	Brown	NO

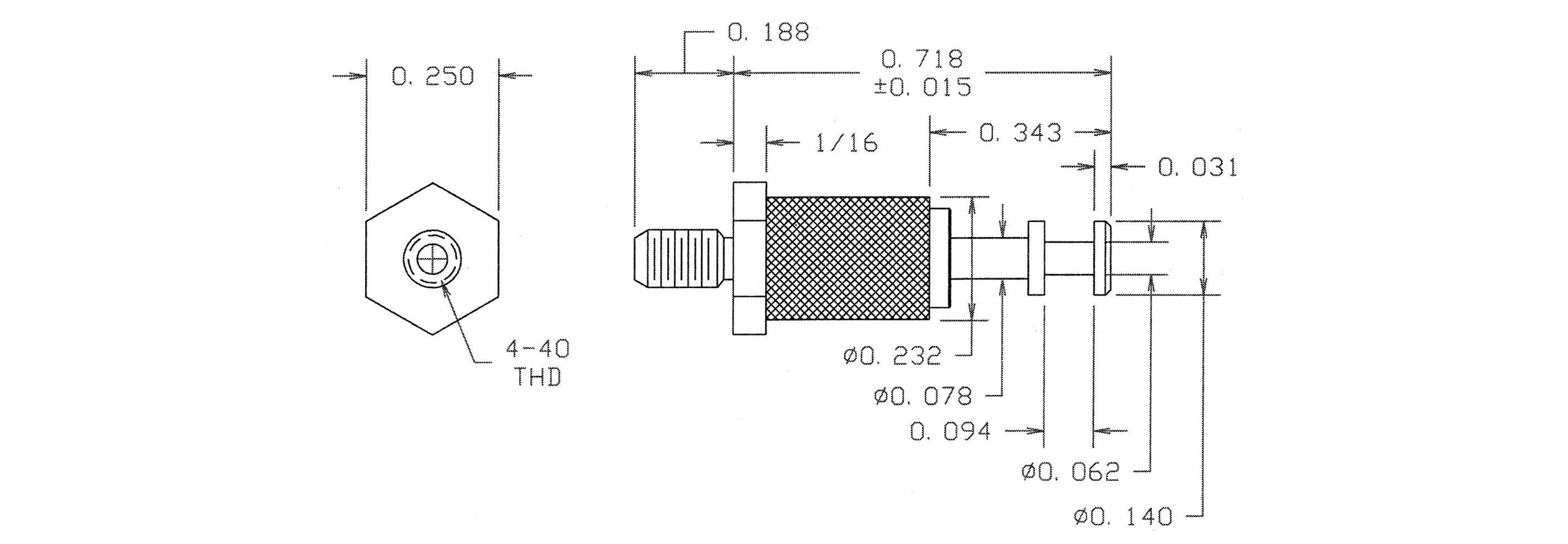

	1167-53-0414			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Yellow	YES
	1100R-53-04419			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Bright Tin	-	-	PTFE	White	YES

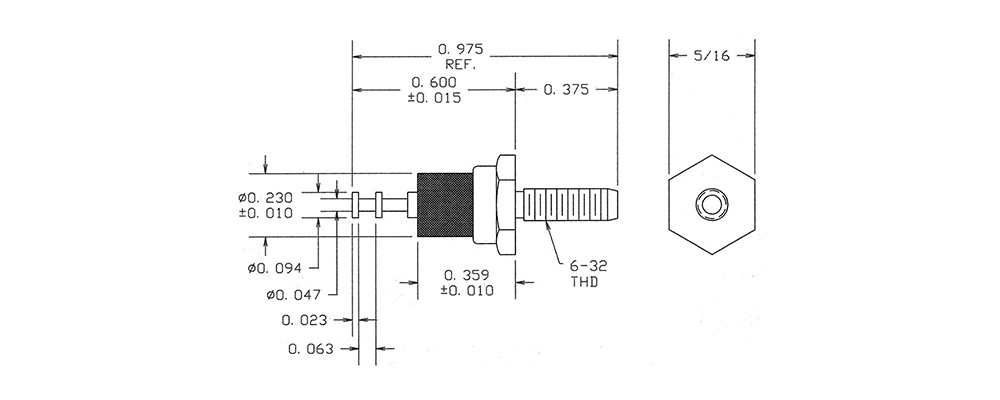

	1125-53-0310			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Gold	Electro-Tin	Brass	PTFE	Black	YES
	1100R-53-0112			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Silver	-	-	PTFE	Red	NO
	1100R-53-04410			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Bright Tin	-	-	PTFE	Black	YES
	1100R-53-04417			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Bright Tin	-	-	PTFE	Violet	YES
	1117-53-04410			1.060"	0.029	Pin/Pin	4-40 Nut	1/16	0.120	Brass	Bright Tin	Nickel	Brass	PTFE	Black	YES

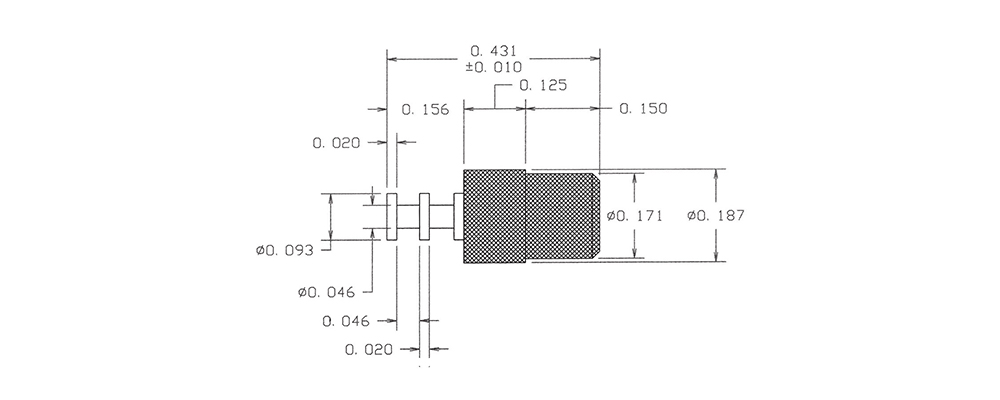

	1102-53-0118			0.431"	-	-	Press Fit	1/8	0.158	Brass	Silver	-	-	PTFE	Gray	NO
	1102-53-04410			0.431"	-	-	Press Fit	1/8	0.158	Brass	Bright Tin	-	-	PTFE	Black	YES
	1167-53-0411			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Brown	YES

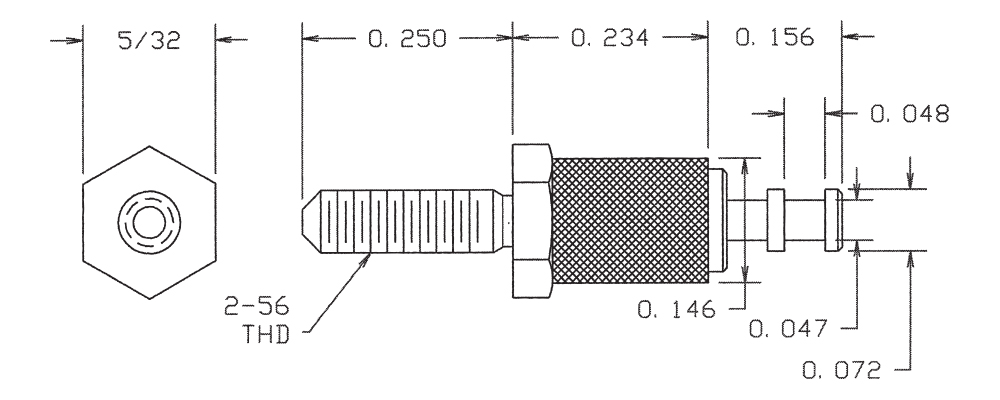

	1127-88-0313			0.640"	-	-	2-56 Nut	1/8	0.094	Brass	Gold	ZINC	Brass	DIALLYL PHTHALATE	Orange	YES
	1125-53-08815			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Bright Tin-Lead	Electro-Tin	Brass	PTFE	Green	NO
	1167-53-08813			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Bright Tin-Lead	ZINC	Brass	DIALLYL PHTHALATE	Orange	NO
	1102-53-0114			0.431"	-	-	Press Fit	1/8	0.158	Brass	Silver	-	-	PTFE	Yellow	NO

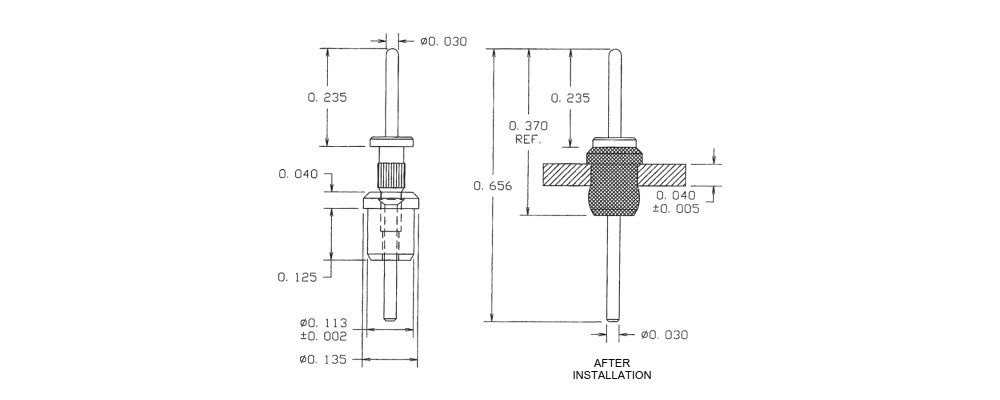

	1177-53-0116			0.656"	0.030	Pin/Pin	PRESS LOCK	1/32 - 1/16	0.115	Brass	Silver	-	-	PTFE	Blue	YES
	1102-53-04411			0.431"	-	-	Press Fit	1/8	0.158	Brass	Bright Tin	-	-	PTFE	Brown	NO
	1100R-53-04411			0.756"	0.040	-	Press Fit	15/32	0.172	Brass	Bright Tin	-	-	PTFE	Brown	NO
	1127-53-04415			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Bright Tin	ZINC	Brass	DIALLYL PHTHALATE	Green	YES
