Commercial
Insulated
Pin Terminals

1127-53-0411
1127-53-0411
1127-53-0411
0.953" - - Swage Mount 3/16 0.147 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES

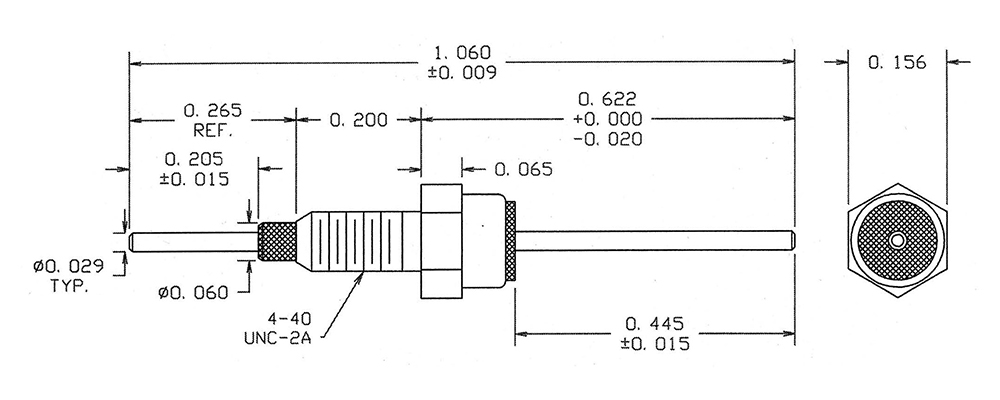

1117-53-08817
1117-53-08817
1117-53-08817
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Violet NO
1167-53-08811
1167-53-08811
1167-53-08811
0.906" - - 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO
1167-53-08815
1167-53-08815
1167-53-08815
0.906" - - 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO

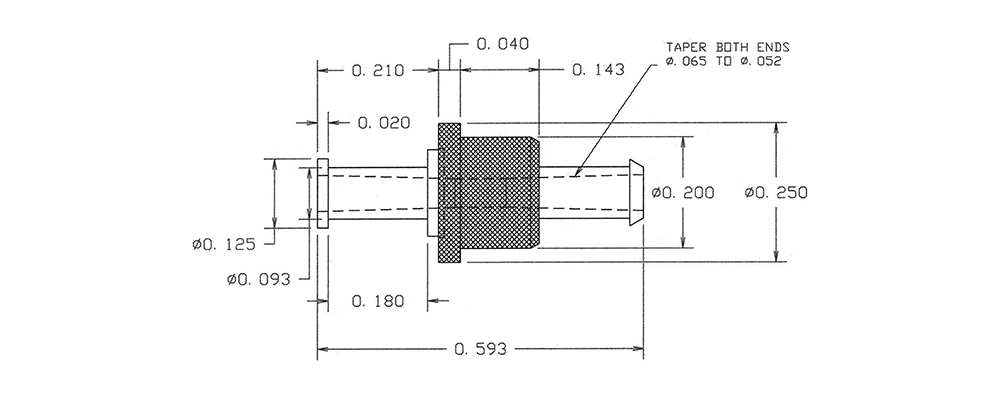

1115-53-0413
1115-53-0413
1115-53-0413
0.593" - Turret/Turret Press Fit 3/32 0.187 Brass Electro-Tin - - PTFE Orange NO
1117-53-0114
1117-53-0114
1117-53-0114
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Yellow NO

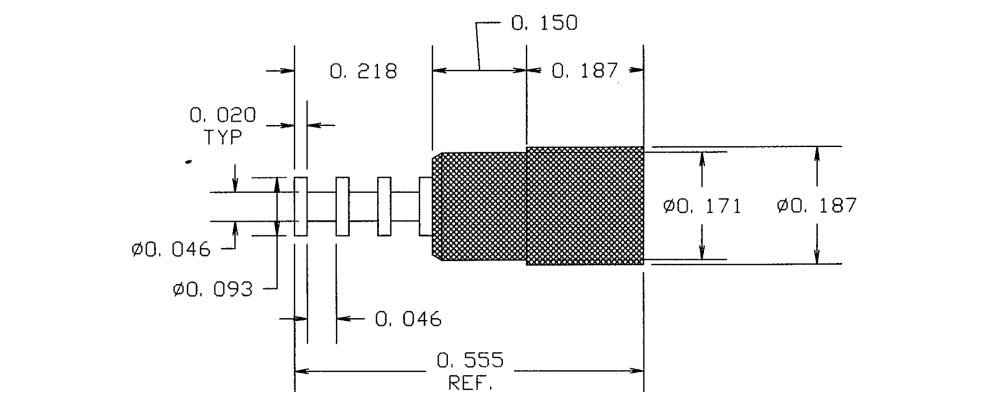

1104R-53-0518
1104R-53-0518
1104R-53-0518
0.555" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Gray NO
1117-53-08819
1117-53-08819
1117-53-08819
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE White NO
1115-53-0314
1115-53-0314
1115-53-0314
0.593" - Turret/Turret Press Fit 3/32 0.187 Brass Gold - - PTFE Yellow NO
1104R-53-04410
1104R-53-04410
1104R-53-04410
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Black YES
1117-53-08818
1117-53-08818
1117-53-08818
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Gray NO

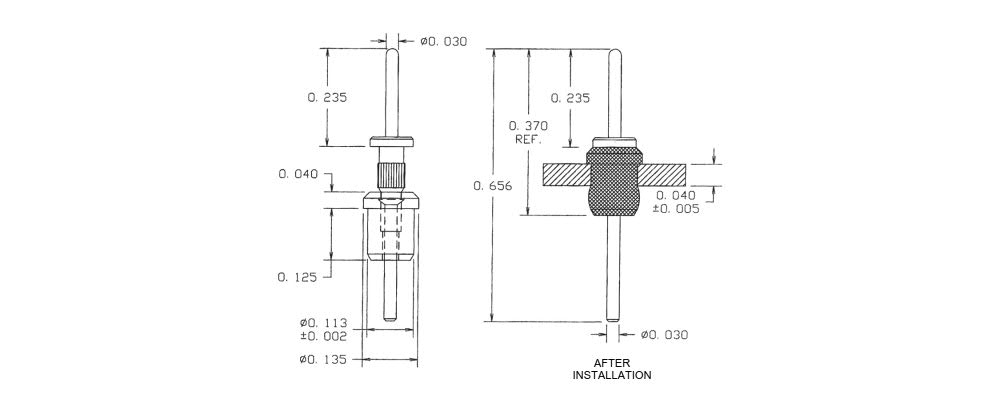

1177-53-08810
1177-53-08810
1177-53-08810
0.656" 0.030 Pin/Pin PRESS LOCK 1/32 - 1/16 0.115 Brass Bright Tin-Lead - - PTFE Black NO
1100R-53-08818
1100R-53-08818
1100R-53-08818
0.756" 0.040 - Press Fit 15/32 0.172 Brass Bright Tin-Lead - - PTFE Gray NO
1127-53-0111
1127-53-0111
1127-53-0111
0.953" - - Swage Mount 3/16 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
1117-53-0111
1117-53-0111
1117-53-0111
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Brown NO

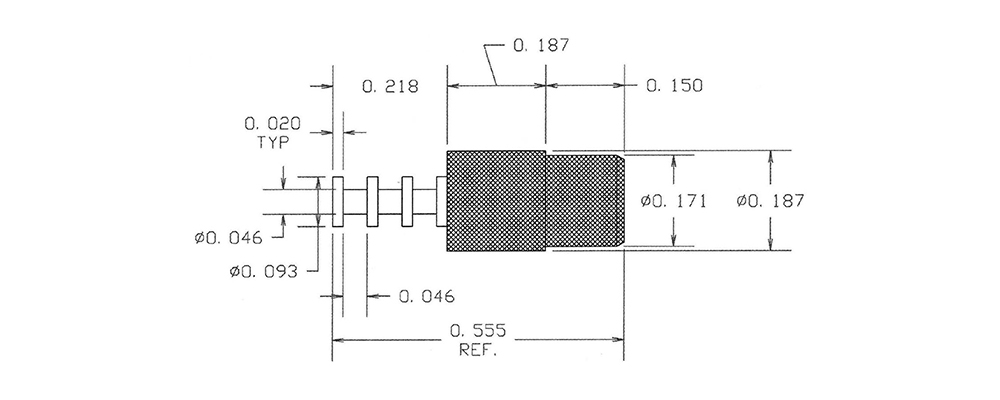

1104-53-04419
1104-53-04419
1104-53-04419
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES
1117-53-0117
1117-53-0117
1117-53-0117
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Violet YES

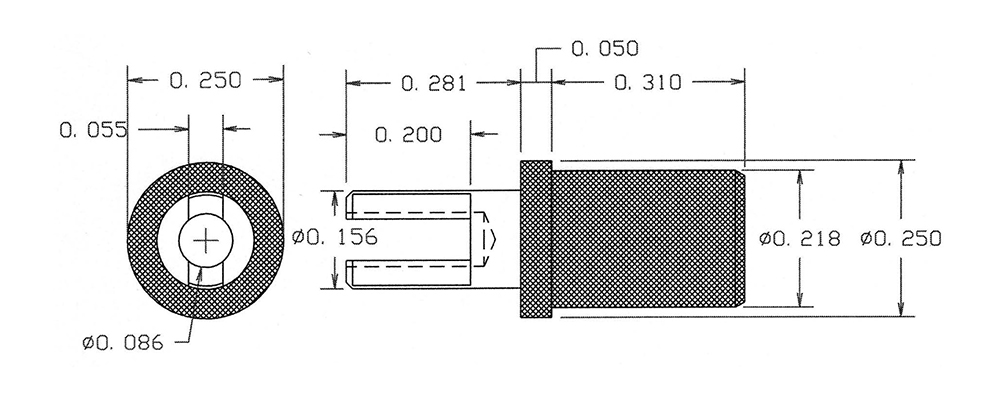

1106-53-08817
1106-53-08817
1106-53-08817
0.641" - - Press Fit Up to 1/4 0.205 Brass Bright Tin-Lead - - PTFE Violet NO
1110-53-0415
1110-53-0415
1110-53-0415
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Green YES
1127-53-04415
1127-53-04415
1127-53-04415
0.953" - - Swage Mount 3/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES
