Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS
	1127-53-0418			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Gray	YES
	1127-53-0416			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Blue	YES
	1127-53-0414			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Yellow	YES

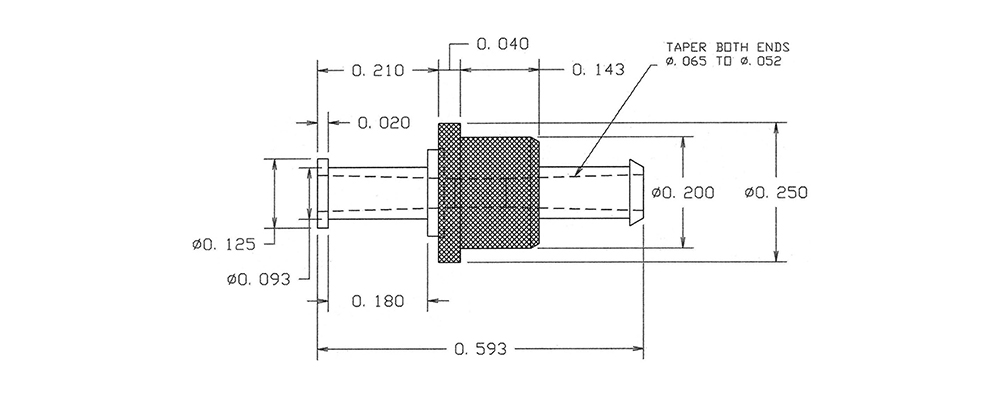

	1115-53-0414			0.593"	-	Turret/Turret	Press Fit	3/32	0.187	Brass	Electro-Tin	-	-	PTFE	Yellow	NO

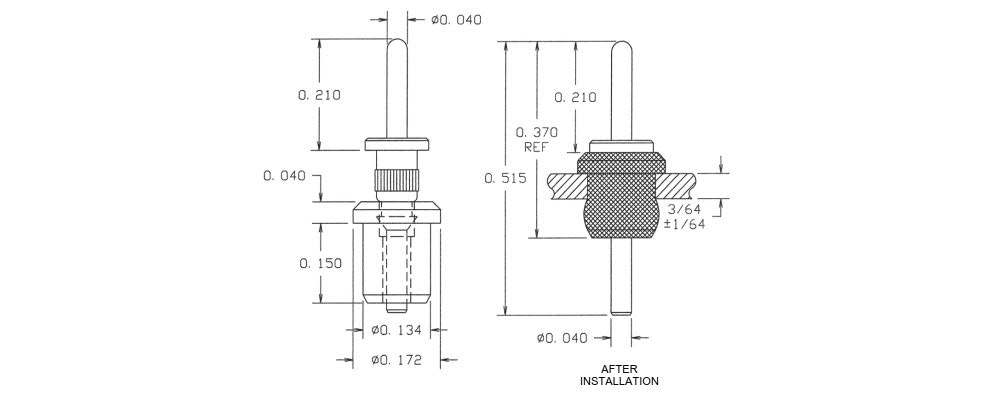

	1177-54-0318			0.515"	0.040	Pin/Pin	PRESS LOCK	1/32 - 1/16	0.136	Brass	Gold	-	-	PTFE	Gray	NO

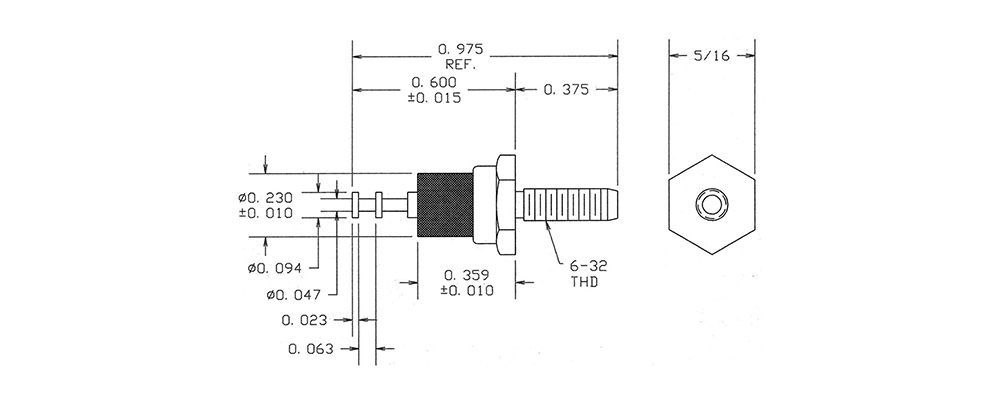

	1125-53-0416			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Electro-Tin	Electro-Tin	Brass	PTFE	Blue	YES

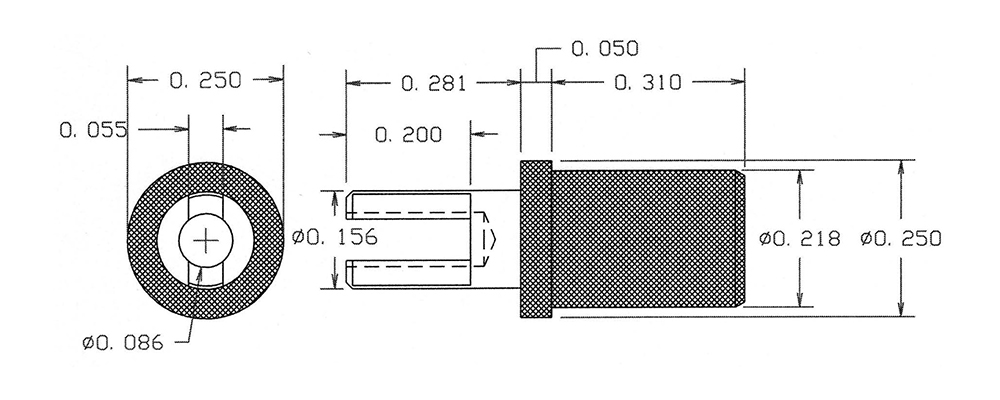

	1106-53-0516			0.641"	-	-	Press Fit	Up to 1/4	0.205	Brass	Electro Solder	-	-	PTFE	Blue	NO

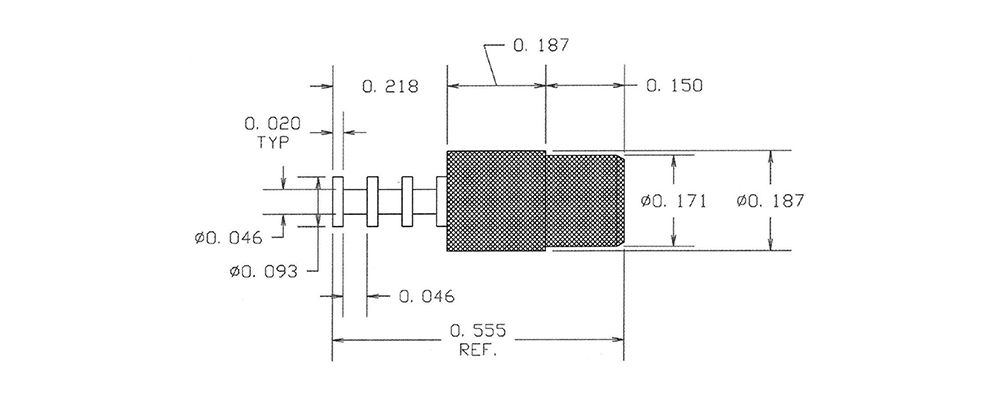

	1104-53-0412			0.555"	-	-	Press Fit	1/8	0.158	Brass	Electro-Tin	-	-	PTFE	Red	NO
	1167-53-0516			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Blue	NO
	1127-53-0516			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Blue	NO
	1106-53-0311			0.641"	-	-	Press Fit	Up to 1/4	0.205	Brass	Gold	-	-	PTFE	Brown	NO
	1127-53-0517			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Violet	NO
	1127-53-0513			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Orange	NO

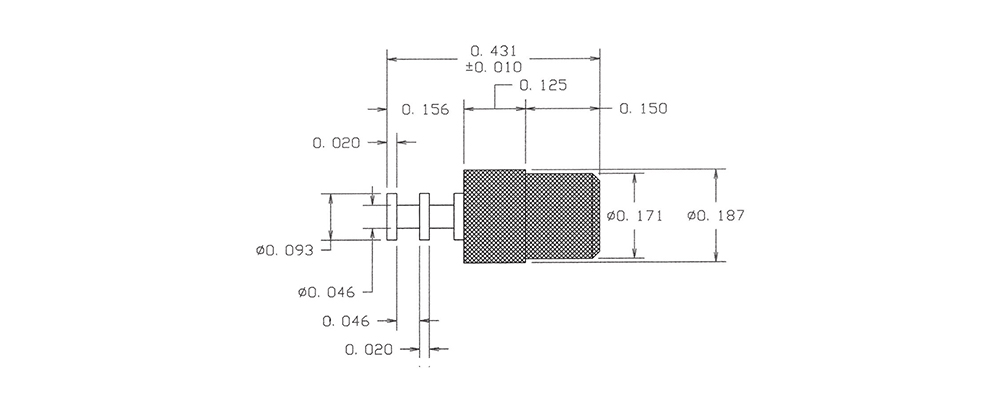

	1102-53-0510			0.431"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Black	NO
	1102-53-0515			0.431"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Green	NO
	1102-53-0511			0.431"	-	-	Press Fit	1/8	0.158	Brass	Electro Solder	-	-	PTFE	Brown	NO
	1127-53-0319			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Gold	ZINC	Brass	DIALLYL PHTHALATE	White	YES
	1102-53-04419			0.431"	-	-	Press Fit	1/8	0.158	Brass	Bright Tin	-	-	PTFE	White	YES

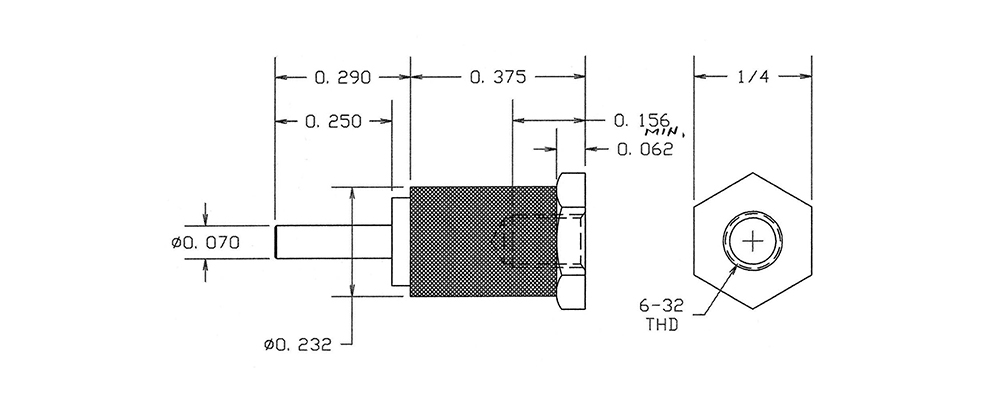

	1127-15-0113			0.665"	0.070	-	6-32 Screw	-	CLEARANCE FOR #6 Screw	Brass	Silver	ZINC	Brass	DIALLYL PHTHALATE	Orange	YES
	1127-53-04415			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Bright Tin	ZINC	Brass	DIALLYL PHTHALATE	Green	YES
