Commercial
Insulated
Pin Terminals

Filter

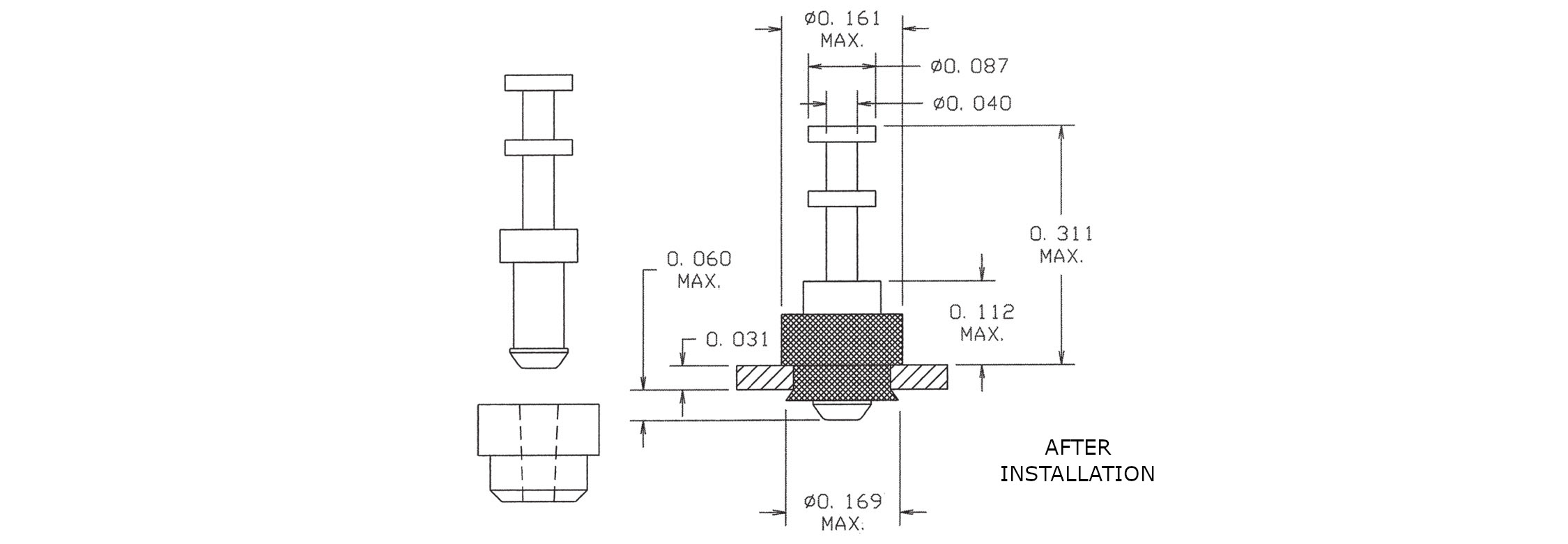

1175-821-0514
1175-821-0514
1175-821-0514
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO

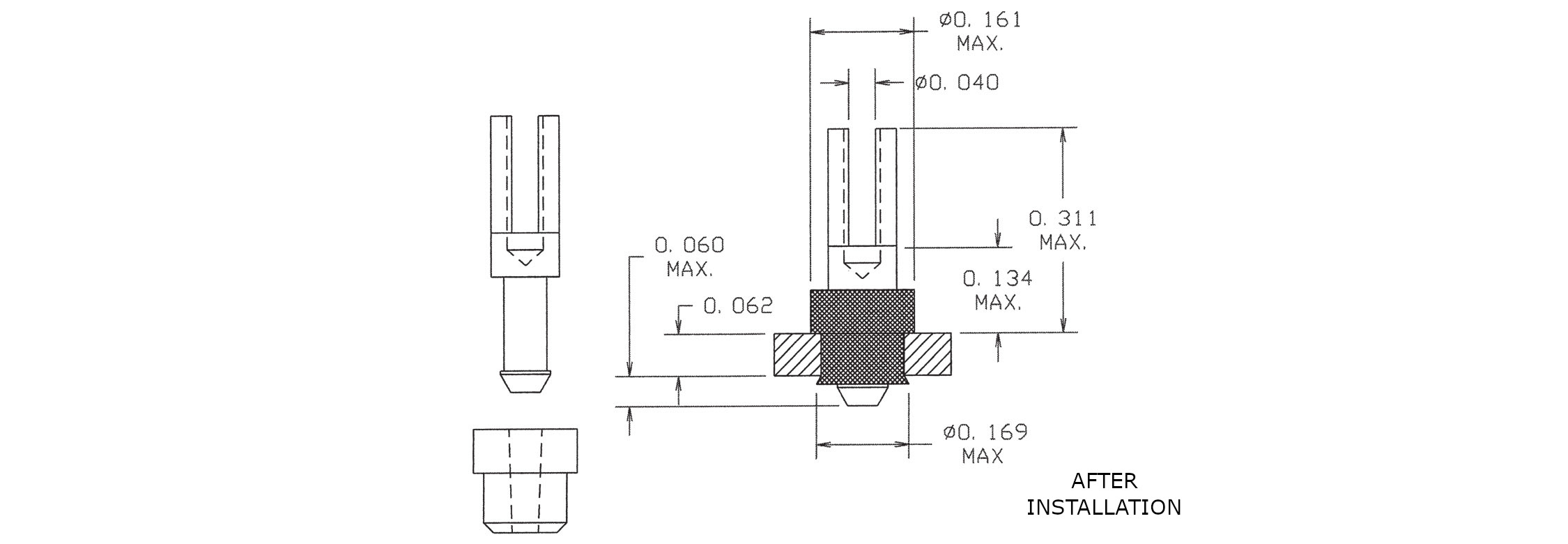

1175-842-0110
1175-842-0110
1175-842-0110
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Black YES
1175-872-0316
1175-872-0316
1175-872-0316
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Blue YES

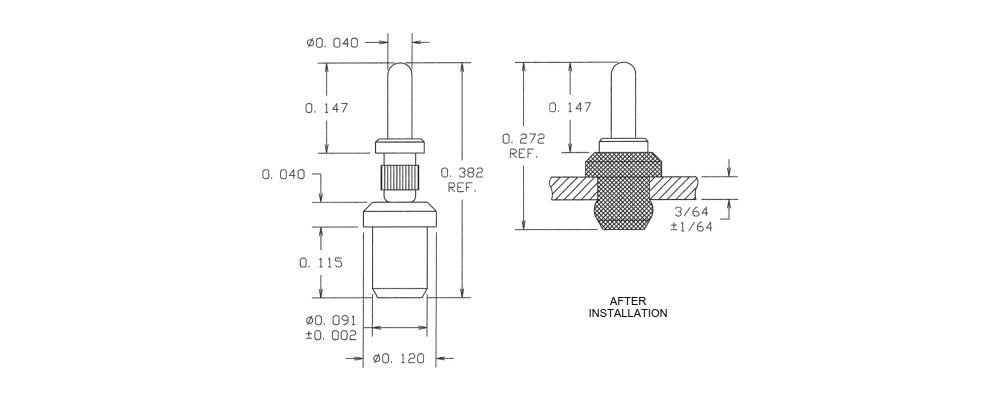

1177-02-04412
1177-02-04412
1177-02-04412
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin - - PTFE Red NO

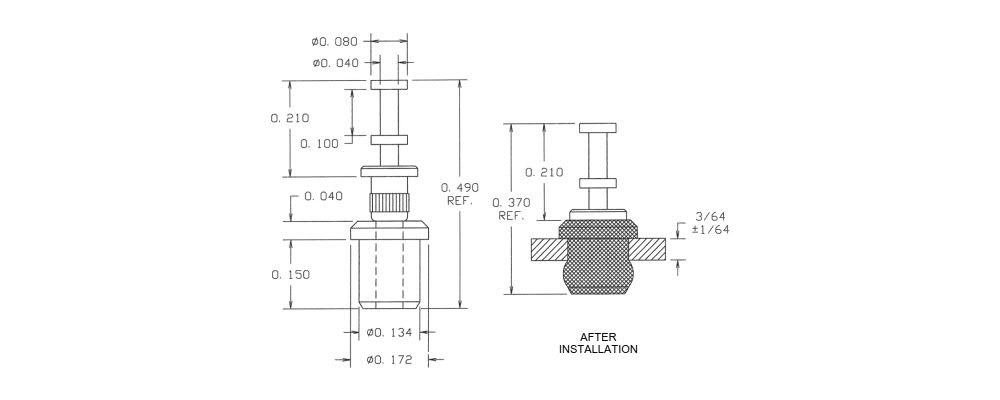

1177-11-0518
1177-11-0518
1177-11-0518
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1177-32-0114
1177-32-0114
1177-32-0114
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Yellow NO
1177-41-0410
1177-41-0410
1177-41-0410
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Electro-Tin - - PTFE Black YES
1177-52-04416
1177-52-04416
1177-52-04416
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Blue YES

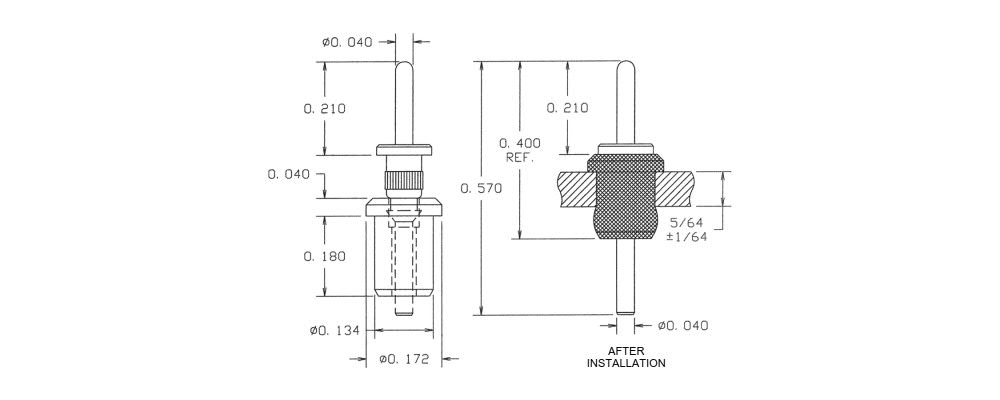

1177-56-08812
1177-56-08812
1177-56-08812
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1177-61-0118
1177-61-0118
1177-61-0118
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Gray NO
1178R-03-0414
1178R-03-0414
1178R-03-0414
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Yellow NO
1178R-10-0510
1178R-10-0510
1178R-10-0510
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro Solder - - PTFE Black NO

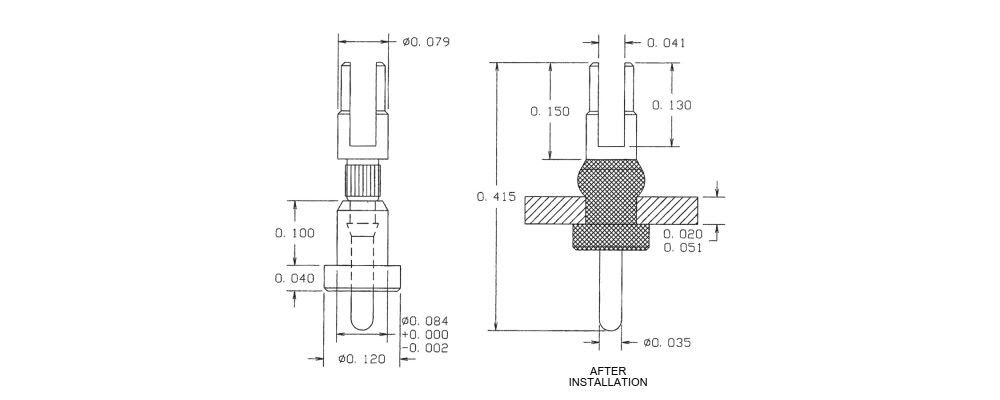

1178R-14-08816
1178R-14-08816
1178R-14-08816
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1102R-95-0312
1102R-95-0312
1102R-95-0312
0.812" - - Press Fit 13/64 0.297 Brass Gold - - PTFE Red NO
1125-02-0418
1125-02-0418
1125-02-0418
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-06-0514
1125-06-0514
1125-06-0514
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO
1125-11-0110
1125-11-0110
1125-11-0110
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Black YES
1125-15-0316
1125-15-0316
1125-15-0316
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Blue YES
1125-19-04412
1125-19-04412
1125-19-04412
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Red NO
1125-23-0518
1125-23-0518
1125-23-0518
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE Gray NO
