Non-Insulated
PC Jacks

Filter

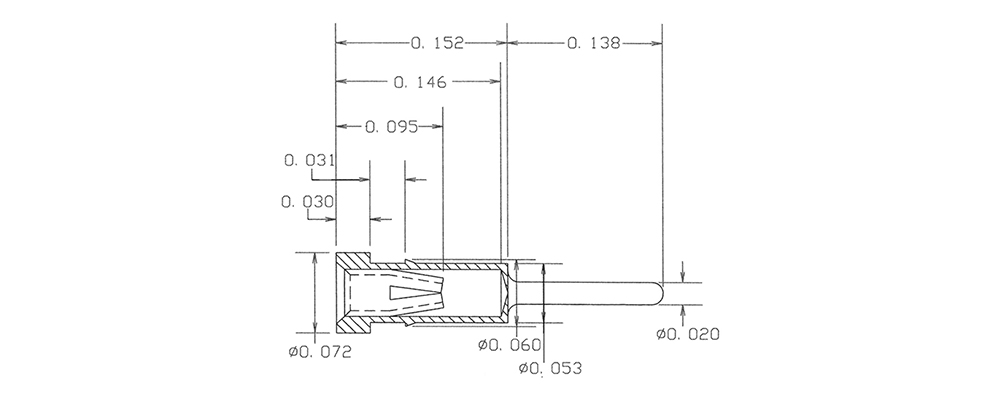

09-9678-1-03
09-9678-1-03
09-9678-1-03
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Gold Vertical

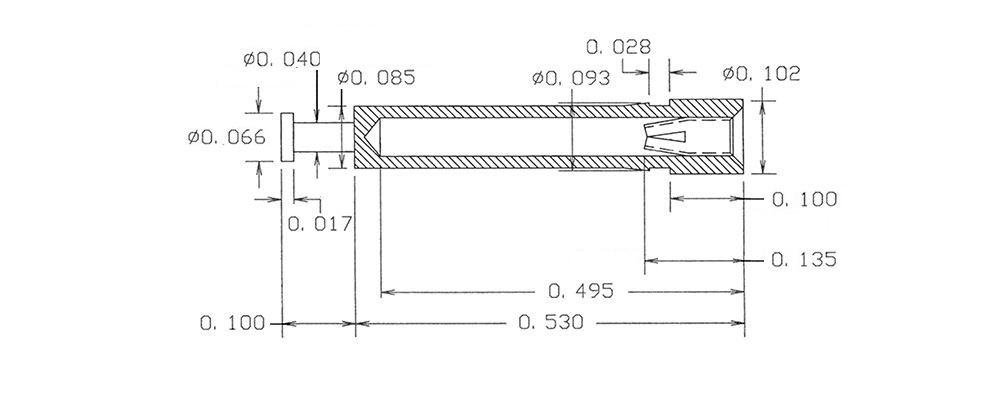

09-9745-1-063
09-9745-1-063
09-9745-1-063
0.032 - 0.046 0.495 " 0.630" Jack/Turret Press Fit/Solder - 1/16 - 3/8 0.0935 Brass Bright Tin-Lead Vertical

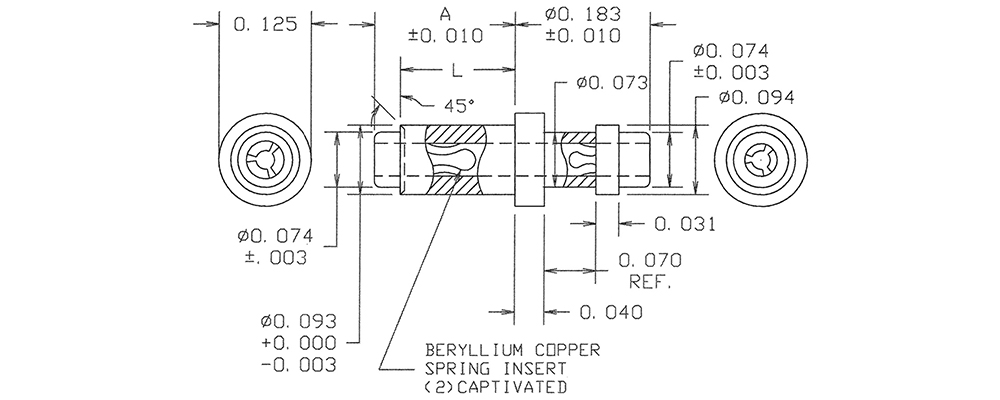

09-9022-2-06
09-9022-2-06
09-9022-2-06
0.025 0.280 " 0.312" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

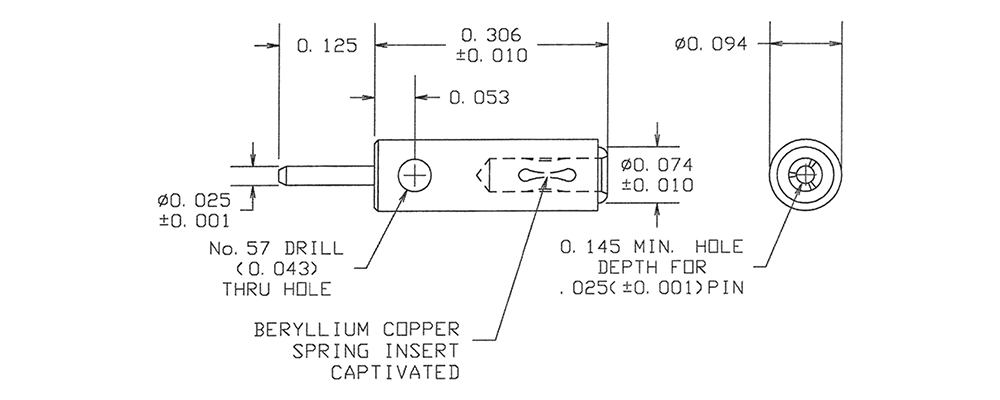

09-9054-1-035
09-9054-1-035
09-9054-1-035
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Gold Vertical

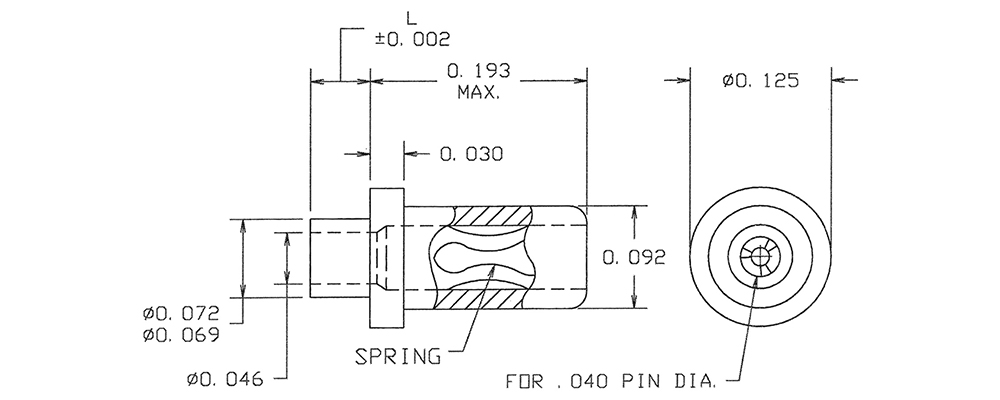

09-9230-3-063
09-9230-3-063
09-9230-3-063
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Bright Tin-Lead Vertical

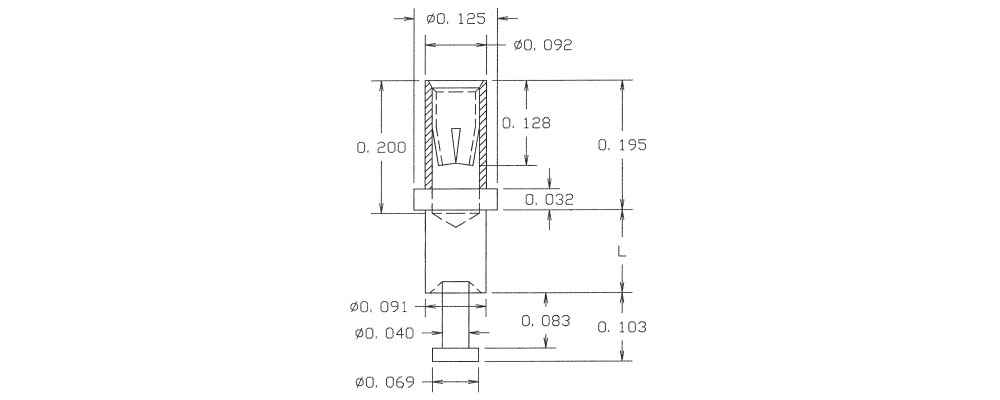

09-9604-4-088
09-9604-4-088
09-9604-4-088
0.032 - 0.046 0.200 " 0.454" Jack/Turret Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead Vertical

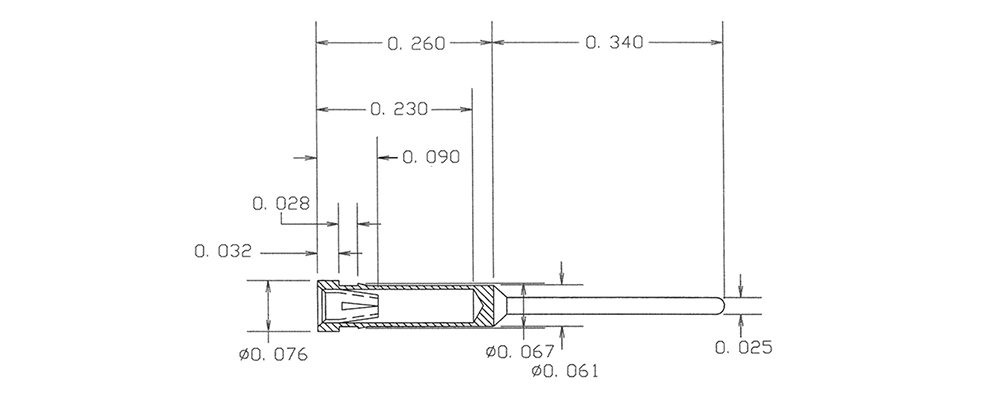

09-9640-1-06
09-9640-1-06
09-9640-1-06
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Electro-Tin Vertical
09-9678-1-035
09-9678-1-035
09-9678-1-035
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Gold Vertical
09-9745-1-088
09-9745-1-088
09-9745-1-088
0.032 - 0.046 0.495 " 0.630" Jack/Turret Press Fit/Solder - 1/16 - 3/8 0.0935 Brass Bright Tin-Lead Vertical
09-9022-2-063
09-9022-2-063
09-9022-2-063
0.025 0.280 " 0.312" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9054-1-04
09-9054-1-04
09-9054-1-04
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9230-3-088
09-9230-3-088
09-9230-3-088
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Bright Tin-Lead Vertical
09-9604-6-03
09-9604-6-03
09-9604-6-03
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Gold Vertical
09-9640-1-063
09-9640-1-063
09-9640-1-063
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Bright Tin-Lead Vertical
09-9678-1-04
09-9678-1-04
09-9678-1-04
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Electro-Tin Vertical

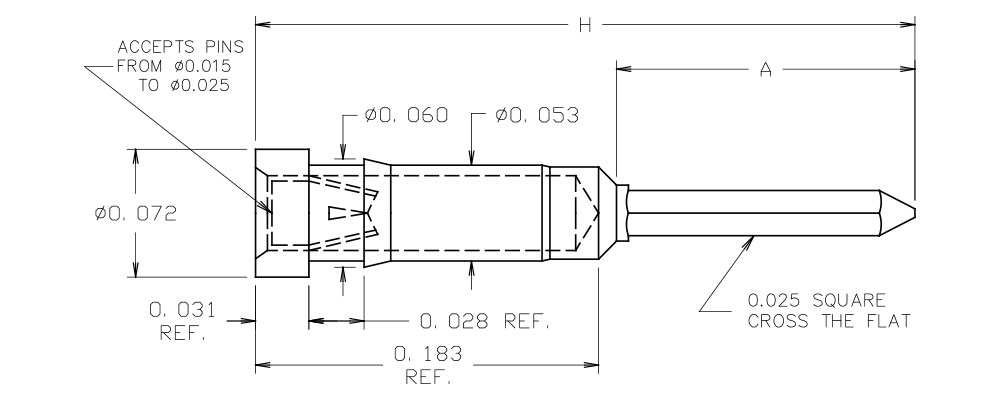

09-6010-1-03
09-6010-1-03
09-6010-1-03
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-9022-2-088
09-9022-2-088
09-9022-2-088
0.025 0.280 " 0.312" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9054-1-06
09-9054-1-06
09-9054-1-06
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9230-4-03
09-9230-4-03
09-9230-4-03
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Gold Vertical
09-9604-6-035
09-9604-6-035
09-9604-6-035
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Gold Vertical
