Commercial
Insulated
Pin Terminals

Filter

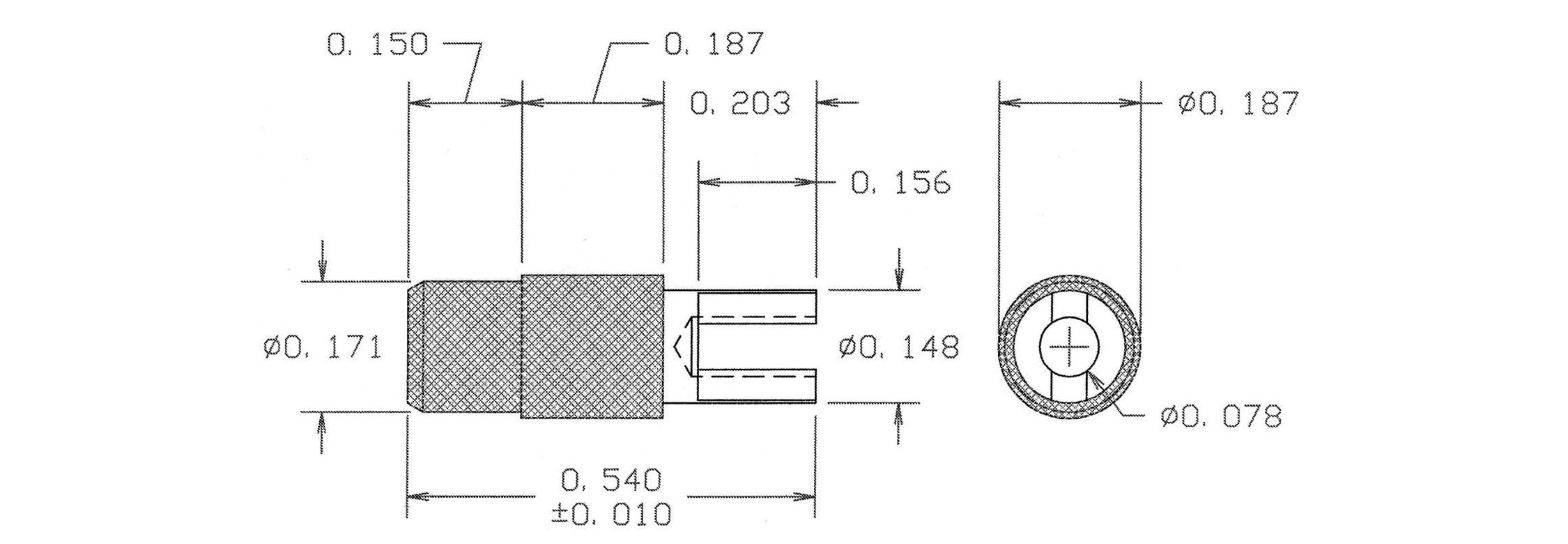

1154-08-08813
1154-08-08813
1154-08-08813
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1154-44-0119
1154-44-0119
1154-44-0119
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Silver - - PTFE White YES
1155-01-0415
1155-01-0415
1155-01-0415
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Green YES
1155-07-0511
1155-07-0511
1155-07-0511
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO

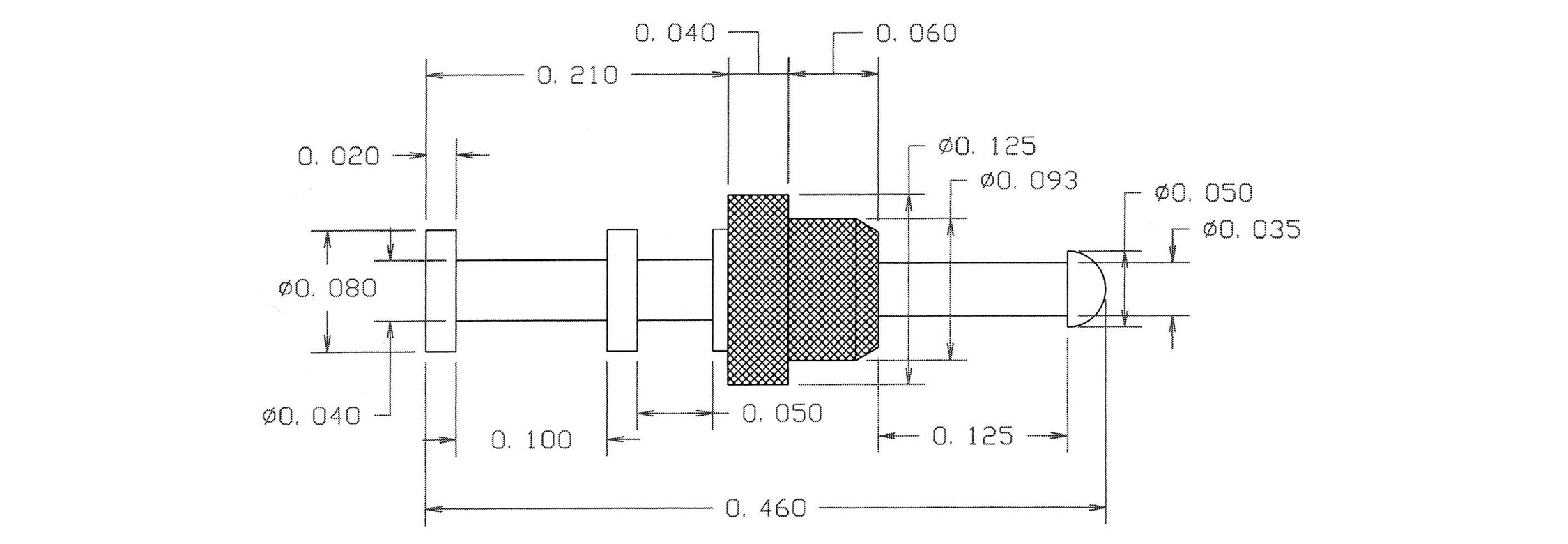

1156-01-08817
1156-01-08817
1156-01-08817
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Violet NO
1156-07-0313
1156-07-0313
1156-07-0313
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO
1156-14-0419
1156-14-0419
1156-14-0419
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE White YES

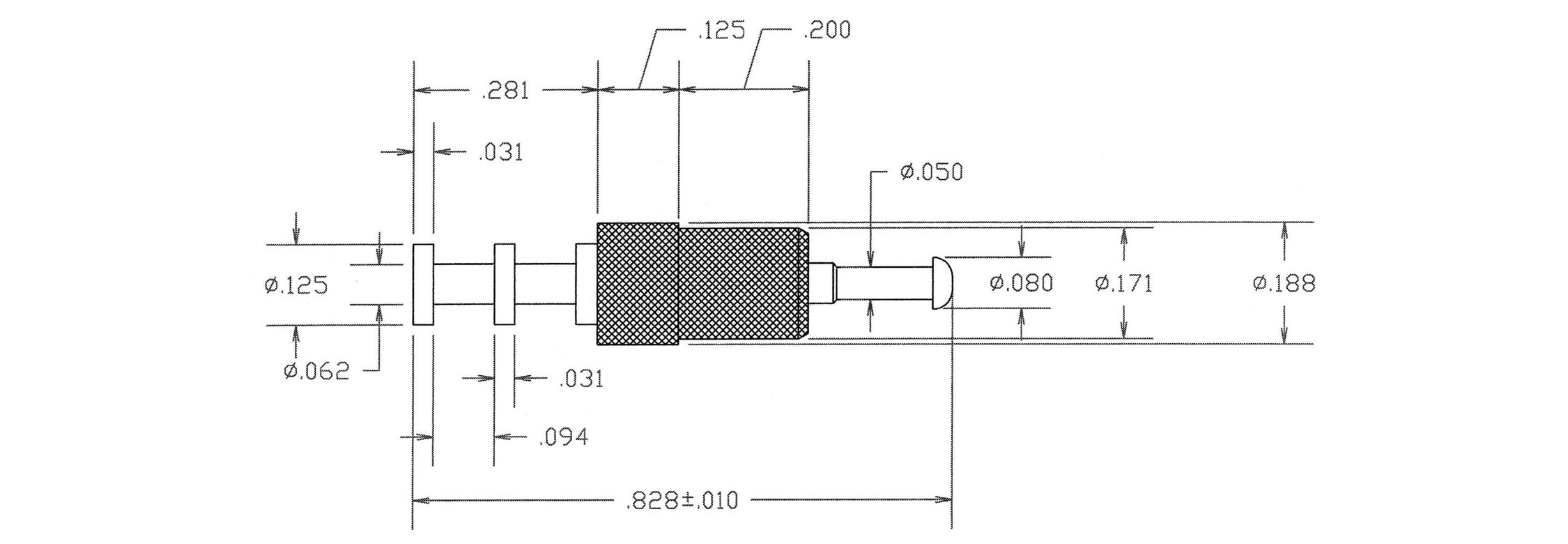

1156-18-0515
1156-18-0515
1156-18-0515
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Green NO

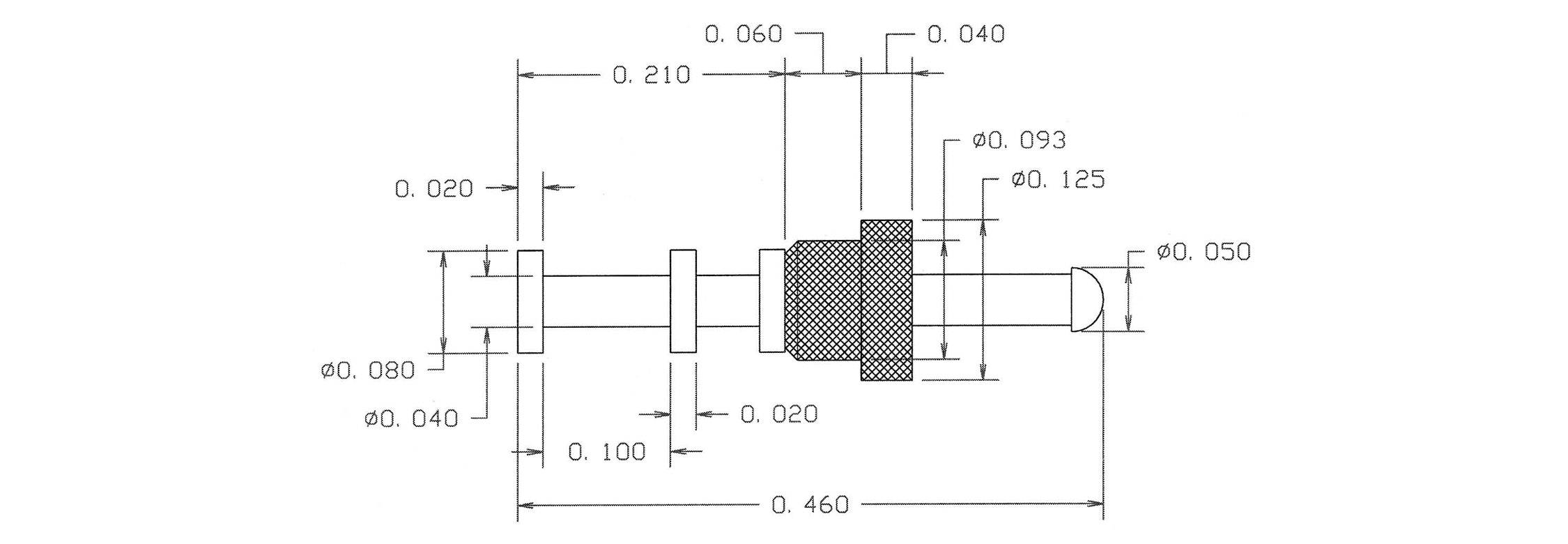

1156R-01-0111
1156R-01-0111
1156R-01-0111
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Brown NO
1157-01-0317
1157-01-0317
1157-01-0317
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1157-06-04413
1157-06-04413
1157-06-04413
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Orange NO

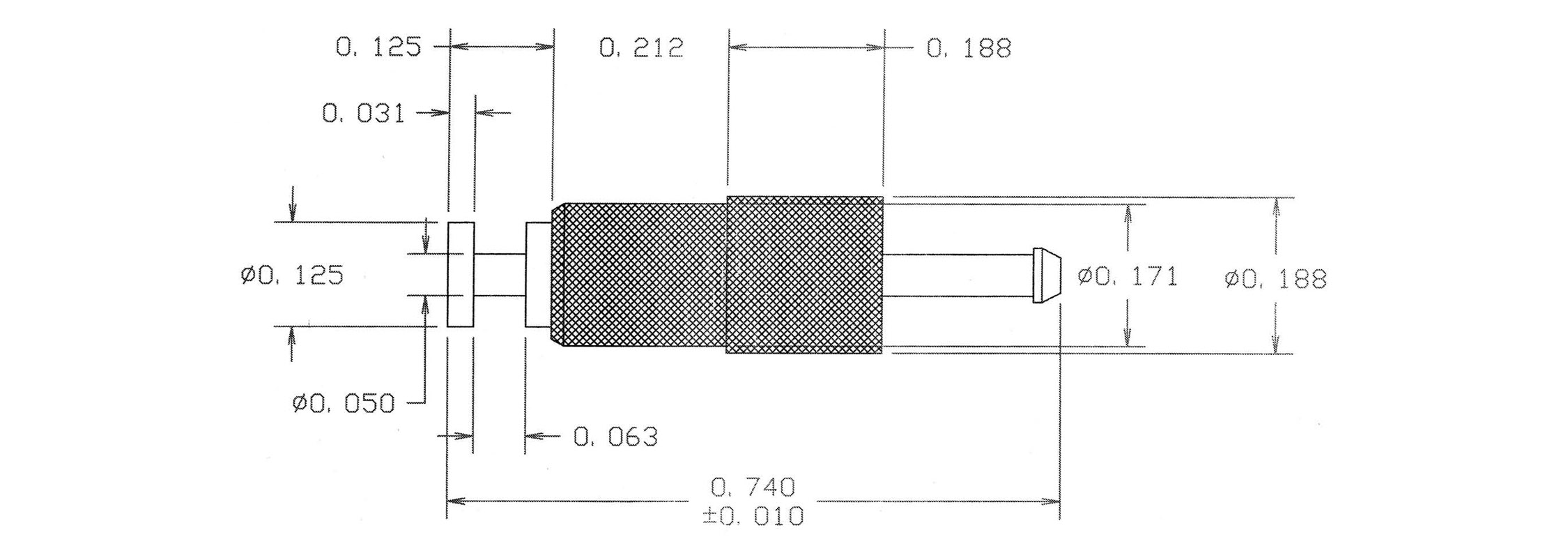

1157R-04-0519
1157R-04-0519
1157R-04-0519
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO
1160-13-0115
1160-13-0115
1160-13-0115
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1167-20-0411
1167-20-0411
1167-20-0411
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1167-67-04417
1167-67-04417
1167-67-04417
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1169-08-08813
1169-08-08813
1169-08-08813
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
1169-37-0119
1169-37-0119
1169-37-0119
0.750" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1170-03-07515
1170-03-07515
1170-03-07515
0.750" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Green YES
1170-22-0411
1170-22-0411
1170-22-0411
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1175-012-04417
1175-012-04417
1175-012-04417
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
