Commercial
Insulated
Pin Terminals

Filter
1131-02-04413
1131-02-04413
1131-02-04413
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Orange NO
1131-06-0519
1131-06-0519
1131-06-0519
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Electro Solder - - PTFE White NO
1132-01-0115
1132-01-0115
1132-01-0115
0.645" 0.090 - Solder 7/32 0.0935 Brass Silver - - PTFE Green YES
1133-02-0411
1133-02-0411
1133-02-0411
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1133R-05-04417
1133R-05-04417
1133R-05-04417
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Violet YES
1135-04-08813
1135-04-08813
1135-04-08813
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin-Lead - - PTFE Orange NO
1135-09-0119
1135-09-0119
1135-09-0119
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Silver - - PTFE White YES
1137-02-0415
1137-02-0415
1137-02-0415
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Green YES
1139-03-0511
1139-03-0511
1139-03-0511
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Brown NO

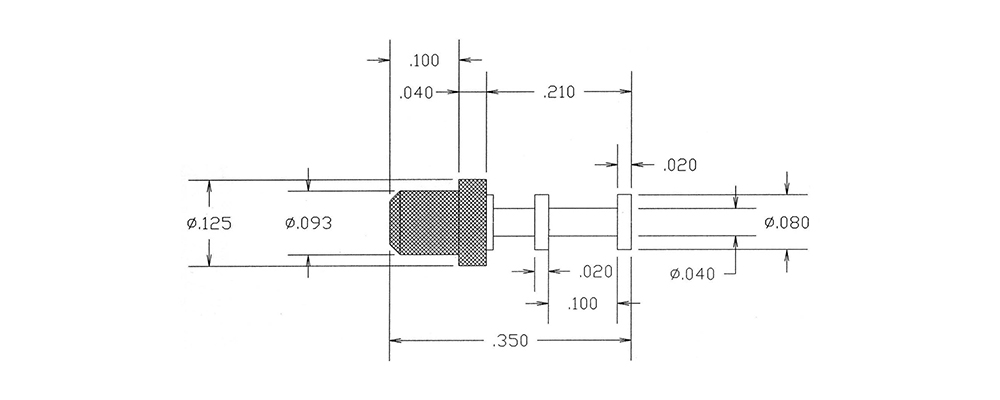

1151-02-08817
1151-02-08817
1151-02-08817
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Violet NO
1151-11-0313
1151-11-0313
1151-11-0313
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Orange NO
1151-19-0419
1151-19-0419
1151-19-0419
0.444" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES

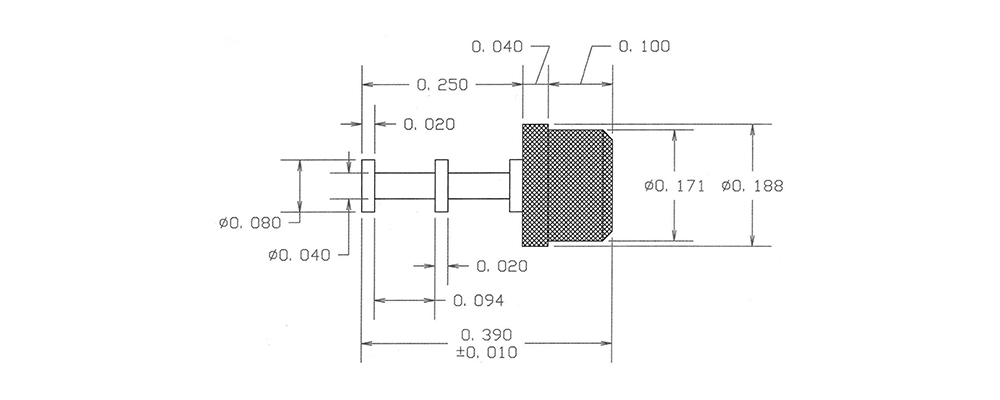

1151-38-0515
1151-38-0515
1151-38-0515
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Green NO

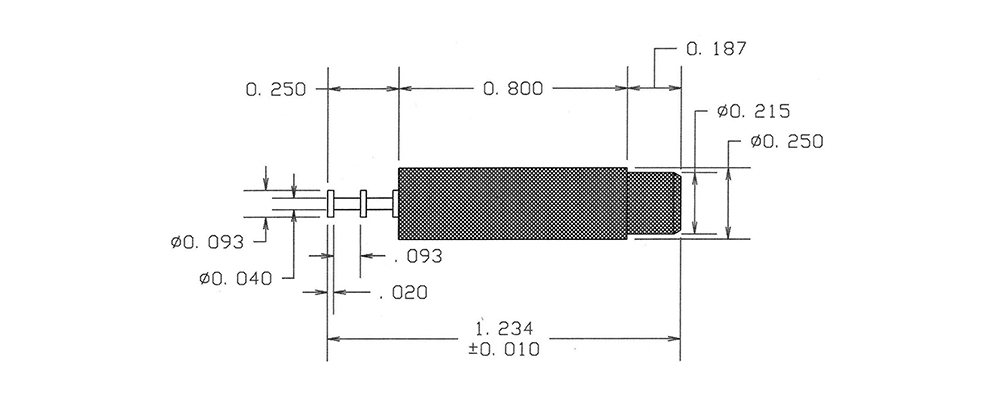

1151-51-0111
1151-51-0111
1151-51-0111
1.234" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Brown NO
1151R-09-0317
1151R-09-0317
1151R-09-0317
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES

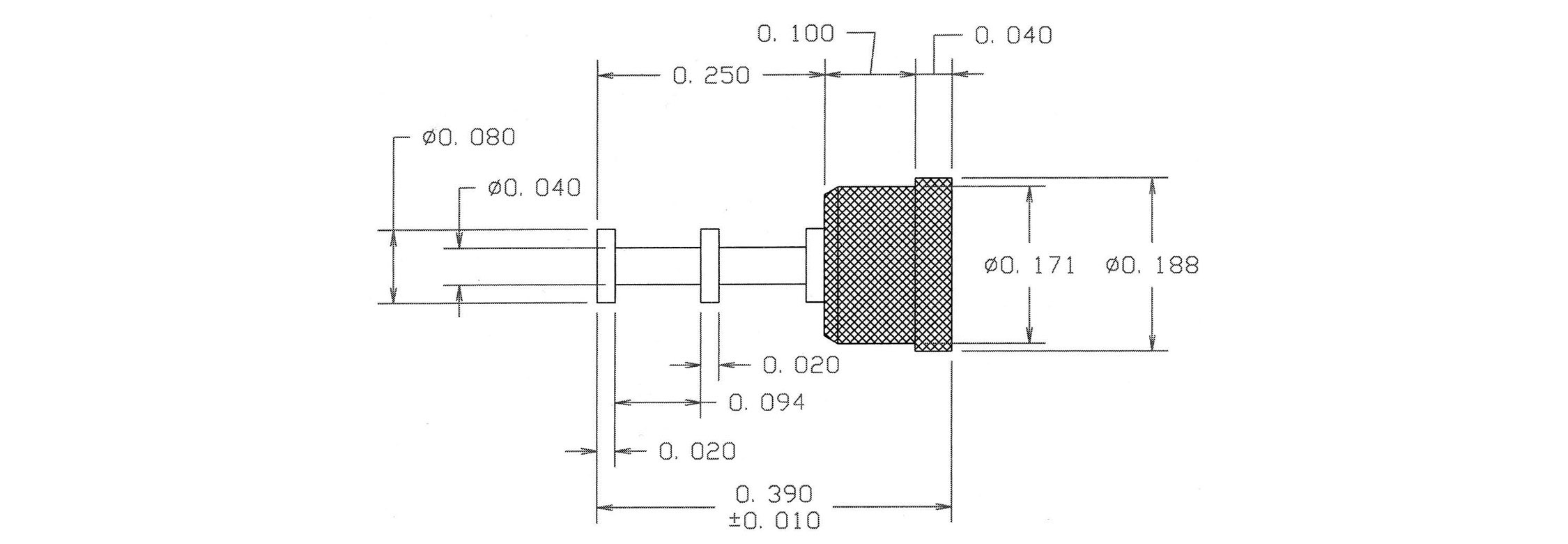

1151R-38-04413
1151R-38-04413
1151R-38-04413
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Orange NO
1152-29-0519
1152-29-0519
1152-29-0519
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE White NO
1152R-17-0115
1152R-17-0115
1152R-17-0115
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Green YES
1153-06-0411
1153-06-0411
1153-06-0411
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1153-31-04417
1153-31-04417
1153-31-04417
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Violet YES
