Commercial
Insulated
Pin Terminals

Filter
1100-47-04413
1100-47-04413
1100-47-04413
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Orange NO

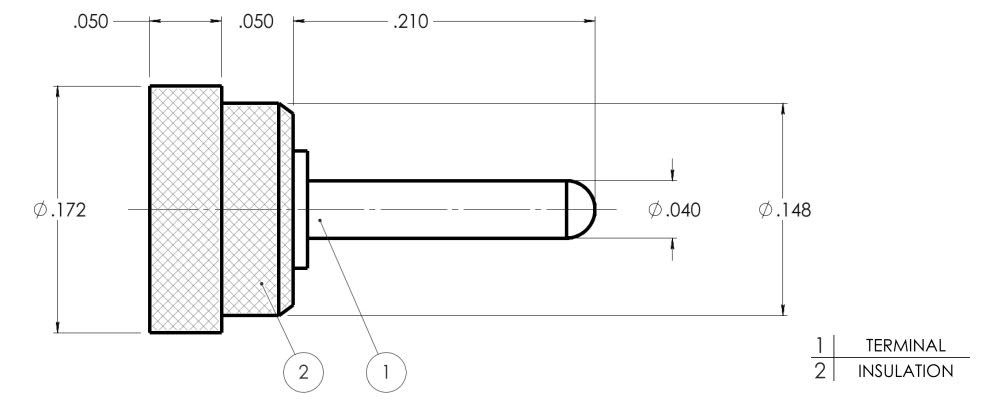

1100R-22-0519
1100R-22-0519
1100R-22-0519
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE White NO
1100R-36-0115
1100R-36-0115
1100R-36-0115
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1100R-53-0411
1100R-53-0411
1100R-53-0411
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Brown NO
1100R-70-04417
1100R-70-04417
1100R-70-04417
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1102-43-08813
1102-43-08813
1102-43-08813
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Orange NO
09-2078-1-0314
09-2078-1-0314
09-2078-1-0314
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Yellow NO
1110-39-0310
1110-39-0310
1110-39-0310
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Gold - - PTFE Black YES

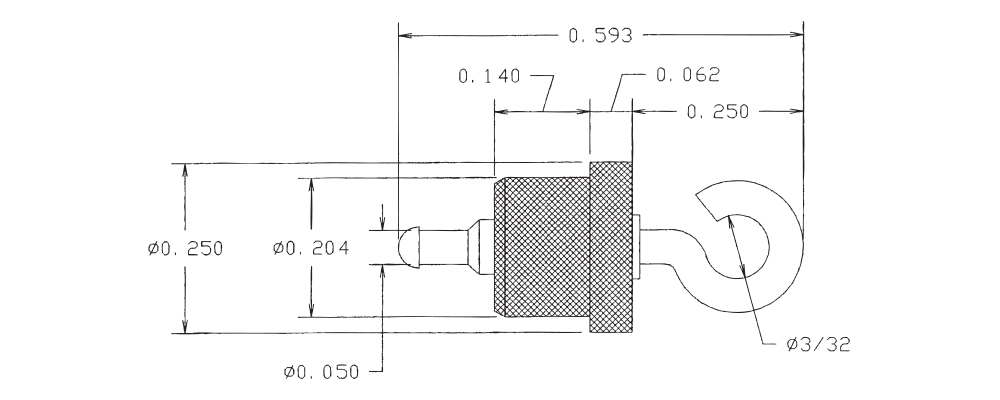

09-2094-1-04410
09-2094-1-04410
09-2094-1-04410
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin - - PTFE Black YES
1111-19-0416
1111-19-0416
1111-19-0416
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Blue YES
09-2101-1-0516
09-2101-1-0516
09-2101-1-0516
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro Solder - - PTFE Blue NO
1112-05-0512
1112-05-0512
1112-05-0512
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Red NO
09-2112-1-0112
09-2112-1-0112
09-2112-1-0112
0.838" - - 6-32 Nut 1/8 0.144 Brass Silver Nickel Brass PTFE Red NO
1112-20-08818
1112-20-08818
1112-20-08818
0.333" - - Press Fit 1/8 0.250 Brass Bright Tin-Lead - - PTFE Gray NO
09-2121-1-0318
09-2121-1-0318
09-2121-1-0318
0.275" - - Press Fit 5/64 0.136 Brass Gold - - PTFE Gray NO
1114-18-0314
1114-18-0314
1114-18-0314
0.250" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Yellow NO
1100-04-04414
1100-04-04414
1100-04-04414
0.250" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin - - PTFE Yellow NO
1114-24-04410
1114-24-04410
1114-24-04410
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES

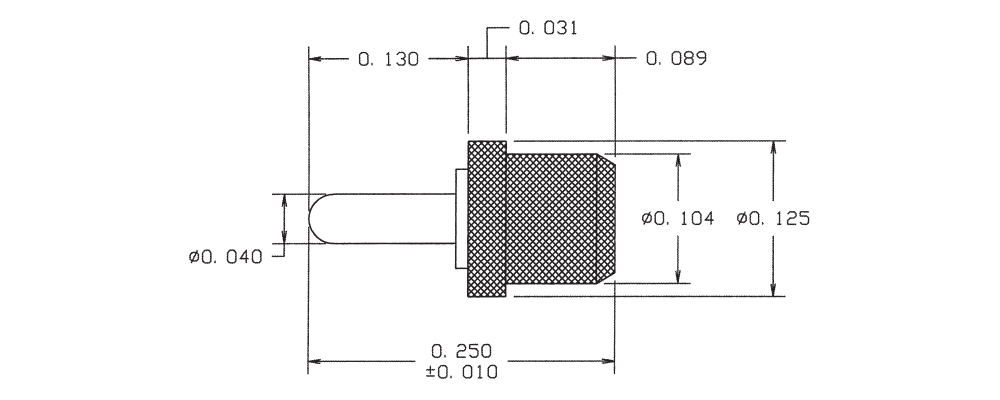

1100-08-08810
1100-08-08810
1100-08-08810
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin-Lead - - PTFE Black NO
1114-27-0516
1114-27-0516
1114-27-0516
0.367" 0.085 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Blue NO
