Commercial
Insulated
Pin Terminals

Filter

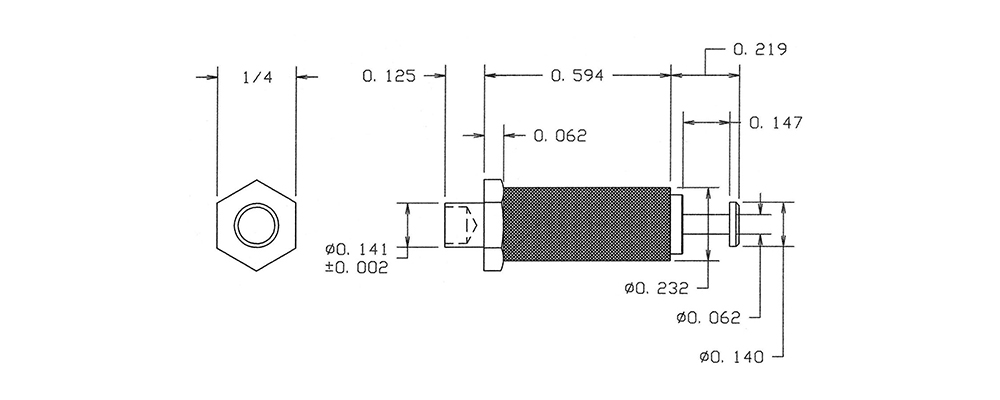

1127-25-0313
1127-25-0313
1127-25-0313
0.938" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES

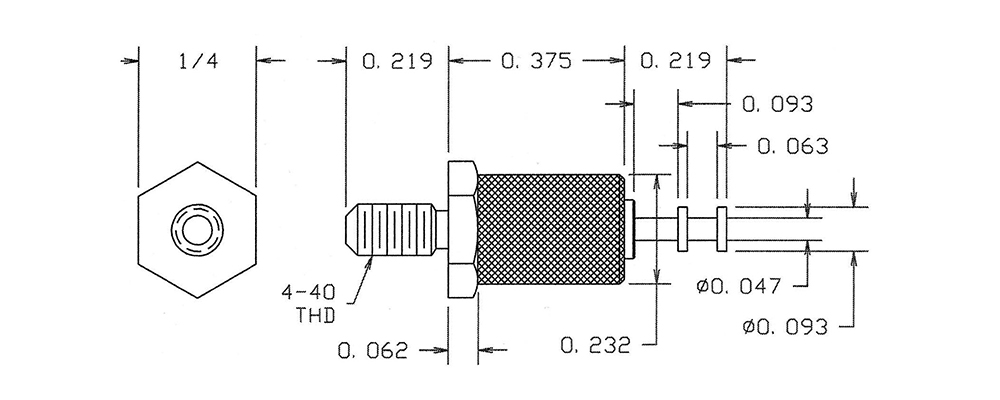

1127-30-0419
1127-30-0419
1127-30-0419
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES

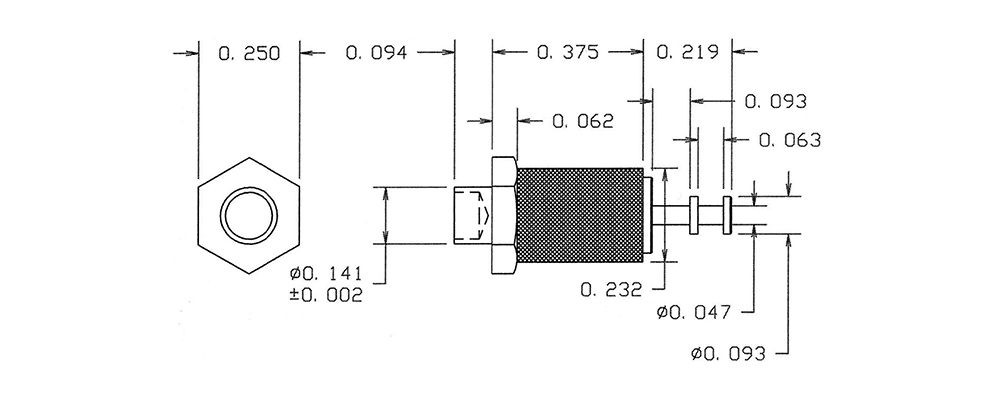

1127-34-0515
1127-34-0515
1127-34-0515
0.688" - - Swage Mount 1/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO

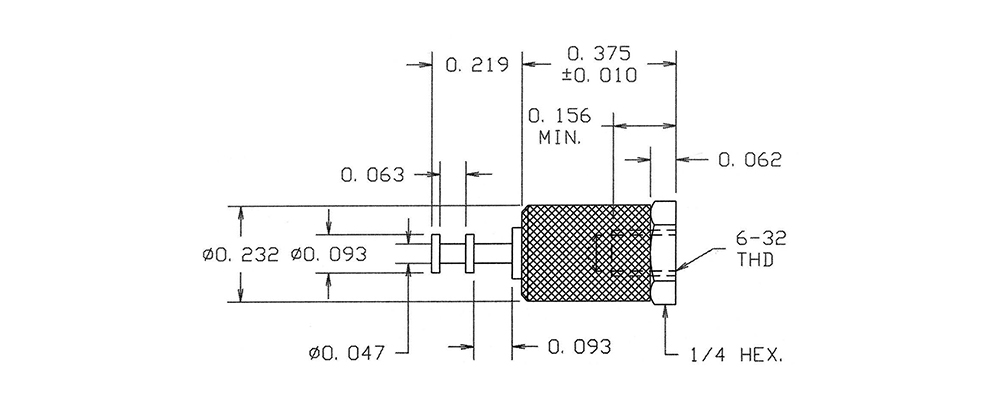

1127-39-0111
1127-39-0111
1127-39-0111
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES

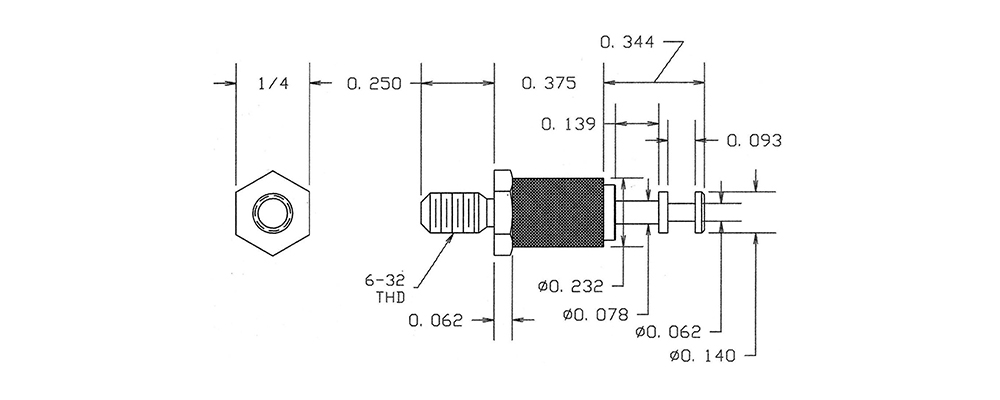

1127-43-0317
1127-43-0317
1127-43-0317
0.969" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-47-04413
1127-47-04413
1127-47-04413
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-51-0519
1127-51-0519
1127-51-0519
0.844" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO

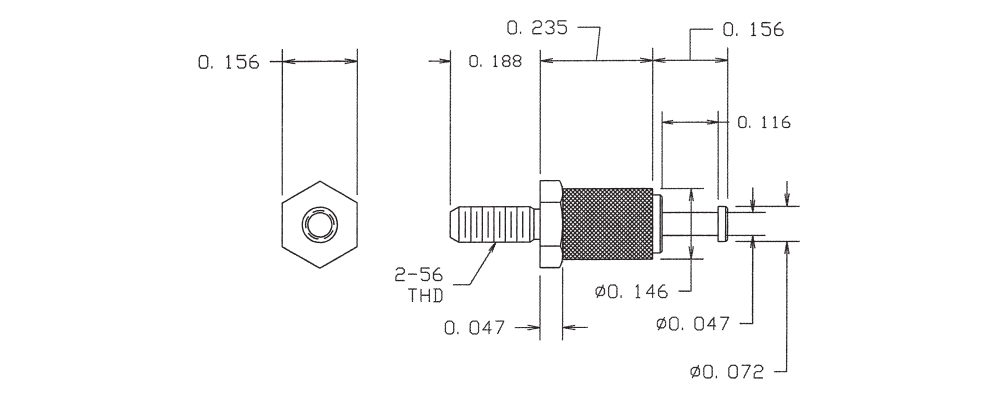

1127-57-0115
1127-57-0115
1127-57-0115
0.579" - - 2-56 Nut 1/16 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES

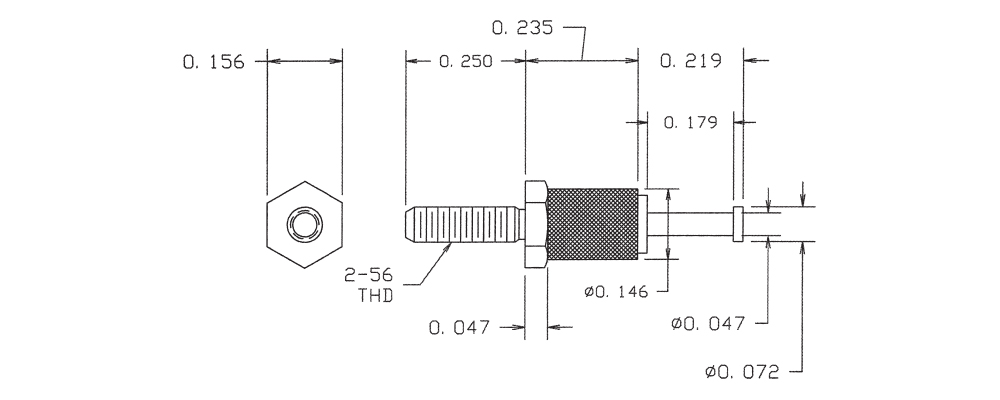

1127-61-0411
1127-61-0411
1127-61-0411
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES

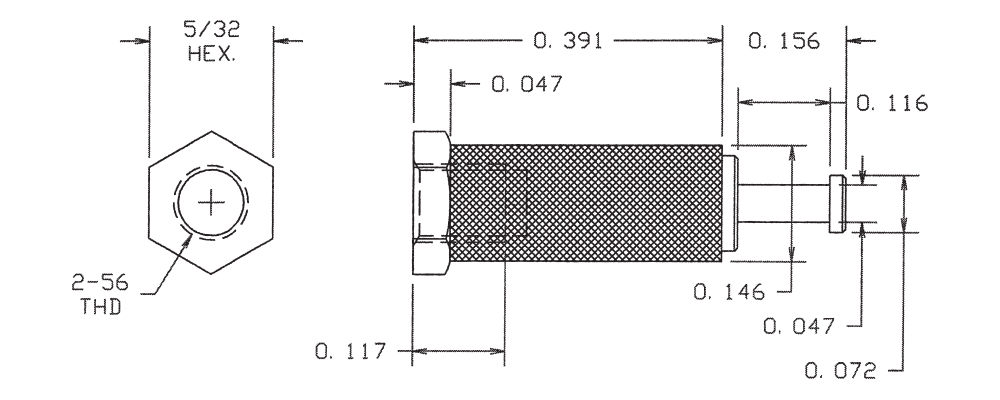

1127-65-04417
1127-65-04417
1127-65-04417
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES

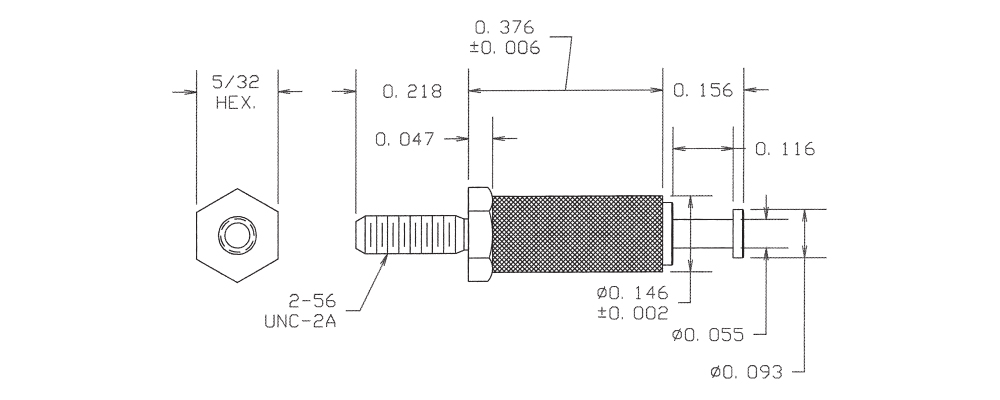

1127-69-08813
1127-69-08813
1127-69-08813
0.750" - - 2-56 Nut 3/32 0.094 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Orange NO
1127-74-0119
1127-74-0119
1127-74-0119
1.000" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES

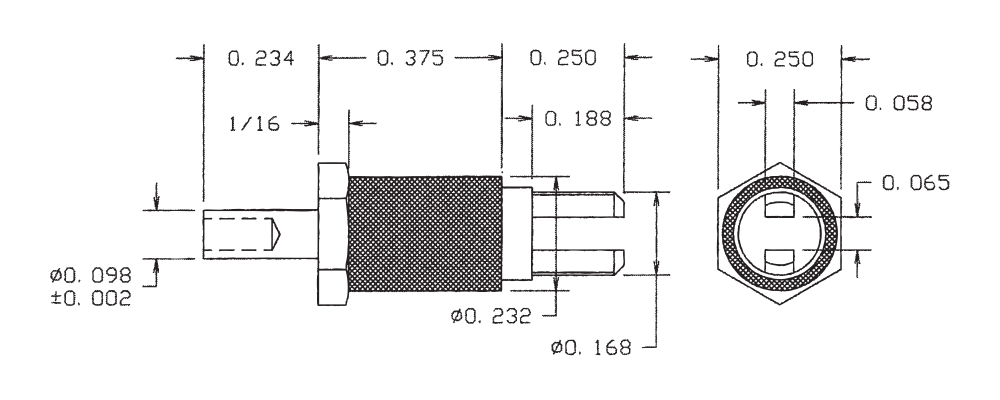

1127-78-0415
1127-78-0415
1127-78-0415
0.859" - - Swage Mount 3/16 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES

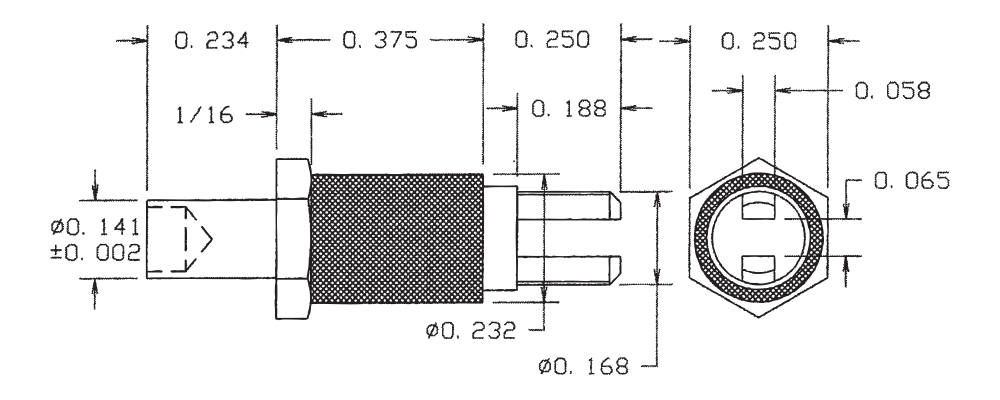

1127-82-0511
1127-82-0511
1127-82-0511
0.859" - - Swage Mount 3/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO

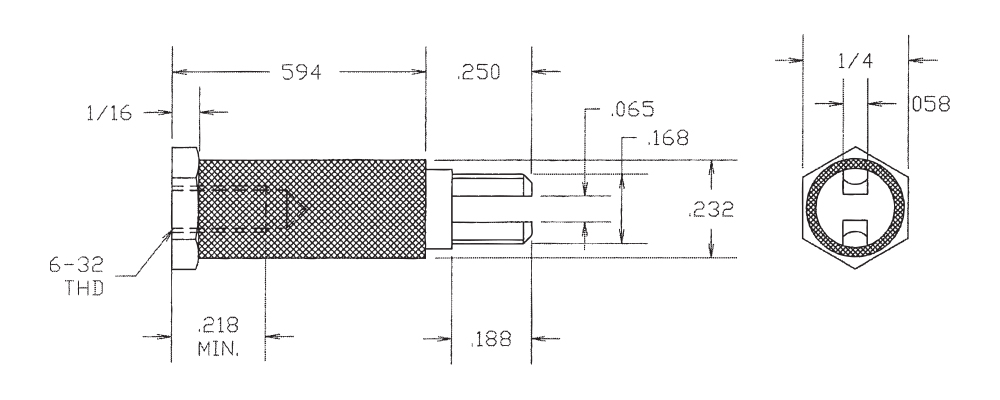

1127-86-08817
1127-86-08817
1127-86-08817
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-91-0313
1127-91-0313
1127-91-0313
0.674" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-95-0419
1127-95-0419
1127-95-0419
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1130-01-0515
1130-01-0515
1130-01-0515
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Green NO
1130-07-0111
1130-07-0111
1130-07-0111
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Brown NO
1130R-05-0317
1130R-05-0317
1130R-05-0317
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Violet YES
