Commercial
Insulated
Pin Terminals

Filter
1119-22-04413
1119-22-04413
1119-22-04413
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin - - PTFE Orange NO
1119-32-0519
1119-32-0519
1119-32-0519
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO
1121-02-0115
1121-02-0115
1121-02-0115
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Silver - - PTFE Green YES
1121-06-0411
1121-06-0411
1121-06-0411
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Brown NO
1121-11-04417
1121-11-04417
1121-11-04417
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Violet YES

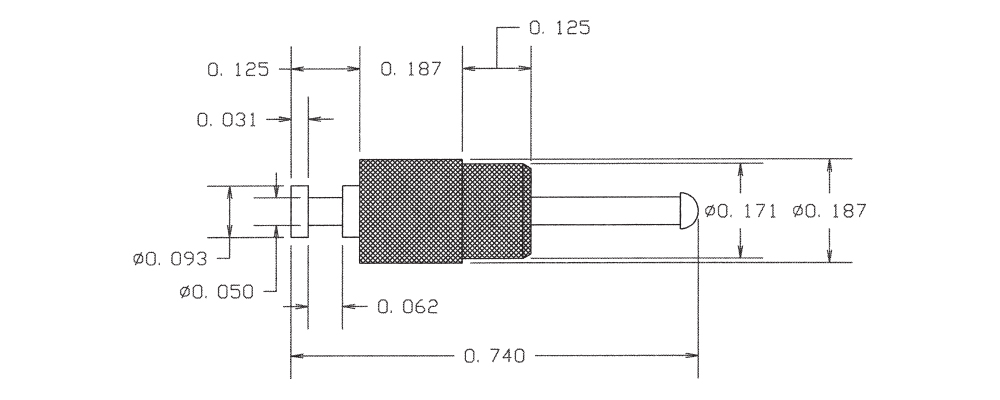

1121-15-08813
1121-15-08813
1121-15-08813
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1121-20-0119
1121-20-0119
1121-20-0119
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Silver - - PTFE White YES
1121-24-0415
1121-24-0415
1121-24-0415
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro-Tin - - PTFE Green YES
1121-30-0511
1121-30-0511
1121-30-0511
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Brown NO

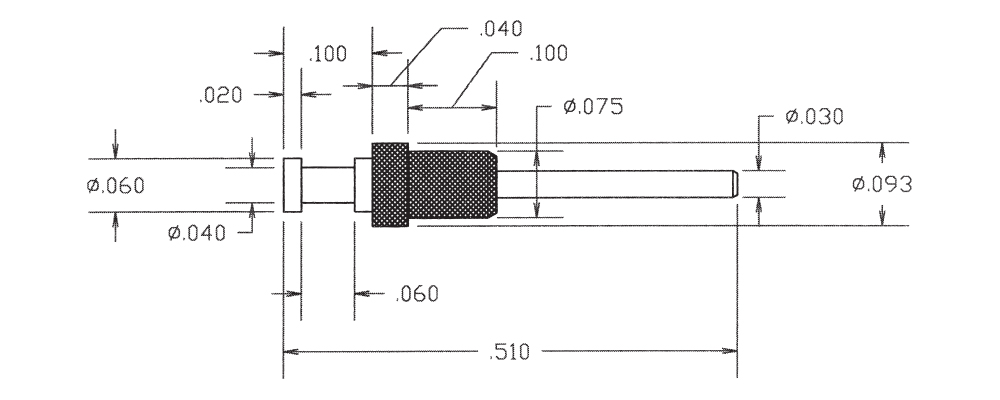

1121-51-08817
1121-51-08817
1121-51-08817
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Violet NO
1121R-06-0313
1121R-06-0313
1121R-06-0313
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Orange NO
1121R-50-0419
1121R-50-0419
1121R-50-0419
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1123-03-0515
1123-03-0515
1123-03-0515
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Green NO
1123-08-0111
1123-08-0111
1123-08-0111
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Silver - - PTFE Brown NO
1123-72-0317
1123-72-0317
1123-72-0317
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES
1123R-05-04413
1123R-05-04413
1123R-05-04413
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Orange NO
1123R-62-0519
1123R-62-0519
1123R-62-0519
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO
1125-35-0115
1125-35-0115
1125-35-0115
0.850" - - 6-32 Nut 1/8 0.144 Brass Silver Electro-Tin Brass PTFE Green YES
1125-40-0411
1125-40-0411
1125-40-0411
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Brown NO
1125-44-04417
1125-44-04417
1125-44-04417
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Violet YES
