Commercial
Insulated
Pin Terminals

Filter
1175-872-0313
1175-872-0313
1175-872-0313
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Orange NO

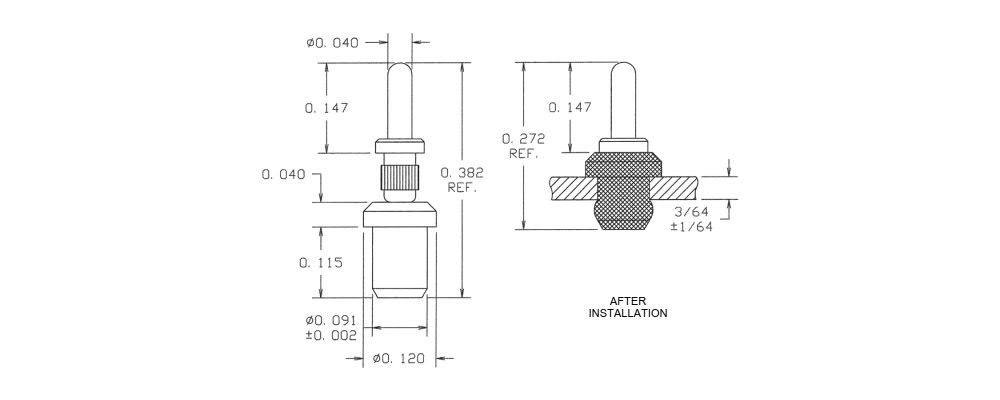

1177-02-0419
1177-02-0419
1177-02-0419
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro-Tin - - PTFE White YES

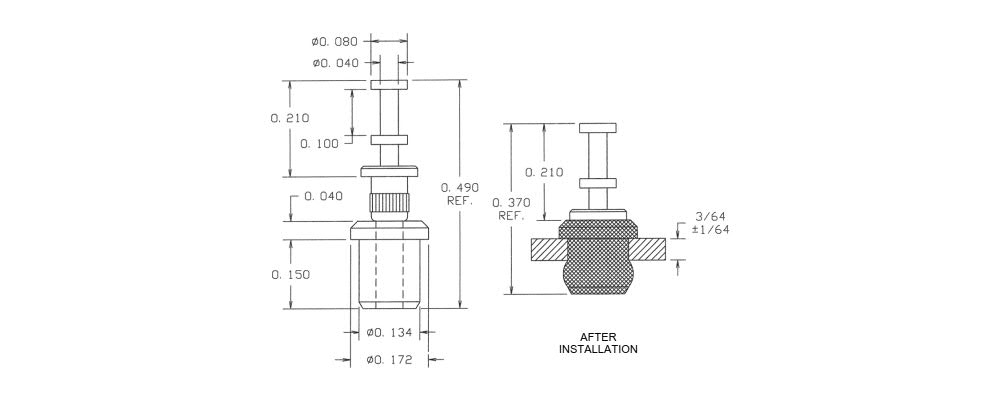

1177-11-0515
1177-11-0515
1177-11-0515
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1177-32-0111
1177-32-0111
1177-32-0111
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Brown NO
1177-41-0317
1177-41-0317
1177-41-0317
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE Violet YES
1177-52-04413
1177-52-04413
1177-52-04413
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Orange NO

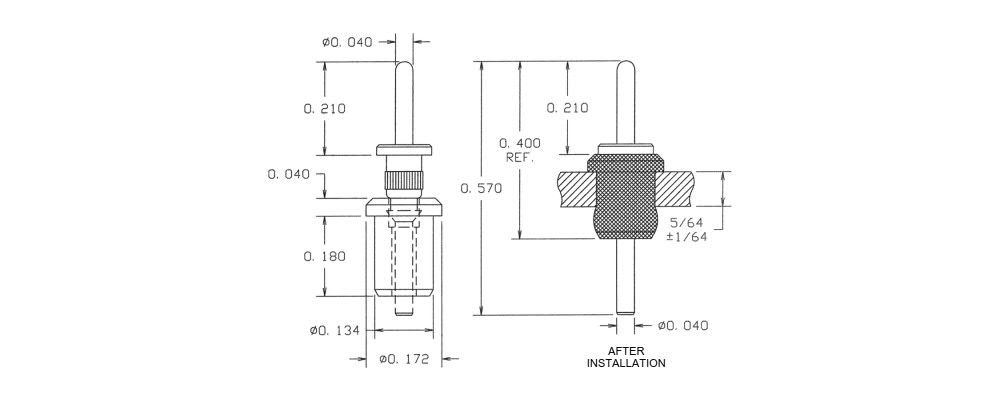

1177-56-0519
1177-56-0519
1177-56-0519
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro Solder - - PTFE White NO
1177-61-0115
1177-61-0115
1177-61-0115
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Green YES
1178R-03-0411
1178R-03-0411
1178R-03-0411
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Brown NO
1178R-10-04417
1178R-10-04417
1178R-10-04417
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin - - PTFE Violet YES

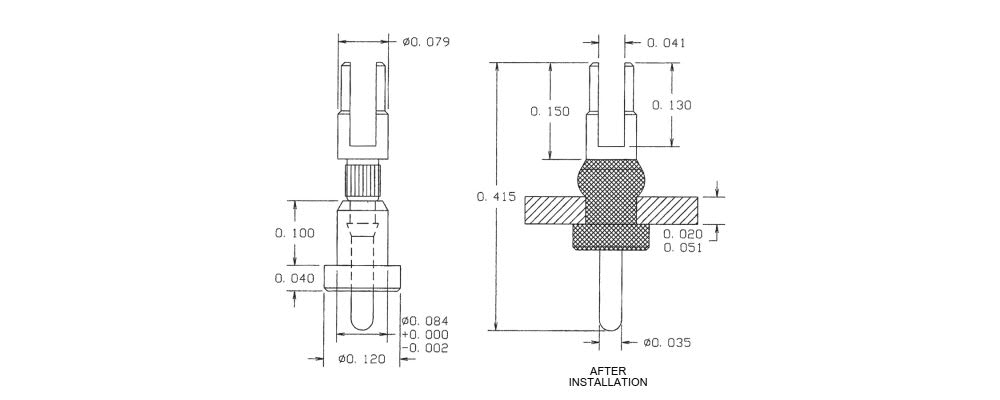

1178R-14-08813
1178R-14-08813
1178R-14-08813
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1102R-95-0119
1102R-95-0119
1102R-95-0119
0.812" - - Press Fit 13/64 0.297 Brass Silver - - PTFE White YES
1125-02-0415
1125-02-0415
1125-02-0415
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE Green YES
1125-06-0511
1125-06-0511
1125-06-0511
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Brown NO
1125-10-08817
1125-10-08817
1125-10-08817
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
1125-15-0313
1125-15-0313
1125-15-0313
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Orange NO
1125-19-0419
1125-19-0419
1125-19-0419
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin Electro-Tin Brass PTFE White YES
1125-23-0515
1125-23-0515
1125-23-0515
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE Green NO
1125-28-0111
1125-28-0111
1125-28-0111
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Brown NO
09-2128-1-0317
09-2128-1-0317
09-2128-1-0317
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
