Commercial
Insulated
Pin Terminals

Filter
1106-15-04413
1106-15-04413
1106-15-04413
1.190" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Orange NO
1106-19-0519
1106-19-0519
1106-19-0519
1.190" - - Press Fit 5/32 0.205 Brass Electro Solder - - PTFE White NO
1106-52-0115
1106-52-0115
1106-52-0115
0.276" - - Press Fit 3/32 0.086 Brass Silver - - PTFE Green YES
1106R-23-0411
1106R-23-0411
1106R-23-0411
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1106R-50-04417
1106R-50-04417
1106R-50-04417
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Violet YES

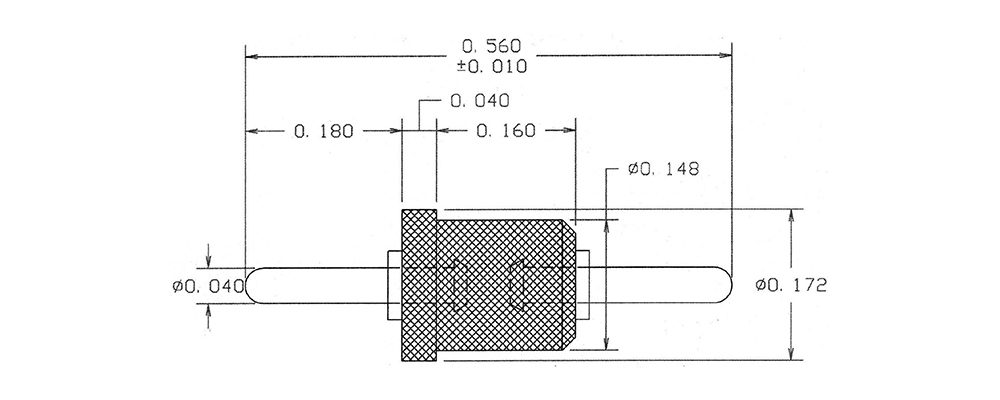

1107-02-08813
1107-02-08813
1107-02-08813
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1107-08-0119
1107-08-0119
1107-08-0119
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE White YES
1108-01-0415
1108-01-0415
1108-01-0415
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Electro-Tin - - PTFE Green YES
1108-05-0511
1108-05-0511
1108-05-0511
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Brown NO

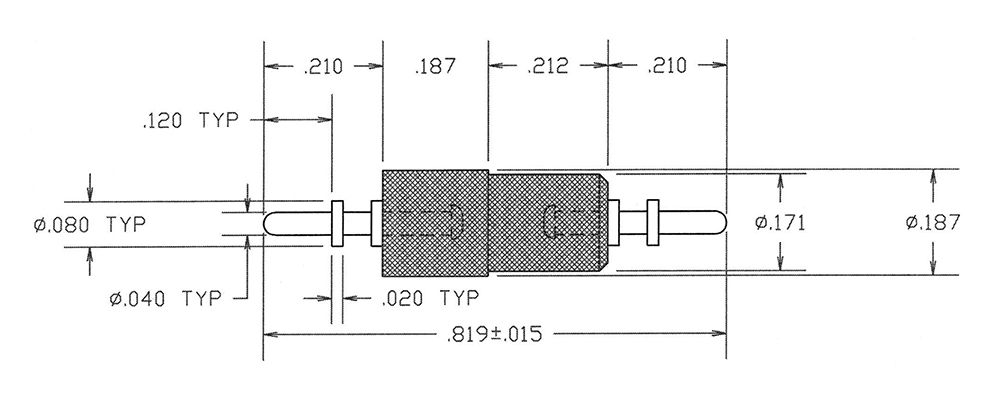

1108-30-08817
1108-30-08817
1108-30-08817
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1110-06-0313
1110-06-0313
1110-06-0313
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Orange NO
1110-10-0419
1110-10-0419
1110-10-0419
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES
1110-15-0515
1110-15-0515
1110-15-0515
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1110-20-0111
1110-20-0111
1110-20-0111
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1110-24-0317
1110-24-0317
1110-24-0317
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES
1110-28-04413
1110-28-04413
1110-28-04413
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1110-32-0519
1110-32-0519
1110-32-0519
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE White NO
1110-40-0115
1110-40-0115
1110-40-0115
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Silver - - PTFE Green YES
1110-44-0411
1110-44-0411
1110-44-0411
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Electro-Tin - - PTFE Brown NO
1110-48-04417
1110-48-04417
1110-48-04417
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Violet YES
