Commercial
Insulated
Pin Terminals

Filter
1131-06-0516
1131-06-0516
1131-06-0516
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Blue NO
1132-01-0112
1132-01-0112
1132-01-0112
0.645" 0.090 - Solder 7/32 0.0935 Brass Silver - - PTFE Red NO
1133-02-0318
1133-02-0318
1133-02-0318
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Gray NO
1133R-05-04414
1133R-05-04414
1133R-05-04414
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1135-04-08810
1135-04-08810
1135-04-08810
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin-Lead - - PTFE Black NO
1135-09-0116
1135-09-0116
1135-09-0116
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Silver - - PTFE Blue YES
1137-02-0412
1137-02-0412
1137-02-0412
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Red NO
1139-03-04418
1139-03-04418
1139-03-04418
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Gray NO

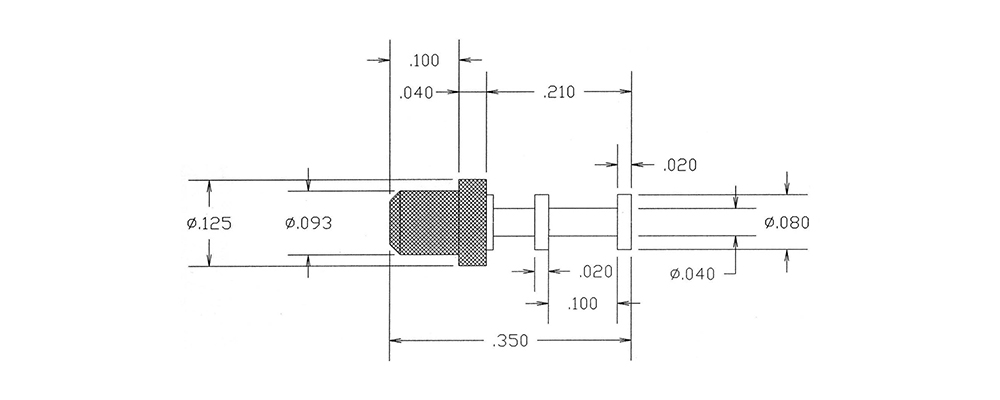

1151-02-08814
1151-02-08814
1151-02-08814
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1151-11-0310
1151-11-0310
1151-11-0310
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES

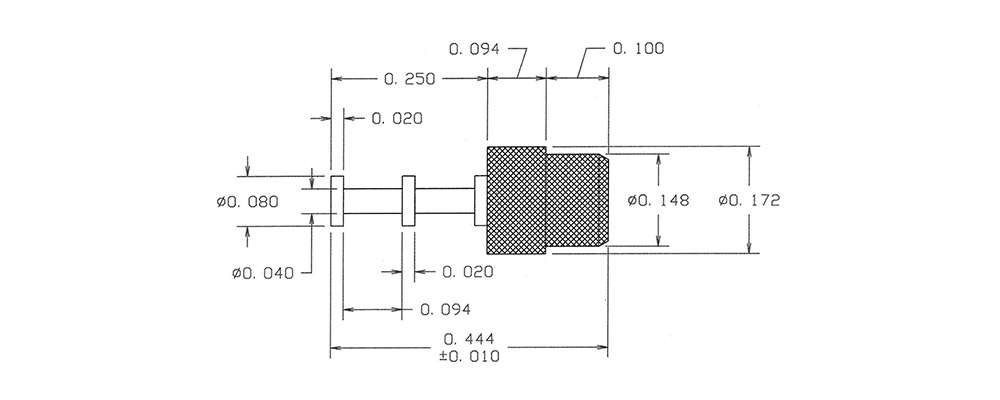

1151-19-0416
1151-19-0416
1151-19-0416
0.444" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES

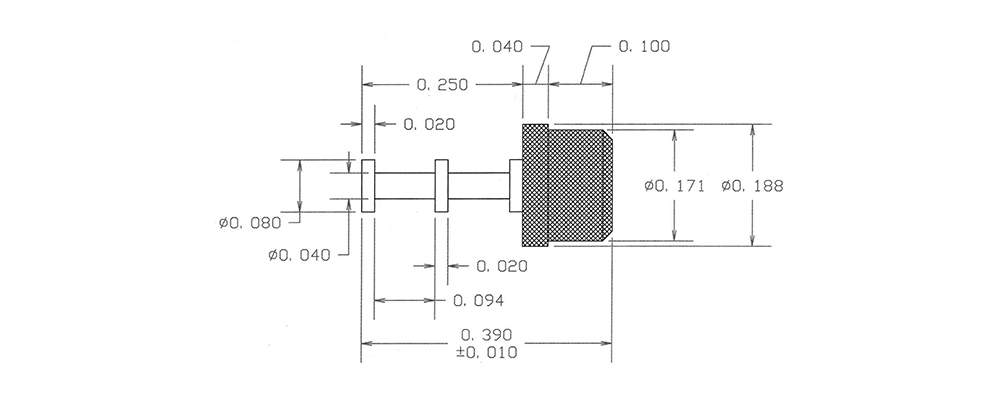

1151-38-0512
1151-38-0512
1151-38-0512
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Red NO

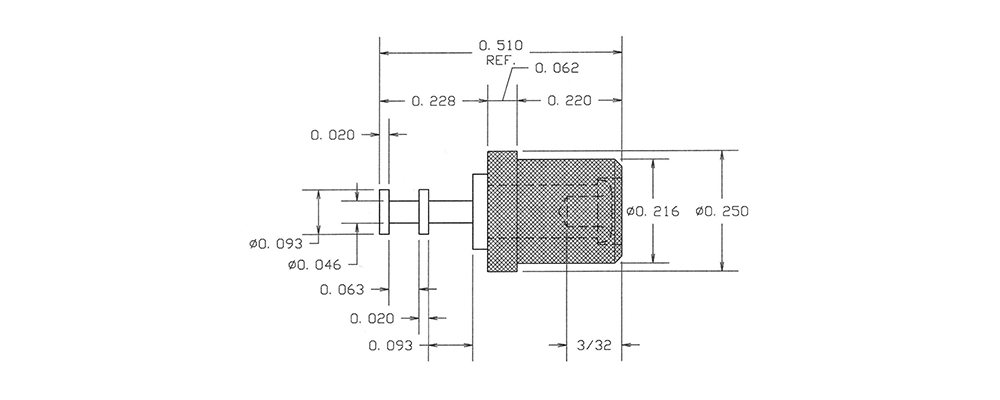

1151-44-08818
1151-44-08818
1151-44-08818
0.510" - - Press Fit Up to 3/16 0.204 Brass Bright Tin-Lead - - PTFE Gray NO
1151R-09-0314
1151R-09-0314
1151R-09-0314
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO

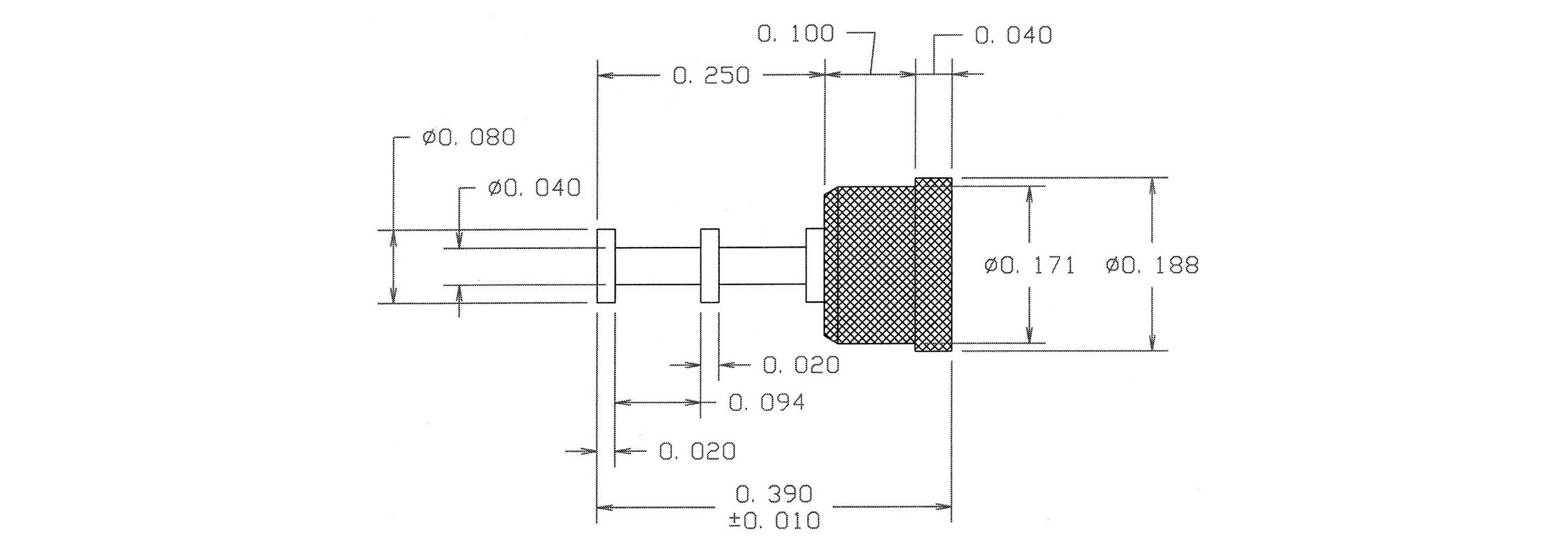

1151R-38-04410
1151R-38-04410
1151R-38-04410
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Black YES

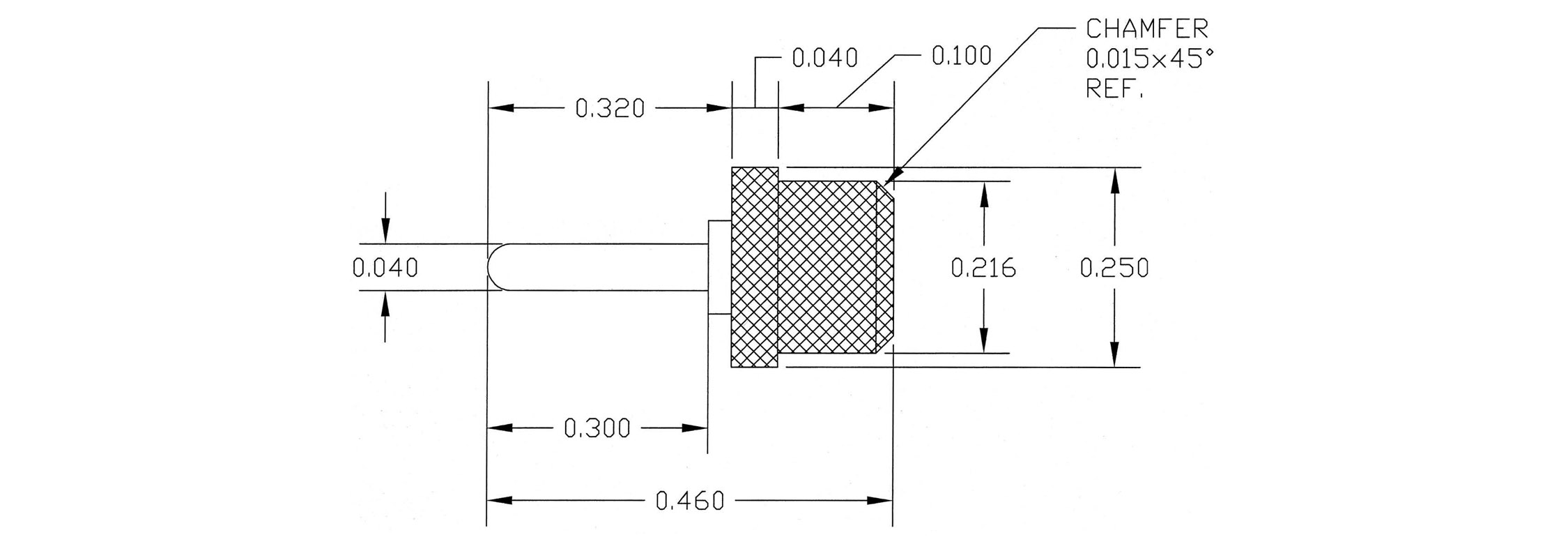

1152-29-0516
1152-29-0516
1152-29-0516
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE Blue NO
1152R-17-0112
1152R-17-0112
1152R-17-0112
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Red NO
1153-06-0318
1153-06-0318
1153-06-0318
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1153-31-04414
1153-31-04414
1153-31-04414
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Yellow NO

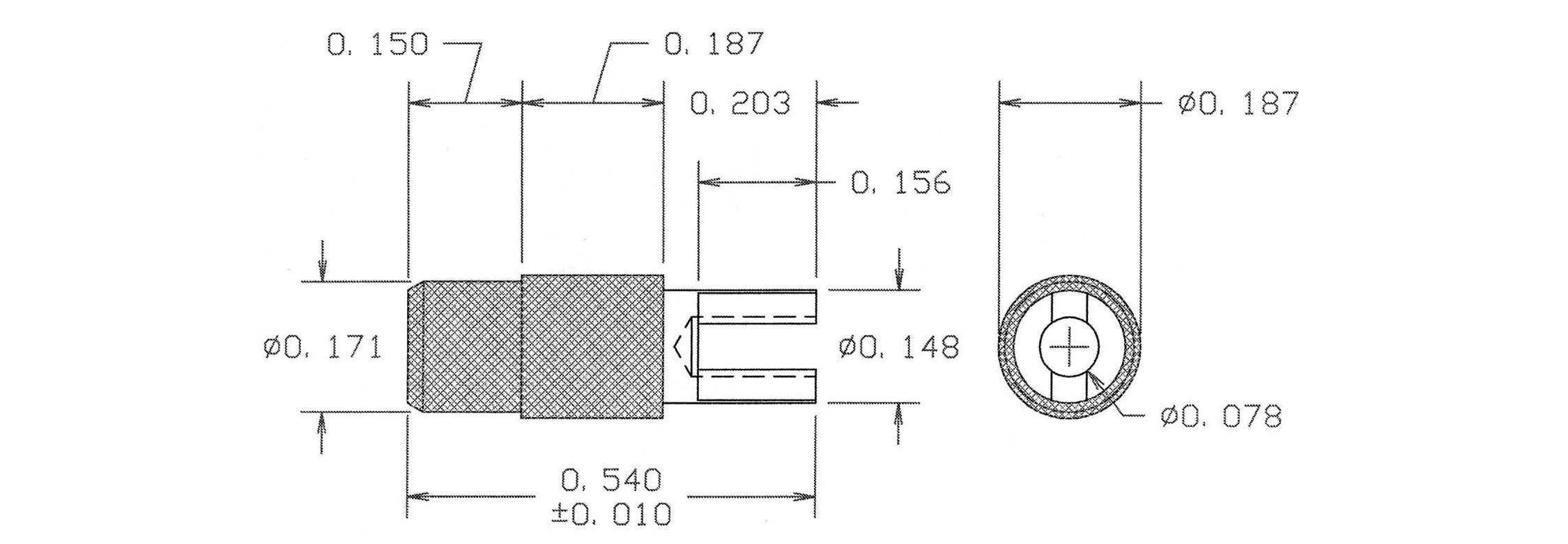

1154-08-08810
1154-08-08810
1154-08-08810
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Black NO
