Commercial
Insulated
Pin Terminals

Filter

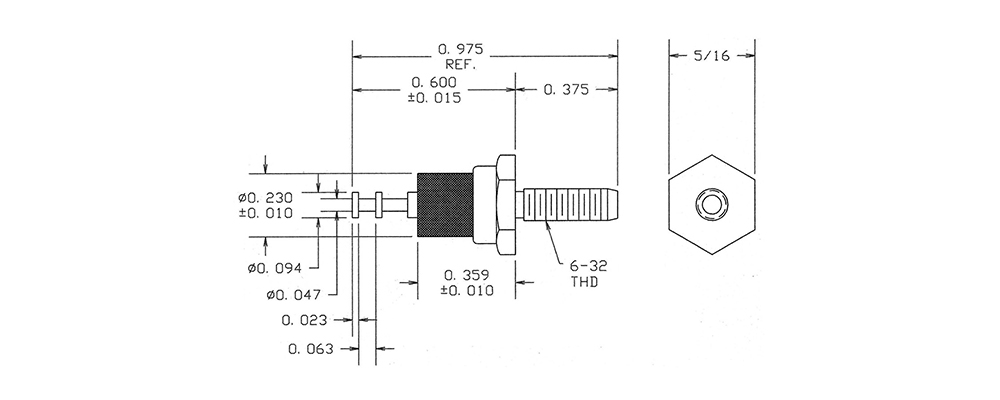

1125-53-0116
1125-53-0116
1125-53-0116
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Silver Electro-Tin Brass PTFE Blue YES

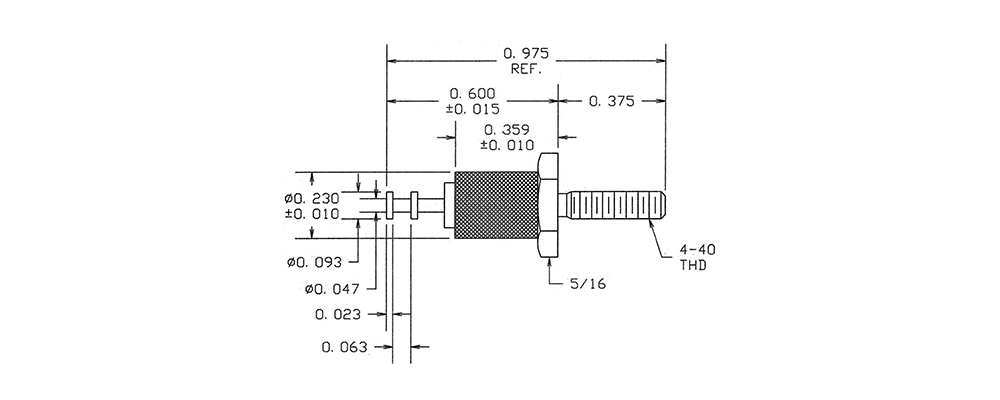

1125-57-0412
1125-57-0412
1125-57-0412
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Red NO

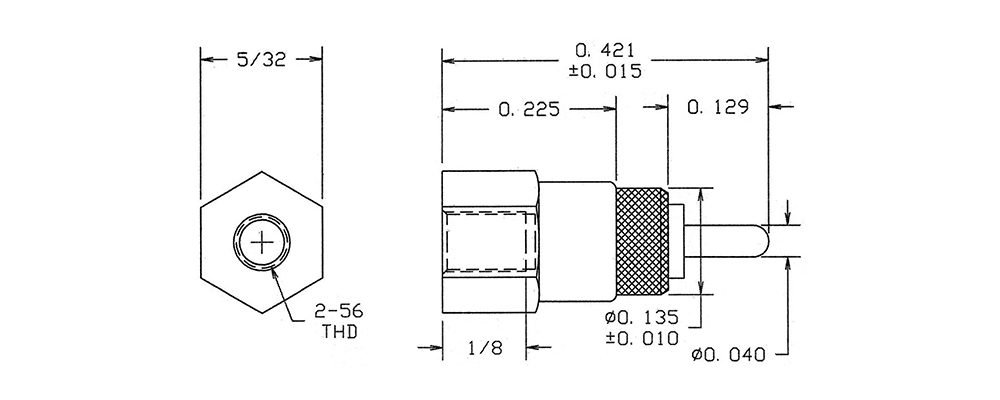

1125-62-04418
1125-62-04418
1125-62-04418
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Gray NO

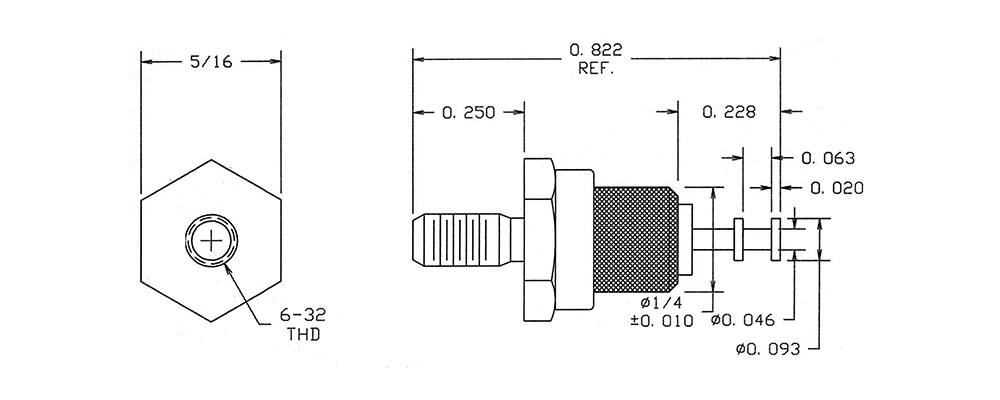

1125-73-08814
1125-73-08814
1125-73-08814
0.822" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Yellow NO

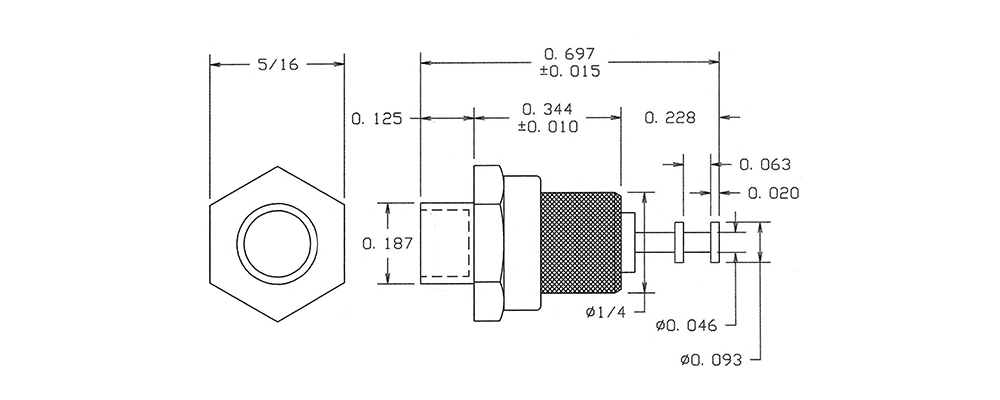

1125-78-0310
1125-78-0310
1125-78-0310
0.697" - - Swage Mount 3/32 0.194 Brass Gold ZINC Brass PTFE Black YES

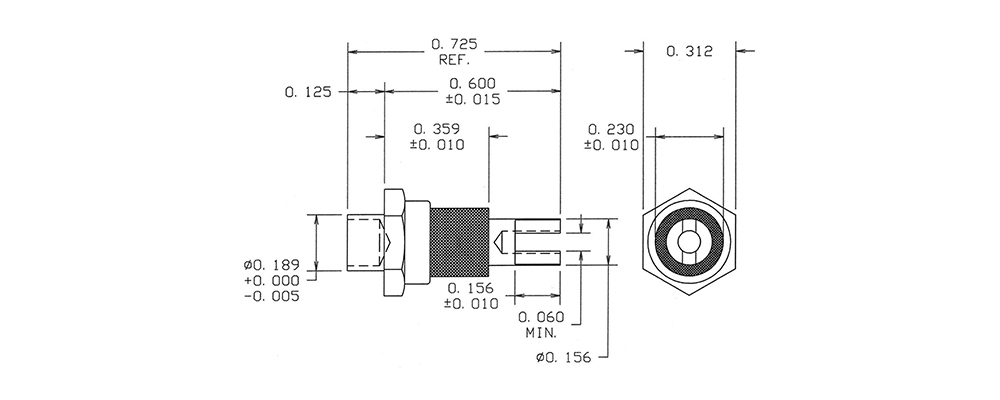

1125-83-0416
1125-83-0416
1125-83-0416
0.725" - - Swage Mount 3/32 0.191 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES

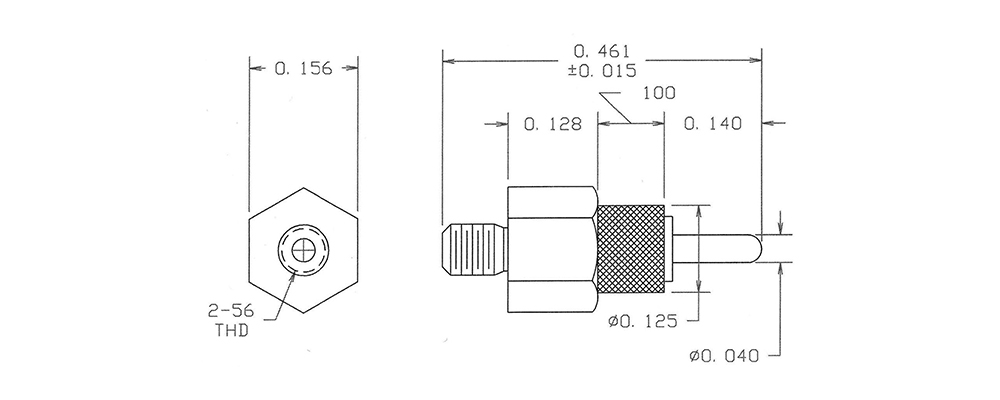

1125-87-0512
1125-87-0512
1125-87-0512
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Electro Solder ZINC Brass PTFE Red NO

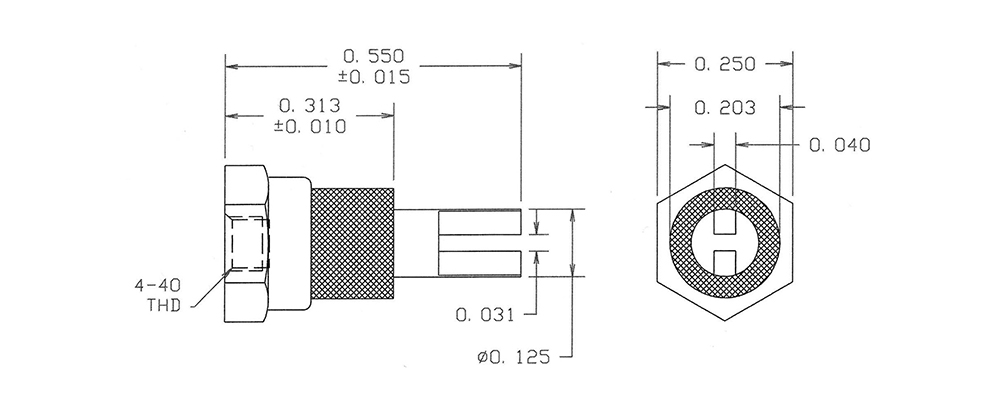

1125-92-08818
1125-92-08818
1125-92-08818
0.550" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO

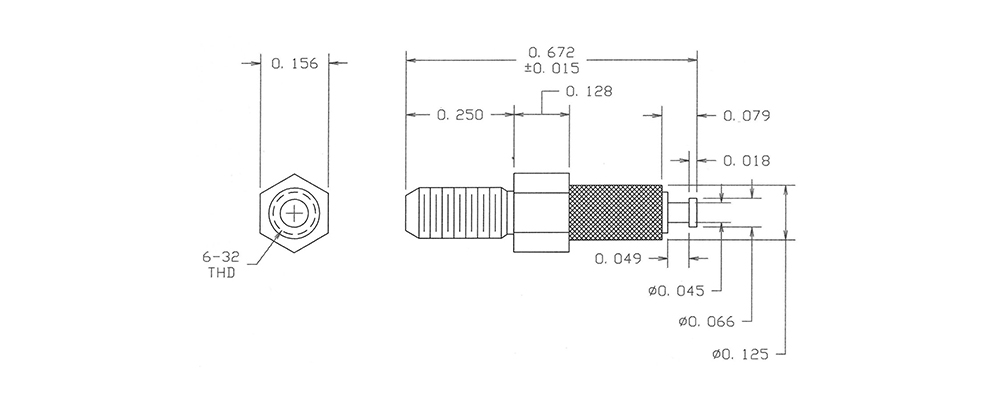

1125-97-0314
1125-97-0314
1125-97-0314
0.672" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Yellow NO

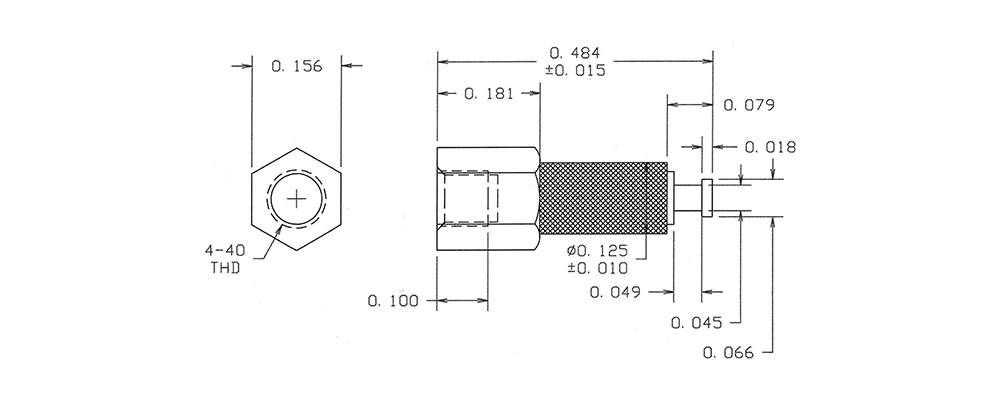

1126-27-04410
1126-27-04410
1126-27-04410
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Black YES

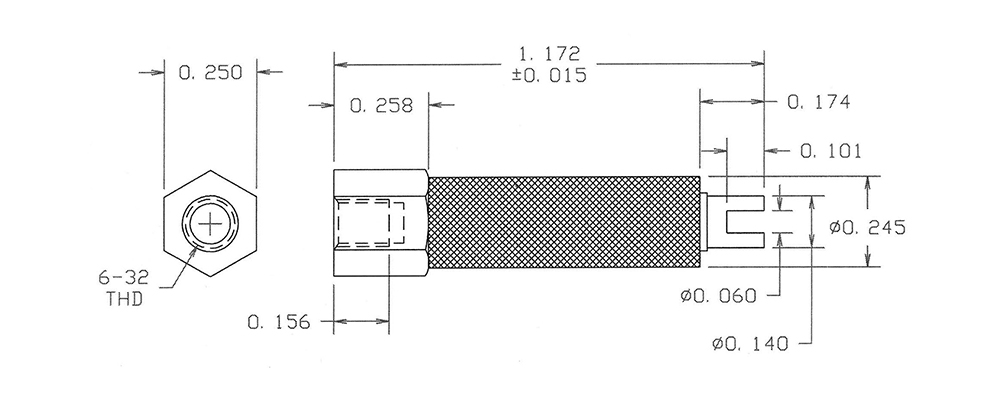

1126-33-0516
1126-33-0516
1126-33-0516
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Blue NO

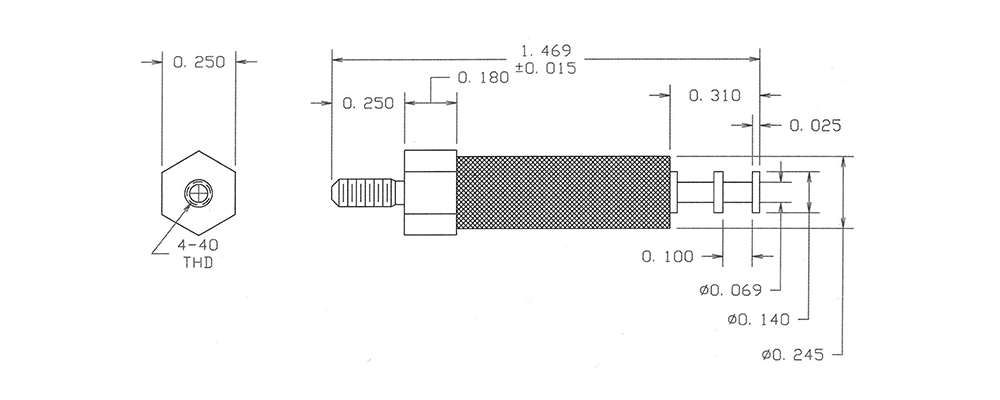

1126-38-0112
1126-38-0112
1126-38-0112
1.469" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass PTFE Red NO

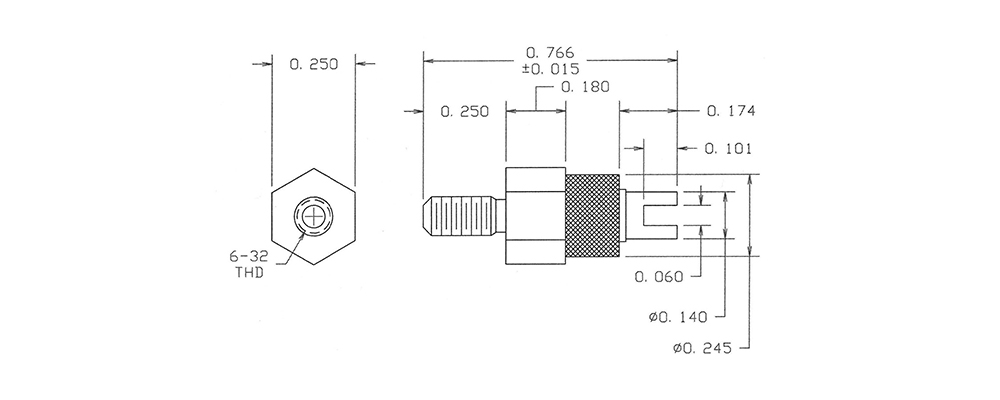

1126-42-0318
1126-42-0318
1126-42-0318
0.766" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Gray NO

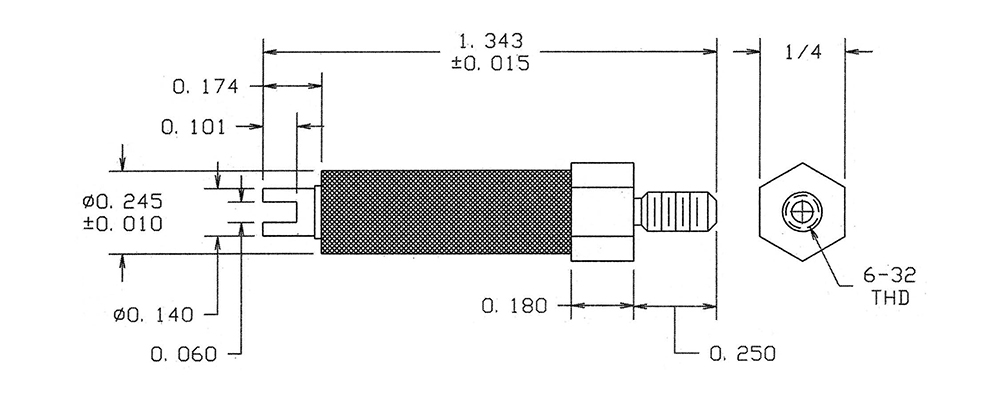

1126-46-04414
1126-46-04414
1126-46-04414
1.343" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass PTFE Yellow NO

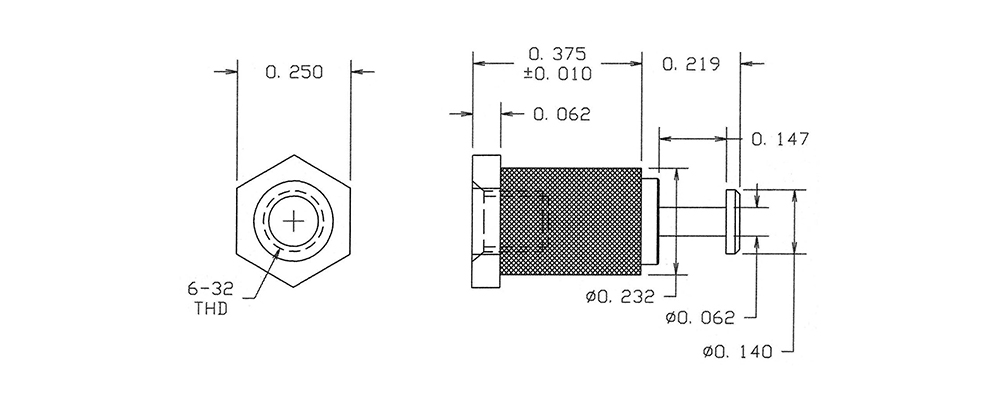

1127-03-08810
1127-03-08810
1127-03-08810
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Black NO

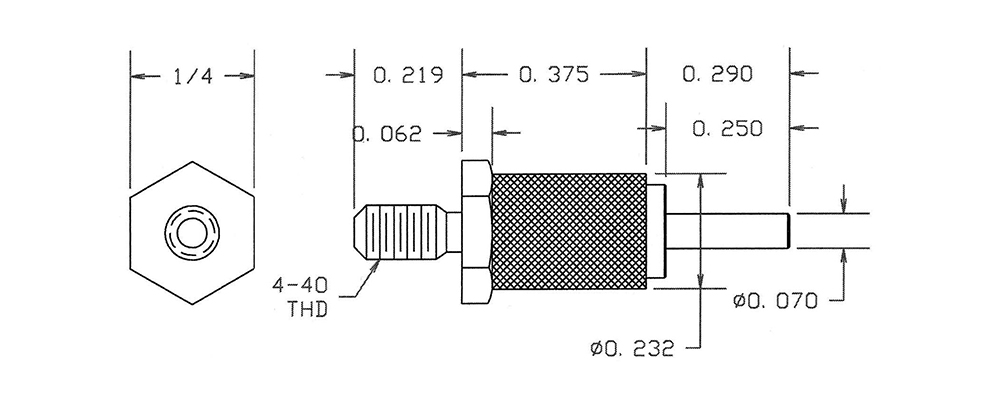

1127-08-0116
1127-08-0116
1127-08-0116
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES

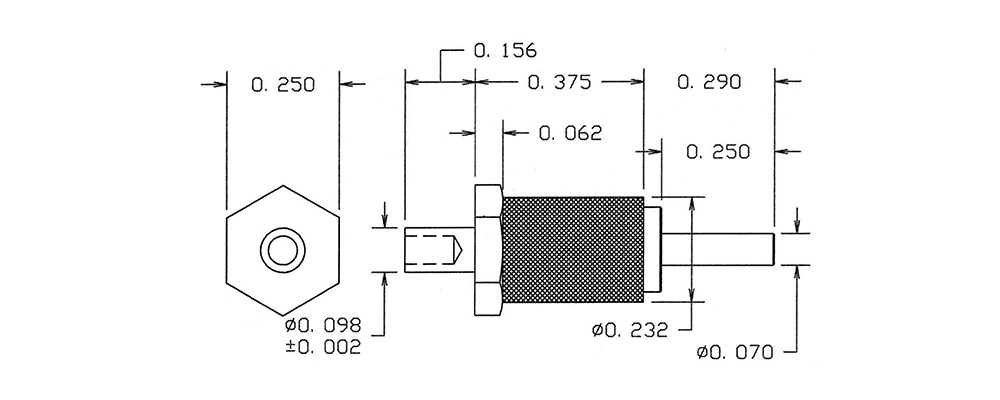

1127-12-0412
1127-12-0412
1127-12-0412
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES

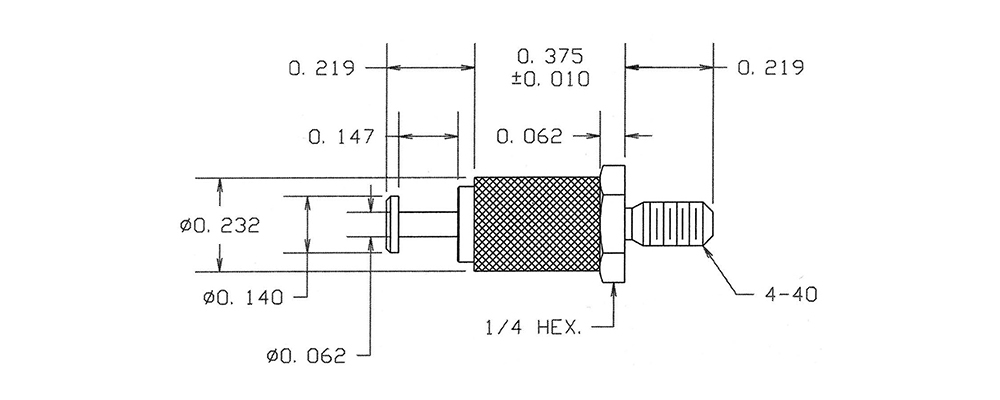

1127-16-04418
1127-16-04418
1127-16-04418
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-20-08814
1127-20-08814
1127-20-08814
0.907" - - Swage Mount 1/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Yellow NO

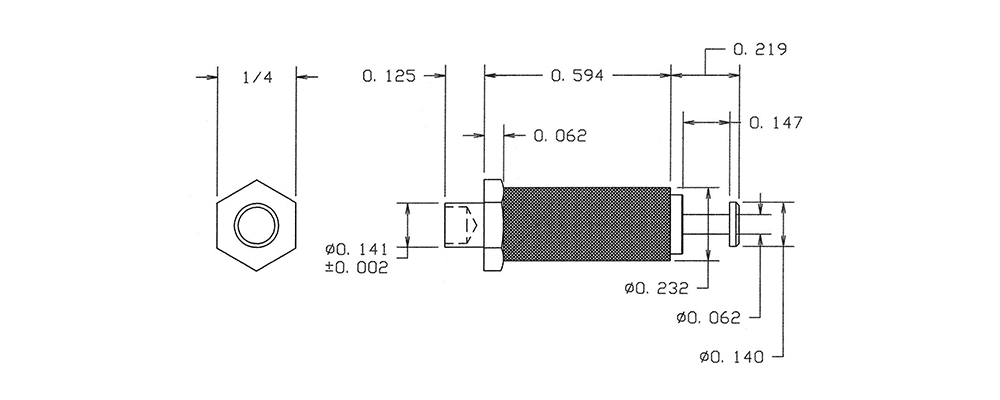

1127-25-0310
1127-25-0310
1127-25-0310
0.938" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
