Commercial
Insulated
Pin Terminals

Filter
1110-61-0116
1110-61-0116
1110-61-0116
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Blue YES
1110-66-0412
1110-66-0412
1110-66-0412
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1110-70-04418
1110-70-04418
1110-70-04418
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Gray NO
1110-75-08814
1110-75-08814
1110-75-08814
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1110-93-0310
1110-93-0310
1110-93-0310
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Black YES
1111-02-0416
1111-02-0416
1111-02-0416
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro-Tin - - PTFE Blue YES
1111-10-0512
1111-10-0512
1111-10-0512
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Red NO

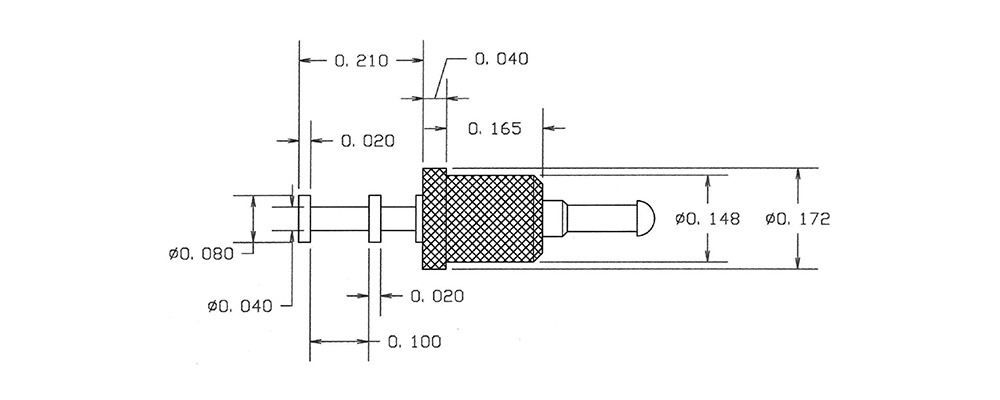

1111-14S-08818
1111-14S-08818
1111-14S-08818
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1111-20-0314
1111-20-0314
1111-20-0314
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Yellow NO
1111-24-04410
1111-24-04410
1111-24-04410
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Black YES

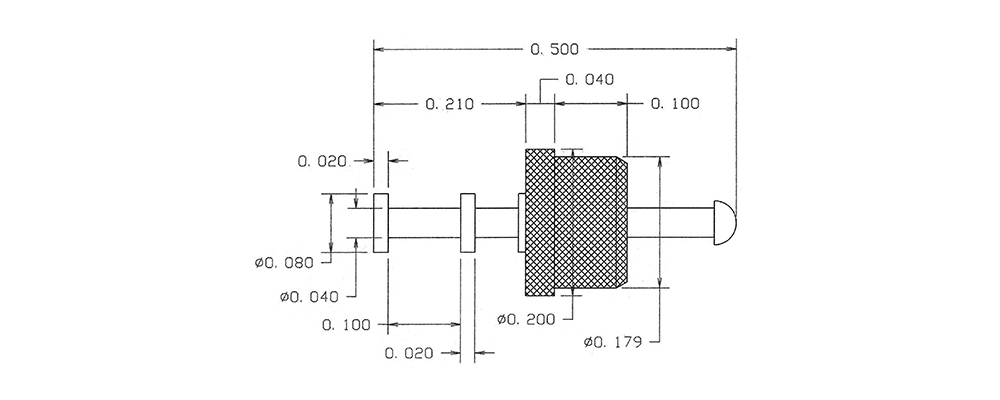

1111-33-0516
1111-33-0516
1111-33-0516
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Blue NO
1111-38-0112
1111-38-0112
1111-38-0112
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1111-44-0318
1111-44-0318
1111-44-0318
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Gray NO
1111-50-04414
1111-50-04414
1111-50-04414
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO

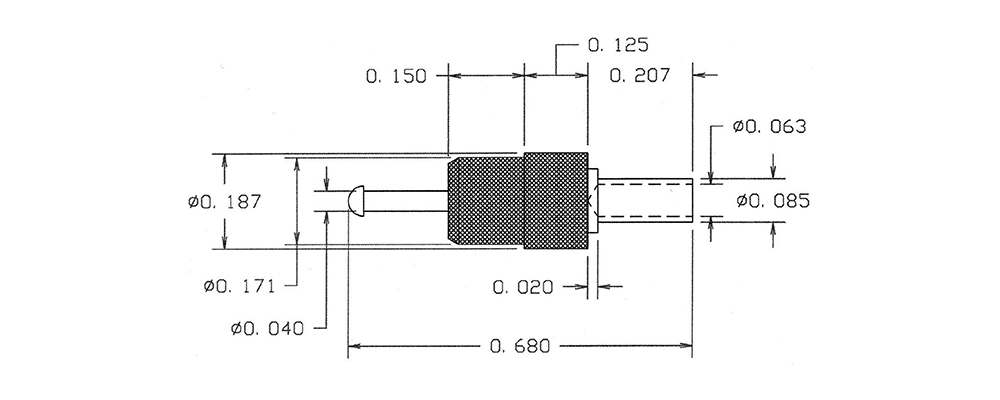

1111-57-08810
1111-57-08810
1111-57-08810
0.680" 0.040 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1111R-09-0116
1111R-09-0116
1111R-09-0116
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1111R-14-0412
1111R-14-0412
1111R-14-0412
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Red NO
1112-06-04418
1112-06-04418
1112-06-04418
0.233" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Gray NO

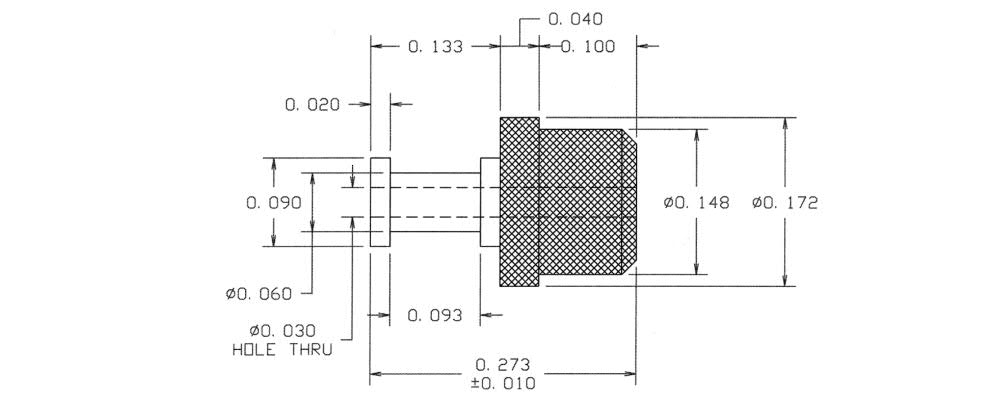

1112-13-08814
1112-13-08814
1112-13-08814
0.273" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1112-65-0310
1112-65-0310
1112-65-0310
0.155" - - Press Fit 1/32 0.058 Brass Gold - - PTFE Black YES
