Commercial
Insulated
Pin Terminals

Filter

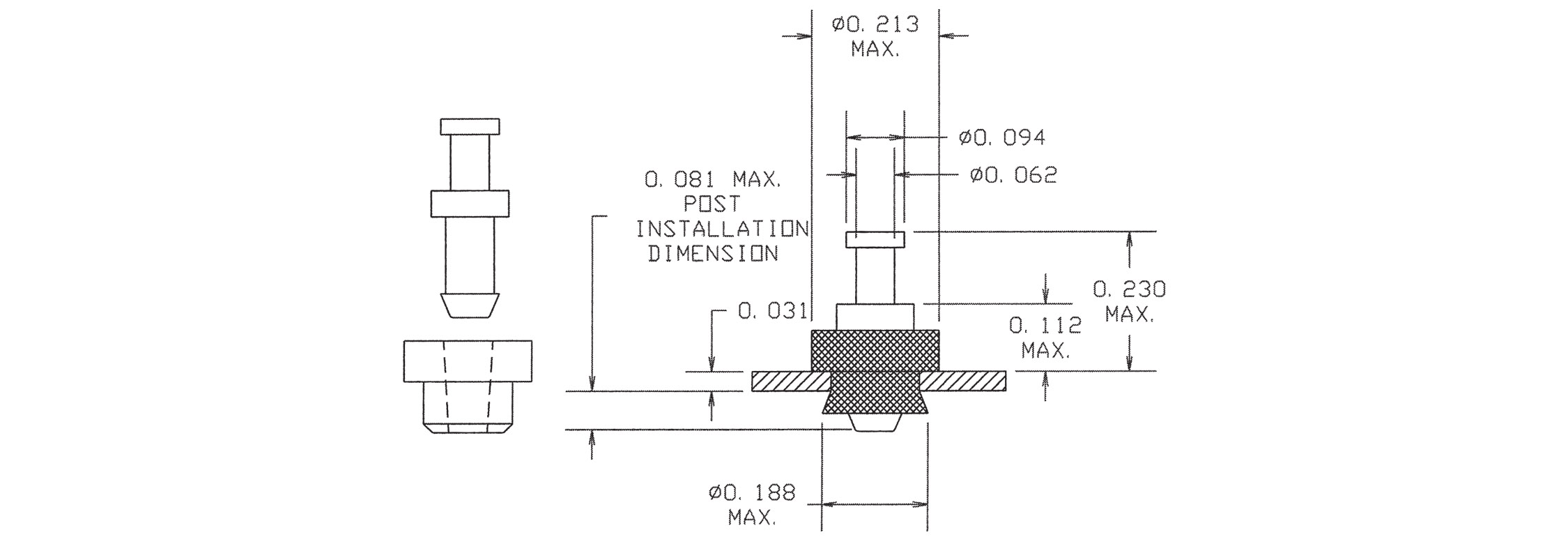

1175-351-0116
1175-351-0116
1175-351-0116
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Blue YES

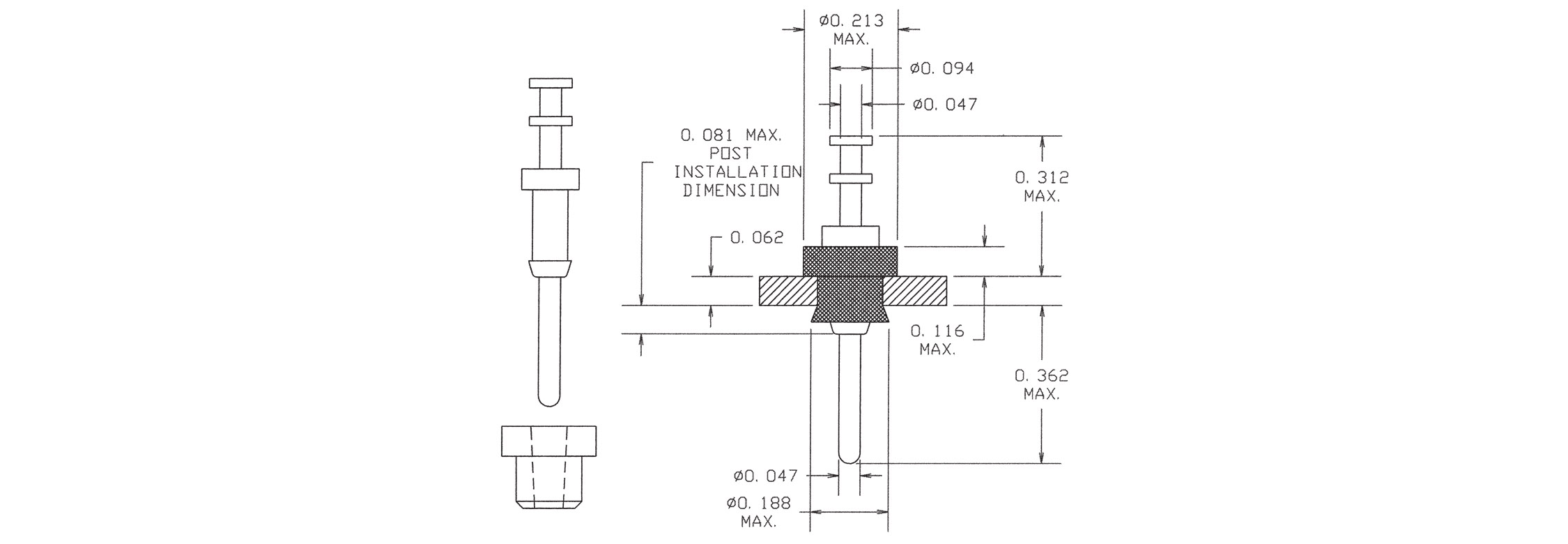

1175-372-0412
1175-372-0412
1175-372-0412
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO

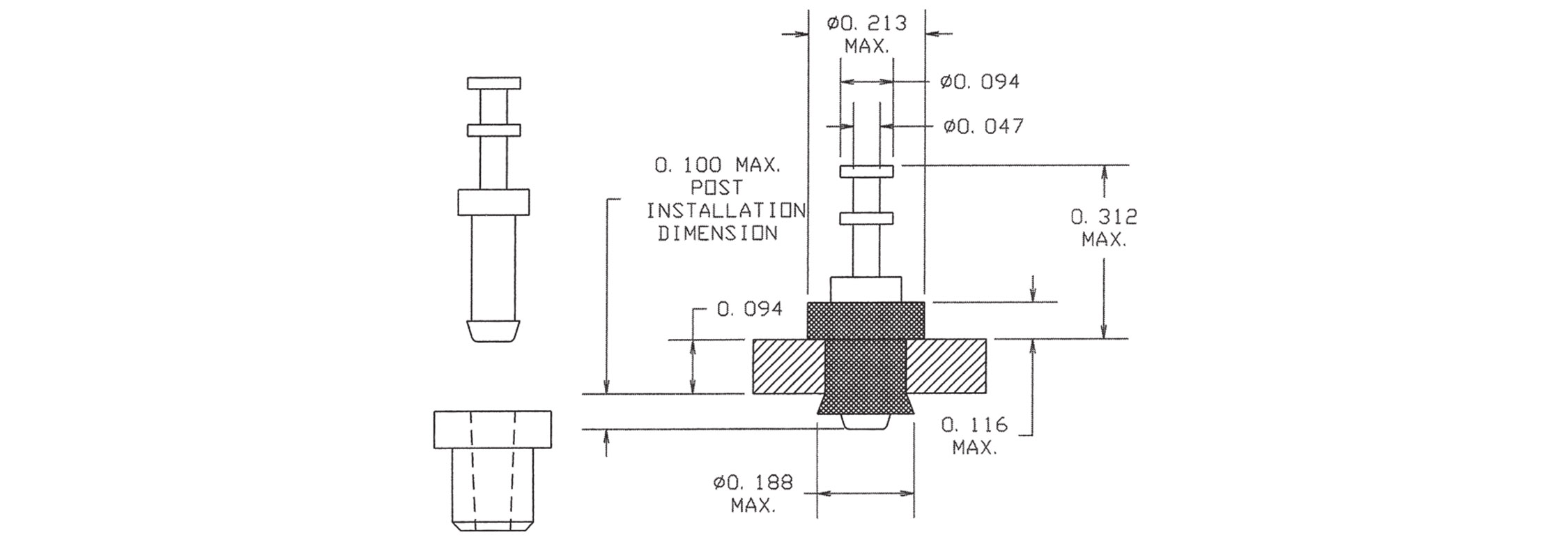

1175-403-04418
1175-403-04418
1175-403-04418
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO

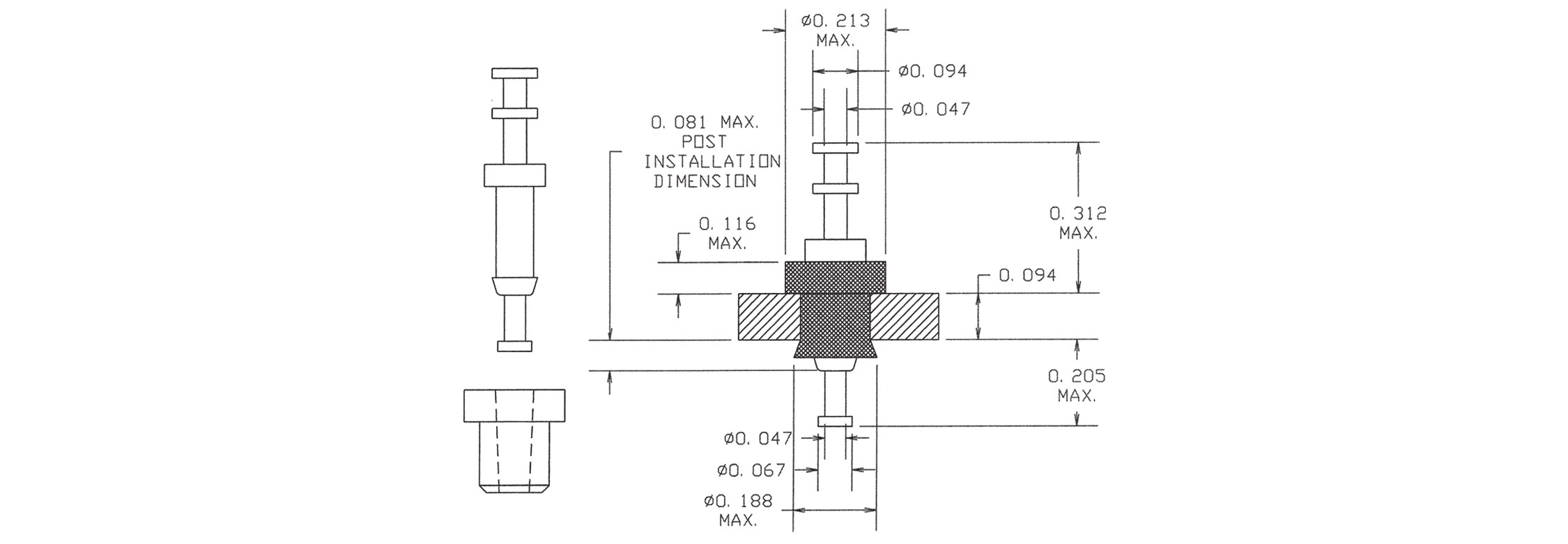

1175-413-08814
1175-413-08814
1175-413-08814
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-424-0310
1175-424-0310
1175-424-0310
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-434-0416
1175-434-0416
1175-434-0416
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES

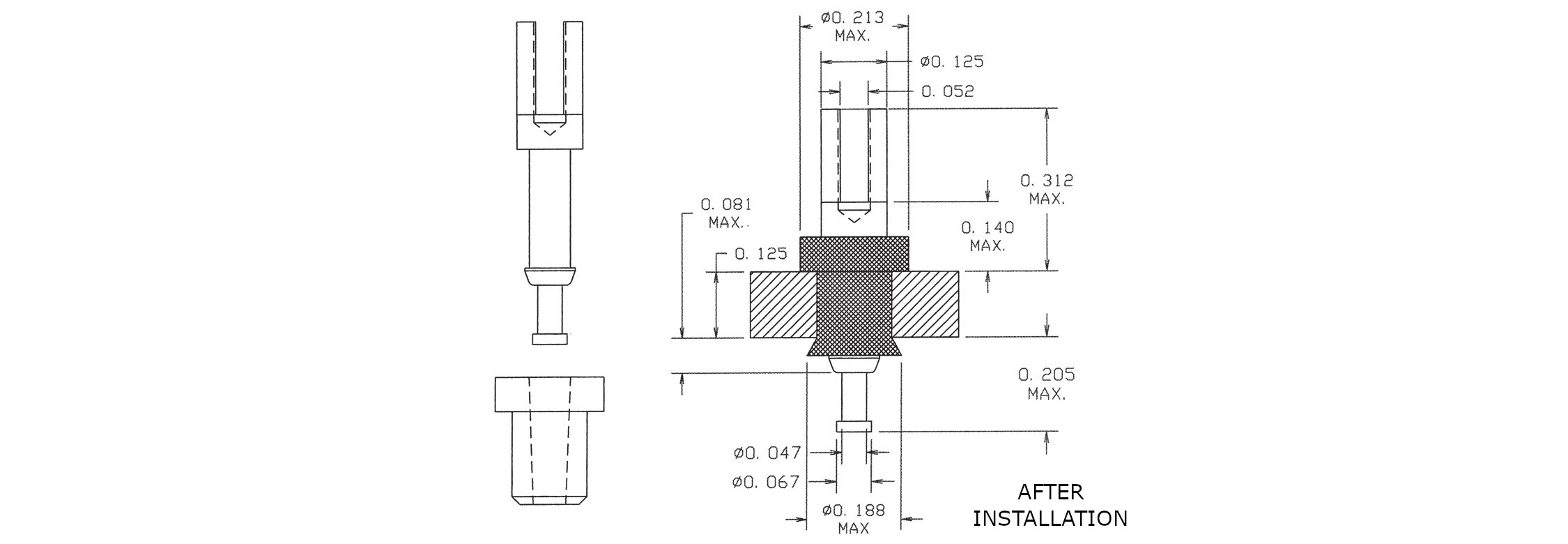

1175-444-0512
1175-444-0512
1175-444-0512
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO

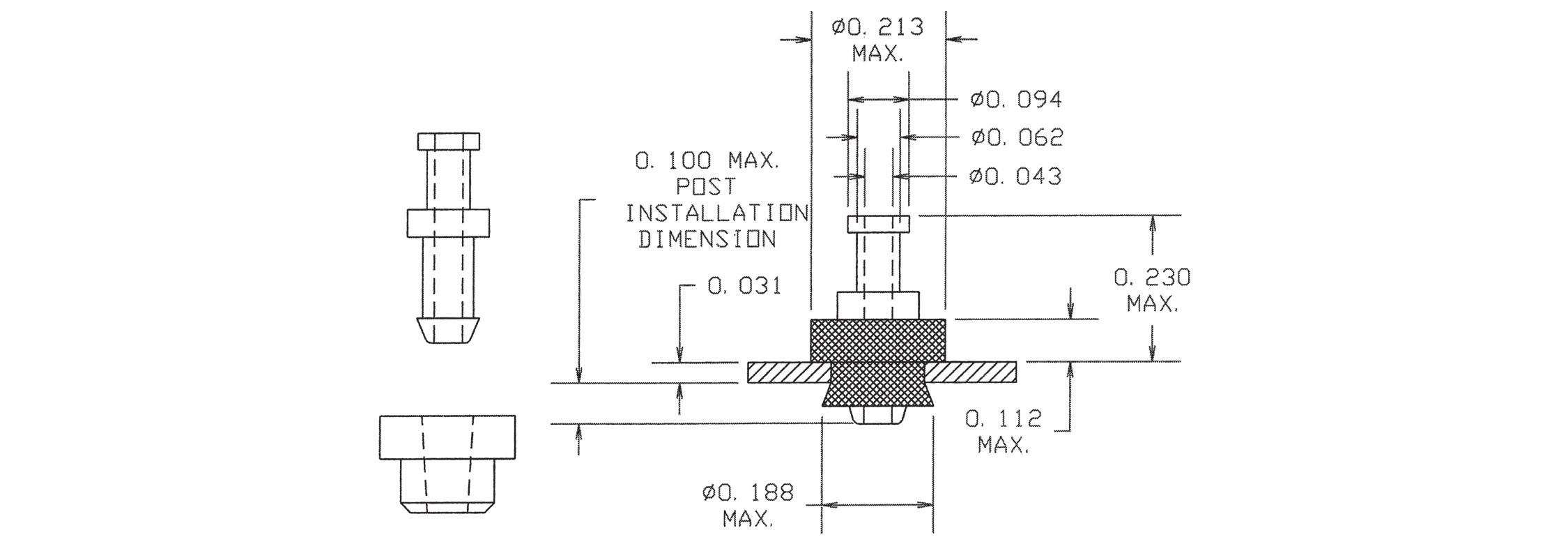

1175-461-08818
1175-461-08818
1175-461-08818
0.361" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-473-0314
1175-473-0314
1175-473-0314
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-491-04410
1175-491-04410
1175-491-04410
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES

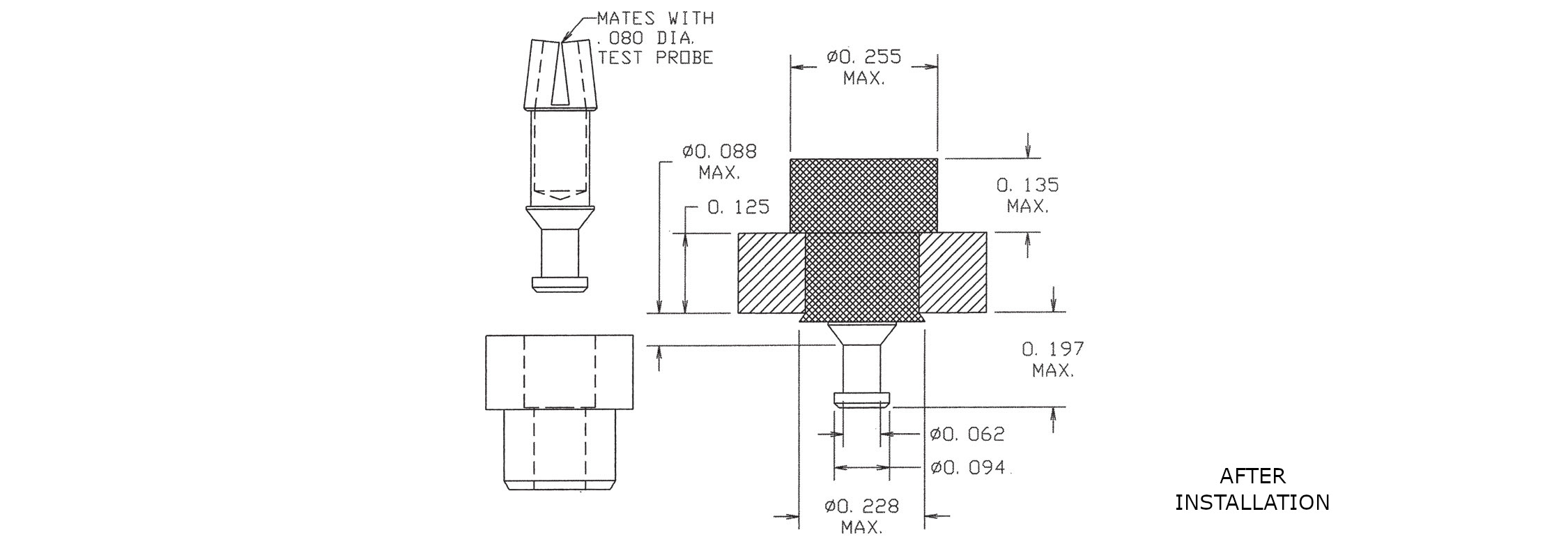

1175-514-0516
1175-514-0516
1175-514-0516
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
1175-702-0112
1175-702-0112
1175-702-0112
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-712-0318
1175-712-0318
1175-712-0318
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-722-04414
1175-722-04414
1175-722-04414
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO

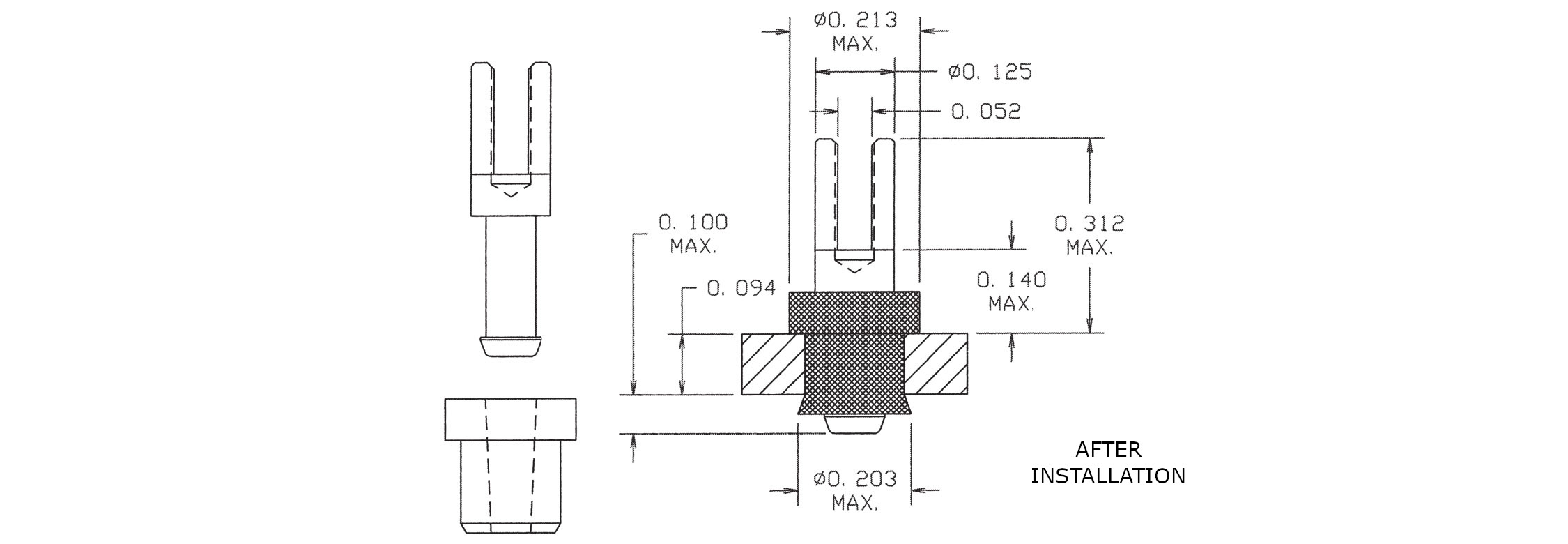

1175-733-08810
1175-733-08810
1175-733-08810
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO
1175-751-0116
1175-751-0116
1175-751-0116
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1175-762-0412
1175-762-0412
1175-762-0412
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-821-04418
1175-821-04418
1175-821-04418
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO

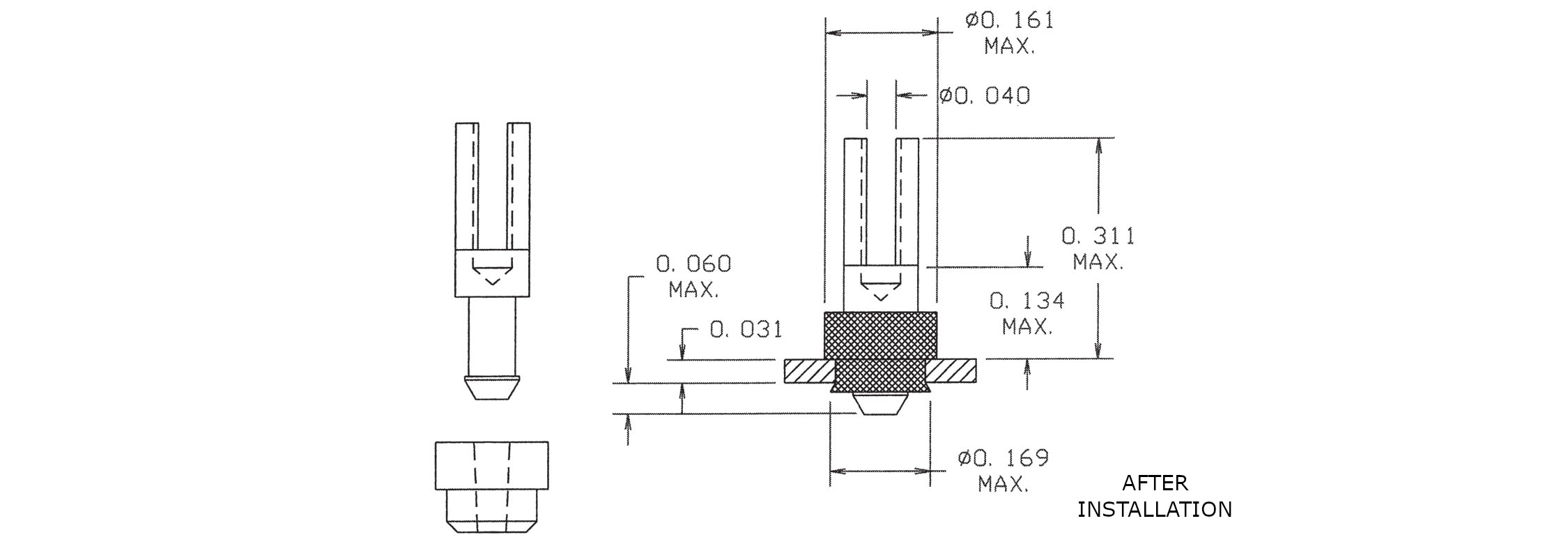

1175-841-08814
1175-841-08814
1175-841-08814
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-872-0310
1175-872-0310
1175-872-0310
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Black YES
