Commercial
Insulated
Pin Terminals

Filter
1119-32-0516
1119-32-0516
1119-32-0516
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Blue NO
1121-02-0112
1121-02-0112
1121-02-0112
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Silver - - PTFE Red NO
1121-06-0318
1121-06-0318
1121-06-0318
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
1121-11-04414
1121-11-04414
1121-11-04414
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Yellow NO

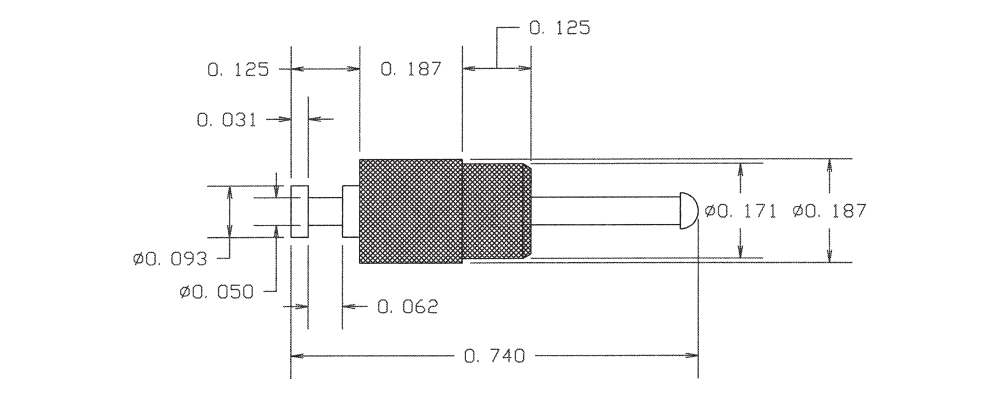

1121-15-08810
1121-15-08810
1121-15-08810
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1121-20-0116
1121-20-0116
1121-20-0116
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Silver - - PTFE Blue YES
1121-24-0412
1121-24-0412
1121-24-0412
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro-Tin - - PTFE Red NO
1121-30-04418
1121-30-04418
1121-30-04418
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Gray NO

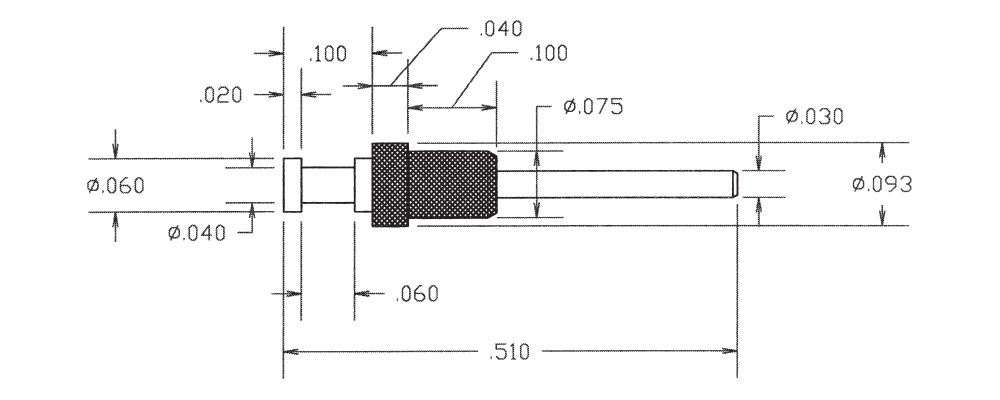

1121-51-08814
1121-51-08814
1121-51-08814
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Yellow NO
1121R-06-0310
1121R-06-0310
1121R-06-0310
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES
1121R-50-0416
1121R-50-0416
1121R-50-0416
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1123-03-0512
1123-03-0512
1123-03-0512
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Red NO
1123-07-08818
1123-07-08818
1123-07-08818
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1123-72-0314
1123-72-0314
1123-72-0314
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO
1123R-05-04410
1123R-05-04410
1123R-05-04410
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Black YES
1123R-62-0516
1123R-62-0516
1123R-62-0516
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO
1125-35-0112
1125-35-0112
1125-35-0112
0.850" - - 6-32 Nut 1/8 0.144 Brass Silver Electro-Tin Brass PTFE Red NO
1125-40-0318
1125-40-0318
1125-40-0318
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Gray NO
1125-44-04414
1125-44-04414
1125-44-04414
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Yellow NO

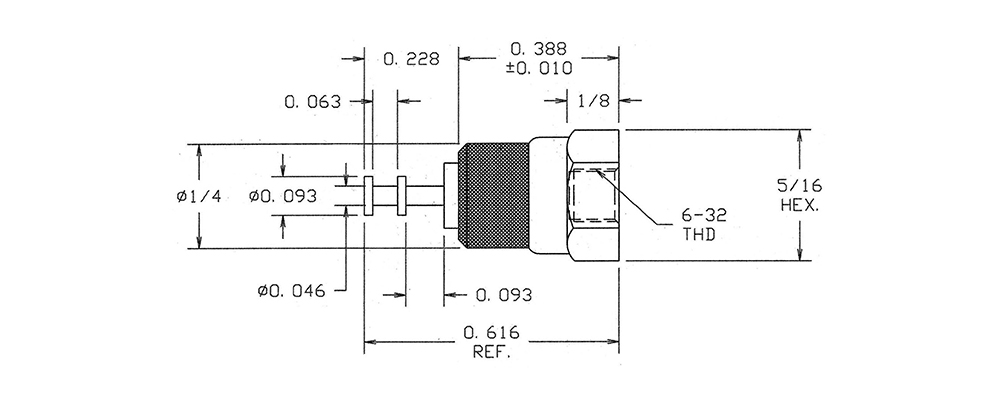

1125-48-08810
1125-48-08810
1125-48-08810
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Black NO
