Commercial
Insulated
Pin Terminals

Filter
1100R-22-0516
1100R-22-0516
1100R-22-0516
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Blue NO
1100R-36-0112
1100R-36-0112
1100R-36-0112
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1100R-53-0318
1100R-53-0318
1100R-53-0318
0.756" 0.040 - Press Fit 15/32 0.172 Brass Gold - - PTFE Gray NO
1100R-70-04414
1100R-70-04414
1100R-70-04414
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1102-43-08810
1102-43-08810
1102-43-08810
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Black NO
09-2078-1-0311
09-2078-1-0311
09-2078-1-0311
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Brown NO
1110-39-0117
1110-39-0117
1110-39-0117
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Silver - - PTFE Violet YES

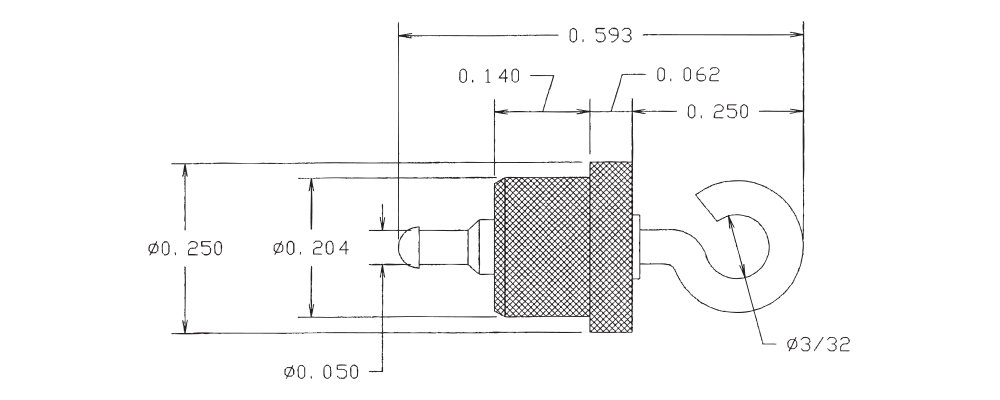

09-2094-1-0417
09-2094-1-0417
09-2094-1-0417
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Electro-Tin - - PTFE Violet YES
1111-19-0413
1111-19-0413
1111-19-0413
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Orange NO
09-2101-1-0513
09-2101-1-0513
09-2101-1-0513
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro Solder - - PTFE Orange NO
1112-05-04419
1112-05-04419
1112-05-04419
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES
09-2111-1-08819
09-2111-1-08819
09-2111-1-08819
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Nickel Brass PTFE White NO
1112-20-08815
1112-20-08815
1112-20-08815
0.333" - - Press Fit 1/8 0.250 Brass Bright Tin-Lead - - PTFE Green NO
09-2121-1-0315
09-2121-1-0315
09-2121-1-0315
0.275" - - Press Fit 5/64 0.136 Brass Gold - - PTFE Green YES
1114-18-0311
1114-18-0311
1114-18-0311
0.250" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Brown NO
1100-04-04411
1100-04-04411
1100-04-04411
0.250" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin - - PTFE Brown NO
1114-24-0417
1114-24-0417
1114-24-0417
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES

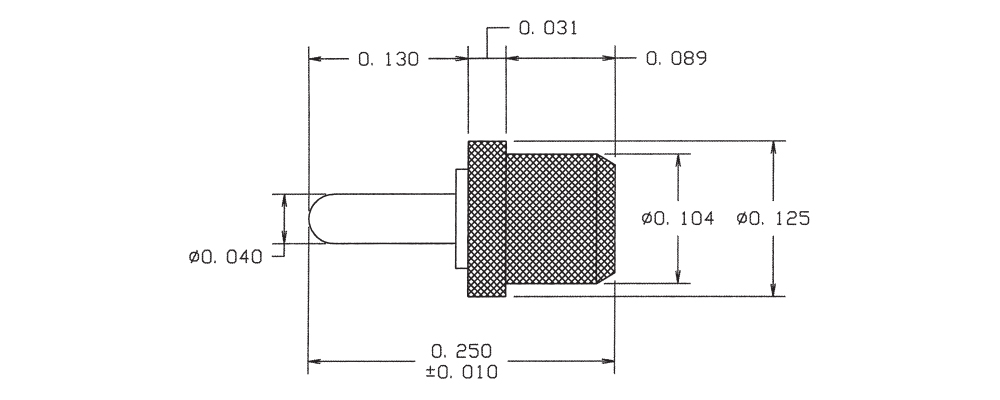

1100-08-0517
1100-08-0517
1100-08-0517
0.250" 0.040 - Press Fit 3/64 0.091 Brass Electro Solder - - PTFE Violet NO
1114-27-0513
1114-27-0513
1114-27-0513
0.367" 0.085 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Orange NO
1100-14-0113
1100-14-0113
1100-14-0113
0.280" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO
