Commercial
Insulated
Pin Terminals

Filter
1155-01-04410
1155-01-04410
1155-01-04410
0.427" - - Press Fit Up to 3/16 0.204 Brass Bright Tin - - PTFE Black YES
1155-07-0516
1155-07-0516
1155-07-0516
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO
1156-02-0112
1156-02-0112
1156-02-0112
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Red NO
1156-07-0318
1156-07-0318
1156-07-0318
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Gray NO
1156-14-04414
1156-14-04414
1156-14-04414
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Yellow NO

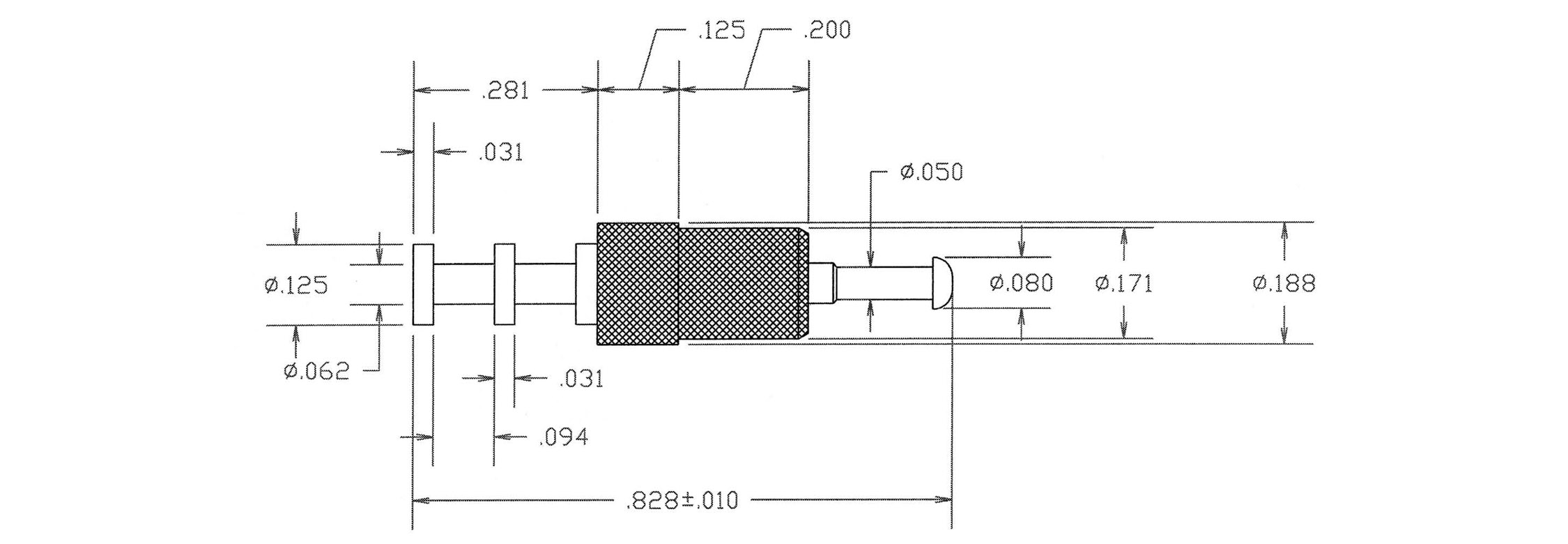

1156-18-08810
1156-18-08810
1156-18-08810
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO

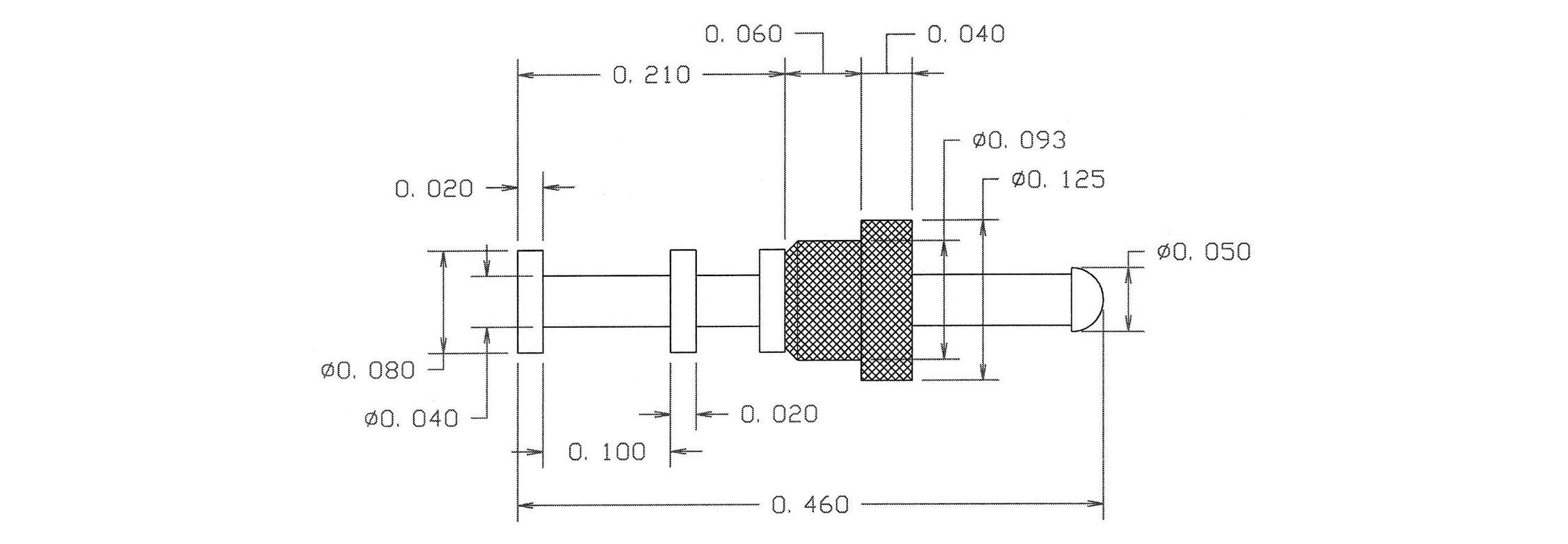

1156R-01-0116
1156R-01-0116
1156R-01-0116
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Blue YES
1157-01-0412
1157-01-0412
1157-01-0412
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1157-06-04418
1157-06-04418
1157-06-04418
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Gray NO

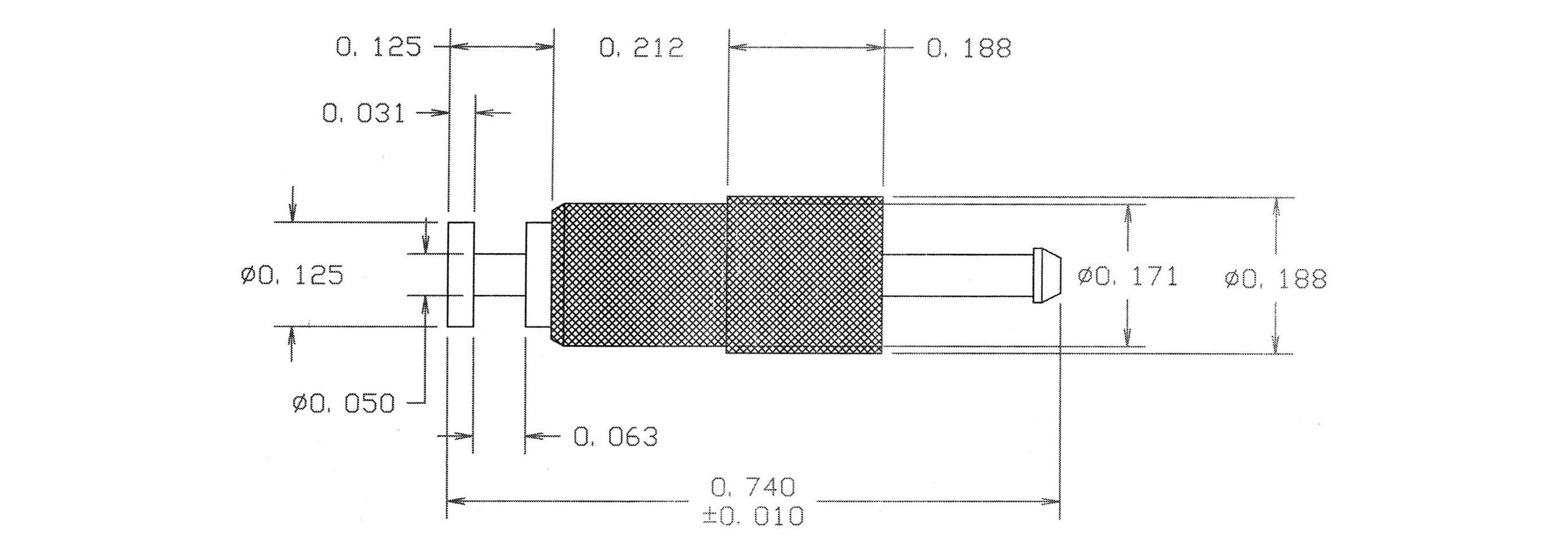

1157R-04-08814
1157R-04-08814
1157R-04-08814
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
1160-13-0310
1160-13-0310
1160-13-0310
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1167-20-0416
1167-20-0416
1167-20-0416
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1167-67-0512
1167-67-0512
1167-67-0512
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO
1169-08-08818
1169-08-08818
1169-08-08818
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO
1169-37-0314
1169-37-0314
1169-37-0314
0.750" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES

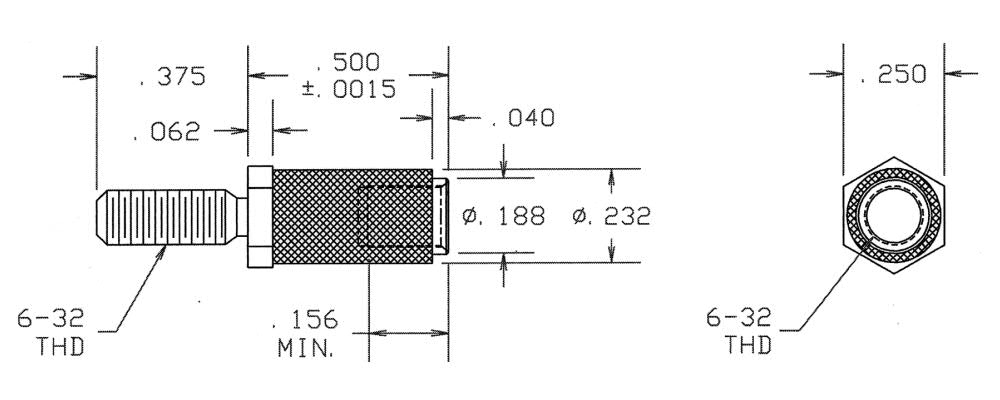

1170-04-07510
1170-04-07510
1170-04-07510
0.875" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Black YES
1170-22-0416
1170-22-0416
1170-22-0416
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1175-012-0512
1175-012-0512
1175-012-0512
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO

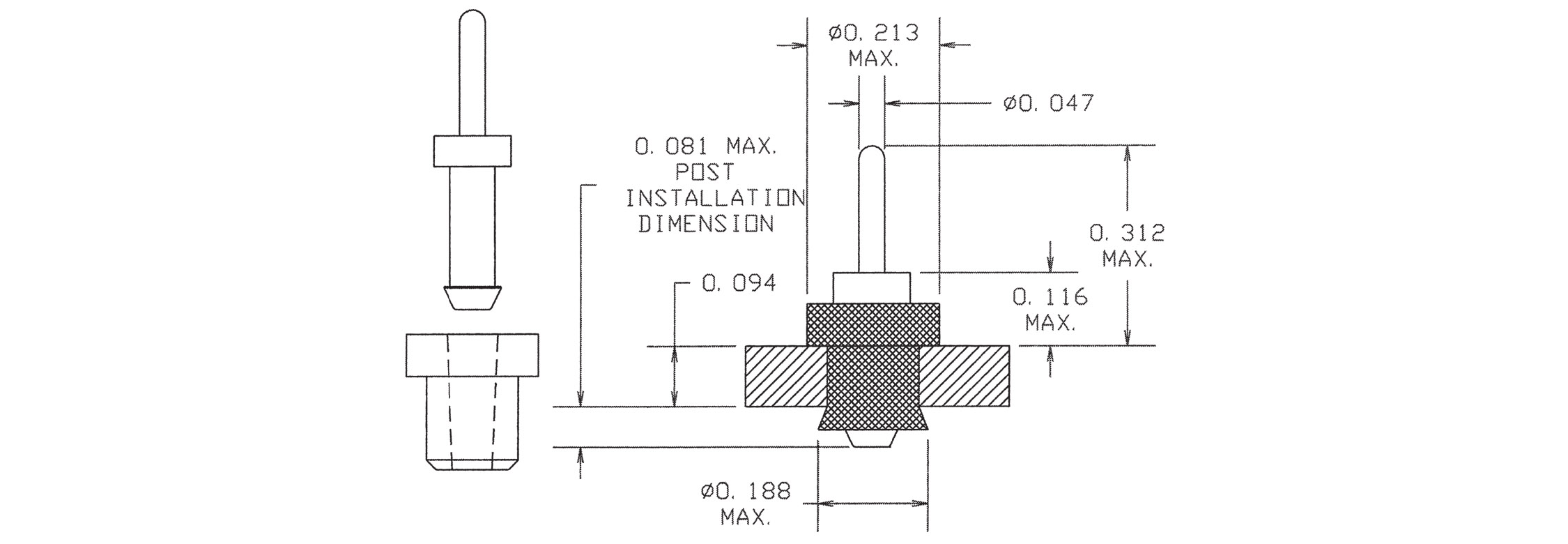

1175-023-08818
1175-023-08818
1175-023-08818
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-351-0314
1175-351-0314
1175-351-0314
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
