Commercial
Insulated
Pin Terminals

Filter

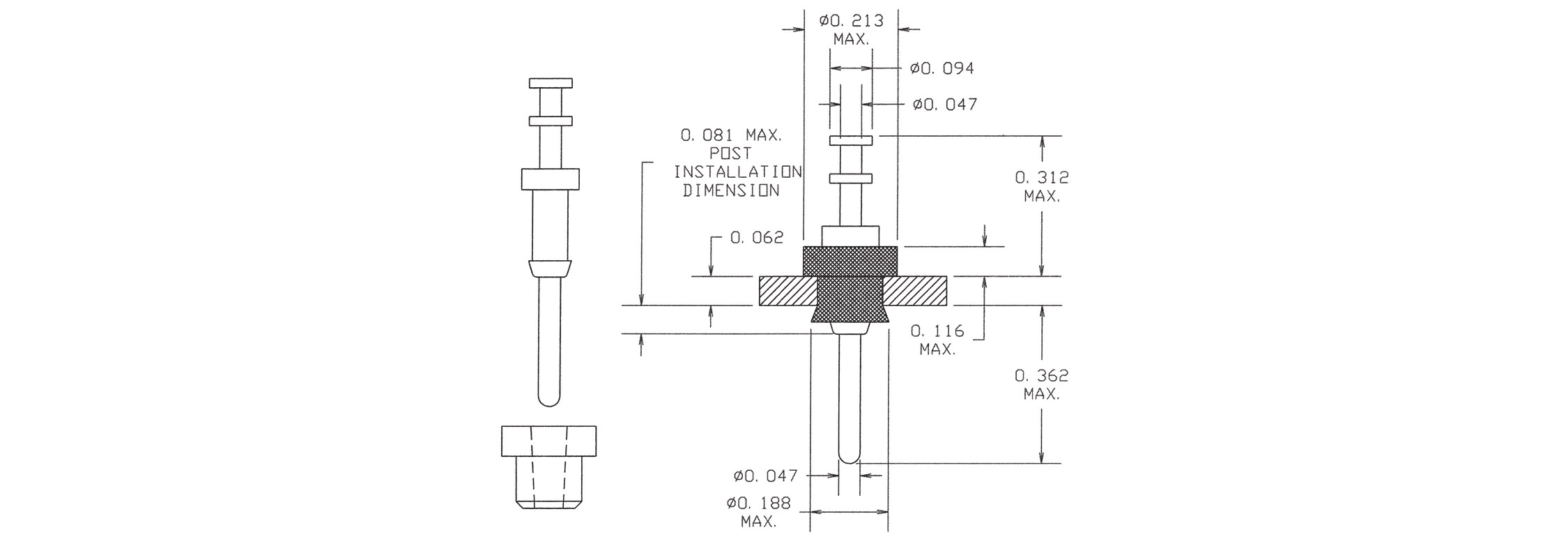

1175-372-04410
1175-372-04410
1175-372-04410
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES

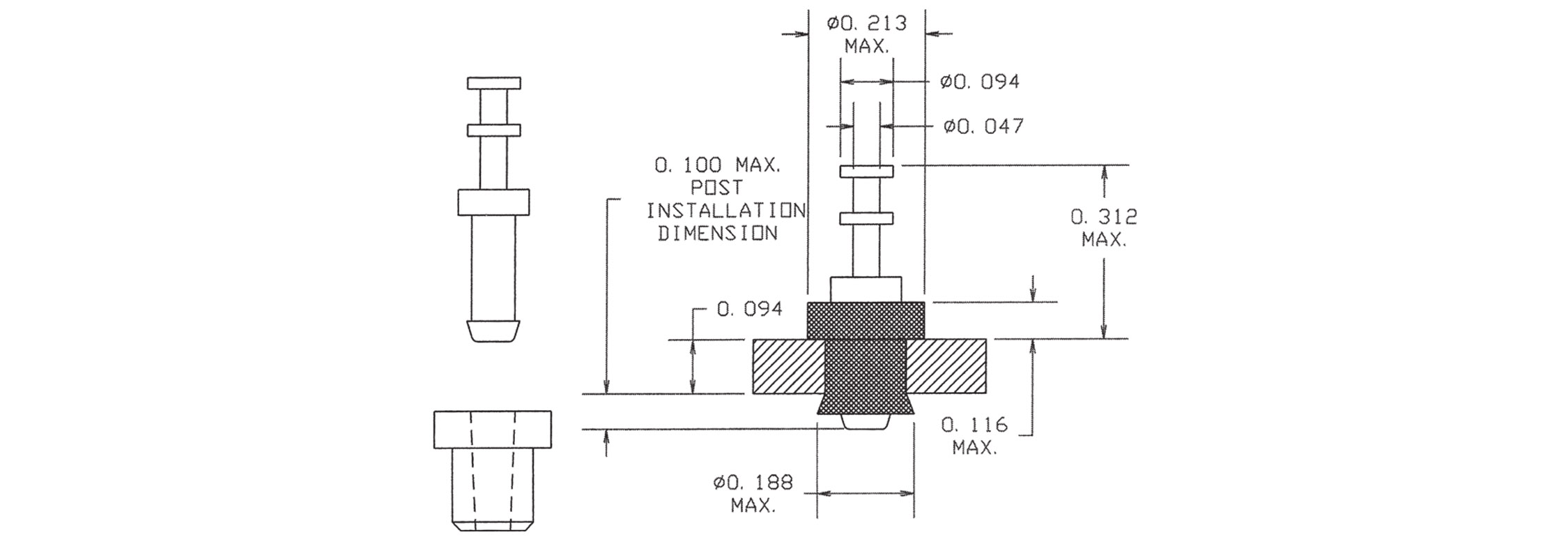

1175-403-0516
1175-403-0516
1175-403-0516
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO

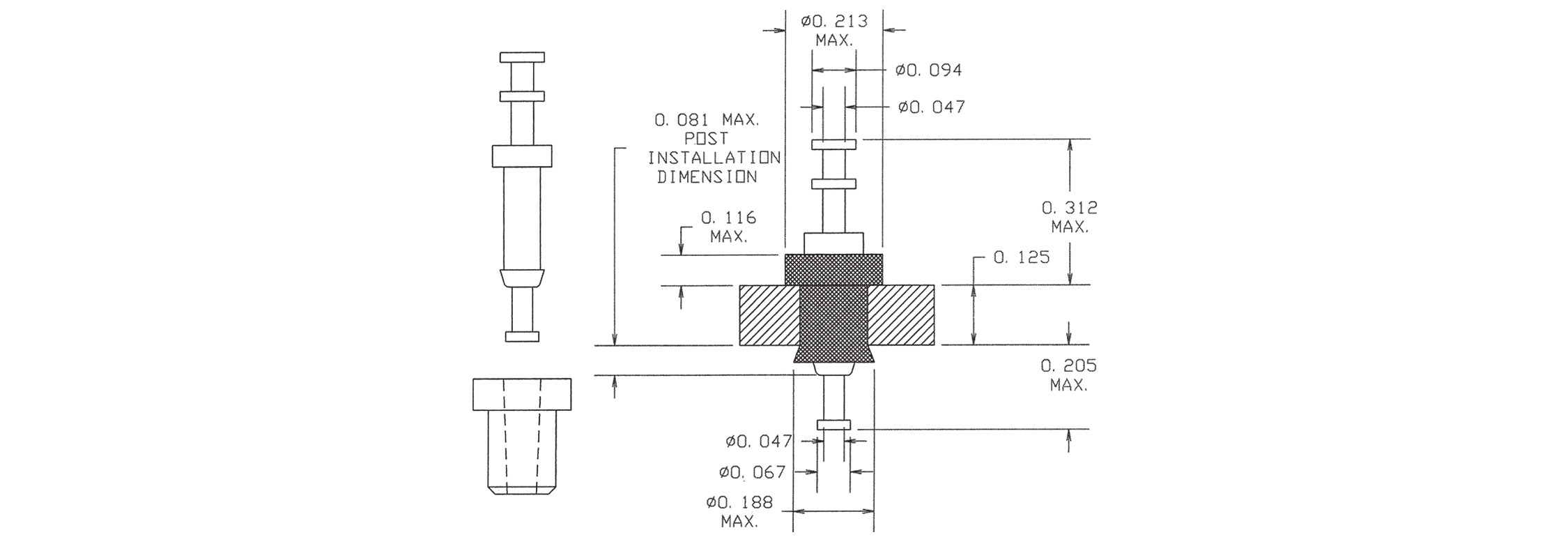

1175-414-0112
1175-414-0112
1175-414-0112
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-424-0318
1175-424-0318
1175-424-0318
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-434-04414
1175-434-04414
1175-434-04414
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO

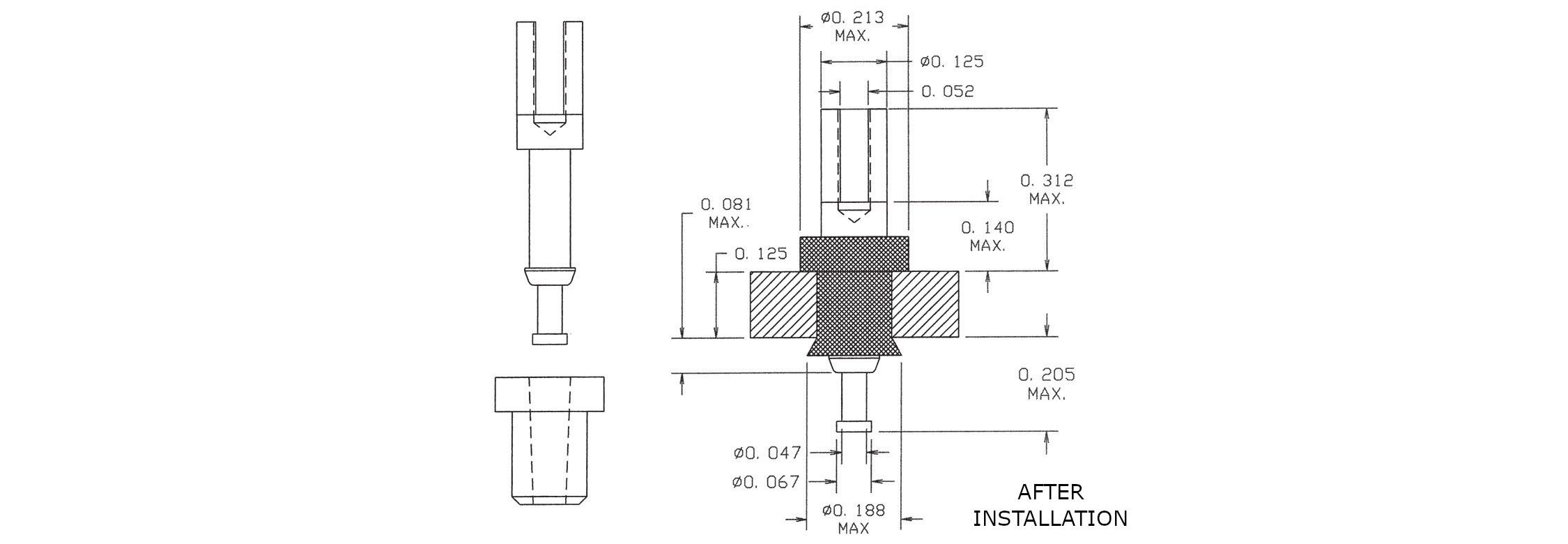

1175-444-08810
1175-444-08810
1175-444-08810
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO

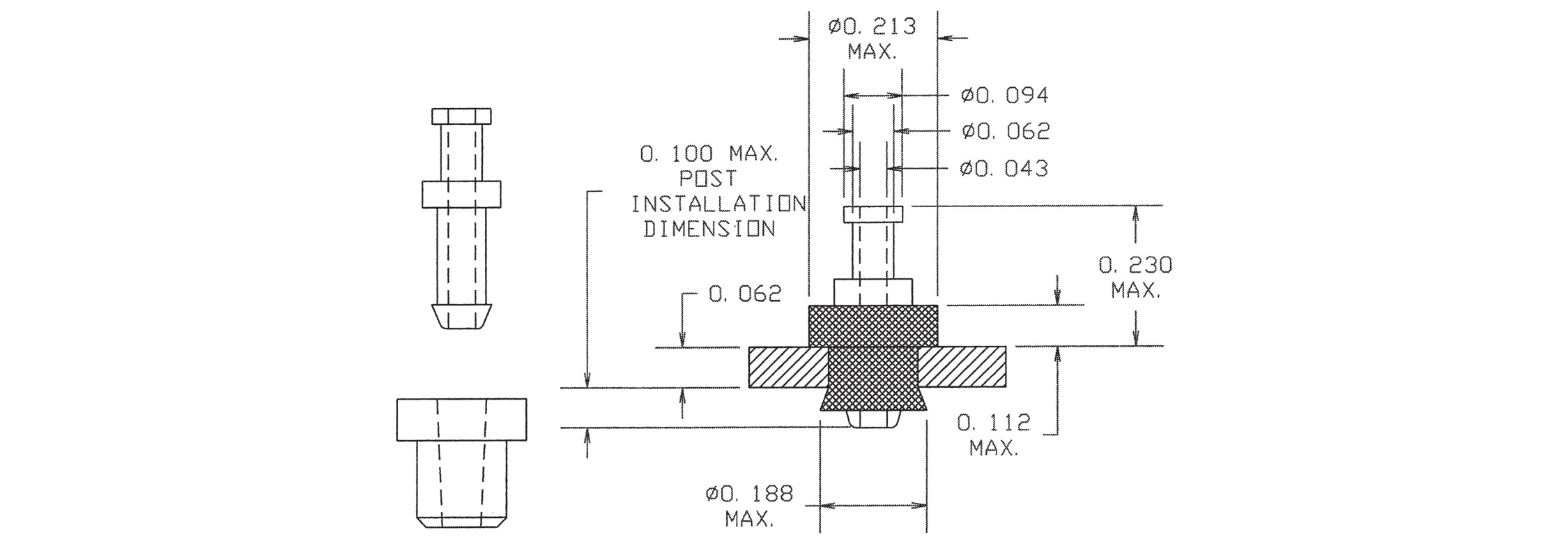

1175-462-0116
1175-462-0116
1175-462-0116
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1175-473-0412
1175-473-0412
1175-473-0412
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-491-04418
1175-491-04418
1175-491-04418
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO

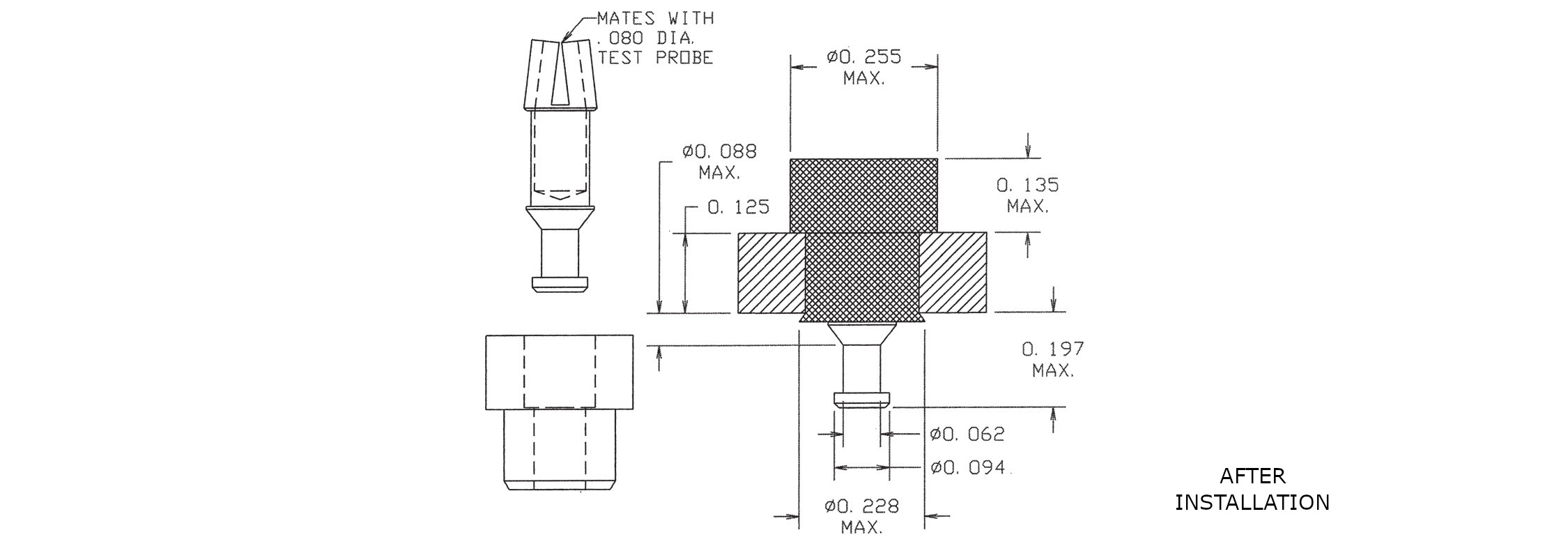

1175-514-08814
1175-514-08814
1175-514-08814
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-702-0310
1175-702-0310
1175-702-0310
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-712-0416
1175-712-0416
1175-712-0416
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES
1175-722-0512
1175-722-0512
1175-722-0512
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO

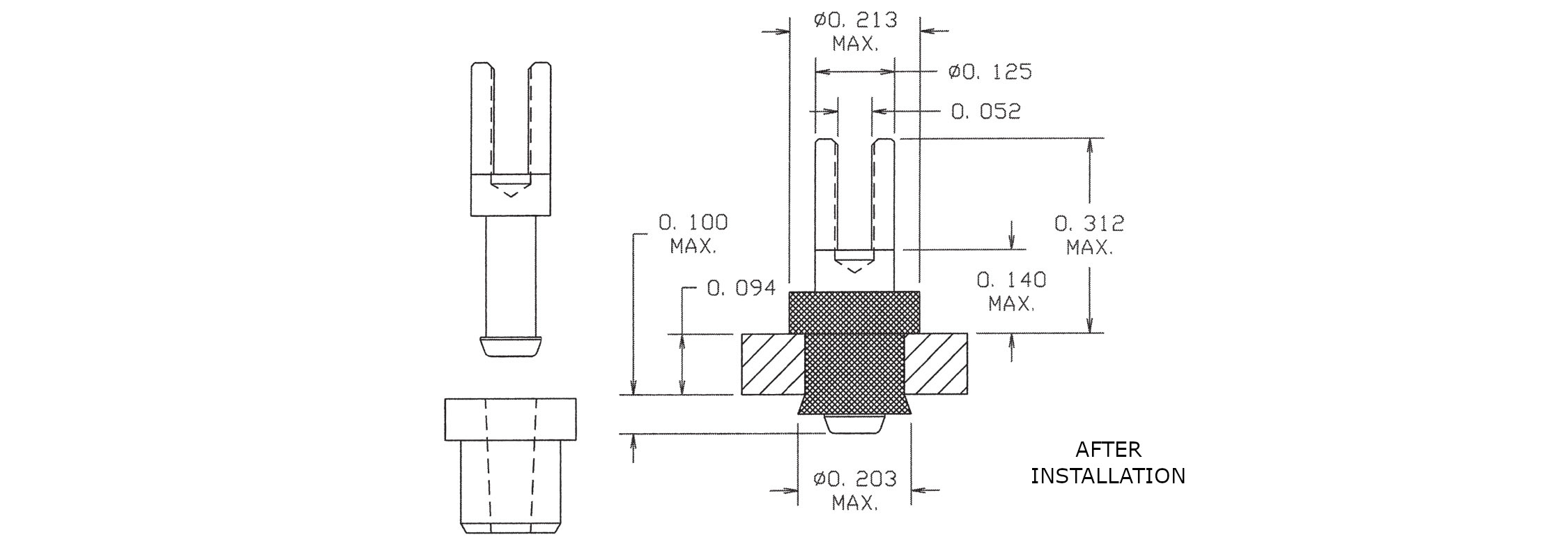

1175-733-08818
1175-733-08818
1175-733-08818
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-751-0314
1175-751-0314
1175-751-0314
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-762-04410
1175-762-04410
1175-762-04410
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES
1175-821-0516
1175-821-0516
1175-821-0516
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO

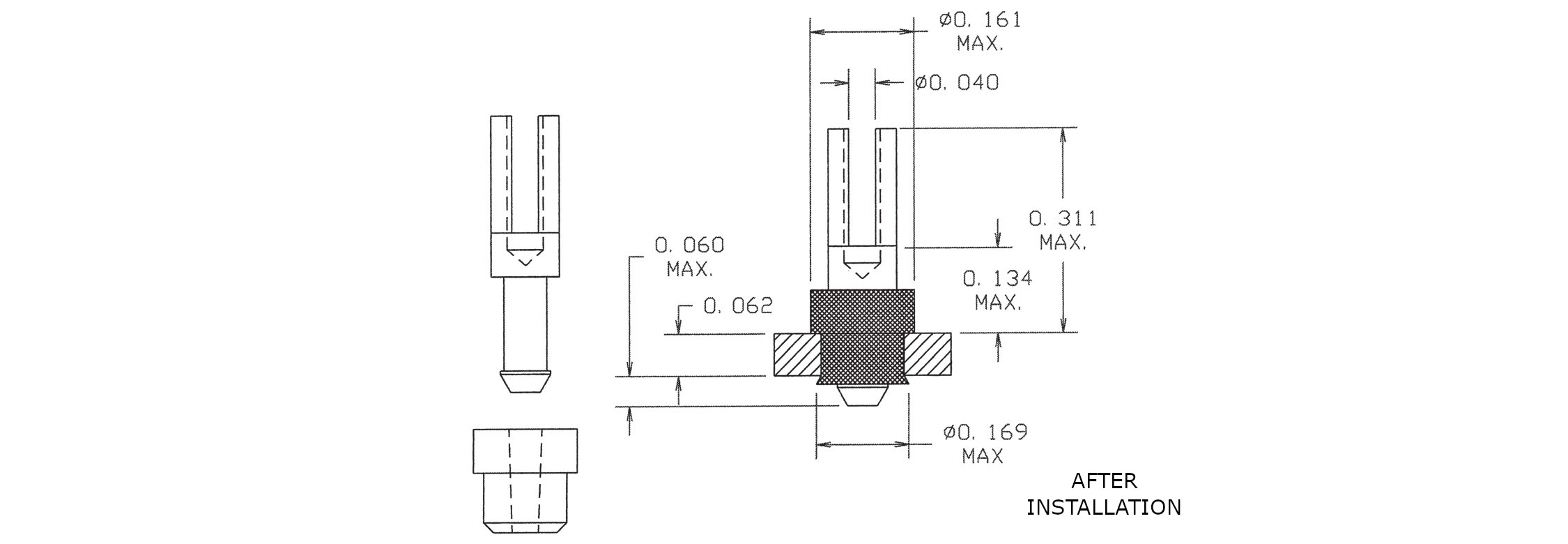

1175-842-0112
1175-842-0112
1175-842-0112
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-872-0318
1175-872-0318
1175-872-0318
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1177-02-04414
1177-02-04414
1177-02-04414
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin - - PTFE Yellow NO
