Commercial
Insulated
Pin Terminals

Filter
1127-34-08810
1127-34-08810
1127-34-08810
0.688" - - Swage Mount 1/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO

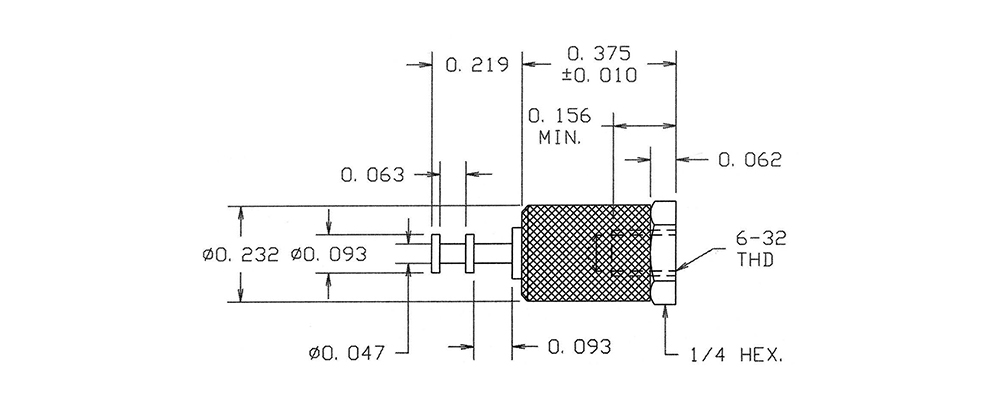

1127-39-0116
1127-39-0116
1127-39-0116
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES

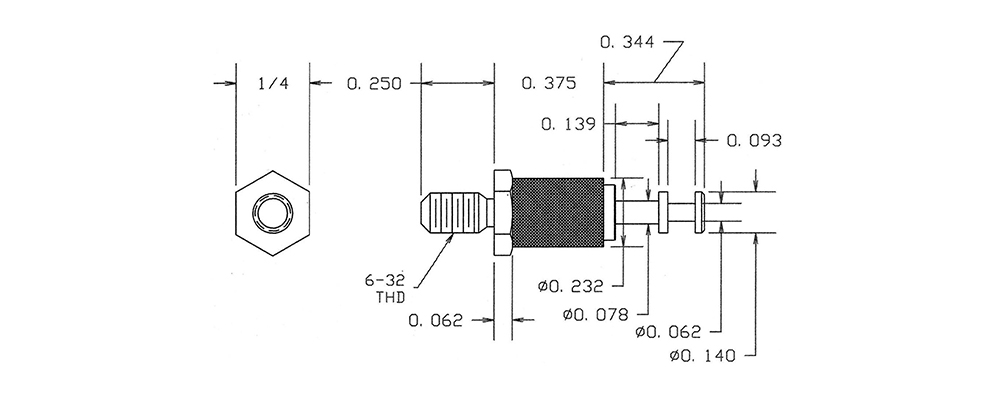

1127-43-0412
1127-43-0412
1127-43-0412
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-47-04418
1127-47-04418
1127-47-04418
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-51-08814
1127-51-08814
1127-51-08814
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Yellow NO
1127-57-0310
1127-57-0310
1127-57-0310
0.579" - - 2-56 Nut 1/16 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES

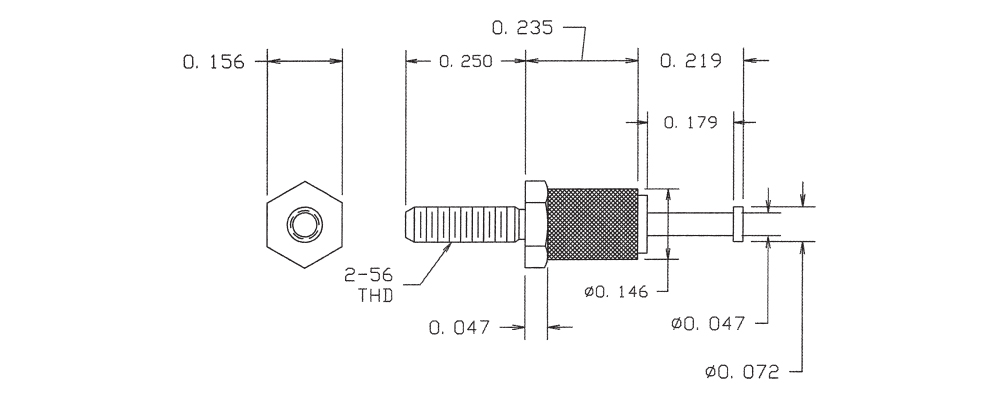

1127-61-0416
1127-61-0416
1127-61-0416
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES

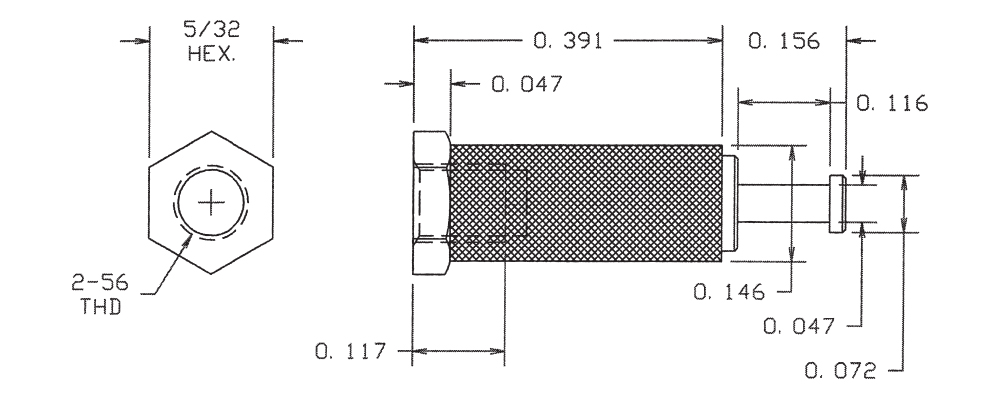

1127-65-0512
1127-65-0512
1127-65-0512
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO

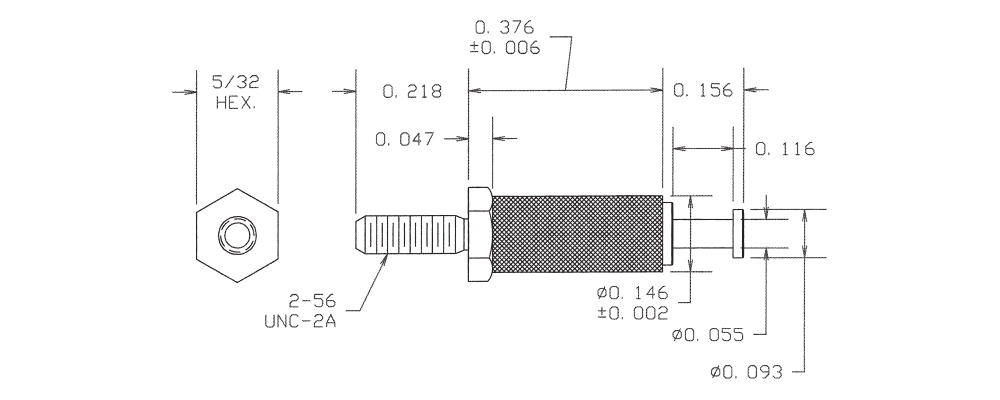

1127-69-08818
1127-69-08818
1127-69-08818
0.750" - - 2-56 Nut 3/32 0.094 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Gray NO
1127-74-0314
1127-74-0314
1127-74-0314
1.000" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES

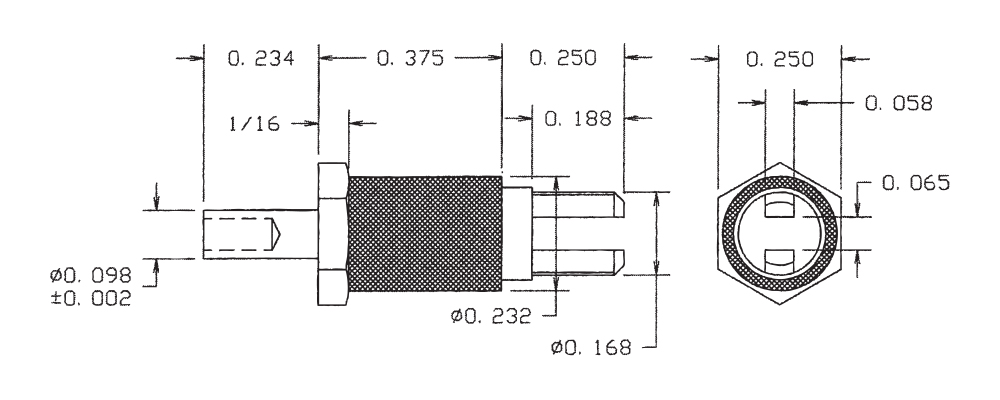

1127-78-04410
1127-78-04410
1127-78-04410
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES

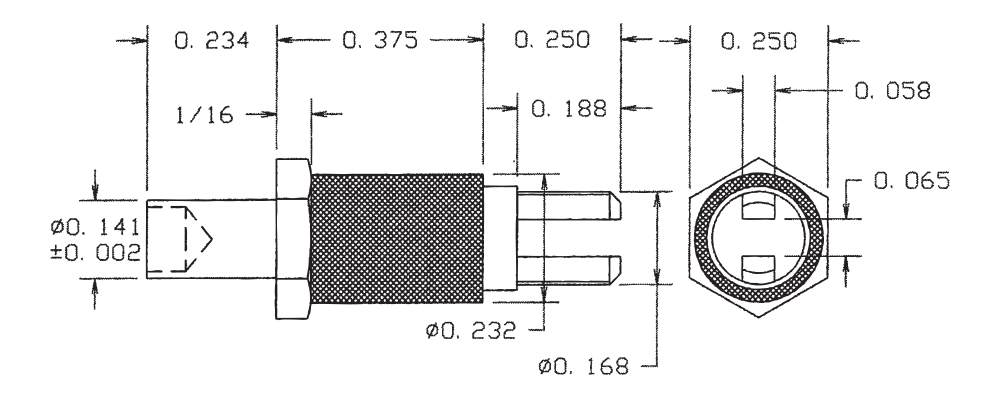

1127-82-0516
1127-82-0516
1127-82-0516
0.859" - - Swage Mount 3/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Blue NO
1127-87-0112
1127-87-0112
1127-87-0112
0.515" - - 2-56 Nut 1/32 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES
1127-91-0318
1127-91-0318
1127-91-0318
0.674" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES
1127-95-04414
1127-95-04414
1127-95-04414
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1130-01-08810
1130-01-08810
1130-01-08810
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1130-07-0116
1130-07-0116
1130-07-0116
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Blue YES
1130R-05-0412
1130R-05-0412
1130R-05-0412
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Red NO
1131-02-04418
1131-02-04418
1131-02-04418
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Gray NO
1131-06-08814
1131-06-08814
1131-06-08814
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Yellow NO
