Commercial
Insulated
Pin Terminals

Filter

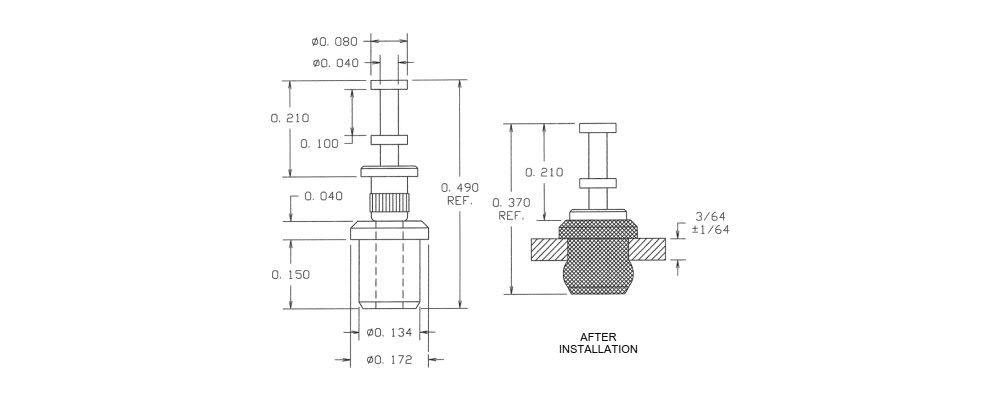

1177-11-08810
1177-11-08810
1177-11-08810
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1177-32-0116
1177-32-0116
1177-32-0116
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Blue YES
1177-41-0412
1177-41-0412
1177-41-0412
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Electro-Tin - - PTFE Red NO
1177-52-04418
1177-52-04418
1177-52-04418
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Gray NO

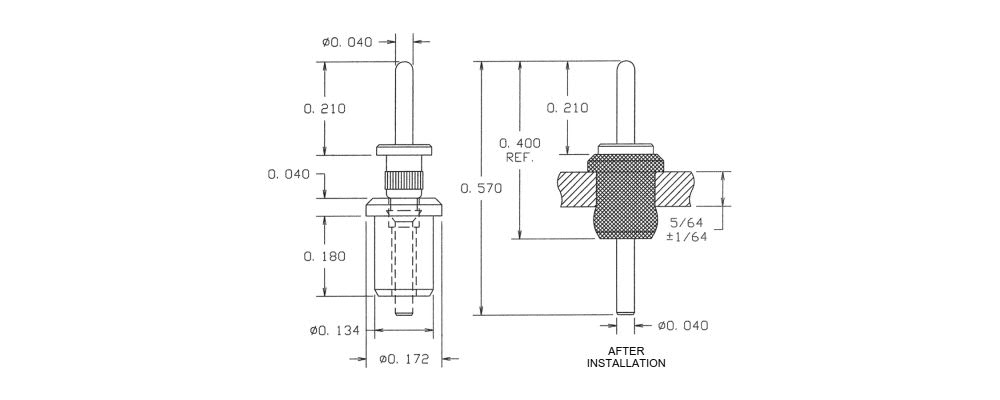

1177-56-08814
1177-56-08814
1177-56-08814
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1177-61-0310
1177-61-0310
1177-61-0310
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Gold - - PTFE Black YES
1178R-03-0416
1178R-03-0416
1178R-03-0416
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Blue YES
1178R-10-0512
1178R-10-0512
1178R-10-0512
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro Solder - - PTFE Red NO

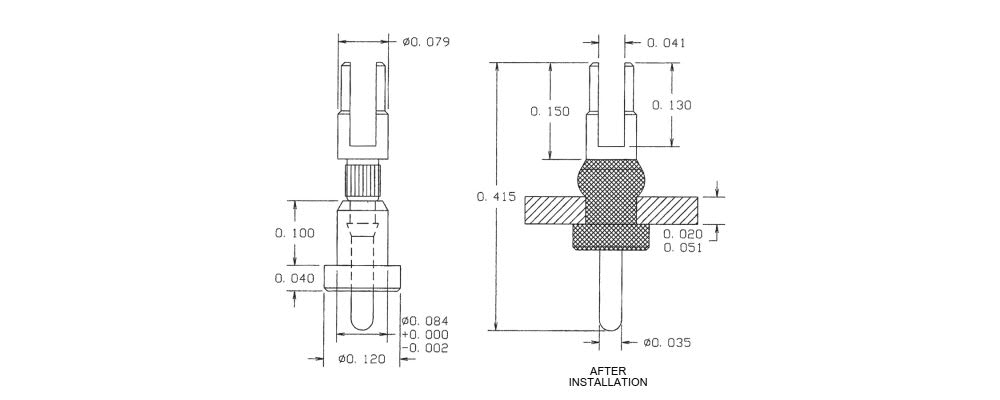

1178R-14-08818
1178R-14-08818
1178R-14-08818
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1102R-95-0314
1102R-95-0314
1102R-95-0314
0.812" - - Press Fit 13/64 0.297 Brass Gold - - PTFE Yellow NO
1125-02-04410
1125-02-04410
1125-02-04410
0.578" - - 2-56 Nut 7/64 0.094 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-06-0516
1125-06-0516
1125-06-0516
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Blue NO
1125-11-0112
1125-11-0112
1125-11-0112
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Red NO
1125-15-0318
1125-15-0318
1125-15-0318
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Gray NO
1125-19-04414
1125-19-04414
1125-19-04414
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Yellow NO
1125-23-08810
1125-23-08810
1125-23-08810
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Black NO
1125-28-0116
1125-28-0116
1125-28-0116
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Blue YES
09-2128-1-0412
09-2128-1-0412
09-2128-1-0412
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1100-47-04418
1100-47-04418
1100-47-04418
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Gray NO
1100R-22-08814
1100R-22-08814
1100R-22-08814
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
