Commercial
Insulated
Pin Terminals

Filter
1112R-61-08810
1112R-61-08810
1112R-61-08810
0.200" - - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Black NO
1113-03-0116
1113-03-0116
1113-03-0116
0.333" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1113-57-0412
1113-57-0412
1113-57-0412
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Red NO
1114-03-04418
1114-03-04418
1114-03-04418
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin - - PTFE Gray NO

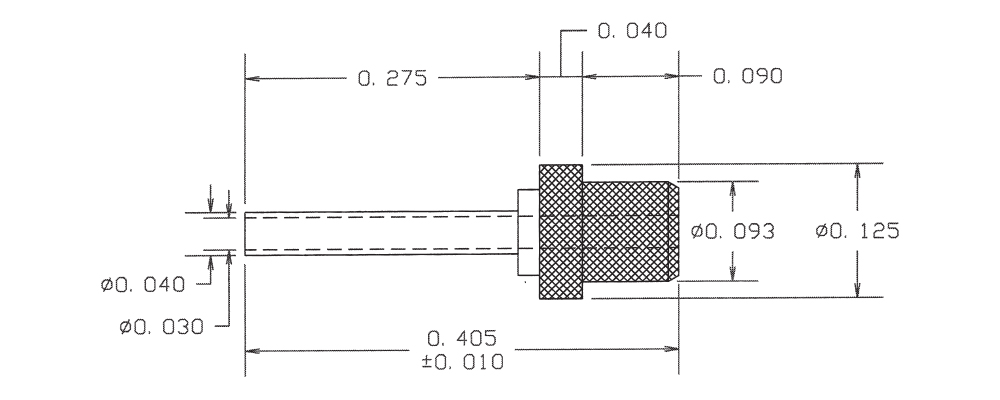

1114-07-08814
1114-07-08814
1114-07-08814
0.405" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1114-50-0310
1114-50-0310
1114-50-0310
0.270" 0.060 - Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1114-74-0416
1114-74-0416
1114-74-0416
0.367" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1114R-12-0512
1114R-12-0512
1114R-12-0512
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Red NO

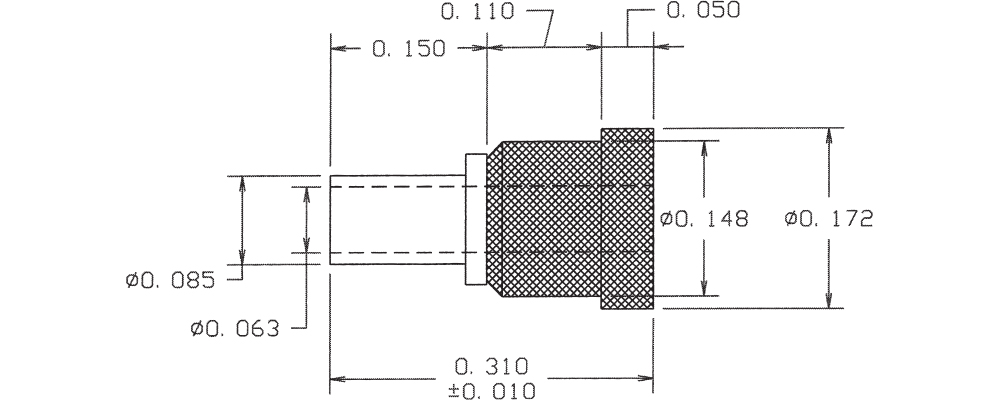

1114R-19-08818
1114R-19-08818
1114R-19-08818
0.310" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1114R-80-0314
1114R-80-0314
1114R-80-0314
0.380" 0.055 - Press Fit 1/32 0.136 Brass Gold - - PTFE Yellow NO
1115-06-04410
1115-06-04410
1115-06-04410
0.367" 0.040 - Press Fit 1/16 0.187 Brass Bright Tin - - PTFE Black YES
1115-50-0516
1115-50-0516
1115-50-0516
0.353" - - Press Fit 3/32 0.187 Brass Electro Solder - - PTFE Blue NO
1115R-02-0112
1115R-02-0112
1115R-02-0112
0.282" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO
1116-26-0318
1116-26-0318
1116-26-0318
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1117-15-04414
1117-15-04414
1117-15-04414
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin Nickel Brass PTFE Yellow NO
1117-19-08810
1117-19-08810
1117-19-08810
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin-Lead Nickel Brass PTFE Black NO
1117-54-0116
1117-54-0116
1117-54-0116
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Blue YES
1118-32-0412
1118-32-0412
1118-32-0412
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro-Tin - - PTFE Red NO
1119-22-04418
1119-22-04418
1119-22-04418
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin - - PTFE Gray NO
1119-32-08814
1119-32-08814
1119-32-08814
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
