Commercial
Insulated
Pin Terminals

Filter
1175-434-04416
1175-434-04416
1175-434-04416
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES

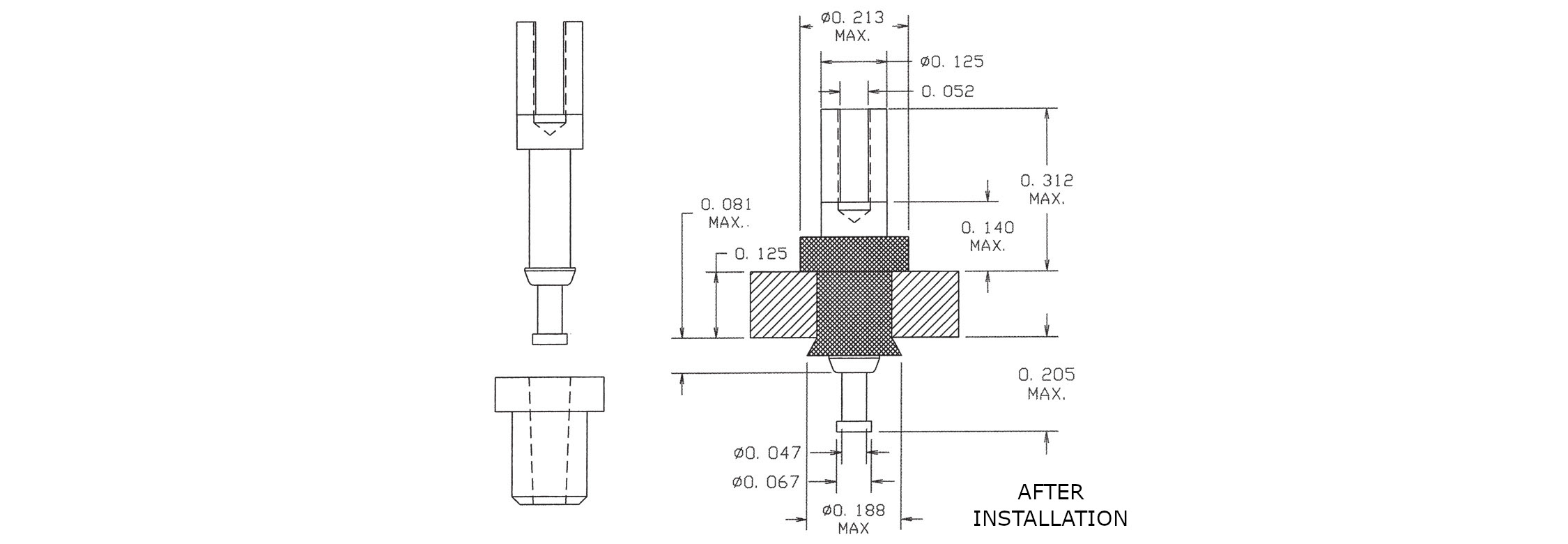

1175-444-08812
1175-444-08812
1175-444-08812
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO

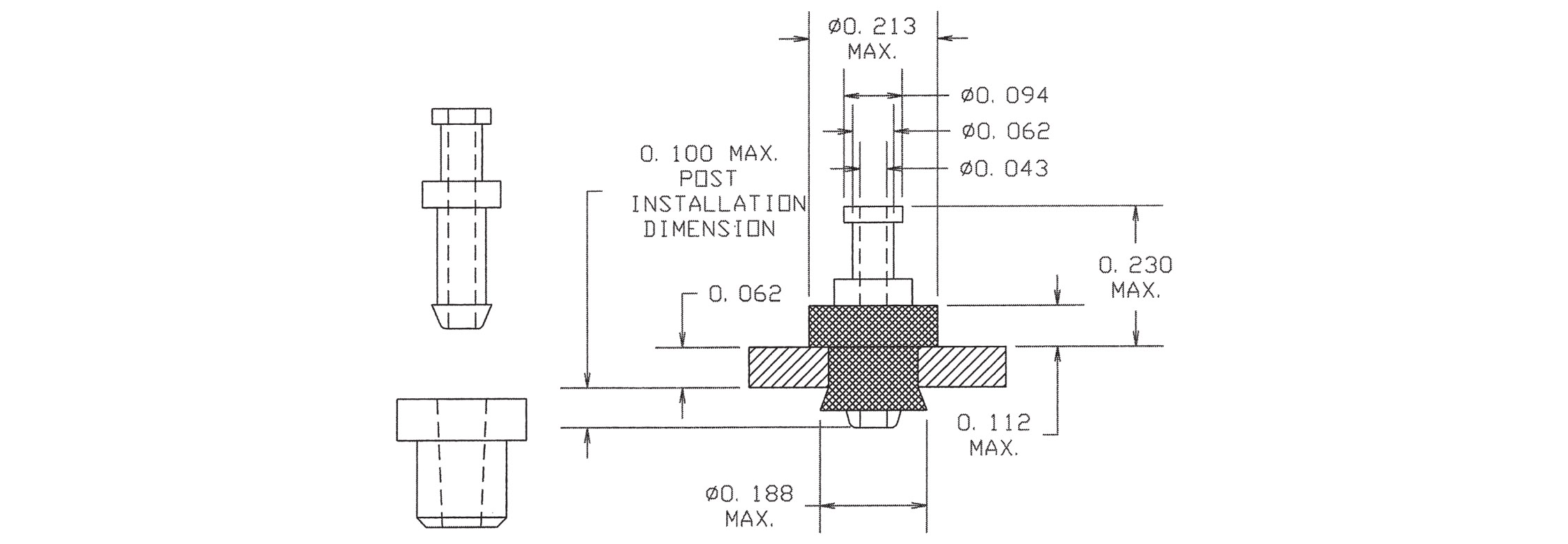

1175-462-0118
1175-462-0118
1175-462-0118
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-473-0414
1175-473-0414
1175-473-0414
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO

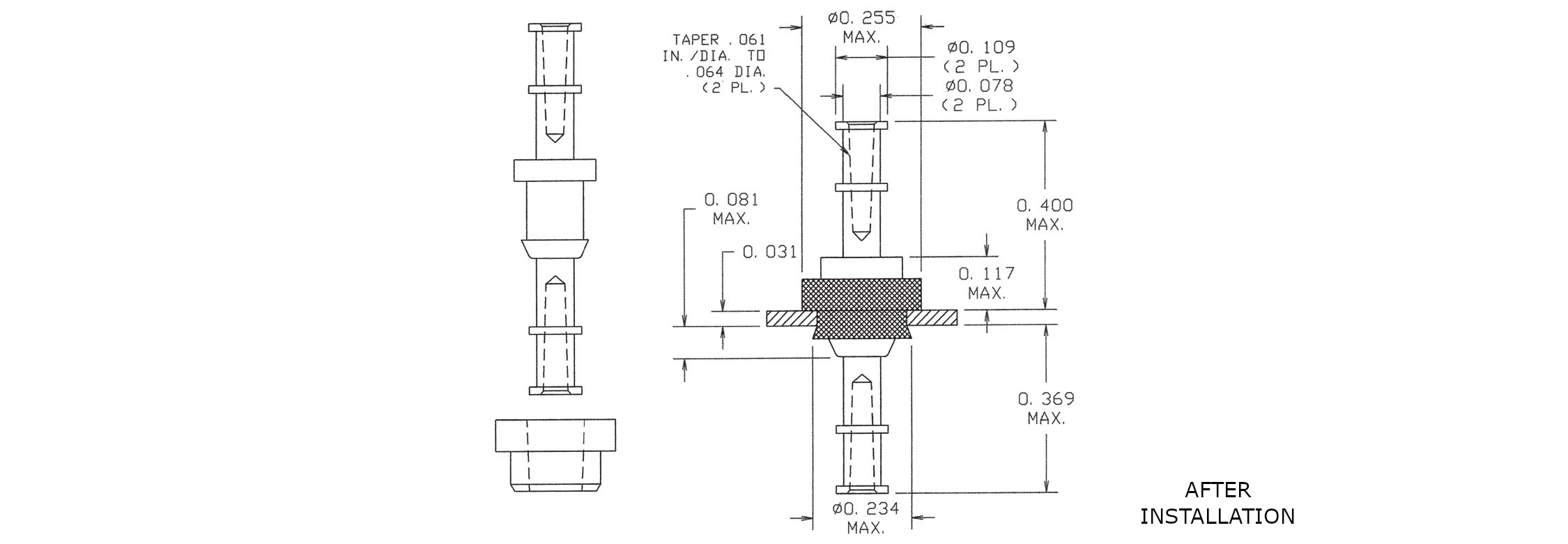

1175-491-0510
1175-491-0510
1175-491-0510
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO

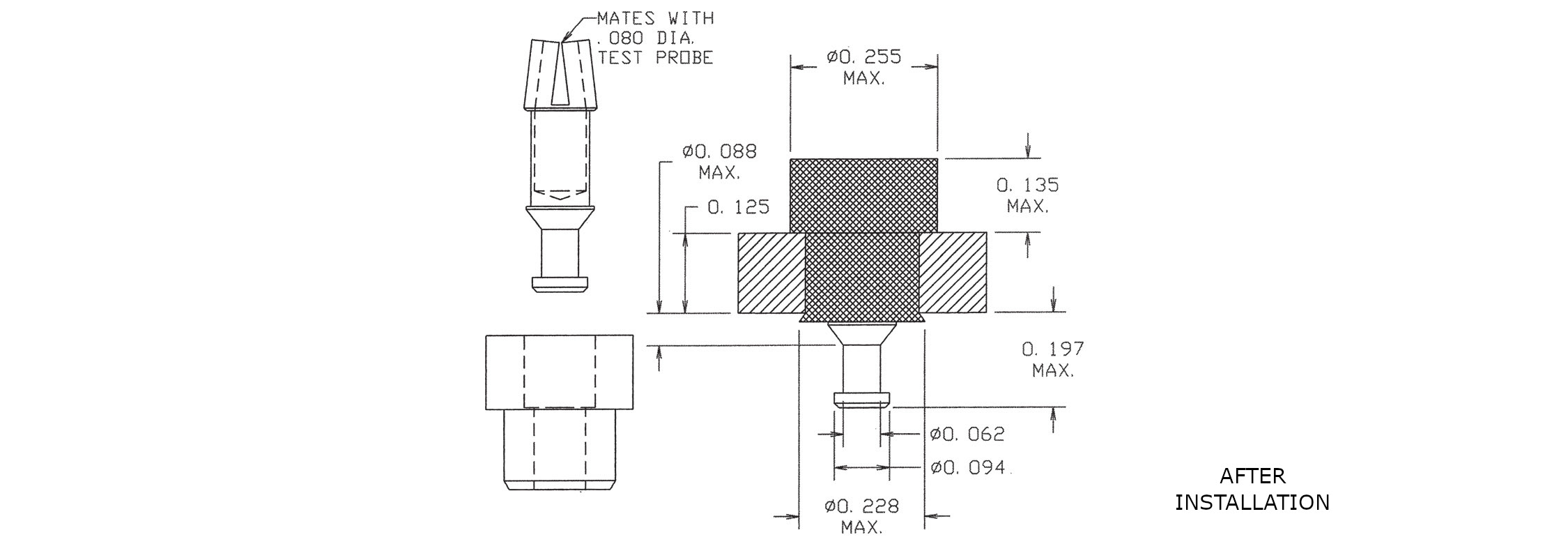

1175-514-08816
1175-514-08816
1175-514-08816
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1175-702-0312
1175-702-0312
1175-702-0312
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-712-0418
1175-712-0418
1175-712-0418
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO

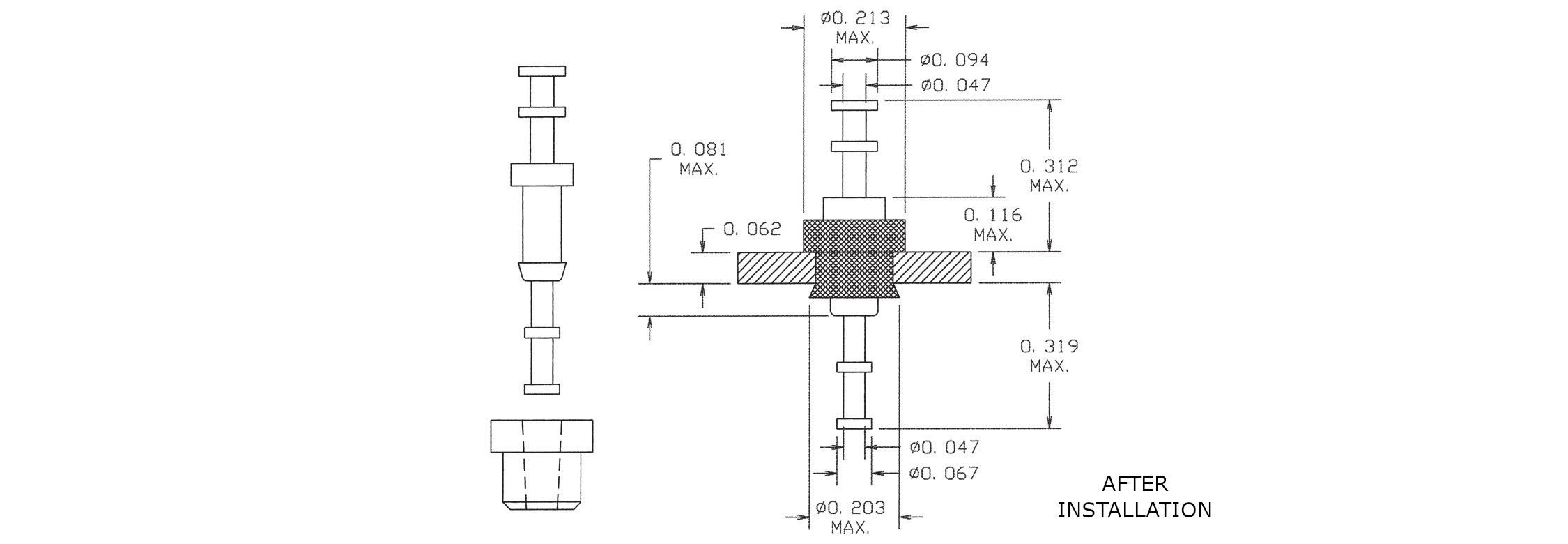

1175-722-0514
1175-722-0514
1175-722-0514
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO

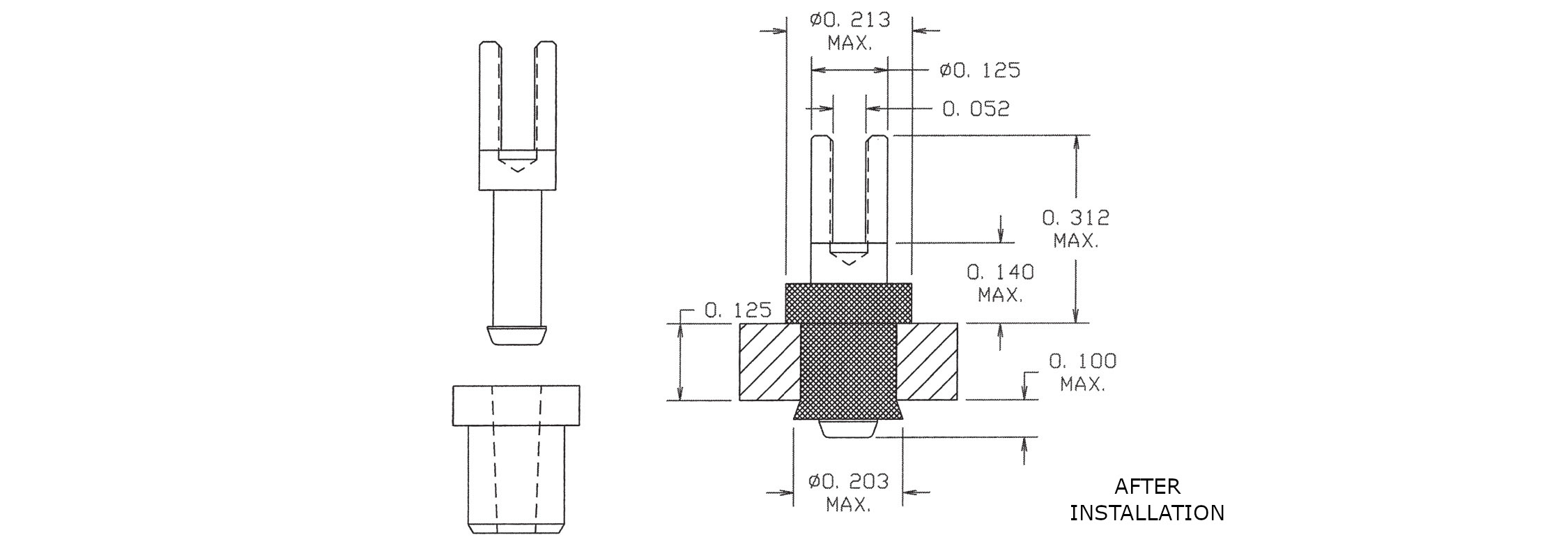

1175-734-0110
1175-734-0110
1175-734-0110
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Silver - - PTFE Black YES

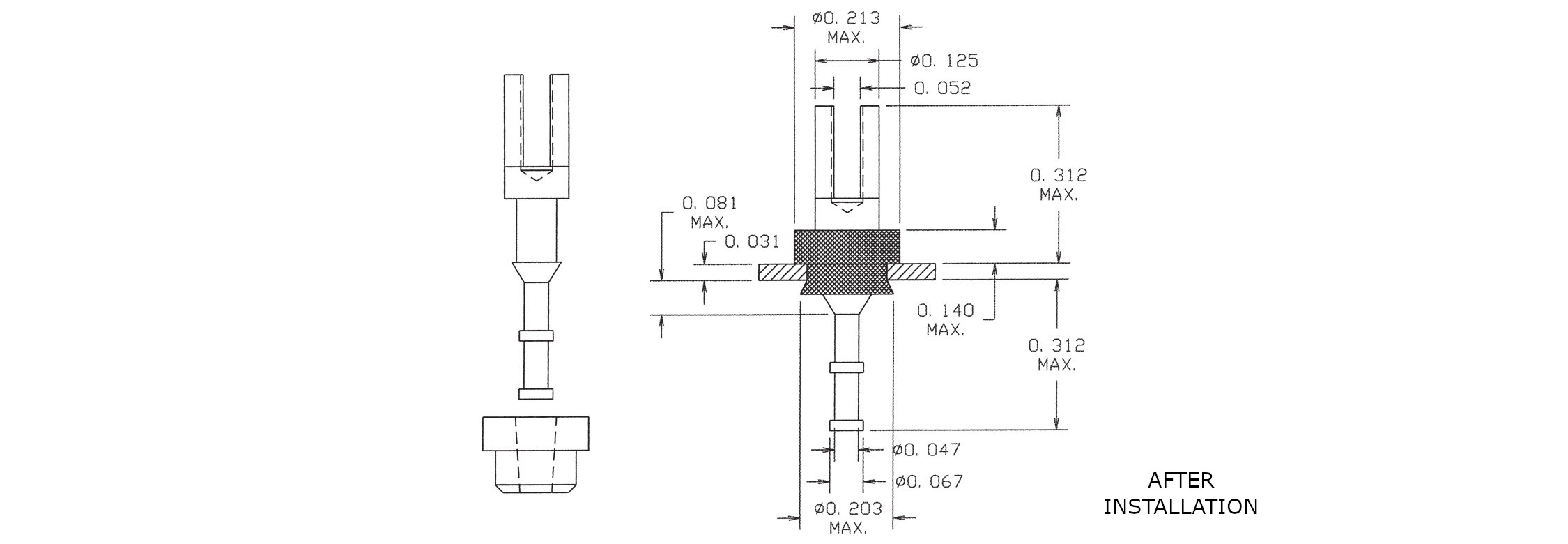

1175-751-0316
1175-751-0316
1175-751-0316
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Blue YES

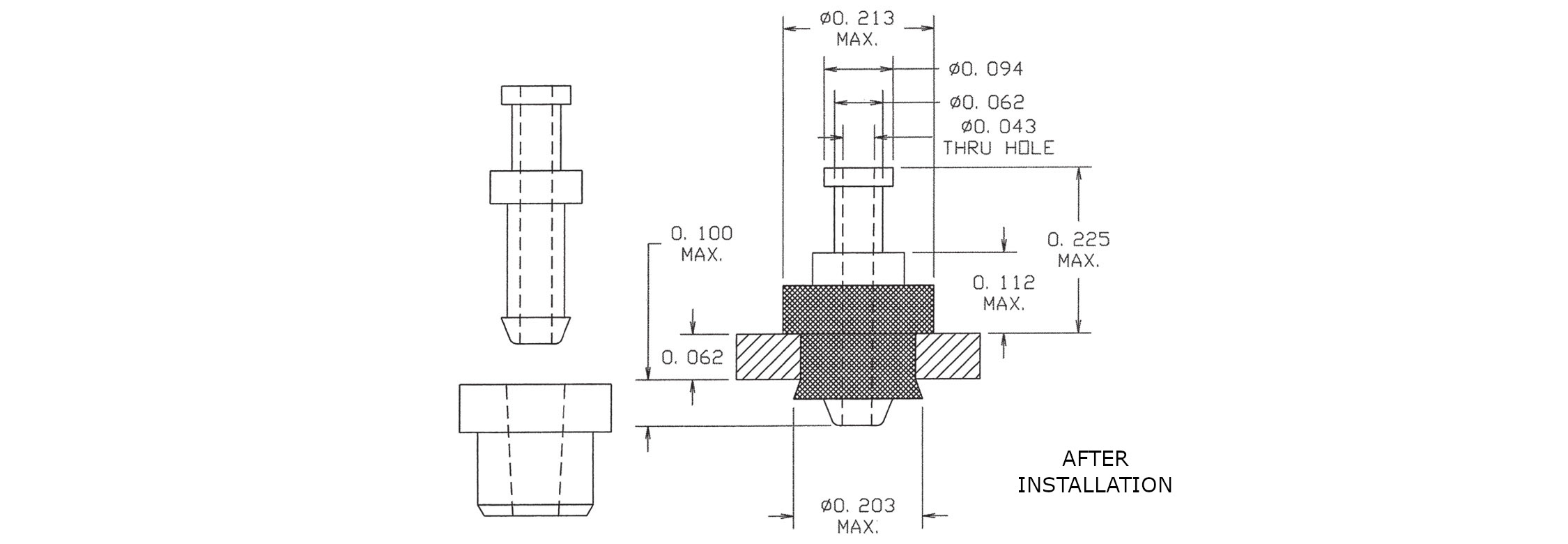

1175-762-04412
1175-762-04412
1175-762-04412
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO

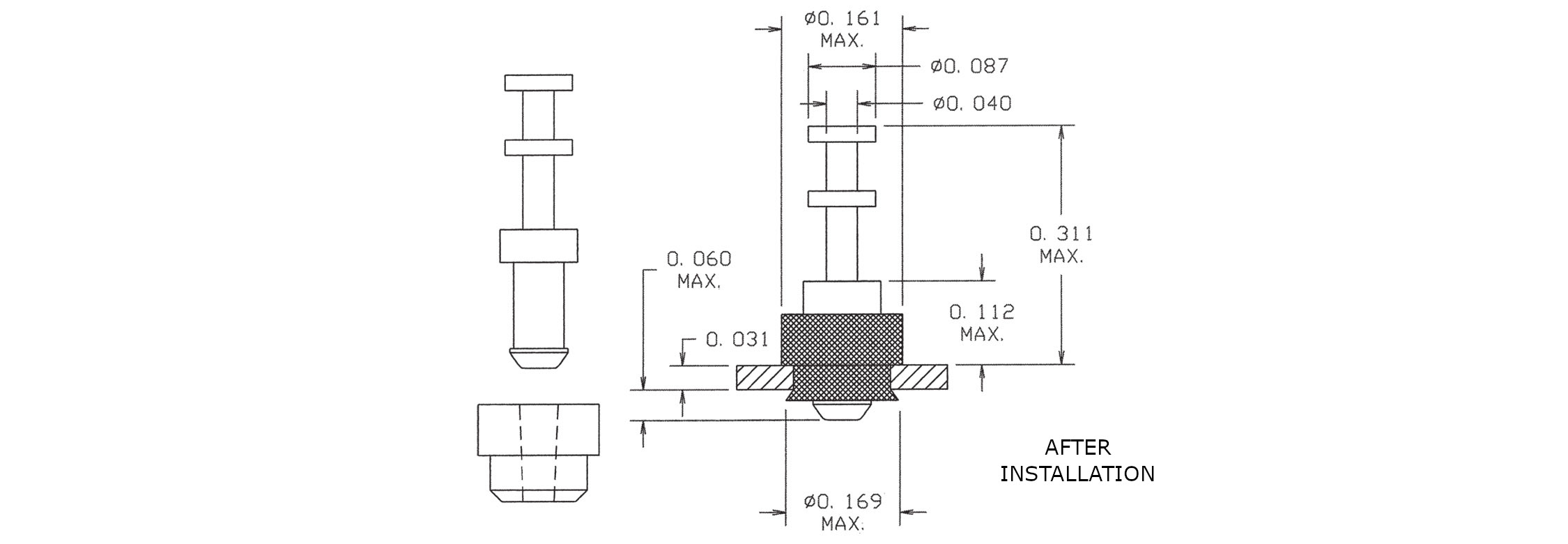

1175-821-0518
1175-821-0518
1175-821-0518
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO

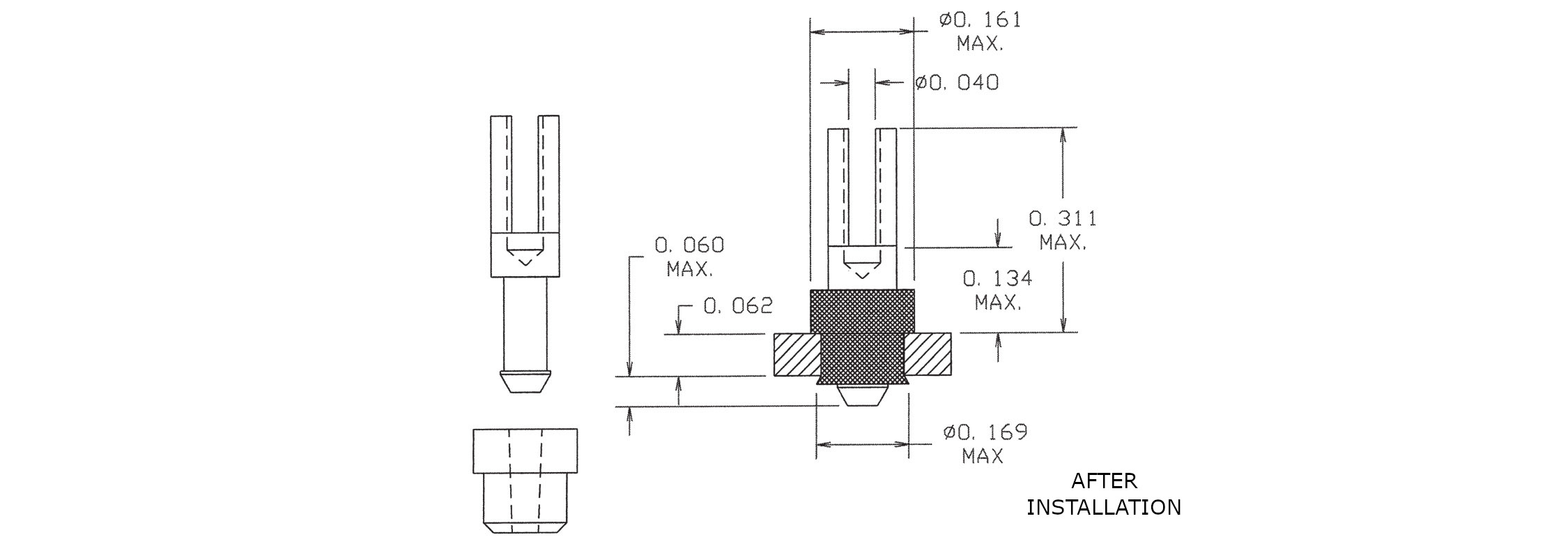

1175-842-0114
1175-842-0114
1175-842-0114
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO
1175-872-0410
1175-872-0410
1175-872-0410
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES

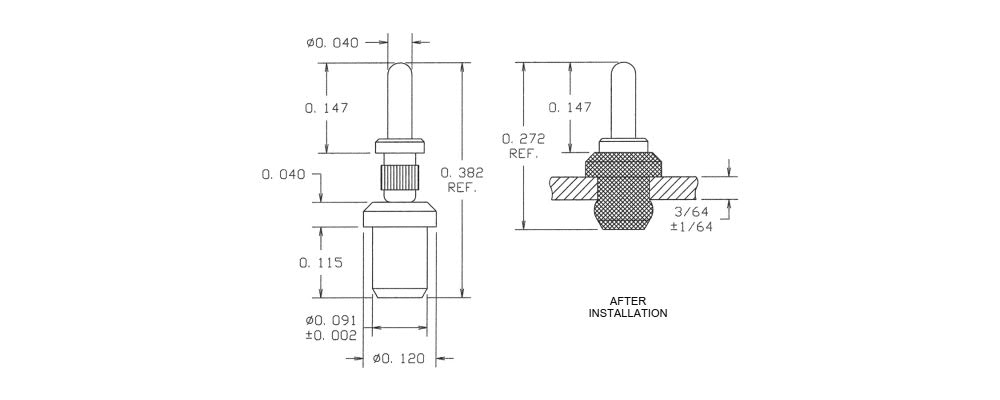

1177-02-04416
1177-02-04416
1177-02-04416
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin - - PTFE Blue YES

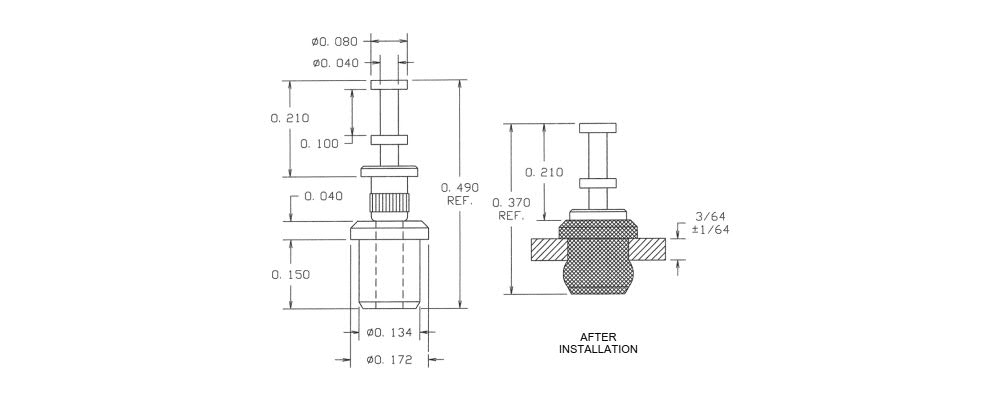

1177-11-08812
1177-11-08812
1177-11-08812
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1177-32-0118
1177-32-0118
1177-32-0118
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Gray NO
1177-41-0414
1177-41-0414
1177-41-0414
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Electro-Tin - - PTFE Yellow NO
1177-52-0510
1177-52-0510
1177-52-0510
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Electro Solder - - PTFE Black NO
