Commercial
Insulated
Pin Terminals

Filter

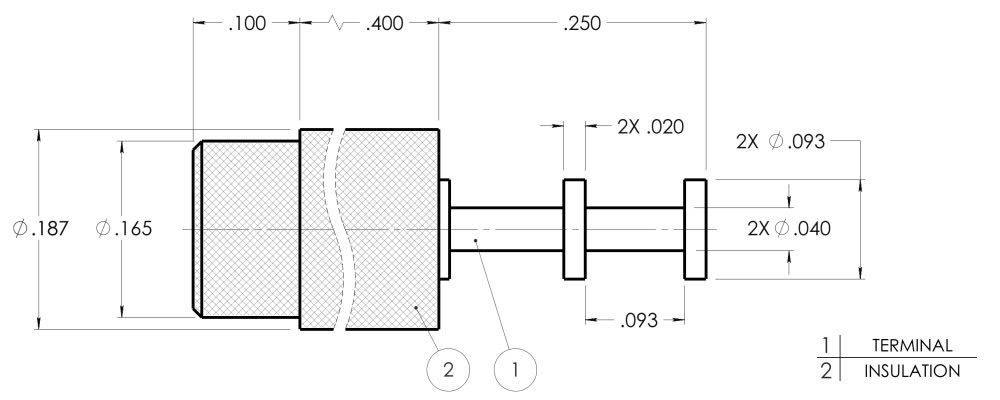

1102-44-0111
1102-44-0111
1102-44-0111
0.750" - - Press Fit 1/16 0.152 Brass Silver - - PTFE Brown NO

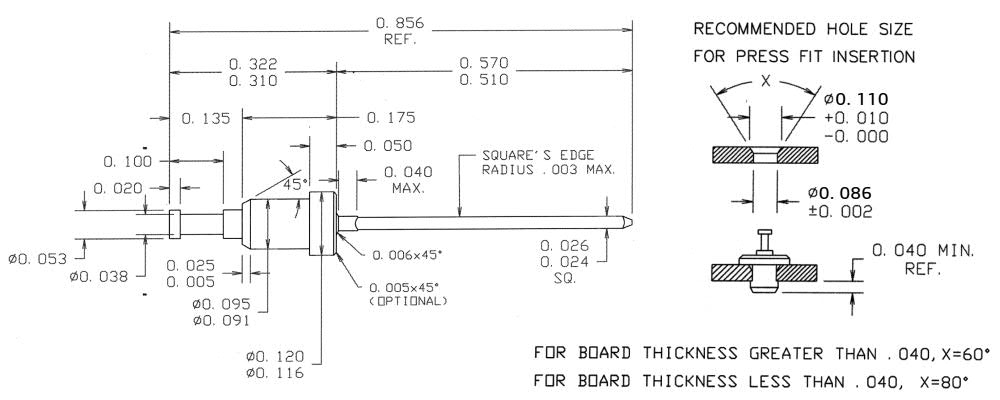

09-2078-1-0411
09-2078-1-0411
09-2078-1-0411
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Electro-Tin - - PTFE Brown NO

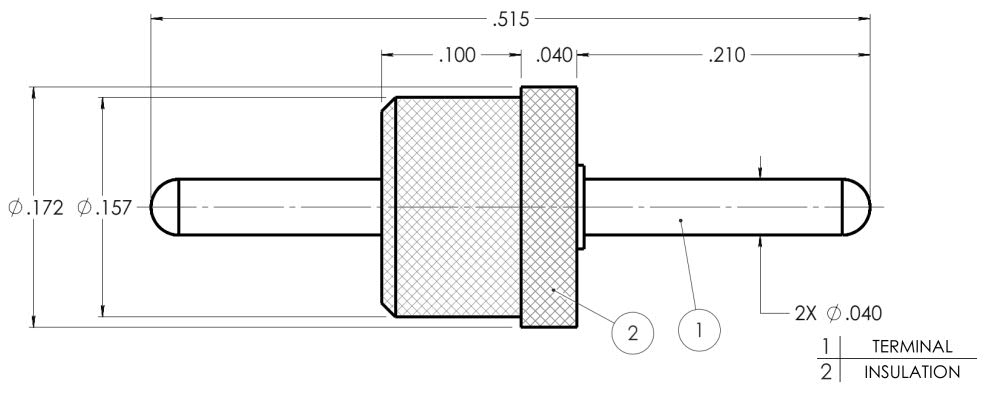

1110-39-0317
1110-39-0317
1110-39-0317
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Gold - - PTFE Violet YES

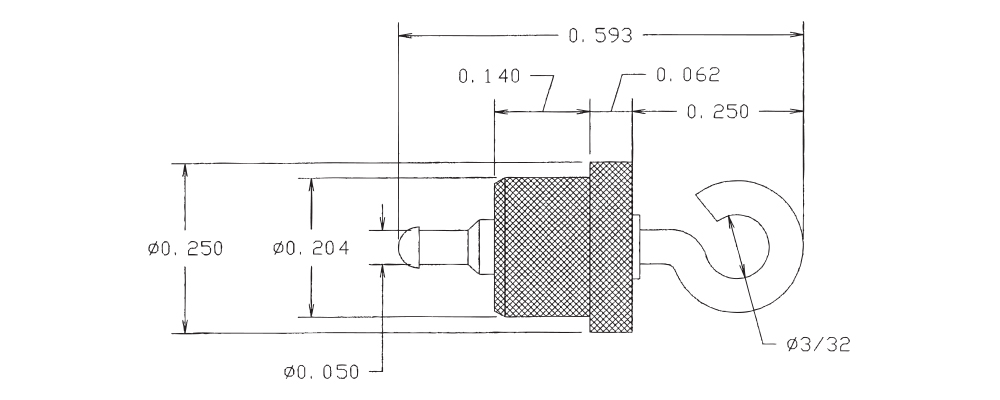

09-2094-1-04417
09-2094-1-04417
09-2094-1-04417
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin - - PTFE Violet YES

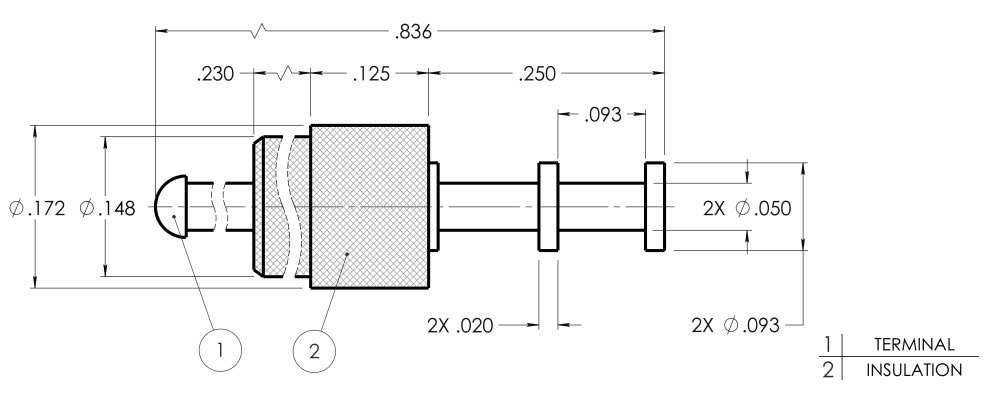

1111-19-04413
1111-19-04413
1111-19-04413
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Orange NO

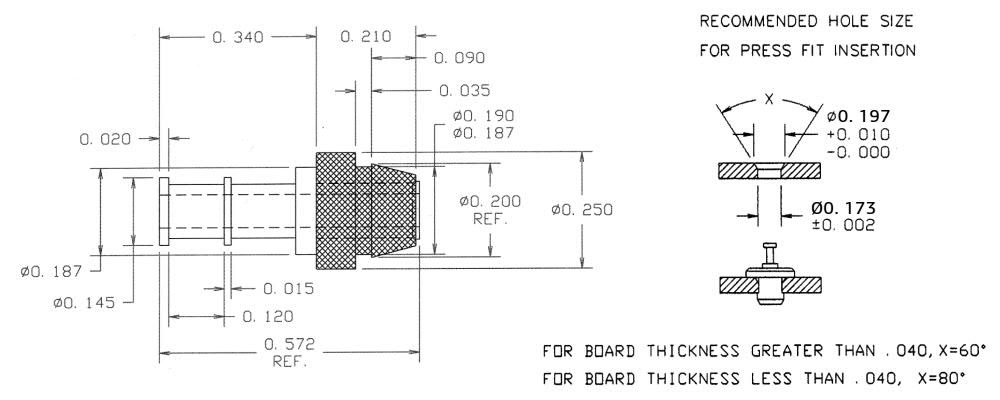

09-2101-1-08813
09-2101-1-08813
09-2101-1-08813
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Bright Tin-Lead - - PTFE Orange NO

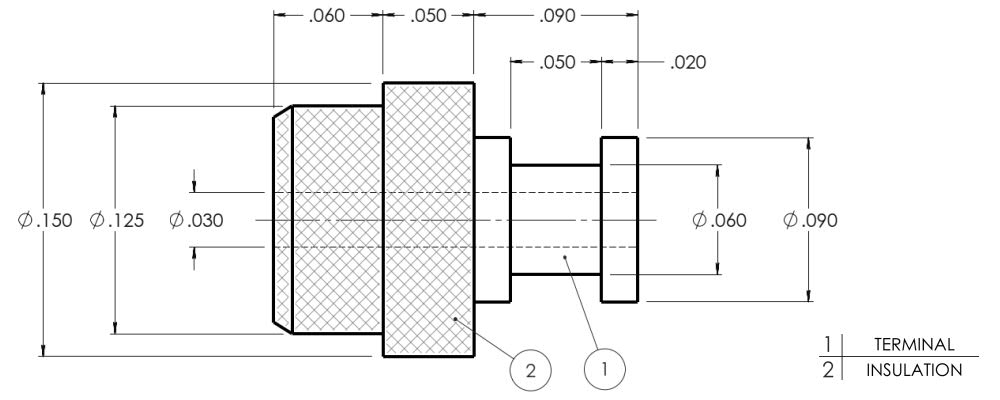

1112-05-0519
1112-05-0519
1112-05-0519
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE White NO

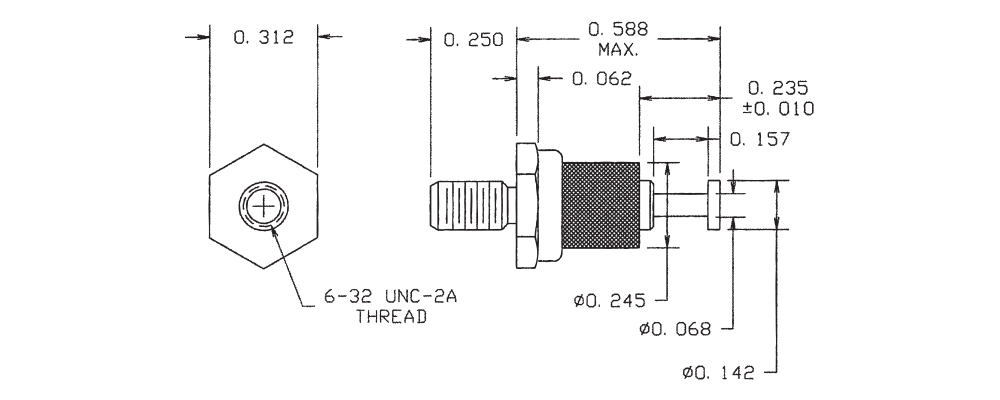

09-2112-1-0119
09-2112-1-0119
09-2112-1-0119
0.838" - - 6-32 Nut 1/8 0.144 Brass Silver Nickel Brass PTFE White YES

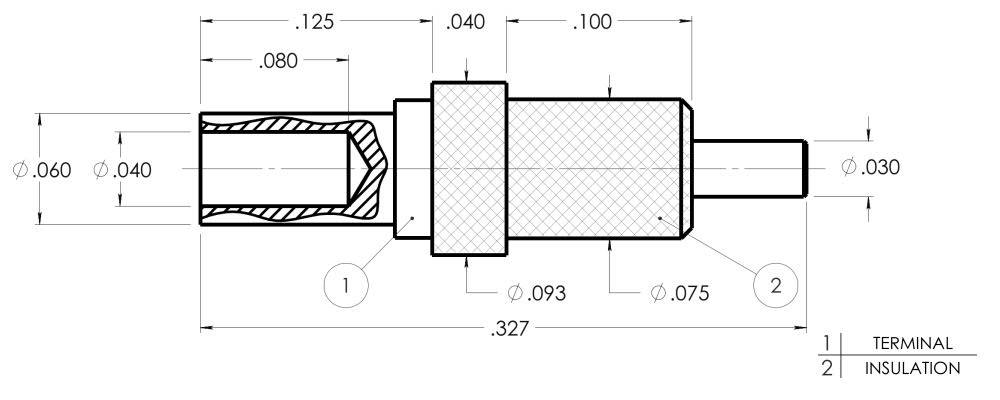

1113-54-0115
1113-54-0115
1113-54-0115
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Silver - - PTFE Green YES

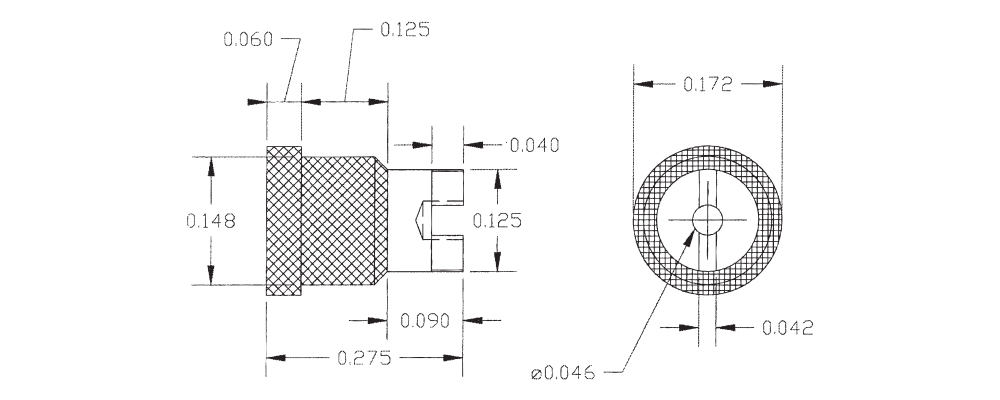

09-2121-1-0415
09-2121-1-0415
09-2121-1-0415
0.275" - - Press Fit 5/64 0.136 Brass Electro-Tin - - PTFE Green YES

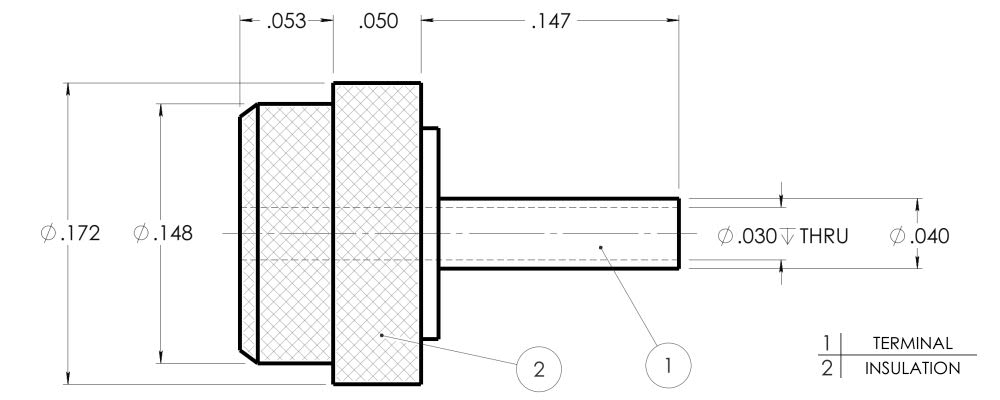

1114-18-0411
1114-18-0411
1114-18-0411
0.250" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Brown NO

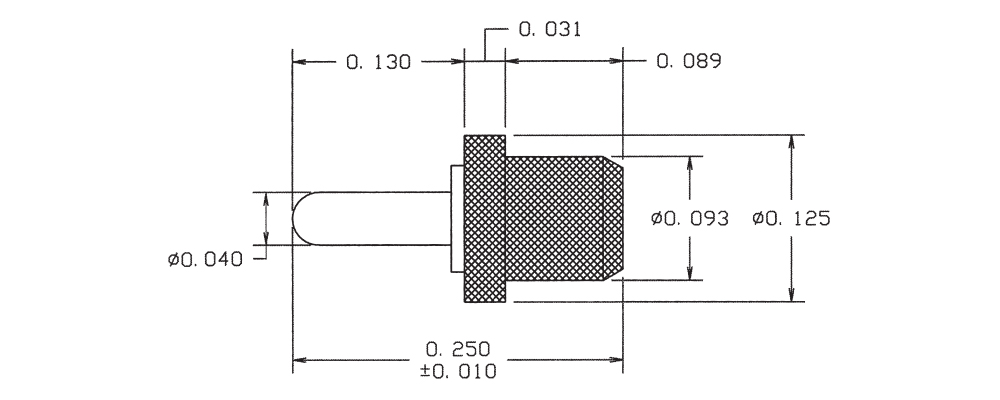

1100-04-0511
1100-04-0511
1100-04-0511
0.250" 0.040 - Press Fit 3/64 0.086 Brass Electro Solder - - PTFE Brown NO

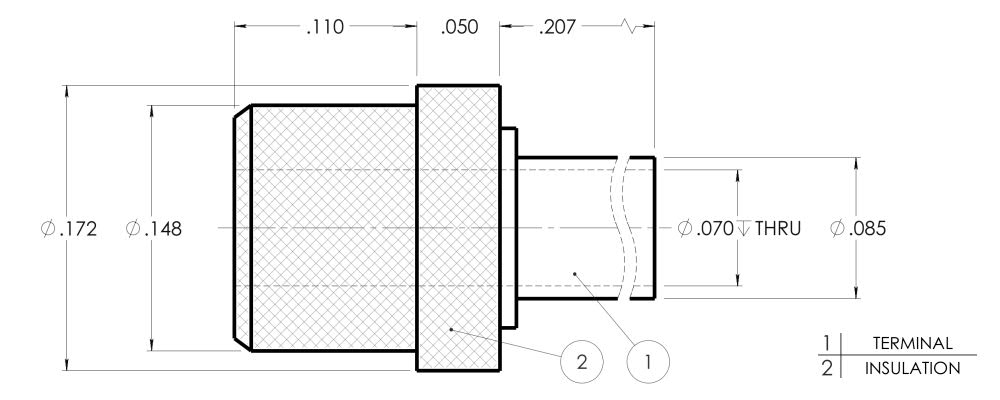

1114-24-04417
1114-24-04417
1114-24-04417
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES

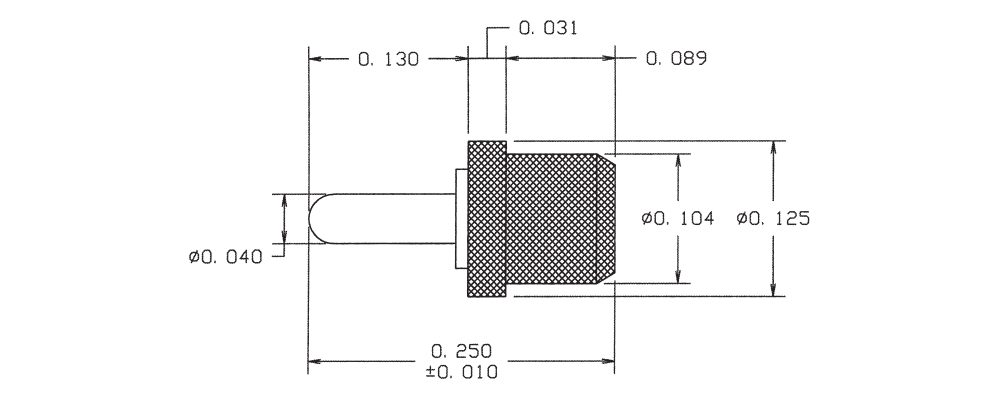

1100-08-08817
1100-08-08817
1100-08-08817
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin-Lead - - PTFE Violet NO

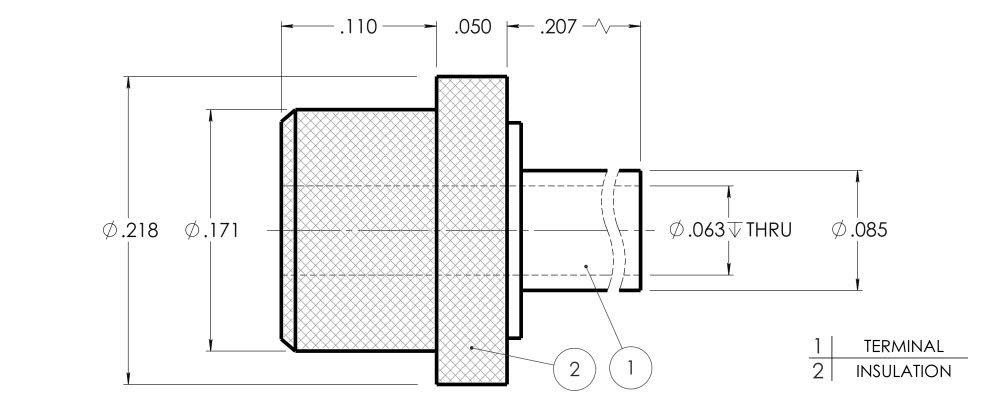

1114-27-08813
1114-27-08813
1114-27-08813
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

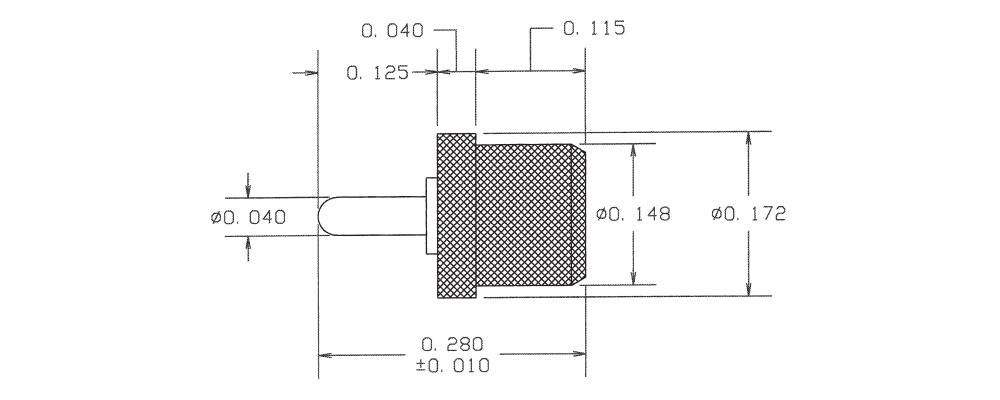

1100-14-0313
1100-14-0313
1100-14-0313
0.280" 0.040 - Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO

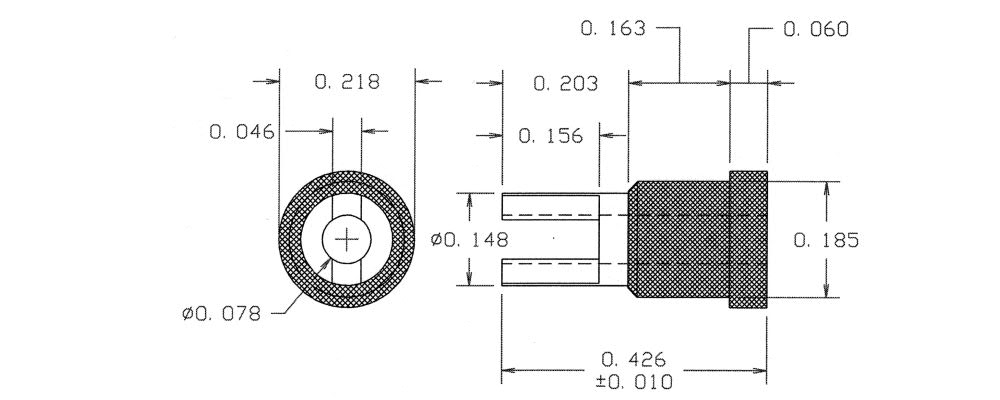

1123R-75-0119
1123R-75-0119
1123R-75-0119
0.426" - - Press Fit 1/8 0.172 Brass Silver - - PTFE White YES

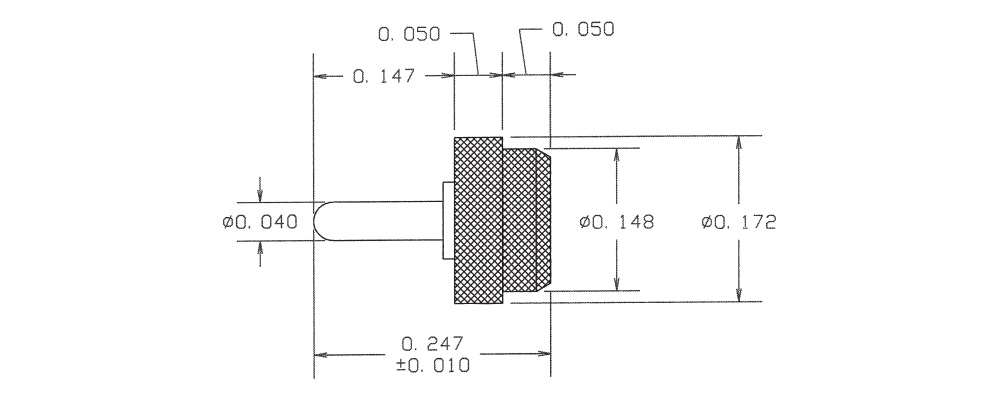

1100-18-0419
1100-18-0419
1100-18-0419
0.247" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE White YES

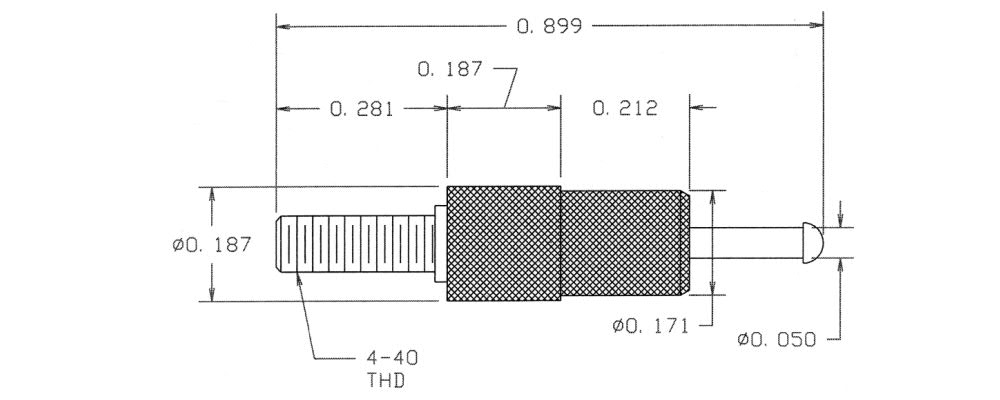

1124-10-0415
1124-10-0415
1124-10-0415
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Green YES

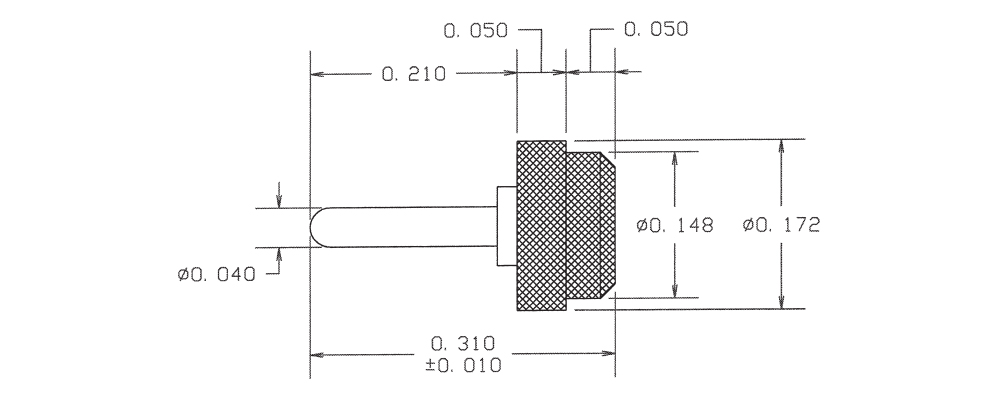

1100-22-0515
1100-22-0515
1100-22-0515
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Green NO
